Mecanum Wheel Robot with Custom Library and ESP-NOW Remote Control

This project is a Mecanum wheel robot controlled by an ESP32-based remote. It uses ESP-NOW for communication between the robot and the remote. The project also includes a custom library (mecmotor) for controlling the motors through two L298N motor drivers. The remote uses two joysticks to control the movement and speed of the robot.

Features

• Mecanum wheels for omnidirectional movement.
• ESP-NOW communication between the ESP32 robot and remote control.
• Custom 'mecmotor' library for controlling motors with predefined pin configuration.
• Remote control with two joysticks for movement and speed adjustment.
• Full circuit diagrams for both the robot and the remote.

Project Components

Robot (ESP32)

• 4 Mecanum wheels powered by 4 DC motors.
• 2 L298N motor drivers for motor control.
• ESP32 microcontroller to handle movement logic and communication.
• Custom mecmotor library for easy control of Mecanum wheels.

Remote Control (ESP32)

• 2 analog joysticks for controlling movement and speed.
• 1 potentiometer for speed adjustment.
• ESP32 microcontroller to send joystick data over ESP-NOW to the robot.

Hardware Requirements

• ESP32 x 2 (One for the robot, one for the remote)
• Mecanum wheels x 4
• DC motors x 4
• L298N motor drivers x 2
• Joysticks x 2 (For remote control)
• Potentiometer x 1 (For speed control)
• Various resistors, wires, and a breadboard.

Software Requirements

• Arduino IDE (or PlatformIO)
• ESP32 board support package installed
• Custom mecmotor library (included in the repository)
• ESP-NOW communication library (built-in with ESP32 Arduino core)

Custom mecmotor Library

The mecmotor library provides functions for controlling two L298N motor drivers with predefined pins. The library allows easy manipulation of the Mecanum wheels for forward, backward, strafe, and diagonal movements.

Library Functions

void forward(int speed);
void backward(int speed);
void strafeL(int speed);
void strafeR(int speed);
void left(int speed);
void right(int speed);
void pivotfl(int speed);
void pivotfr(int speed);
void pivotbl(int speed);
void pivotbr(int speed);

Circuit Diagrams

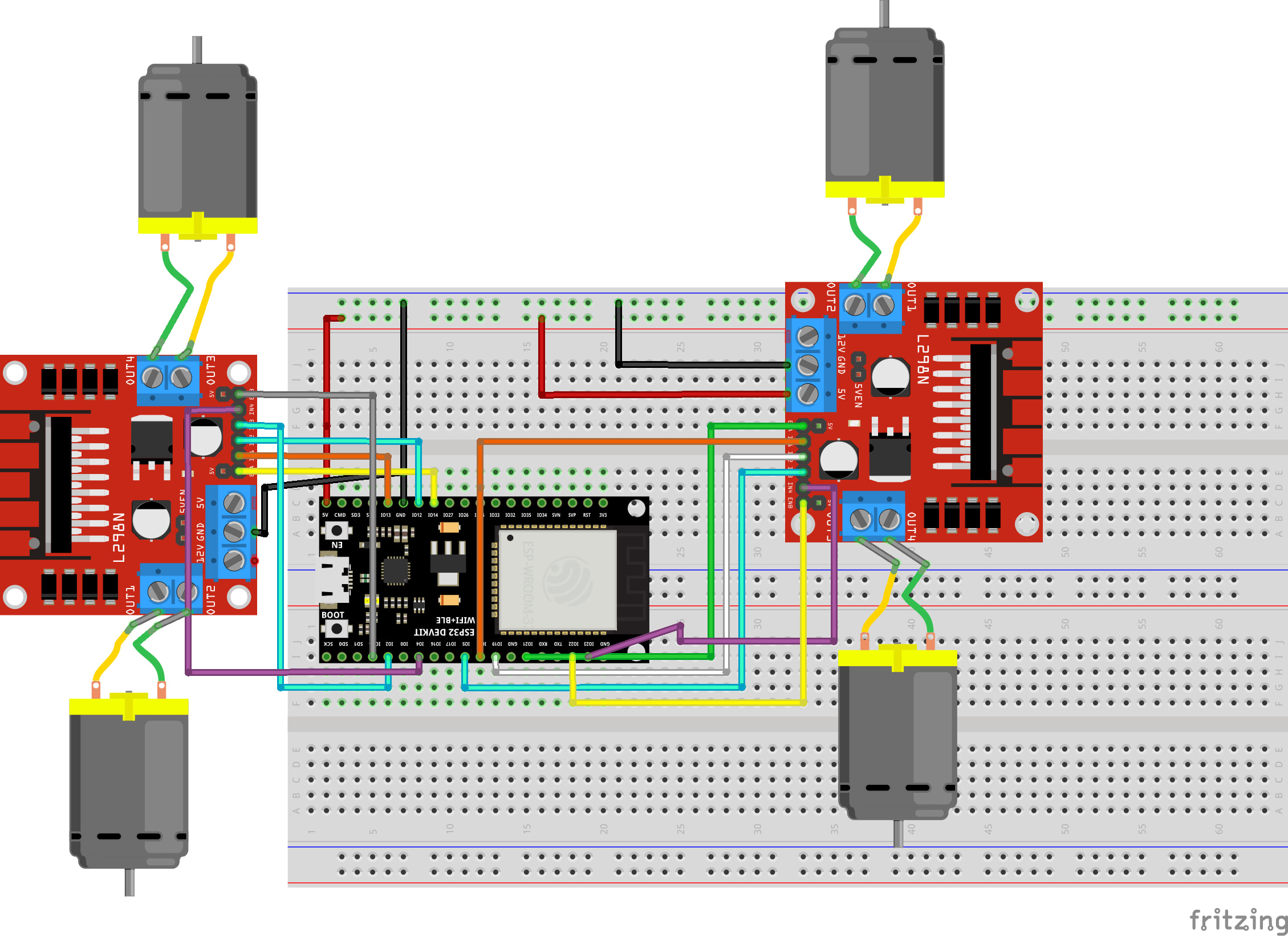

Robot Circuit

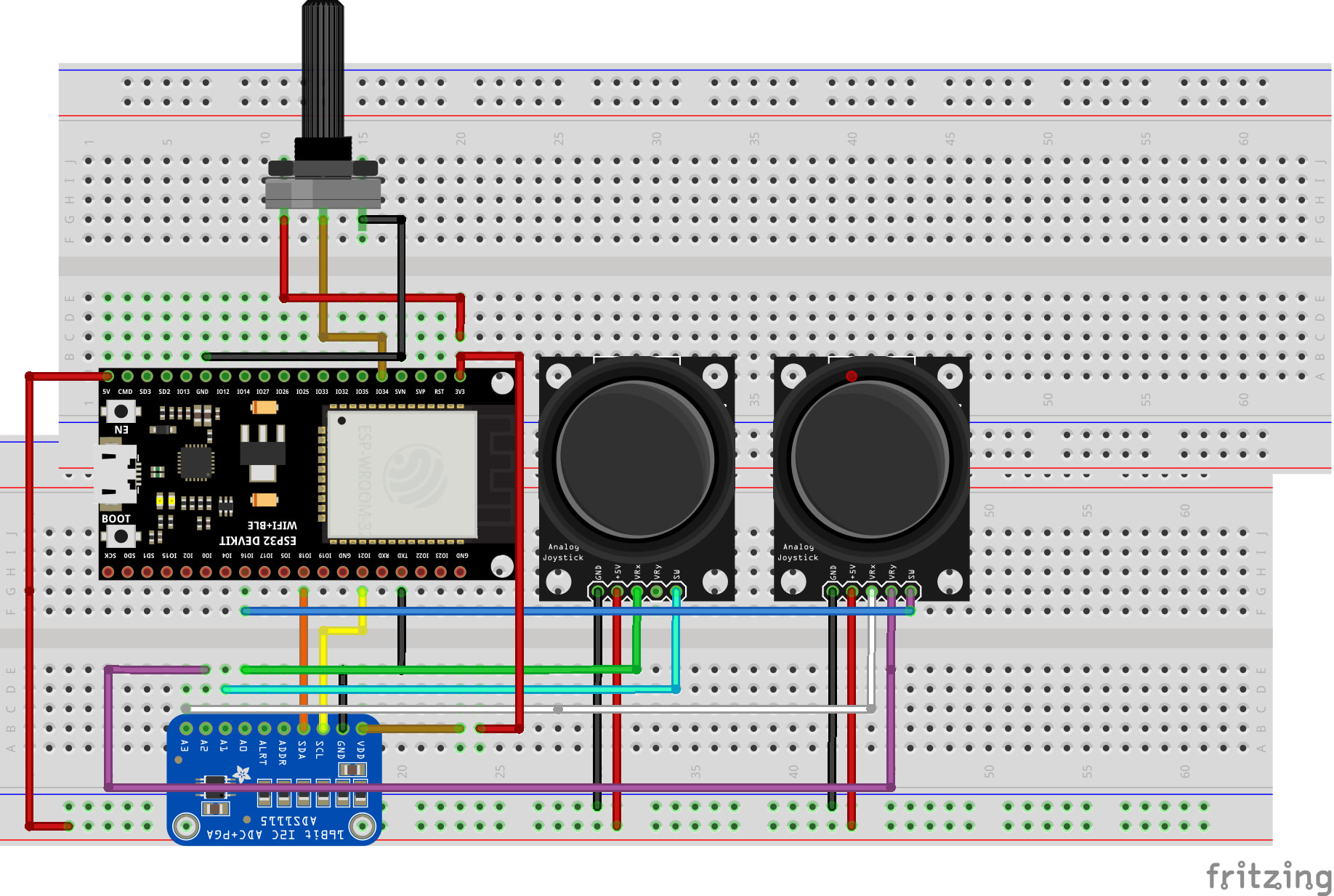

Remote Control Circuit

Installation

Dependencies

Add the mecmotor library to your Arduino libraries folder. To do this, copy the mecmotor folder into the libraries folder of your Arduino IDE.

Ensure the ESP32 board is set up in Arduino IDE. If not, follow these instructions to install it.

Wiring Setup

Follow the circuit diagrams provided above to connect your robot and remote components to the ESP32.

Upload the Code

• Upload the mechcar.ino file to the ESP32 that controls the Mecanum wheels.
• Upload the mecrc.ino file to the ESP32 used for the remote control.

Power Up the Hardware

• Power the robot's ESP32 and motors using a power supply (e.g., a battery pack).
• Power the remote control's ESP32 using a separate power source (e.g., USB or battery).

Test the Setup

Use the joysticks on the remote to control the robot's movement. The robot should move in all directions according to the joystick inputs (forward, backward, left, right, diagonal, and rotational movement).

Example Usage

Here's a sample code snippet showing how to use the mecmotor library to control the Mecanum wheels.

#include <mecmotor.h>

// Motor setup and pin configuration
mecmotor mec; // pin configuration predefined in lib

void setup() {

}

void loop() {
  mec.forward(255);  // Full speed forward
  delay(1000);       // Wait for 1 second
  mec.strafeLeft(150);  // Strafe left at medium speed
  delay(1000);       // Wait for 1 second
}
