In this session, you'll learn all about DataStax Enterprise. It's a mix between presentation and hands-on. This is obviously your reference for the hands-on content. Feel free to bookmark this page for future reference!
We have an 5 node cluster for you to play with! The cluster is currently running in both search and analytics mode so you can take advantage of both Spark and Solr on your Cassandra data.
// You can login to any of these nodes
ssh root@54.215.239.149
ssh root@52.53.237.20
ssh root@54.215.239.161
ssh root@52.53.208.182
ssh root@54.67.72.249
Password:
- OpsCenter: https://54.215.239.149/opscenter/index.html
- Spark Master: http://52.53.237.20:7080/
- Solr Admin UI: http://54.215.239.149:8983/solr/#/

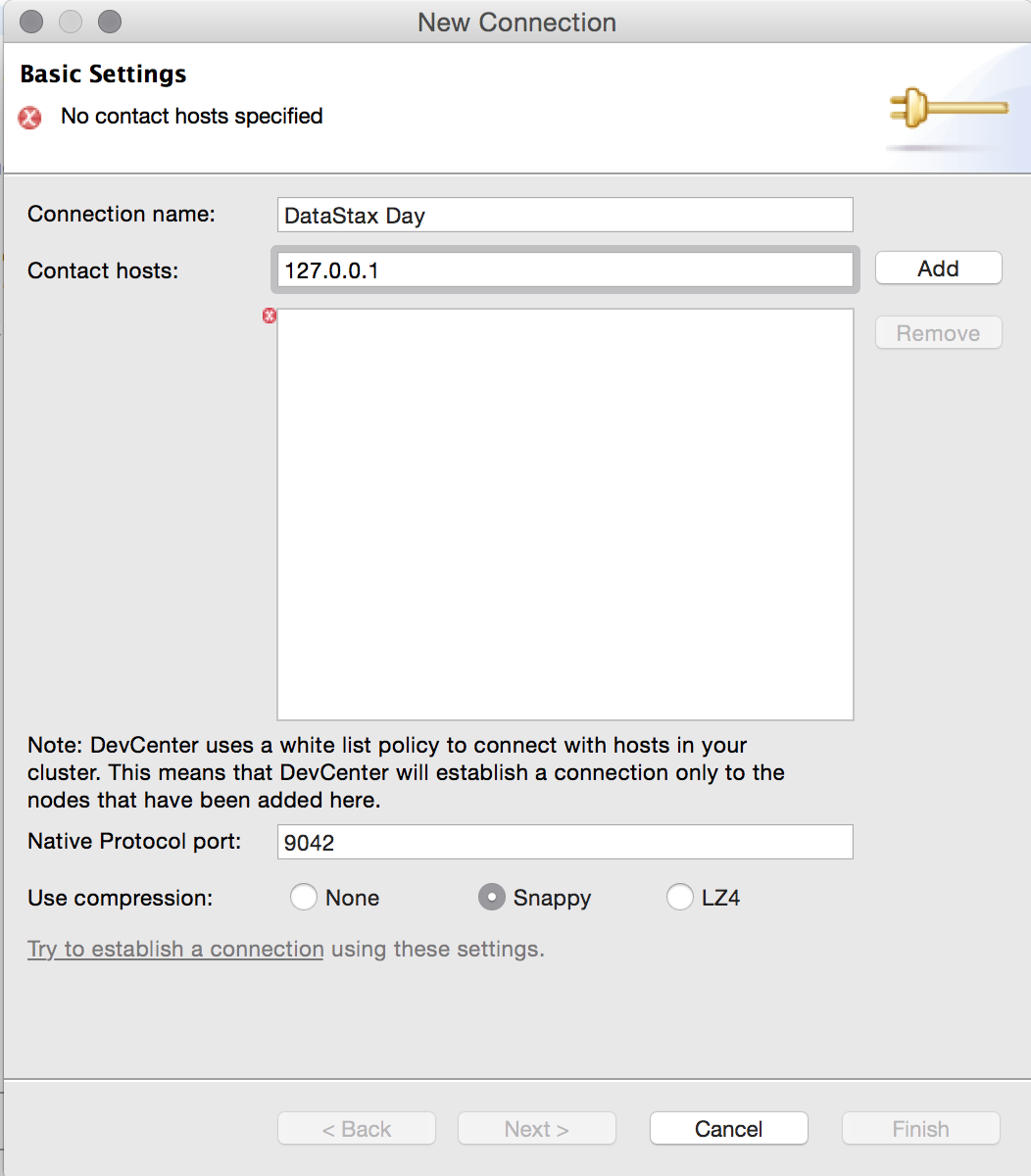

- Simply add a new connection
- Enter a name for your connection
- Enter any of the ip's from above as a contact host
- Profit.
Cassandra is the brains of DSE. It's an awesome storage engine that handles replication, availability, structuring, and of course, storing the data at lightning speeds. It's important to get yourself acquainted with the Cassandra to fully utilize the power of the DSE Stack.
Try the following CQL commands in DevCenter. In addition to DevCenter, you can also use CQLSH as an interactive command line tool for CQL access to Cassandra. Start CQLSH like this:
cqlsh 127.0.0.1
Make sure to replace 127.0.0.1 with the IP of the respective node
Let's make our first Cassandra Keyspace! If you are using uppercase letters, use double quotes around the keyspace.
CREATE KEYSPACE <Enter your name> WITH replication = {'class': 'NetworkTopologyStrategy', 'DC1': 3 };
And just like that, any data within any table you create under your keyspace will automatically be replicated 3 times.
Note: if you only have 1 node in 1 data center, use SimpleStrategy:
CREATE KEYSPACE <Enter your name> WITH replication = {'class': 'SimpleStrategy', 'replication_factor': 1 };
Let's keep going and create ourselves a table. You can follow my example or be a rebel and roll your own.
CREATE TABLE <yourkeyspace>.sales (
name text,
time int,
item text,
price double,
PRIMARY KEY (name, time)
) WITH CLUSTERING ORDER BY ( time DESC );
Yup. This table is very simple but don't worry, we'll play with some more interesting tables in just a minute.
Let's get some data into your table! Cut and paste these inserts into DevCenter or CQLSH. Feel free to insert your own data values, as well.
INSERT INTO <yourkeyspace>.sales (name, time, item, price) VALUES ('marc', 20150205, 'Apple Watch', 299.00);
INSERT INTO <yourkeyspace>.sales (name, time, item, price) VALUES ('marc', 20150204, 'Apple iPad', 999.00);
INSERT INTO <yourkeyspace>.sales (name, time, item, price) VALUES ('rich', 20150206, 'Music Man Stingray Bass', 1499.00);
INSERT INTO <yourkeyspace>.sales (name, time, item, price) VALUES ('marc', 20150207, 'Jimi Hendrix Stratocaster', 899.00);
INSERT INTO <yourkeyspace>.sales (name, time, item, price) VALUES ('rich', 20150208, 'Santa Cruz Tallboy 29er', 4599.00);
And to retrieve it:
SELECT * FROM <keyspace>.sales where name='marc' AND time >=20150205 ;
See what I did there? You can do range scans on clustering keys! Give it a try.
There are just a few key concepts you need to know when beginning to data model in Cassandra. But if you want to know the real secret sauce to solving your use cases and getting great performance, then you need to understand how Primary Keys work in Cassandra.
Let's dive in! Check out this exercise for understanding how primary keys work and the types of queries enabled by different primary keys.
Create the following tables that will be used in the fleet management example
CREATE TABLE <yourkeyspace>.metrics (
fleet_id text PRIMARY KEY,
idle_time double,
vehicles int
);
CREATE TABLE <yourkeyspace>.vehicle_hist (
fleet_id text,
vin text,
day int,
time timestamp,
hour int,
idle_time double,
PRIMARY KEY ((fleet_id, vin, day), time)
) WITH CLUSTERING ORDER BY (time DESC);
CREATE TABLE <yourkeyspace>.fleet_daily_rollup (
fleet_id text,
day int,
idle_time double,
PRIMARY KEY (fleet_id, day)
) WITH CLUSTERING ORDER BY (day ASC);
CREATE TABLE <yourkeyspace>.vehicle_daily_rollup (
fleet_id text,
day int,
idle_time double,
vin text,
PRIMARY KEY ((fleet_id, day), idle_time, vin)
) WITH CLUSTERING ORDER BY (idle_time ASC, vin ASC);
Once you have created the tables, load the data from sample file vehicle_hist_small.csv using CQL COPY
COPY <yourkeyspace>.vehicle_hist from 'vehicle_hist_small.csv' with header=true;
Another way to load data is by using Cassandra Loader or by writing a simple app
Try selecting some data:
select * from vehicle_hist where fleet_id = '985' and vin = '214876152631' and day = 20160322;
What if you want to retrieve all the history for a fleet?
select * from vehicle_hist where fleet_id = '985'
Why didn't this work? (how to do it: skip to DSE Search section below!)
Consistency in Cassandra refers to the number of acknowledgements replica nodes need to send to the coordinator for an operation to be successful while also providing good data (avoiding dirty reads).
We recommend a ** default replication factor of 3 and consistency level of LOCAL_QUORUM as a starting point**. You will almost always get the performance you need with these default settings.
In some cases, developers find Cassandra's replication fast enough to warrant lower consistency for even better latency SLA's. For cases where very strong global consistency is required, possibly across data centers in real time, a developer can trade latency for a higher consistency level.
Let's give it a shot.
During this exercise, I'll be taking down nodes so you can see the CAP theorem in action. We'll be using CQLSH for this one.
In CQLSH:
tracing on
consistency all
Any query will now be traced. Consistency of all means all 3 replicas need to respond to a given request (read OR write) to be successful. Let's do a SELECT statement to see the effects.
SELECT * FROM <yourkeyspace>.sales where name='<enter name>';
How did we do?
Let's compare a lower consistency level:
consistency local_quorum
Quorum means majority: RF/2 + 1. In our case, 3/2 = 1 + 1 = 2. At least 2 nodes need to acknowledge the request.
Let's try the SELECT statement again. Any changes in latency?
Keep in mind that our dataset is so small, it's sitting in memory on all nodes. With larger datasets that spill to disk, the latency cost become much more drastic.
Let's try this again but this time, let's pay attention to what's happening in the trace
consistency local_all
SELECT * FROM <yourkeyspace>.sales where name='<enter name>';
Take a look at the trace output. Look at all queries and contact points. What you're witnessing is both the beauty and challenge of distributed systems.
consistency local_quorum
SELECT * FROM <yourkeyspace>.sales where name='<enter name>';
This looks much better now doesn't it? LOCAL_QUORUM is the most commonly used consistency level among developers. It provides a good level of performance and a moderate amount of consistency. That being said, many use cases can warrant CL=LOCAL_ONE.
For more detailed classed on data modeling, consistency, and Cassandra 101, check out the free classes at the [DataStax Academy] https://academy.datastax.com website.
DSE Search is awesome. You can configure which columns of which Cassandra tables you'd like indexed in lucene format to make extended searches more efficient while enabling features such as text search and geospatial search.
Let's start off by indexing the tables we've already made. Here's where the dsetool really comes in handy:
dsetool create_core <yourkeyspace>.sales generateResources=true reindex=true
If you've ever created your own Solr cluster, you know you need to create the core and upload a schema and config.xml. That generateResources tag does that for you. For production use, you'll want to take the resources and edit them to your needs but it does save you a few steps.
This by default will map Cassandra types to Solr types for you. Anyone familiar with Solr knows that there's a REST API for querying data. In DSE Search, we embed that into CQL so you can take advantage of all the goodness CQL brings. Let's give it a shot.
SELECT * FROM <keyspace>.<table> WHERE solr_query='{"q":"<column>:*"}';
SELECT * FROM <keyspace>.sales WHERE solr_query='{"q":"name:marc", "fq":"item:*pple*"}';
For your reference, here's the doc that shows some of things you can do
OK! Time to work with some more interesting data. Meet Amazon book sales data:
Note: This data is already in the DB, if you want to try it at home, CLICK ME.
Click stream data:
CREATE TABLE amazon.clicks (
asin text,
seq timeuuid,
user uuid,
area_code text,
city text,
country text,
ip text,
loc_id text,
location text,
location_0_coordinate double,
location_1_coordinate double,
metro_code text,
postal_code text,
region text,
solr_query text,
PRIMARY KEY (asin, seq, user)
) WITH CLUSTERING ORDER BY (seq DESC, user ASC);
And book metadata:
CREATE TABLE amazon.metadata (
asin text PRIMARY KEY,
also_bought set<text>,
buy_after_viewing set<text>,
categories set<text>,
imurl text,
price double,
solr_query text,
title text
);
Example page of what's in the DB http://www.amazon.com/Science-Closer-Look-Grade-6/dp/0022841393/ref=sr_1_1?ie=UTF8&qid=1454964627&sr=8-1&keywords=0022841393
So what are things you can do?
Filter queries: These are awesome because the result set gets cached in memory.
SELECT * FROM amazon.metadata WHERE solr_query='{"q":"title:Noir~", "fq":"categories:Books", "sort":"title asc"}' limit 10;
Faceting: Get counts of fields
SELECT * FROM amazon.metadata WHERE solr_query='{"q":"title:Noir~", "facet":{"field":"categories"}}' limit 10;
Geospatial Searches: Supports box and radius
SELECT * FROM amazon.clicks WHERE solr_query='{"q":"asin:*", "fq":"+{!geofilt pt=\"37.7484,-122.4156\" sfield=location d=1}"}' limit 10;
Joins: Not your relational joins. These queries 'borrow' indexes from other tables to add filter logic. These are fast!
SELECT * FROM amazon.metadata WHERE solr_query='{"q":"*:*", "fq":"{!join from=asin to=asin force=true fromIndex=amazon.clicks}area_code:415"}' limit 5;
Fun all in one.
SELECT * FROM amazon.metadata WHERE solr_query='{"q":"*:*", "facet":{"field":"categories"}, "fq":"{!join from=asin to=asin force=true fromIndex=amazon.clicks}area_code:415"}' limit 5;
Want to see a really cool example of a live DSE Search app? Check out KillrVideo and its Git to see it in action.
Going back to our query from before, get all the history for a fleet, here's how you would do it with DSE Search
dsetool create_core <yourkeyspace>.vehicle_hist generateResources=true reindex=true
You can view the core via Solr Admin UI
Lets try again to get all the history for fleet ID 985:
select * from vehicle_hist where solr_query = '{"q":"fleet_id:985"}';
Return all the activity on March 23, 2016
select * from vehicle_hist where solr_query = '{"q": "time:[2016-03-21T00:00:00Z TO 2016-03-23T23:59:59Z] "}';
What about vehicles that are idle for more than 11.999 sec, sorted by by most idle:
select * from vehicle_hist where solr_query = '{"q":"idle_time:[11.999 TO *]","sort":"idle_time desc"}' ;
Top 10 days most idle:
select day, idle_time from vehicle_hist where solr_query = '{"q":"*:*","sort":"idle_time desc"}' limit 10 ;
Count of history per day for Fleet ID 985
select * from vehicle_hist where solr_query='{"q":"fleet_id:985","facet":{"range":"time", "f.time.range.start":"2016-03-19T00:00:00Z", "f.time.range.end":"2016-03-29T23:59:59Z", "f.time.range.gap":"+1DAY", "method":"fcs"}}'
** Looking for additional DSE Search examples, check out this tutorial **
Spark is general cluster compute engine. You can think of it in two pieces: Streaming and Batch. Streaming is the processing of incoming data (in micro batches) before it gets written to Cassandra (or any database). Batch includes both data crunching code and SparkSQL, a hive compliant SQL abstraction for Batch jobs.
It's a little tricky to have an entire class run streaming operations on a single cluster, so if you're interested in dissecting a full scale streaming app, check out THIS git.
Spark has a REPL we can play in. To make things easy, we'll use the SQL REPL:
dse spark-sql --conf spark.ui.port=<Pick a random 4 digit number> --conf spark.cores.max=1
Notice the spark.ui.port flag - Because we are on a shared cluster, we need to specify a radom port so we don't clash with other users. We're also setting max cores = 1 or else one job will hog all the resources.
Try some CQL commands
use <your keyspace>;
SELECT * FROM <your table> WHERE...;
And something not too familiar in CQL...
SELECT sum(price) FROM <your table>...;
Let's try having some fun on that Amazon data:
SELECT sum(price) FROM metadata;
SELECT m.title, c.city FROM metadata m JOIN clicks c ON m.asin=c.asin;
SELECT asin, sum(price) AS max_price FROM metadata GROUP BY asin ORDER BY max_price DESC limit 1;
Spark Notebook
Spark Notebook is an awesome tool for exploring Spark and making simple visualizations.
Have fun with it! See what you come up with :)
Most of us love to have tools to monitor and automate database operations. For Cassandra, that tool is DataStax OpsCenter. If you prefer to roll with the command line, then two core utilities you'll need to understand are nodetool and dsetool.
Utilities you'll want to know:
nodetool //Cassandra's main utility tool
dsetool //DSE's main utility tool
nodetool Examples:
nodetool status //shows current status of the cluster
nodetool tpstats //shows thread pool status - critical for ops
dsetool Examples:
dsetool status //shows current status of cluster, including DSE features
dsetool create_core //will create a Solr schema on Cassandra data for Search
The main log you'll be taking a look at for troubleshooting outside of OpsCenter:
/var/log/cassandra/system.log
