            🖐️  HAND GESTURE MOUSE CONTROLLER  🖐️

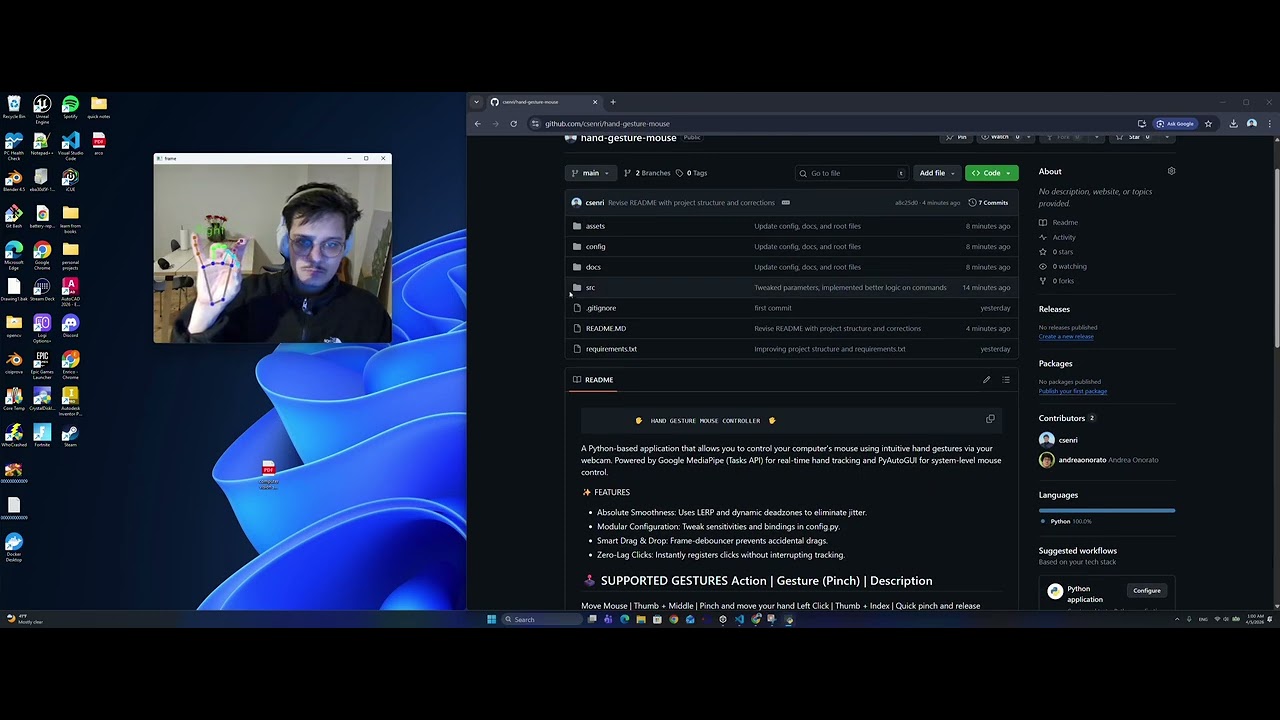

A Python-based application that allows you to control your computer's mouse using intuitive hand gestures via your webcam. Powered by Google MediaPipe (Tasks API) for real-time hand tracking and PyAutoGUI for system-level mouse control. Watch the demo ✨ FEATURES

  • Absolute Smoothness: Uses LERP and dynamic deadzones to eliminate jitter.
  • Modular Configuration: Tweak sensitivities and bindings in config.py.
  • Smart Drag & Drop: Frame-debouncer prevents accidental drags.
  • Zero-Lag Clicks: Instantly registers clicks without interrupting tracking.

🕹️ SUPPORTED GESTURES Action | Gesture (Pinch) | Description

Move Mouse | Thumb + Middle | Pinch and move your hand Left Click | Thumb + Index | Quick pinch and release Double Click | Thumb + Index (x2) | Two quick pinches in a row Right Click | Thumb + Pinky | Quick pinch and release Scroll | Thumb + Ring | Pinch and move hand vertically Drag & Drop | Thumb + Index + Ring | Pinch, hold, and move

Pro Tip: For best accuracy, keep non-used fingers straight and open!

🛠️ PREREQUISITES Python 3.9+ installed. Run the following command: pip install .\requirements.txt

📦 MEDIAPIPE MODEL

  1. Download the hand_landmarker.task file from official MediaPipe docs.
  2. Create a folder named 'models' in your project root.
  3. Place the downloaded .task file inside the 'models' folder.

📂 Project Structure

├── assets/
│   └── structure points.png      # Reference images and visual assets
├── config/
│   └── config.py                 # Configuration and gesture bindings
├── docs/
│   └── instructions.md           # Additional project documentation
├── models/
│   └── hand_landmarker.task      # Download Mediapipe model
├── src/
│   ├── main.py                   # Main execution loop
│   ├── gestures.py               # Math and logic for gesture detection
│   └── utils.py                  # Drawing utilities for visualization
├── README.MD                     # Main project documentation
└── requirements.txt              # Python dependencies list

🚀 HOW TO RUN

  1. Clone this repository.
  2. Ensure your webcam is connected.
  3. Download Mediapipe Model
  4. Run the following command: pip install .\requirements.txt
  5. Run the main script: python src/main.py Press q in the camera window to safely quit the application.

⚙️ CONFIGURATION (config.py) You can easily customize the application's behavior without touching the core logic:

  • CAMERA_INDEX: Change to 0 or 1 if using an external webcam.
  • MOUSE_SENSITIVITY: Increase for faster cursor movement.
  • SMOOTH_TIME: Adjust LERP smoothing (lower = smoother but delayed).
  • DEADZONE: Pixel threshold to ignore micro-jitters.
  • TARGET_HAND: Choose 'Right', 'Left', or 'Both'.
  • SHOW_VISUALIZATION: Set to False to boost performance.

📝 LICENSE This project is open-source and available under the MIT License.

======================================================================
