PhyloSOLID

Tree building from single-cell sequencing data (scRNA-seq and scDNA-seq)

Important Note for Users:

PhyloSOLID is under active development, especially during its preprint stage. The software and its associated resources are continuously being updated and improved.

Our current priority is optimizing the runtime efficiency of the core tree-building pipeline, particularly for large datasets with high mutation counts. We are actively addressing performance bottlenecks while maintaining full model accuracy and all constraints.

If you encounter any issues, have feature requests, or need guidance, please do not hesitate to contact us. We are committed to providing timely support and would greatly appreciate your feedback to make PhyloSOLID better for the entire community. You can reach us at the emails provided in the Contact section.

What Will You Get?

PhyloSOLID takes your single-cell sequencing data and produces phylogenetic trees that reveal the evolutionary relationships among cells. Here's the complete output structure after running the pipeline:

your_results/
└── YOUR_SAMPLE/
    ├── 01_features/                # Feature extraction results
    │   ├── depth_in_spots/
    │   └── YOUR_SAMPLE.benchmark_patched.feature.txt
    │
    ├── 02_treeinput/               # Tree input files
    │   ├── treeinput/
    │   └── data/
    │
    ├── 03_tree_building/           # ★ Tree building results
    │   └── mutation_integrator/
    │       └── phylo/
    │           ├── final_cleaned_tree_node.txt                                        # ★ Mutation tree (indented node-list format)
    │           ├── final_cleaned_M_full_basedPivots.filtered_sites_inferred.CFMatrix  # ★ Conflict-free cell-by-mutation matrix
    │           ├── final_cleaned_I_full_withNA3_for_circosPlot.txt                    # Input genotype matrix for visualization
    │           ├── df_flipping_count_for_each_mut.txt                                 # Per-mutation flipping statistics
    │           └── df_total_flipping_count.txt                                        # Total flipping statistics
    │
    └── 04_visualization/           # ★ PhyloSOLIDvis output (recommended directory)
        ├── No_target.circle_tree_output_as_point.pdf        # ★ Circular phylogenetic tree (circos plot)
        ├── heatmap_and_histograms_for_our_tree.pdf          # ★ Mutation heatmap with histograms
        ├── legend_components.circos_annotation.pdf          # Circos annotation legend
        ├── legend_components.total_flipping_count.pdf       # Flipping count legend
        ├── sorted_cf_matrix.txt                             # Sorted mutation matrix
        ├── ordered_metadata_for_heatmap.txt                 # Heatmap ordering data
        └── phylo_tree.rds                                   # Phylogenetic tree object (RDS)

Two key outputs you'll work with:

03_tree_building/: Contains the phylogenetic tree (celltree.newick) and the conflict-free mutation matrix used to build it

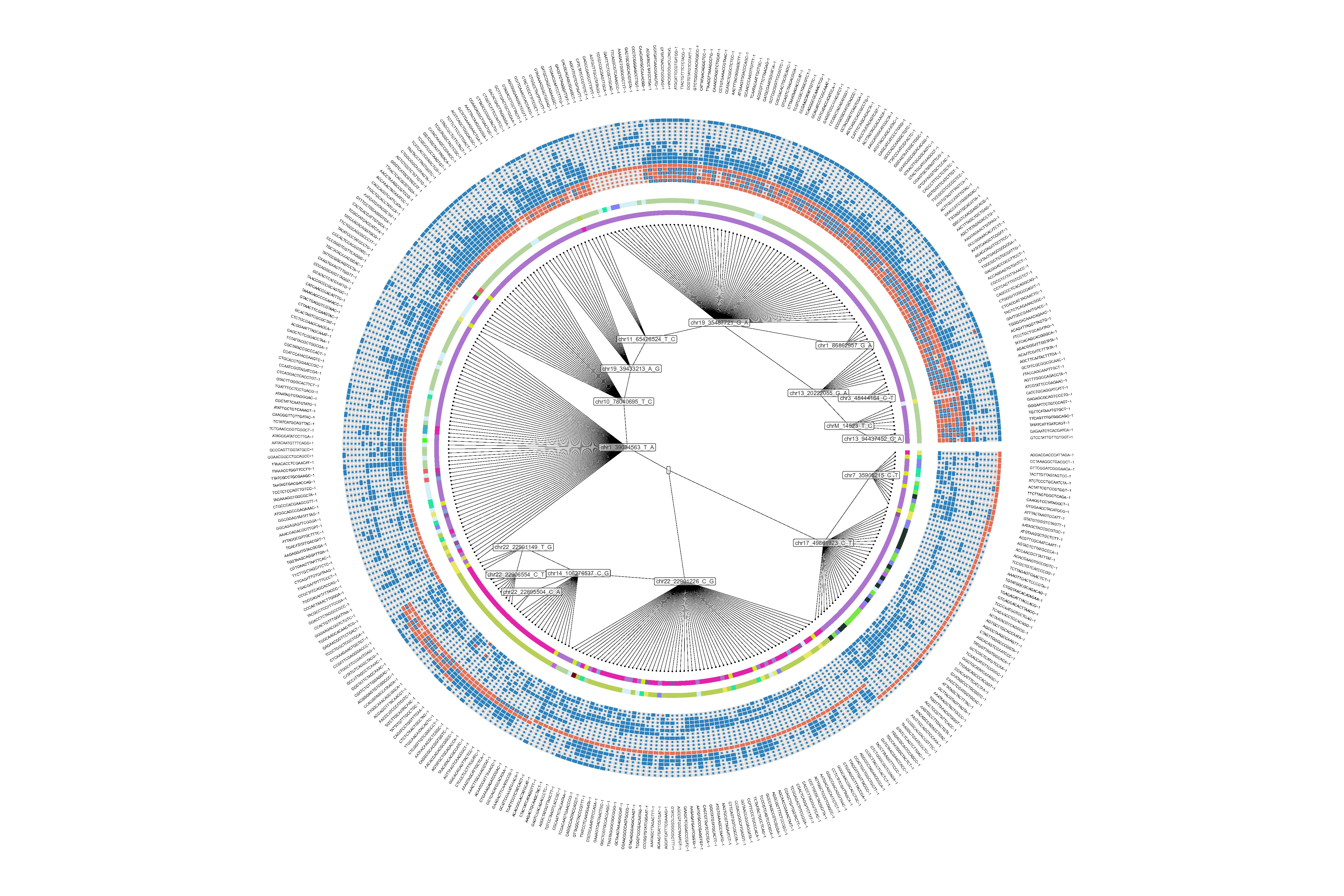

04_visualization/: Publication-ready circos plots and heatmaps generated by PhyloSOLIDvis

Visualization ready: Use the phylo/ directory (in 03_tree_building/) as input to PhyloSOLIDvis to generate publication-ready circos plots and mutation heatmap plots.

Overview

PhyloSOLID is a comprehensive pipeline for building phylogenetic trees from single-cell sequencing data. It supports both scRNA-seq and scDNA-seq modes, with features for mutation filtering, tree construction, and visualization.

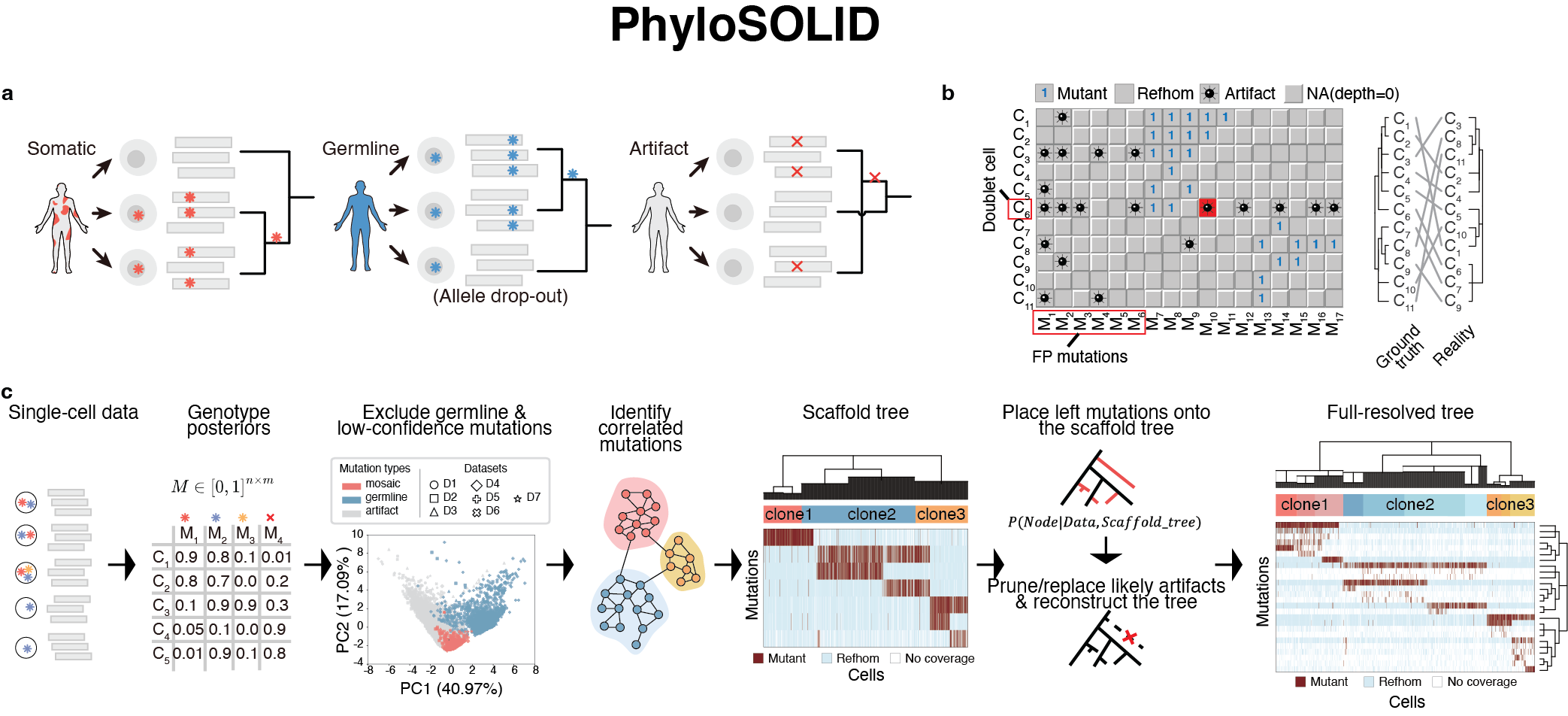

Figure 1: Overview of the PhyloSOLID pipeline

System Requirements: PhyloSOLID is primarily developed and tested on Linux. We recommend running it on Linux or macOS systems. Windows users can use WSL (Windows Subsystem for Linux).

Version History

v3.4.0 (2026-09-03): Adaptive Leiden graph resolution and pruning confidence CV selection: automatic resolution tuning based on data sparsity; new pruning_confidence criterion prevents over-pruning by evaluating pruning_ratio = (Ω_pre-QC - Ω_final) / Ω_final < 10.0; cleaner output structure with reduced file redundancy (changelog)
v3.3.1 (2026-08-21): Deterministic parallel CV search: fixed non-determinism where same CV threshold produced different results in parallel vs single-run mode (changelog)
v3.3.0 (2026-08-20): Improved optimal tree selection with Omega_final criterion and robust tie-breaking mechanism (changelog)
v3.2.1 (2026-08-20): Critical bug fixes for CV threshold search: fixed logger NameError, eliminated duplicate mutation nodes in scaffold tree, standardized logger parameter passing (changelog)
v3.2.0 (2026-08-15): Parallel CV traversal, unified optimal selection, structured logging overhaul, full English localization (changelog)
v3.1.1 (2026-08-08): Performance optimization: 4-33x speedup in penalty calculation with caching and vectorization (changelog)
v3.1.0 (2026-07-28): CV threshold auto-search, organized output structure, new full_tree_builder.py module (changelog)
v3.0.0 (2026-07-02): Smart conflict resolution, Leiden graph acceleration, multi-threaded data loading (changelog)
v2.0.0 (2026-07-01): Major performance optimization (changelog)
v1.0.0 (2026-02-27): Initial public release (changelog)

For complete release notes, visit the Releases page.

Installation

Prerequisites

Miniconda or Mambaforge (required)
samtools, bedtools
ANNOVAR (for variant annotation)

Step 1: Clone the repository

git clone https://github.com/douymLab/PhyloSOLID.git
cd PhyloSOLID

Step 2: Install ANNOVAR

PhyloSOLID uses ANNOVAR for variant annotation. You need to install it separately:

Register and download ANNOVAR from the ANNOVAR Download Page (free for academic use).
Install ANNOVAR:

tar -xzvf annovar.latest.tar.gz -C /path/to/software/
cd /path/to/software/annovar

Download required databases (hg38 build):

# Create humandb directory
mkdir -p /path/to/software/annovar/humandb

# Download refGene database (required)
./annotate_variation.pl -downdb -buildver hg38 -webfrom annovar refGene humandb/

# Download additional databases (recommended)
./annotate_variation.pl -downdb -buildver hg38 -webfrom annovar cytoBand humandb/
./annotate_variation.pl -downdb -buildver hg38 -webfrom annovar snp138 humandb/

Step 3: Download and setup resource files

All required resource files for running PhyloSOLID with the hg38 genome build are available on Figshare. Due to their large total size (~9.18 GB), these files are not included in the GitHub repository and must be downloaded separately.

Figshare URL: https://figshare.com/s/2aee3e878688722e9c6f

The Figshare repository contains the following files:

Reference and resource files (required for pipeline execution):

File	Description	Size
`genome.fa.gz`	hg38 reference genome	840.4 MB
`genome.fa.fai.gz`	FASTA index file for genome.fa	2.13 KB
`wgEncodeGencodeExonSupportV44.sort.bed.gz`	Exon coordinates for variant annotation	51.07 MB
`k24.umap.bedgraph.gz`	Mappability track for filtering (k-mer 24)	2.57 GB
`k100.umap.bedgraph.gz`	Mappability track for filtering (k-mer 100)	718.29 MB
`hg38_gnomad312_genome_only_af_all.txt.gz`	Population allele frequencies from gnomAD v3.1.2	4.65 GB
`COMBINED_RADAR_REDIprotal_DARNED_hg38_all_sites.bed.gz`	Curated RNA editing sites	58.26 MB

Demo data files (optional, for testing the pipeline):

File	Description	Size
`demo_scrna.bam`	Demo BAM file for testing the pipeline	52.06 MB
`demo_scrna.bam.bai`	BAM index file	314.56 KB

Download and Setup Instructions:

Download all files from Figshare using the URL above
Place the downloaded files in a dedicated directory on your system (e.g., /path/to/resource/)
Extract the reference and resource files:

# Navigate to your resource directory
cd /path/to/resource/

# Extract reference and resource files
gunzip genome.fa.gz
gunzip genome.fa.fai.gz
gunzip wgEncodeGencodeExonSupportV44.sort.bed.gz
gunzip k24.umap.bedgraph.gz
gunzip k100.umap.bedgraph.gz
gunzip hg38_gnomad312_genome_only_af_all.txt.gz
gunzip COMBINED_RADAR_REDIprotal_DARNED_hg38_all_sites.bed.gz

Important:

The BAM file (demo_scrna.bam) and its index (demo_scrna.bam.bai) are demo data for testing the pipeline. They are not required for running PhyloSOLID on your own data.
If you want to test the pipeline with the provided demo data, place the BAM files in the demo/scrna/input/ directory.

Step 4: Configure paths.yaml

Copy the template configuration file and update it with your paths:

cp config/paths.yaml.template config/paths.yaml

Edit config/paths.yaml to set the correct paths for:

Conda environment (Python interpreter and environment path)
ANNOVAR installation directory
Reference files (genome FASTA, GFF3, etc.)
Paths to the extracted resource files

Example config/paths.yaml configuration:

# Conda environment (required for Python scripts)
conda:
  python: "/path/to/phylosolid_env/bin/python"
  env_path: "/path/to/phylosolid_env"

# ANNOVAR configuration
annovar:
  script_dir: "/path/to/software/annovar"
  humandb: "/path/to/software/annovar/humandb"
  build: "hg38"

# Reference files (paths to extracted files)
reference:
  genome_fasta: "/path/to/resource/genome.fa"
  genome_fasta_index: "/path/to/resource/genome.fa.fai"
  gff3_file: "/path/to/resource/wgEncodeGencodeExonSupportV44.sort.bed"
  mappability_file: "/path/to/resource/k24.umap.bedgraph"
  gnomad_file: "/path/to/resource/hg38_gnomad312_genome_only_af_all.txt"
  rna_editing_file: "/path/to/resource/COMBINED_RADAR_REDIprotal_DARNED_hg38_all_sites.bed"

Step 5: Run the environment installation script

bash install.sh

This script will:

Create a conda environment with all Python/R dependencies
Install the converTree R package from GitHub

Step 6: Install PhyloSOLID

conda activate phylosolid_env
pip install -e .

Step 7: Verify installation

# Check if ANNOVAR is properly configured
phylosolid check-annovar --config config/paths.yaml

# Run the test pipeline
cd demo
./run_demo.sh

Usage

💡 Tip: One individual → one BAM file. Merge replicates with samtools merge beforehand.

Binary matrix mode (Direct tree building)

For users who already have a binary mutation matrix, PhyloSOLID provides a direct mode that skips feature extraction and tree input generation:

# Basic usage
python -m cli.main binary-matrix --sampleid SAMPLE_ID --inputfile matrix.txt --outputpath output_dir

# Or using the installed command
phylosolid binary-matrix --sampleid SAMPLE_ID --inputfile matrix.txt --outputpath output_dir

Input format (tab-separated):

Rows: cells (first column contains cell barcodes/IDs) Columns: mutations (column headers are mutation IDs) Values: 1 (present), 0 (absent), NA (missing data)

Example (matrix.txt):

cell_id	chr1_1000_A_G	chr2_2000_C_T	chr3_3000_G_A
Cell_1	1	0	1
Cell_2	0	1	NA
Cell_3	1	1	0

Output:

output_dir/
├── phylo/
│   ├── final_cleaned_M_scaffold_basedPivots.filtered_sites_inferred.CFMatrix
│   └── ...
├── processing/
│   ├── df_celltype.txt
│   └── ...
└── ...

CV Threshold Selection (--cv_rank_thresh)

PhyloSOLID now supports automatic CV threshold search to find the optimal threshold for coverage-based filtration. The --cv_rank_thresh parameter accepts the following formats:

Format	Example	Description
Single value	`--cv_rank_thresh 0.3`	Run once with this value
Comma-separated	`--cv_rank_thresh 0.3,0.5,0.7`	Search over these values, select best
Range	`--cv_rank_thresh 0.3-0.7:0.1`	Search from 0.3 to 0.7 with step 0.1
Auto	`--cv_rank_thresh auto`	Use presets: `[0.3, 0.4, 0.5, 0.6, 0.7]`

How the search works:

For each CV threshold value, PhyloSOLID builds a complete phylogenetic tree
Two metrics are computed for each tree:
- Ω (pre-QC): Discordance index before quality control (full data)
- Ω (final): Discordance index after QC (cleaned data)
The optimal threshold is selected using the pruning confidence criterion:
- Pruning ratio: pruning_ratio = (Ω_pre-QC - Ω_final) / Ω_final
- Confident pruning: pruning_ratio < 10.0 (the "One-Tenth Rule")
- If confident trees exist: select the one with lowest Ω (final)
- If no confident trees: fallback to lowest Ω (pre-QC)
- This prevents over-pruning while preserving biologically valid signal

Usage examples:

# Single value (default behavior)
phylosolid --workdir ./results scrna ... --cv_rank_thresh 0.3

# Search over multiple values
phylosolid --workdir ./results scrna ... --cv_rank_thresh 0.3,0.5,0.7

# Range search
phylosolid --workdir ./results scrna ... --cv_rank_thresh 0.3-0.7:0.1

# Auto mode
phylosolid --workdir ./results scrna ... --cv_rank_thresh auto

Output structure when searching:

your_results/
├── 01_classifier_filter/
├── 02_germline_filter/
├── 03_scaffold_builder/
│   ├── CV0_3/          # Scaffold outputs for CV=0.3
│   ├── CV0_4/          # Scaffold outputs for CV=0.4
│   └── CV0_5/          # Scaffold outputs for CV=0.5
├── 04_mutation_integrator/
│   ├── CV0_3/          # Complete tree outputs for CV=0.3
│   ├── CV0_4/          # Complete tree outputs for CV=0.4
│   └── CV0_5/          # Complete tree outputs for CV=0.5
├── 05_final_results/   # Best CV results only
└── cv_threshold_search_results.csv  # Summary of all CV values tested

Selection criteria summary:

Metric	Description	What it tells you
Ω (pre-QC)	Discordance before QC	How well the initial tree fits all data
Ω (final)	Discordance after QC	How well the cleaned tree fits remaining data
Ω (reduced)	Ω_pre-QC - Ω_final	Amount of discordance removed by QC
pruning_ratio	Ω_reduced / Ω_final	Confidence of pruning; < 10.0 indicates confident pruning
Selection rule	If confident trees exist → lowest Ω_final; else → lowest Ω_pre-QC	Prevents over-pruning while preserving biological signal

Pruning Confidence Criterion (v3.4.0+):

The pruning confidence criterion detects over-pruning by comparing the discordance removed by QC against the discordance that remains. A threshold of 10.0 was empirically determined through systematic benchmark analysis across eight datasets spanning a wide range of data quality (Ω_pre-QC from ~175 to ~2600), ensuring optimal balance between preserving biological signal and excluding over-pruned trees.

scRNA-seq mode

Basic usage:

phylosolid --workdir ./results scrna \
    --sample SAMPLE_ID \
    --mutation-list mutations.txt \
    --bam sample.bam \
    --barcode barcodes.txt \
    --read-len 120 \
    --cellnum 155

With all options:

phylosolid --workdir ./results scrna \
    --sample SAMPLE_ID \
    --mutation-list mutations.txt \
    --bam sample.bam \
    --barcode barcodes.txt \
    --metadata metadata.txt \
    --read-len 120 \
    --cellnum 155 \
    --threads 8 \
    --workdir ./results \
    --config config/paths.yaml

Running specific steps

# Run only feature extraction
phylosolid --workdir ./results scrna --sample SAMPLE_ID ... --steps feature_extraction

# Run only tree input generation
phylosolid --workdir ./results scrna --sample SAMPLE_ID ... --steps tree_input

# Run only tree building
phylosolid --workdir ./results scrna --sample SAMPLE_ID ... --steps tree_building

Parallel execution

# Run feature extraction and tree input in parallel
phylosolid --workdir ./results scrna --sample SAMPLE_ID ... --parallel

scDNA-seq mode

phylosolid --workdir ./results scdna \
    --sample SAMPLE_ID \
    --mutation-list mutations.txt \
    --bam sample.bam \
    --barcode barcodes.txt \
    --read-len 120 \
    --cellnum 155

SpaceTracer mode (Skip feature extraction and classifier)

SpaceTracer mode is designed for users who want to directly build trees without running feature extraction and the classifier step. This mode:

Skips the feature extraction step entirely
Bypasses the mutation classifier
Uses a dedicated tree building script
Accepts the same input parameters as scRNA mode

Basic usage:

phylosolid --workdir ./results spacetracer \
    --sample SAMPLE_ID \
    --mutation-list mutations.txt \
    --bam sample.bam \
    --barcode barcodes.txt \
    --read-len 120 \
    --cellnum 155

With all options:

phylosolid --workdir ./results spacetracer \
    --sample SAMPLE_ID \
    --mutation-list mutations.txt \
    --bam sample.bam \
    --barcode barcodes.txt \
    --metadata metadata.txt \
    --read-len 120 \
    --cellnum 155 \
    --threads 8 \
    --config config/paths.yaml

Input File Formats

Mutation list (mutations.txt)

chr1_1000_A_G
chr1_2000_C_T
chr2_3000_G_A
chr3_4000_T_C

Format: chromosome_position_reference_alt

Barcode file (barcodes.txt)

AAACCTGAGAAACCAT-1
AAACCTGAGAAACCGG-1
AAACCTGAGAAACCTA-1

Metadata file (metadata.txt) - OPTIONAL

The metadata file is optional for tree building. If provided, it enables cell-type annotation layers in the final visualization.

Format: Tab-separated file with header:

Column	Required	Description
`cell_barcode`	Yes	Cell barcode/ID matching the barcode file
`cell_type`	No	Cell type annotations (e.g., CD8+T, CD4+T, Monocyte)
`cluster_info`	No	Cell cluster assignments
`sample`	No	Sample identifiers
`tumor_score`	No	Numeric tumor scores
`B_cell_prop`	No	B cell proportions

Example:

cell_barcode    cell_type   cluster_info    sample
AAACCTGAGAAACCAT-1  CD8+T   cluster1    sample1
AAACCTGAGAAACCGG-1  CD4+T   cluster2    sample1
AAACCTGAGAAACCTA-1  Monocyte    cluster1    sample2

Note: The metadata file is not required for tree construction. It is only used for visualization purposes when generating circos plots with PhyloSOLIDvis. If no metadata is provided, the tree and heatmap will still be generated without annotation layers.

Visualization

PhyloSOLID provides a dedicated R package PhyloSOLIDvis for generating publication-ready circular (circos-style) phylogenetic tree visualizations.

Figure 2: Example circos plot generated from PhyloSOLID output (351 cells, 17 mutations)

Installation

remotes::install_github("TsingYang1112/PhyloSOLIDvis", dependencies = TRUE)

Quick Start

⚠️ Important: ggplot2 must be loaded before PhyloSOLIDvis to avoid namespace conflicts.

library(ggplot2)
library(PhyloSOLIDvis)

# Run the complete pipeline
results <- run_all(
  inputpath = "path/to/workdir/sampleid/03_tree_building/mutation_integrator/phylo/",
  outputpath = "path/to/output/",
  annotation_file = "path/to/annotations.txt"
)

Locating the correct input directory

After running the PhyloSOLID pipeline with --workdir ./results and --sample SAMPLE_ID, the required files are located in:

workdir/
└── SAMPLE_ID/
    └── 03_tree_building/
        └── mutation_integrator/
            └── phylo/
                ├── final_cleaned_I_full_withNA3_for_circosPlot.txt
                ├── final_cleaned_M_full_basedPivots.filtered_sites_inferred.CFMatrix
                ├── df_flipping_count_for_each_mut.txt
                └── df_total_flipping_count.txt

Set inputpath to this phylo/ directory.

Required Input Files

File	Description
`final_cleaned_I_full_withNA3_for_circosPlot.txt`	Input genotype matrix
`final_cleaned_M_full_basedPivots.filtered_sites_inferred.CFMatrix`	Conflict-free matrix
`df_flipping_count_for_each_mut.txt`	Per-mutation flipping statistics
`df_total_flipping_count.txt`	Total flipping statistics

Annotation File Format (Optional)

The annotation file (TSV format) should contain a barcode column matching cell IDs in the PhyloSOLID output. Optional columns include:

Column	Description
`cluster_info`	Cell cluster assignments
`cell_type`	Cell type annotations
`sample`	Sample identifiers
`tumor_score`	Numeric tumor scores
`B_cell_prop`	B cell proportions

Note: annotation_file is optional. If not provided, the plot will be generated without annotation layers (tree + heatmap only).

Output Files

After running run_all() or plot_circos(), the following files are generated. We recommend organizing them in a 04_visualization/ directory:

File	Description
`No_target.circle_tree_output_as_point.*.svg/pdf`	★ Main circular plot
`heatmap_and_histograms_for_our_tree.pdf`	★ Mutation heatmap with histograms
`legend_components.circos_annotation.svg/pdf`	Circos annotation legend
`legend_components.total_flipping_count.svg/pdf`	Flipping count legend
`sorted_cf_matrix.txt`	Sorted mutation matrix
`ordered_metadata_for_heatmap.txt`	Heatmap ordering data
`phylo_tree.rds`	Phylogenetic tree object

Usage Examples

Basic usage with annotation:

library(ggplot2)
library(PhyloSOLIDvis)

result <- plot_circos(
  inputpath = "results/demo_scrna/03_tree_building/mutation_integrator/phylo/",
  outputpath = "results/demo_scrna/04_visualization/",
  annotation_file = "data/annotations.txt"
)

With custom parameters:

library(ggplot2)
library(PhyloSOLIDvis)

result <- plot_circos(
  inputpath = "results/demo_scrna/03_tree_building/mutation_integrator/phylo/",
  outputpath = "results/demo_scrna/04_visualization/",
  annotation_file = "data/annotations.txt",
  target_mut = "chr11_65426524_T_C",
  tip_label_offset = 8,
  tip_label_size = 3,
  heatmap_width = 0.3,
  flipping_point_size = 1.3,
  plot_height = 12,
  plot_width = 18,
  verbose = TRUE
)

Complete pipeline (matrix ordering + circos plot + heatmap):

library(ggplot2)
library(PhyloSOLIDvis)

results <- run_all(
  inputpath = "results/demo_scrna/03_tree_building/mutation_integrator/phylo/",
  outputpath = "results/demo_scrna/04_visualization/",
  annotation_file = "data/annotations.txt",
  target_mut = "chr11_65426524_T_C",
  run_adjusted = TRUE,
  adjusted_tip_label_offset = 6,
  adjusted_flipping_point_size = 1.3,
  verbose = TRUE
)

For Complete Documentation

📘 For detailed parameter descriptions, advanced usage, and troubleshooting, please visit the PhyloSOLIDvis GitHub repository:

https://github.com/TsingYang1112/PhyloSOLIDvis

Quick Troubleshooting for Visualization

Issue	Solution
`could not find function "plot_circos"`	Run `library(ggplot2)` then `library(PhyloSOLIDvis)`
`cannot open file '.../phylo/final_cleaned_I_...'`	Verify `inputpath` points to the exact `phylo/` subdirectory
Missing `annotation_file` column	Ensure file has a `barcode` column matching cell IDs
Plot renders with overlapping labels	Adjust `tip_label_offset` (increase for more space)
Network issues during installation	Set CRAN/BioC mirrors and retry

Interactive Online Inspection Platform

For interactive post-analysis and quality control, you can upload your PhyloSOLIDvis outputs to our dedicated web server:

Web Server: https://phylosolid.westlake.edu.cn

🔐 Access: Please register with your institutional email address (e.g., @edu.cn, @*.edu). Registration is free for academic users.

Features:

Interactive Circos exploration with zoom and cell-level query
Tree topology evaluation and quality control
Genotype flip statistics for assessing tree reliability
Optional upload of IGV snapshots and ANNOVAR annotation results

Required upload files:

File	Location
`ordered_metadata_for_heatmap.txt`	`04_visualization/`
`df_muts_corresponding_to_ordered_tiplabels_by_anticlockwise.txt`	`04_visualization/`
`No_target.circle_tree_output_as_point.*.svg`	`04_visualization/`
`legend_components.circos_annotation.svg`	`04_visualization/`
`df_total_flipping_count.txt`	`03_tree_building/mutation_integrator/phylo/`
`df_flipping_count_for_each_mut.txt`	`03_tree_building/mutation_integrator/phylo/`

Demo Example

A complete demo with test data is available in the demo/ directory.

Demo data files:

demo/scrna/input/demo_scrna.bam - BAM file (53.3 MB)
demo/scrna/input/demo_scrna.bam.bai - BAM index file (315 KB)
demo/scrna/input/identifier.txt - Mutation list
demo/scrna/input/barcodes.txt - Barcode list
demo/scrna/input/celltype.txt - Cell type metadata (optional)

To run the demo:

cd demo
./run_demo.sh

Note: The BAM files are not included in the GitHub repository due to their size. They must be downloaded from Figshare separately and placed in the demo/scrna/input/ directory before running the demo.

Run individual steps with demo data

1. Feature extraction

phylosolid --workdir demo/scrna/output scrna \
    --sample demo_scrna \
    --mutation-list demo/scrna/input/identifier.txt \
    --bam demo/scrna/input/demo_scrna.bam \
    --barcode demo/scrna/input/barcodes.txt \
    --threads 4 \
    --read-len 120 \
    --cellnum 3319 \
    --steps feature_extraction

2. Tree input generation

phylosolid --workdir demo/scrna/output scrna \
    --sample demo_scrna \
    --mutation-list demo/scrna/input/identifier.txt \
    --bam demo/scrna/input/demo_scrna.bam \
    --barcode demo/scrna/input/barcodes.txt \
    --cellnum 3319 \
    --steps tree_input

3. Tree building

phylosolid --workdir demo/scrna/output scrna \
    --sample demo_scrna \
    --mutation-list demo/scrna/input/identifier.txt \
    --bam demo/scrna/input/demo_scrna.bam \
    --barcode demo/scrna/input/barcodes.txt \
    --celltype-file demo/scrna/input/celltype.txt \
    --steps tree_building

Complete pipeline with demo data

phylosolid --workdir demo/scrna/output scrna \
    --sample demo_scrna \
    --mutation-list demo/scrna/input/identifier.txt \
    --bam demo/scrna/input/demo_scrna.bam \
    --barcode demo/scrna/input/barcodes.txt \
    --celltype-file demo/scrna/input/celltype.txt \
    --threads 4 \
    --read-len 120 \
    --cellnum 3319

Troubleshooting

Conda not found

If you see "conda: command not found":

Download and install Miniconda: https://docs.conda.io/en/latest/miniconda.html
Or install Mambaforge: https://github.com/conda-forge/miniforge#mambaforge
Restart your terminal after installation

ANNOVAR not found

If you see "ANNOVAR not found" error:

Check that ANNOVAR is installed
Verify the paths in config/paths.yaml
Run phylosolid check-annovar to diagnose

Reference files not found

If you see errors about missing reference files:

Download the resource files package from Figshare using the URL above
Ensure files are extracted to the correct location
Verify paths in config/paths.yaml point to the extracted files
Check file permissions (ensure files are readable)

Read length mismatch

If you see warnings about read length:

Check your BAM file's actual read length:

samtools view your.bam | head -n1 | awk '{print length($10)}'

Use the --read-len parameter to specify the correct value

CV threshold search takes too long

If searching over multiple CV values is slow:

Reduce the number of values to test:
- Use a smaller range: --cv_rank_thresh 0.3,0.5,0.7
- Or increase step size: --cv_rank_thresh 0.3-0.7:0.2
Use the auto mode which tests only 5 values:
```
--cv_rank_thresh auto
```
For large datasets, consider running a single value first:
```
--cv_rank_thresh 0.3
```

cv_threshold_search_results.csv is empty

If the search results file is empty:

Check that you used a search format (comma-separated, range, or auto)
Single value mode does not generate a search results file
Ensure the pipeline completed successfully for all tested values

Understanding the search results metrics

The search results CSV contains the following columns:

Column	Description
`cv_value`	The CV threshold tested
`omega_pre_qc`	Discordance before QC (lower is better)
`omega_final`	Discordance after QC (lower is better)
`omega_reduced`	Ω_pre-QC - Ω_final (discordance removed by QC)
`pruning_ratio`	omega_reduced / omega_final (confidence of pruning)
`is_confident`	True if pruning_ratio < 10.0 (confident pruning)
`scaffold_count`	Number of scaffold mutations selected

Interpretation:

A pruning_ratio < 10.0 indicates confident pruning: QC removed noise without eliminating meaningful signal
A pruning_ratio >= 10.0 suggests over-pruning: QC may have removed too much biological signal
If is_confident is True for one or more CV values, the pipeline selects the one with lowest omega_final
If is_confident is False for all CV values, the pipeline falls back to the lowest omega_pre_qc

Large BAM files?

If your BAM files are large, extract only target sites before running:

samtools view -b large.bam -L target_sites.bed > mini.bam

Permission denied errors

Ensure scripts are executable:

chmod +x scripts/scrna/**/*.sh
chmod +x scripts/scrna/**/*.py
chmod +x scripts/scrna/**/*.R

Citation

If you use PhyloSOLID in your research, please cite:

Yang, Q. et al. PhyloSOLID: Robust phylogeny reconstruction from single-cell data despite inherent error and sparsity. (2026) doi:10.64898/2026.02.04.703905.

License

PhyloSOLID is licensed under the MIT License - see the LICENSE file for details.

Code Availability

The source code, documentation and examples are available on GitHub at https://github.com/douymLab/PhyloSOLID.

Third-party Dependencies

PhyloSOLID uses several third-party tools and libraries:

ANNOVAR: Users need to install ANNOVAR separately (free for academic use, registration required)
R packages: Various R packages under GPL/MIT licenses
Python packages: See environment.yml for details

Please respect the licenses of these dependencies when using PhyloSOLID.

Contact

For questions and support, please contact:
Qing Yang: yangqing@westlake.edu.cn
Yanmei Dou: yanmeidou@westlake.edu.cn

Name		Name	Last commit message	Last commit date
cli		cli
config		config
demo		demo
images		images
pipelines		pipelines
resource		resource
scripts		scripts
src		src
utils		utils
.gitignore		.gitignore
Dockerfile		Dockerfile
LICENSE		LICENSE
MANIFEST.in		MANIFEST.in
README.md		README.md
environment.yml		environment.yml
install.sh		install.sh
setup.py		setup.py

Uh oh!

Latest commit

History

Folders and files

Repository files navigation

PhyloSOLID

What Will You Get?

Overview

Version History

Installation

Prerequisites

Step 1: Clone the repository

Step 2: Install ANNOVAR

Step 3: Download and setup resource files

Step 4: Configure paths.yaml

Step 5: Run the environment installation script

Step 6: Install PhyloSOLID

Step 7: Verify installation

Usage

Binary matrix mode (Direct tree building)

CV Threshold Selection (--cv_rank_thresh)

scRNA-seq mode

Running specific steps

Parallel execution

scDNA-seq mode

SpaceTracer mode (Skip feature extraction and classifier)

Input File Formats

Mutation list (mutations.txt)

Barcode file (barcodes.txt)

Metadata file (metadata.txt) - OPTIONAL

Visualization

Installation

Quick Start

Locating the correct input directory

Required Input Files

Annotation File Format (Optional)

Output Files

Usage Examples

For Complete Documentation

Quick Troubleshooting for Visualization

Interactive Online Inspection Platform

Demo Example

Run individual steps with demo data

Troubleshooting

Conda not found

ANNOVAR not found

Reference files not found

Read length mismatch

CV threshold search takes too long

cv_threshold_search_results.csv is empty

Understanding the search results metrics

Large BAM files?

Permission denied errors

Citation

License

Code Availability

Third-party Dependencies

Contact

About

Resources

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages
