Sokomob - Direct Farm-to-Consumer E-Commerce Platform

📋 Table of Contents

• Overview
• Problem Statement
• Solution
• Architecture
• Features
• Technology Stack
• Project Structure
• API Documentation
• Installation & Setup
• Docker Deployment
• Screenshots
• Contributing

🌟 Overview

Sokomob is a direct farm-to-consumer e-commerce platform designed to address food security challenges by connecting farmers directly with consumers, eliminating exploitative middlemen in the agricultural supply chain.

Background

One of United Nation's Sustainable Development Goals is Zero Hunger (Goal 2). In Kenya, agriculture accounts for 20% of GDP and employs over 40% of the population (Central Bank of Kenya, 2022). Despite this significant contribution, farmers receive minimal profits due to intermediary exploitation.

🎯 Problem Statement

Middlemen such as commission agents, traders, and wholesalers extract significant profits from farmers' produce, leaving farmers with insufficient returns for their hard work. This platform addresses this challenge by creating a direct connection between farmers and consumers.

💡 Solution

Sokomob provides a comprehensive e-commerce solution featuring:

• Direct Farmer-Consumer Connection: Eliminates intermediaries
• Geolocation Services: Maps showing seller locations
• Multi-platform Access: Mobile and web applications
• Real-time Product Management: Dynamic inventory and pricing

🏗️ Architecture

The project follows a client-server architecture with clear separation of concerns:

┌─────────────────┐    HTTP/REST API    ┌─────────────────┐
│   Flutter App   │ ◄─────────────────► │  Django Server  │
│   (Frontend)    │                     │   (Backend)     │
└─────────────────┘                     └─────────────────┘
        │                                        │
        │                                        │
        ▼                                        ▼
┌─────────────────┐                     ┌─────────────────┐
│ Mobile/Web UI   │                     │ SQLite Database │
│   Components    │                     │   (Persistent   │
└─────────────────┘                     │    Storage)     │
                                        └─────────────────┘

Architecture Rationale

• Python/Django: Chosen for its versatility and future ML integration capabilities
• Flutter: Selected for cross-platform development and rich UI widget ecosystem
• SQLite: Used for development simplicity and easy deployment

✨ Features

🏪 Core E-Commerce Features

• Product catalog browsing
• Seller profiles and ratings
• Product search and filtering
• Shopping cart functionality
• Order tracking system

🗺️ Location-Based Services

• Interactive maps showing seller locations
• City-based seller filtering
• GPS-enabled delivery tracking
• Address management system

👥 User Management

• Seller registration and profiles
• Product inventory management
• Rating and review system
• Multi-location support for sellers

📱 Cross-Platform Support

• Mobile applications (Android/iOS)
• Web application
• Responsive design
• Offline capability planning

🛠️ Technology Stack

Component	Technology	Version	Purpose
Backend	Python	3.9+	Server-side logic
	Django	4.1.1	Web framework
	Django REST Framework	3.14.0	API development
	SQLite	3.x	Database
Frontend	Dart	2.17+	Programming language
	Flutter	3.x	Mobile/Web framework
	HTTP	-	API communication
	Google Maps	-	Location services
DevOps	Docker	-	Containerization
	Docker Compose	3.9	Multi-container apps
Development	Git	-	Version control
	VS Code	-	IDE

📁 Project Structure

plp/
├── 📁 backend/                 # Django REST API
│   ├── 📁 api/
│   │   ├── 📁 base/           # Django project configuration
│   │   │   ├── settings.py    # Django settings
│   │   │   ├── urls.py        # Main URL routing
│   │   │   ├── wsgi.py        # WSGI configuration
│   │   │   └── asgi.py        # ASGI configuration
│   │   ├── 📁 products_api/   # Product management app
│   │   │   ├── models.py      # Product data models
│   │   │   ├── views.py       # Product API views
│   │   │   ├── serializers.py # Product serializers
│   │   │   ├── urls.py        # Product URLs
│   │   │   └── admin.py       # Admin interface
│   │   ├── 📁 sellers_api/    # Seller management app
│   │   │   ├── models.py      # Seller & Address models
│   │   │   ├── views.py       # Seller API views
│   │   │   ├── serializers.py # Seller serializers
│   │   │   ├── urls.py        # Seller URLs
│   │   │   └── admin.py       # Admin interface
│   │   └── manage.py          # Django management script
│   ├── 📁 db/                 # Database files
│   │   └── db.sqlite3         # SQLite database
│   ├── requirements.txt       # Python dependencies
│   └── ReadMe.md             # Backend documentation
├── 📁 frontend/               # Flutter application
│   ├── 📁 lib/
│   │   ├── 📁 common/         # Shared utilities
│   │   │   └── static_values.dart # Configuration constants
│   │   ├── 📁 data/           # Data layer
│   │   │   ├── 📁 model/      # Data models
│   │   │   └── 📁 services/   # API service classes
│   │   └── 📁 ui/             # User interface
│   │       ├── 📁 screens/    # App screens
│   │       └── 📁 components/ # Reusable UI components
│   ├── pubspec.yaml          # Flutter dependencies
│   └── README.md             # Frontend documentation
├── Dockerfile                # Docker configuration
├── docker-compose.yml        # Multi-container setup
└── README.md                 # This file

📊 Database Schema

Products Table

Field	Type	Description
id	AutoField	Primary key
name	CharField(100)	Product name
imageUrl	URLField	Product image URL
summary	CharField(100)	Brief description
description	CharField(200)	Detailed description
quantity	CharField(100)	Available quantity
price	DecimalField(10,2)	Product price
rating	PositiveIntegerField	Product rating (0-5)
date_posted	DateTimeField	Creation timestamp

Sellers Table

Field	Type	Description
id	AutoField	Primary key
name	CharField(100)	Seller name
product	ManyToManyField	Associated products
address	ManyToManyField	Seller addresses
join_date	DateField	Registration date
rating	PositiveIntegerField	Seller rating (0-5)

Address Table

Field	Type	Description
id	AutoField	Primary key
city	CharField(100)	City name
name	CharField(100)	Address name/label
latitude	FloatField	GPS latitude
longitude	FloatField	GPS longitude

🔌 API Documentation

Base URL

http://YOUR_IP_ADDRESS:PORT_NUMBER/

Products API

Method	Endpoint	Description	Parameters
GET	/products/	Get all products	-
GET	/products/?id={id}	Get specific product	id: Product ID
POST	/products/	Create new product	JSON body with product data
PUT	/products/?id={id}	Update product	id: Product ID, JSON body
DELETE	/products/?id={id}	Delete product	id: Product ID

Sellers API

Method	Endpoint	Description	Parameters
GET	/sellers/	Get all sellers	-
GET	/sellers/?id={id}	Get specific seller	id: Seller ID
GET	/sellers/?city=all	Get all cities	-
GET	/sellers/?address={city}	Get addresses by city	city: City name
POST	/sellers/	Create new seller	JSON body with seller data
PUT	/sellers/?id={id}	Update seller	id: Seller ID, JSON body
DELETE	/sellers/?id={id}	Delete seller	id: Seller ID

Example API Responses

Get All Products

[
  {
    "imageUrl": "https://example.com/image.jpg",
    "name": "Fresh Tomatoes",
    "summary": "Organic tomatoes from local farm",
    "description": "Fresh, organic tomatoes grown without pesticides",
    "price": "150.00",
    "rating": 4
  }
]

Get Seller with Products

[
  {
    "id": 1,
    "name": "Green Valley Farm",
    "address": [
      {
        "name": "Main Farm",
        "city": "Nairobi",
        "latitude": -1.2921,
        "longitude": 36.8219
      }
    ],
    "product": [
      {
        "imageUrl": "https://example.com/tomato.jpg",
        "name": "Tomatoes",
        "summary": "Fresh tomatoes",
        "description": "Organic tomatoes",
        "price": "150.00",
        "rating": 4
      }
    ],
    "join_date": "2023-01-15",
    "rating": 5
  }
]

🚀 Installation & Setup

Prerequisites

• Python 3.9+
• Flutter SDK 3.x
• Git
• (Optional) Docker & Docker Compose

Backend Setup

1. Clone the repository

   git clone https://github.com/eddieogola/plp.git
   cd plp/backend

2. Create virtual environment (recommended)

   python -m venv .venv

   # Activate virtual environment
   # On Windows:
   .venv\Scripts\activate
   # On macOS/Linux:
   source .venv/bin/activate

3. Install dependencies

   pip install -r requirements.txt

4. Run database migrations

   cd api
   python manage.py migrate

5. Create superuser (optional)

   python manage.py createsuperuser

6. Start development server

   python manage.py runserver YOUR_IP_ADDRESS:8000

   Note: Use your actual IP address instead of localhost for mobile device access

Frontend Setup

1. Navigate to frontend directory

   cd ../frontend

2. Configure API endpoint

   // Edit lib/common/static_values.dart
   static const String apiUrl = "http://YOUR_IP_ADDRESS:8000/";

3. Install Flutter dependencies

   flutter pub get

4. Run the application

   flutter run

Network Configuration

For mobile device testing, ensure:

• Backend server uses your machine's IP address (not localhost)
• Mobile device and development machine are on the same network
• Firewall allows connections on the specified port

🐳 Docker Deployment

Using Docker Compose (Recommended)

1. Build and start services

   docker-compose up --build

2. Access the application

   • Backend API: http://localhost:8000
   • Admin interface: http://localhost:8000/admin

Manual Docker Build

1. Build the image

   docker build -t sokomob-api .

2. Run the container

   docker run -p 8000:8000 sokomob-api

📱 Flutter App Features

Screen Overview

Screen	Description	Key Features
Home Screen	Main dashboard	Seller carousel, featured products, navigation
Shop Screen	Product catalog	Product grid, search, filtering
Map Screen	Location services	City list, interactive maps, seller locations
Product Detail	Individual product	Full description, rating, seller info
Seller Detail	Seller profile	Products, location, contact info
Order Tracking	Delivery tracking	GPS tracking, delivery status

Key Dependencies

Package	Purpose	Version
http	API communication	Latest
google_maps_flutter	Maps integration	^2.2.0
cached_network_image	Image caching	^3.2.2
carousel_slider	Image carousel	^4.1.1
shimmer	Loading animations	^2.0.0
get_storage	Local storage	^2.0.3
location	GPS services	^4.4.0

📸 Screenshots

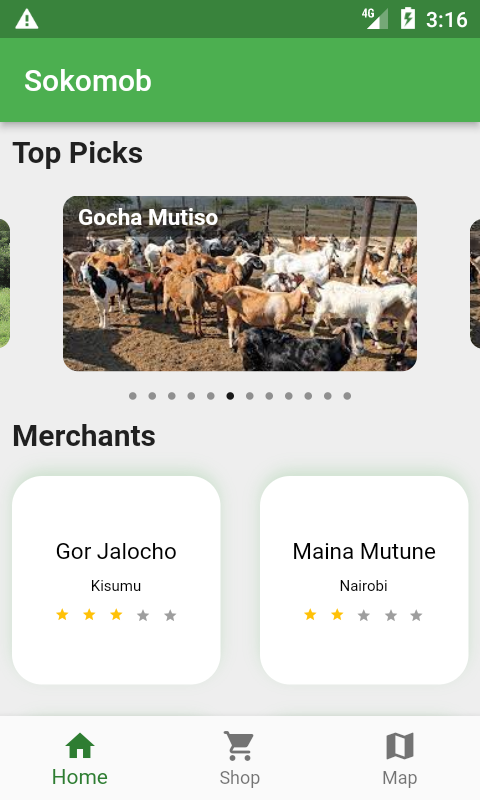

Home Screen

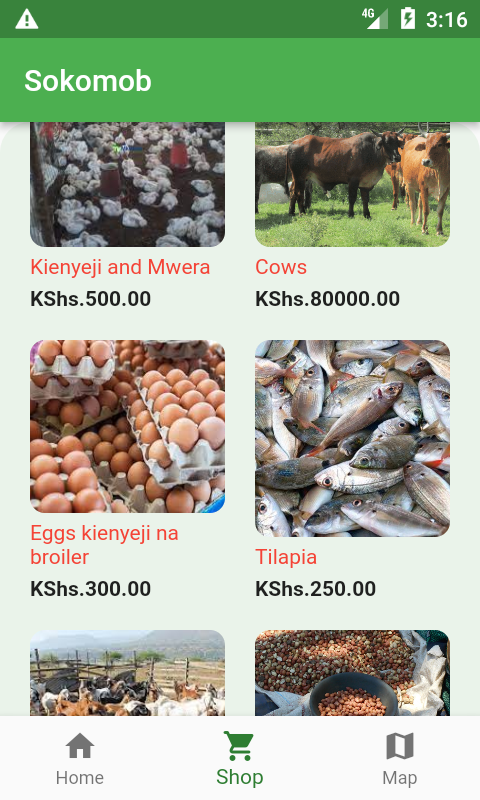

Shop Screen

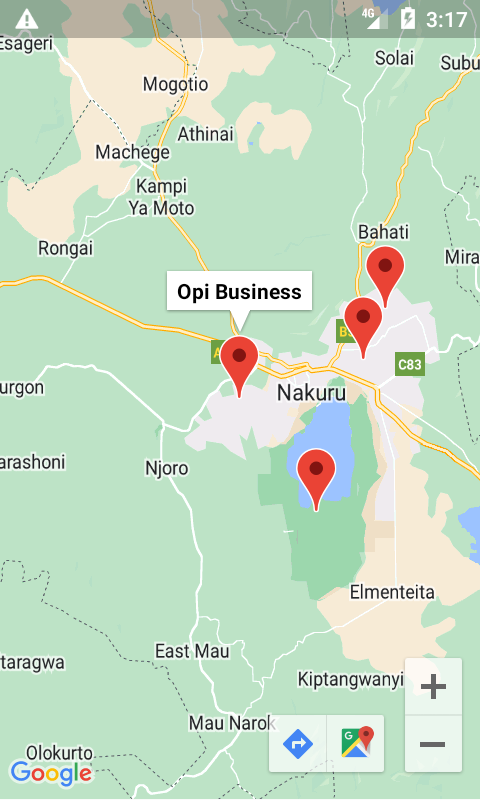

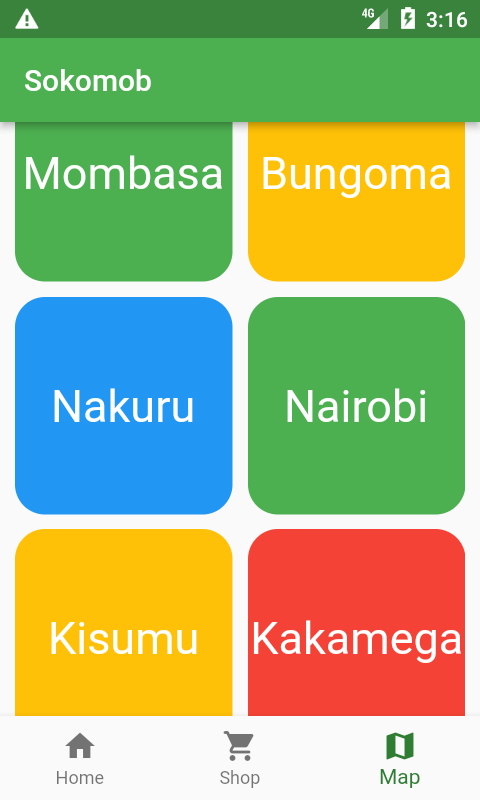

Map Screen

🔧 Development Guidelines

Code Organization

• Backend: Follow Django best practices with apps for different functionalities
• Frontend: Use feature-based folder structure with separation of concerns
• API: RESTful design with consistent error handling
• Database: Normalized schema with appropriate relationships

Testing

# Backend tests
cd backend/api
python manage.py test

# Frontend tests
cd frontend
flutter test

Code Style

• Python: Follow PEP 8 guidelines
• Dart: Follow official Dart style guide
• API: Use consistent naming conventions

🚀 Future Enhancements

Planned Features

• User authentication and authorization
• Payment gateway integration
• Real-time chat system
• Push notifications
• Advanced search and filtering
• ML-based recommendation system
• Multi-language support
• Offline mode capabilities

Technical Improvements

• PostgreSQL migration for production
• Redis caching implementation
• CI/CD pipeline setup
• Comprehensive testing suite
• API rate limiting
• Enhanced security measures

🤝 Contributing

We welcome contributions! Please follow these steps:

1. Fork the repository
2. Create a feature branch (git checkout -b feature/AmazingFeature)
3. Commit changes (git commit -m 'Add AmazingFeature')
4. Push to branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

Development Setup for Contributors

1. Follow the installation guide above
2. Create a new branch for your feature
3. Make changes and test thoroughly
4. Ensure code follows project style guidelines
5. Submit a pull request with clear description

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

👨‍💻 Author

Eddie Ogola

• GitHub: @eddieogola

🙏 Acknowledgments

• United Nations Sustainable Development Goals initiative
• Kenya's Big 4 Agenda for Food Security
• Flutter and Django communities
• Contributors and testers

---

Built with ❤️ to connect farmers directly with consumers and promote food security.
