feat(core): TabList scrolls when the tabs are wider than the strip

[cixzhang]

What

A TabList narrower than its tabs now scrolls. Every tab stays a tab — nothing is hidden behind a menu — the edges fade to show there is more, and pointers that can hover get an arrow at each scrollable edge. The selected tab is scrolled back into view whenever it would be out of sight, including on mount.

One new prop, overflow:

• 'auto' (default) — the component chooses. Today that is always scrolling.
• 'scroll' — scroll, explicitly.
• 'none' — the old layout: tabs keep their intrinsic widths and spill out of the strip.

Why

Today a strip too narrow for its tabs simply overflows its container: the tabs past the edge render outside the box and there is no way to reach them. The documented answer was to wrap the children in a Carousel — which works, but a carousel is a different widget. It puts a region with aria-roledescription="carousel" between the strip and its tabs and wraps each tab in a group announced as slide N of M, and it brings a layer stack, buttons and a translator along for a strip that only needs to scroll.

The behaviour belongs to the strip. This builds it on useScrollOverflow, the public hook the carousel itself uses for exactly this — 107 lines, already shared with the table's sticky columns — so there is no new measurement machinery, and nothing is inserted between the strip and its tabs. The two Carousel stories are replaced by the built-in behaviour.

Shape

The tabs move into a scroll container inside the <nav>. The nav keeps the theme target, the label, the keyboard wiring and the xstyle surface; the strip inside it is the thing that scrolls, and the arrows are its siblings rather than its children, so nothing foreign sits among the tabs.

Two details worth calling out, because both are invisible until they are wrong:

The bleed. A scroll container clips at its padding box, and a tab paints two things outside its own box: the focus ring, and the selected indicator — which drops further down when a divider rail is reserved. The strip pads by exactly that much and takes the padding straight back off with a negative margin, so nothing is clipped and the strip occupies the space it did before. Without it, a keyboard user loses the top and bottom of the focus ring.

The arrows are for pointers only. They are aria-hidden, out of the tab order, and shown only under (hover: hover). A tab strip is deliberately a single tab stop with a roving tabindex: keyboard and screen-reader users already reach every tab with the arrow keys, and focusing a tab scrolls it into view. Two more tab stops would be two more things to pass through, for an affordance those users do not need.

Risk

Scrolling is on by default. A strip that fits is untouched — same size, no fades, no arrows. A strip that does not fit changes: it scrolls instead of spilling. That is the point of the change, and overflow="none" restores the old behaviour exactly.

Trailing content composed into the strip (an action button, a TabMenu a caller passed in) scrolls with the tabs, because it is part of the same content. Giving the strip a fixed sibling slot for that is a separate change.

One shared utility moved with it: the resize-observer helper now degrades to its one-shot measurement where ResizeObserver does not exist, instead of throwing. That is what keeps a TabList rendered in a DOM-less test environment working without every consumer stubbing the API — until now nothing in this component measured anything.

Screenshots

Storybook, container fixed at 400px (350px for the divider row) so the strip cannot fit its tabs.

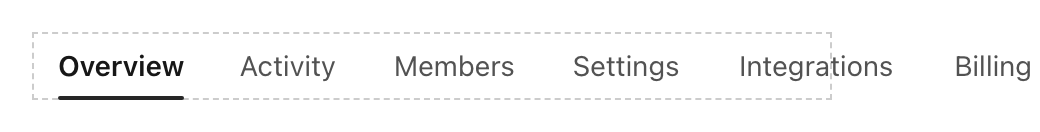

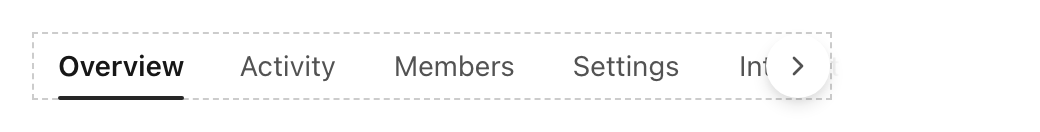

Light — before, the last tabs render outside the container and cannot be reached; after, the strip clips at its own edge, fades, and offers an arrow.

before	after

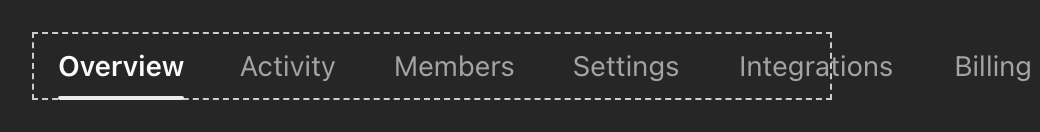

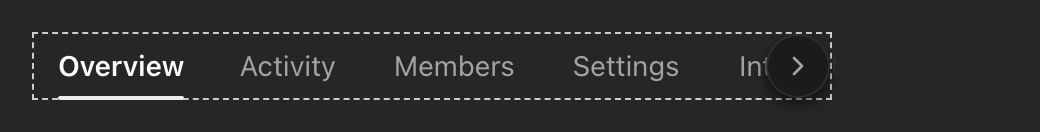

Dark — same behaviour; the arrow takes the popover surface colour and stays legible over the faded tabs.

before	after

With a divider (size="lg") — the tabs stay on the rail and the selected indicator still sits on it; nothing is clipped by the new scroll container.

before	after

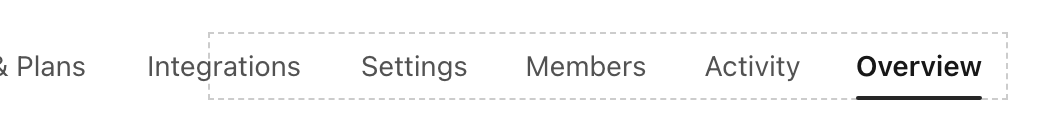

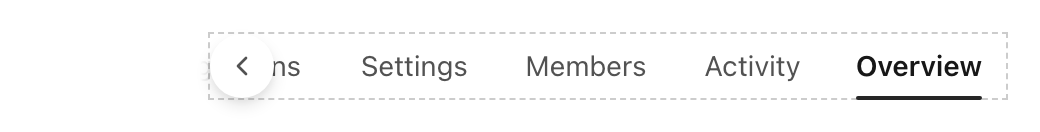

RTL — the fade, the arrow side and the chevron all flip.

before	after

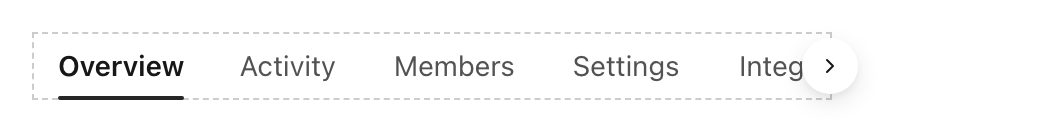

Against the Carousel recipe it replaces — the recipe (left) and the built-in behaviour (right) look the same. The difference is in the accessibility tree, not the pixels.

Carousel recipe (before)	built in (after)

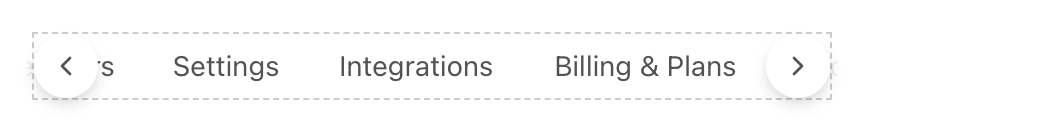

Scrolled to the middle — both edges faded, both arrows:

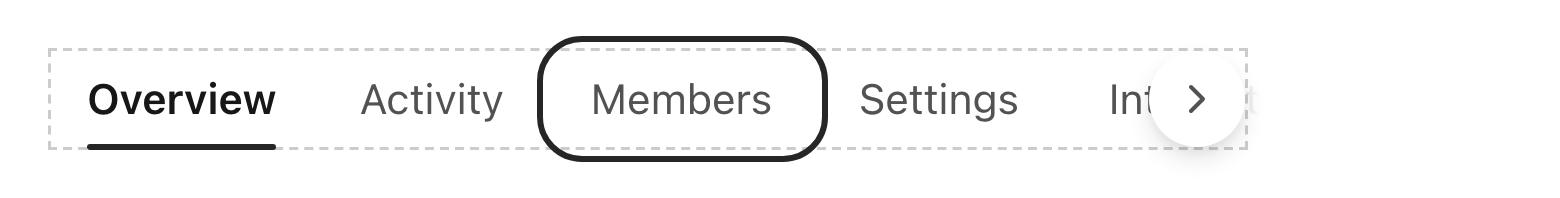

Keyboard focus on a middle tab, showing the ring drawn complete inside the scroll container:

Keeping the selected tab visible

Three ways it could have gone out of view, and none of them is the obvious one:

• Selection moves. The host sets value, or the strip mounts with a tab already selected. An effect scrolls it back.
• Focus moves. The browser scrolls a focused element into view only when it is entirely outside the scrollport, so arrowing onto a tab that straddles the edge left it cut off under the fade. The strip finishes that scroll itself.
• The strip moves. A strip that fitted at one width can hide the selected tab at a narrower one, and no prop changes when that happens — so the wrapper is observed for resize.

Focus traversal, measured

Driven in Chromium against Storybook, LTR and RTL, on the nine-tab strip (855px of tabs in a 408px box):

• arrow-keying from the first tab to the last and back puts every one of the nine fully inside the scroll box and clear of the faded edge — in both directions, in both writing directions. Home and End likewise.
• the strip is one tab stop: Tab enters on the roving stop, the next Tab leaves the component. The scroll arrows are not in the order, and a real pointer click on one scrolls without taking focus.
• the focus ring is drawn complete on every stop but one (below).

Two things it turned up.

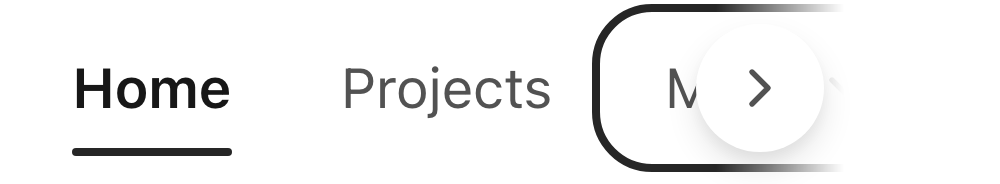

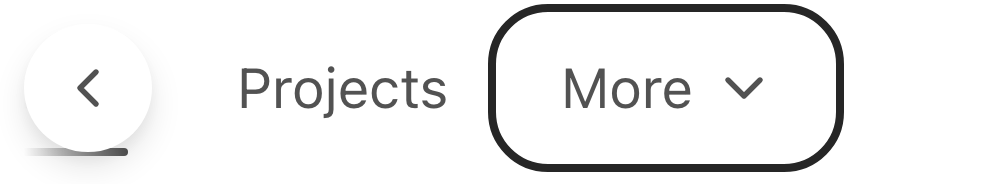

A half-visible overflow menu trigger was not scrolled into view. The reveal looked for tabs only, so the strip's other roving stop was left to the browser — which scrolls a focused element in only when it is entirely outside the scrollport. Arrowing onto a trigger straddling the edge left it cut off: 21px outside a 200px strip, with its focus ring running off the edge. Same class of bug as the one already fixed for tabs, and fixed the same way.

before	after

RTL, last tab, at the end of the scroll range: the ring loses 0.9px. Chrome's fractional rounding of an RTL scroll range clamps the strip a hair short of where the last tab's ring would fit, so its outer edge is clipped by 0.9px. Left alone: it is a rounding artefact of the scroll range rather than of this component, and buying it back means carrying a permanent extra pixel of bleed for a sub-pixel sliver. Everything else measured identically between the two directions.

The arrow edge

The scroll box is a ring bleed (5px) wider than the TabList on each inline side — that is what keeps the first and last tab's focus ring off the clip edge — and the fade ran out at the box's edge rather than the component's. So the strip painted tabs 5px outside itself: past a divider rail, and past the arrow that caps that edge, leaving a sliver of tab showing beyond the arrow.

The fade now reaches transparent at the component's own edge, so the arrow's outer edge, the faded edge and the TabList's box coincide. Masking the bleed costs nothing: it is only masked at an edge that is scrolled away from, and a stop at such an edge never holds focus — the reveal keeps the focused stop a fade width clear of both edges. Measured in the strip just outside the component's box, across writing direction, scroll position, both stories and both edges — eight configurations: ink up to 19/255 outside the box in five of them before, none in any of them now.

Zoomed 6×, end of the strip; the dashed line is the demo container's edge.

before	after

The same edge against a divider rail, where there is a line to be out of register with.

before	after

Should the arrows be configurable?

A recommendation, not a change — nothing here is built.

The arrows are already conditional twice over: they appear only at an edge that actually overflows, and only under (hover: hover), so a touch device never renders one. And hiding them strands nobody — arrow-key traversal moves the roving stop and scrolls it clear of the edge (measured above), and a pointer that hovers can wheel the strip. So "show them only in some circumstances" is already the behaviour, decided in the component rather than in every consumer's props.

What is left is a hard opt-out for a pointer that can hover. The smallest thing that serves it is the prop that already exists, given a sharper meaning — no second prop, no breakpoint or visibility map:

• 'auto' (default) — the component chooses. Today: scroll, with arrows where the pointer can hover.
• 'scroll' — scroll, plainly. No arrows.
• 'none' — unchanged.

"No arrows" becomes one word, and any later refinement of when arrows appear stays inside 'auto', in one place, instead of turning into props. Nothing has shipped, so redefining 'scroll' costs no migration. The alternative — an arrows boolean, then a breakpoint for it — is the road OverflowList took with maxVisibleItems/maxRows, and it still left people reaching past the component.

Two notes on the automatic half. The arrows are keyed off (hover: hover) in CSS rather than a coarse-pointer media query read in JS: it is the question that actually matters for a 32px round target, and it needs no hydration pass. And a strip that fits shows nothing at all, so the common case never sees an arrow either way.

Testing

Twelve new unit tests, all failing without their fix and passing here; the 46 that already covered the strip pass unchanged, as does the rest of the package (7313 tests).

Measured in Chromium against Storybook, since none of this is decided by the markup:

• the strip scrolls (855px of tabs in a 408px box) and clips at its own edge
• the selected tab is brought into view on mount (scrollLeft 447, the maximum) and when the host changes value with no focus involved (447 → 0 → 447), each time landing clear of the fade rather than under it
• arrow-keying to the last tab leaves it fully inside the scroll box
• pressing an arrow scrolls by a page (0 → 326)
• the focus ring is drawn complete on the first and on a middle tab — ring box 12–54px against a clip box of 12–54px
• the accessibility tree is unchanged: navigation "Tabs" with nine buttons, and the arrows do not appear in it at all
• arrow-keying through all nine tabs leaves every one of them fully inside the box and clear of the fade
• narrowing the container from 1100px to 400px under a selected last tab brings it back (scrollLeft 0 → 447, selected tab ends at 415px against a clip edge of 420px)
• clicking an arrow scrolls but leaves focus off it, so focus never rests on something hidden from assistive tech
• RTL flips the fade, the arrow side and the chevron

Fades, arrow visibility and the scroll arithmetic are covered in jsdom by describing the scroll box by hand, the same way the carousel's own tests do.
