64klang

Official 64klang repository

Get the latest prebuilt VST3 plugins

For discussion or feedback please use our #64klang channel on Discord

---

Overview

64klang is a modular, node-graph-based software synthesizer package intended to easily produce music for 64k intros (small executables with a maximum filesize of 65536 bytes containing realtime audio and visuals) or 32k executable music.

It consists of a VST3 plugin with an ImGui node-graph editor, a standalone player for embedding synthesized music into size-limited executables, and a runtime blob-loading library for tool integration.

The probably quite unique thing about 64klang is its ability to have basically unlimited options to connect things for sound creation and processing. The complete node graph is evaluated per sample, which makes it possible to do sample-exact feedback loops and enables options such as physical modelling (delay-based) on top of the usual AM, FM, and subtractive synthesis.

---

64klang3

64klang3 is a partial rewrite of 64klang2, now as a VST3 plugin with a platform-independent node-graph GUI using ImGui. It is the active version under development. The Synthesizer core is still the same as in 64klang2, so old Instrument (.64k2Channel) and Patch (.64k2Patch) files are expected to work as before.

64klang2 as the previous Win32 only version is also still available in the repo and listed in the releases

Key features

• VST3 plugin
  • Windows 32bit
  • Windows 64bit
  • macOS 64bit
  • Linux 64bit

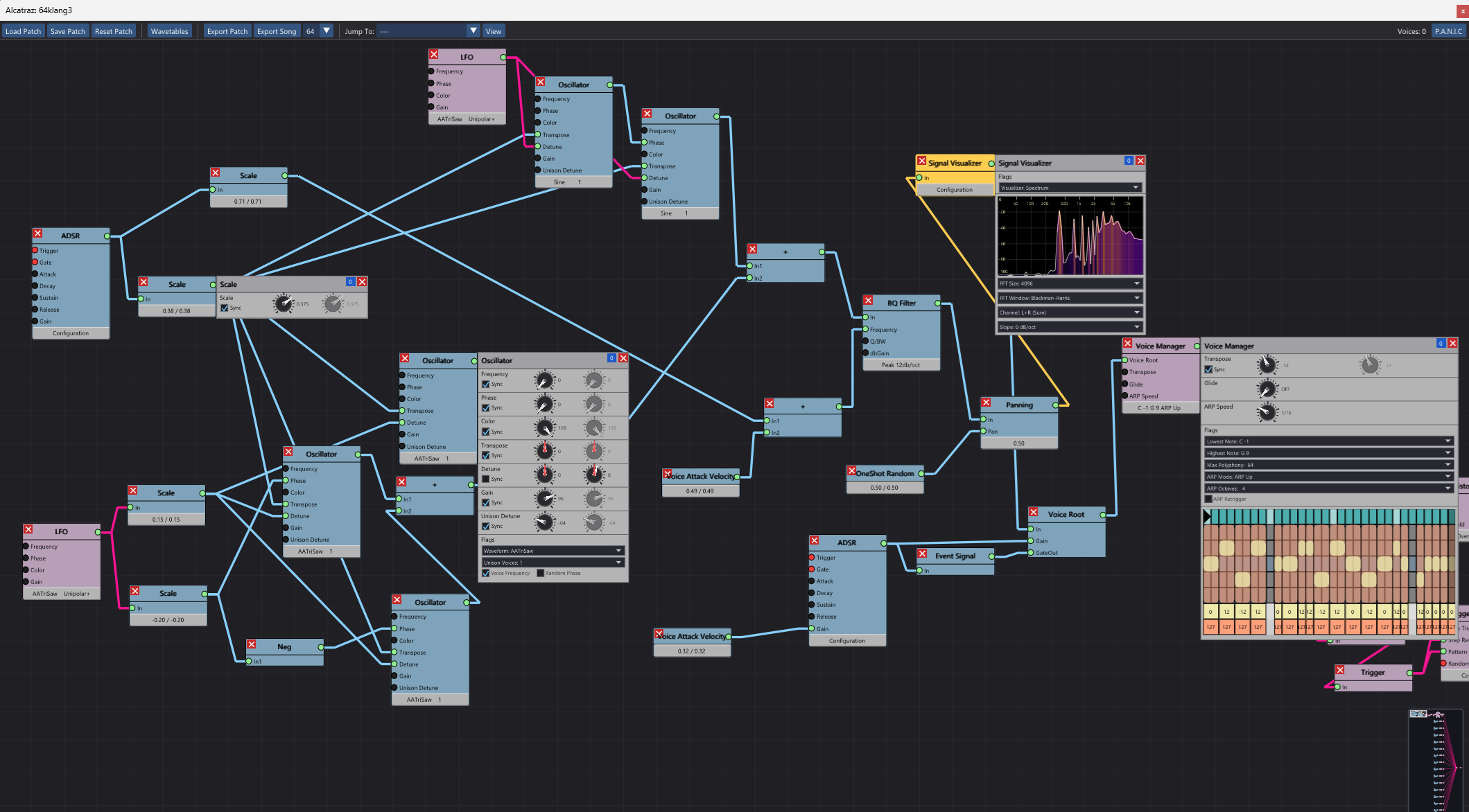

• ImGui-based zoomable/pannable node-graph editor
• 60+ node types: oscillators, filters, envelopes, delays, reverb, EQ, samplers, arpeggiator, spectral processing and more
• 44100 Hz, SSE4.1-accelerated stereo engine (sample_t = two packed doubles per stereo pair), per sample processing (allowing node feedback loops).
• Multi-instance support: multiple plugin instances share the singleton engine; first instance is render owner, others forward MIDI only
• Runtime blob loading for tools: export patch + song as .blob files from the plugin; load them at runtime in any codebase without recompilation (64klang_blob static library)
• optimized header files export for patch + song for direct compilation in size restricted demoscene productions like 32k exemusic or 64k intros

Platform note: Three node features require Windows APIs and produce silence on macOS/Linux: the Sampler node (GSM 6.10 compression via Windows ACM), the GM.DLS Sampler node (reads GM.DLS from the Windows system), and the TTS node (Windows SAPI speech synthesis). All other nodes are fully cross-platform.

Quick start

See BUILDING.md for full build instructions.

64-bit (standard DAW plugin):

# Configure (from repo root)
cmake -B build64 -A x64 ./64klang3
cmake --build build64 --target 64klang3 --config Release

Output: build64/VST3/Release/64klang3.vst3
Install to: C:\Program Files\Common Files\VST3

32-bit (most common target for 64k intro tools and integration):

cmake -B build32 -A Win32 ./64klang3
cmake --build build32 --target 64klang3 --config Release

Output: build32/VST3/Release/64klang3.vst3
Install to: C:\Program Files (x86)\Common Files\VST3

Embedding the synth engine into a 64k intro

After exporting your patch and song from the plugin (File → Export Patch / File → Export Song) you get two C headers: 64k2Patch.h and 64k2Song.h. Compile these directly into your executable alongside a small set of engine source files — no external dependencies, no CRT required in 32-bit Release builds.

Source files to add to your project (all from 64klang3/src/):

File	Purpose
core/Synth.cpp + core/Synth.h	Public API (_64klang_Init, _64klang_Render, …)
core/SynthNode.cpp + core/SynthNode.h	Per-sample node processing
core/SynthAllocator.cpp + core/SynthAllocator.h	Custom allocator (no STL in hot path)
core/sample_t.cpp + core/sample_t.h	SSE4.1 stereo sample type

Do not include SynthController.cpp, TinyXML, or any gui//vst3/ source — those are plugin-only. Do not define COMPILE_VSTI.

Minimal integration (see 64klang3/player/main.cpp for a complete waveOut reference):

// 1. Pull in the exported data
#define INCLUDE_NODES
#include "64k2Patch.h"   // defines SynthNodes, SynthMonoConstantOffset,
                         //   SynthStereoConstantOffset, SynthMaxOffset
#include "64k2Song.h"    // defines SynthStream, MAX_SAMPLES

// 2. Initialise the engine (call once, before any rendering)
_64klang_Init(SynthStream, SynthNodes,
              SynthMonoConstantOffset, SynthStereoConstantOffset, SynthMaxOffset);

// 3. Render the full song into an interleaved stereo float buffer
//    (blocks until done — run on a background thread for streaming playback)
static float soundBuffer[MAX_SAMPLES * 2];
_64klang_Render(soundBuffer);   // poll _64klang_RenderDone() for progress

Linker flags for a minimal 32-bit Release build (MSVC):

/SUBSYSTEM:CONSOLE /ENTRY:mainCRTStartup /NODEFAULTLIB /arch:SSE2

Add msacm32.lib winmm.lib if using waveOut playback.

Usage guide

See 64klang3-usage.md for a complete reference of mouse and keyboard interactions in the node-graph editor.

Source layout

64klang3/
  src/core/        — synth engine (sample_t, SynthNode, Synth, SynthController, SynthAllocator)
  src/gui/         — ImGui node-graph editor
  src/vst3/        — VST3 plugin wrapper
  src/platform/    — platform-specific implementations
  player/          — size-optimised standalone playback EXE (Windows, compiled-in song data)
  blobplayer/      — runtime blob-loading static lib + example host
  tools/DebugExe/  — standalone WASAPI + MIDI test host (Windows)
  cmake/           — CMake helpers

Runtime blob loading

The plugin exports .blob sidecar files alongside the usual C headers when you use Export Song / Export Patch. Link against 64klang_blob.lib (built with USE_BLOBS, no GUI dependency) to load songs at runtime without recompilation:

k64_blob_init_from_files("64k2Patch.h.blob", "64k2Song.h.blob");
float* buf = malloc(k64_blob_song_length() * 2 * sizeof(float));
k64_blob_render(buf);  // blocks; run on background thread for streaming

---

Examples

Some 64k intros using 64klang:

• http://www.pouet.net/prod.php?which=69669
• http://www.pouet.net/prod.php?which=69654
• http://www.pouet.net/prod.php?which=71570
• http://www.pouet.net/prod.php?which=71977

Some 32k exe music tracks using 64klang (by Paul Kraus (pOWL) and Jochen Feldkötter (Virgill)):

• https://soundcloud.com/powl-music/triangularity
• https://soundcloud.com/powl-music/the-last-sequencer
• https://soundcloud.com/virgill/sets/64klang2-modular-synth
• https://soundcloud.com/virgill/sets/64klang2-synthesis-experiments

---

History

64klang is the big brother of 4klang (https://github.com/gopher-atz/4klang).

The first version of 64klang was created around 2010/2011 for use in a 64k intro together with Fairlight (http://www.pouet.net/prod.php?which=57449). It was literally an extended 4klang — extending the concept of a signal stack to a more generic node graph, with a synth core written in Assembler and a native Win32 GUI.

64klang2 (2012–2014) rewrote the core in C++ with heavy SSE4.1 use and a .NET WPF GUI. It shipped as a VST2 plugin and was used in several 64k productions and 32k exe-music tracks. The legacy 64klang2 code now lives in 64klang2/ and is no longer under active development.

64klang3 (2026-...) is the current rewrite: VST3, 32bit/64bit, cross-platform, ImGui GUI, CMake build system.

---

Credits

64klang was developed by Dominik Ries (gopher / Alcatraz).

Special thanks go out to Ralph Borson (https://github.com/revivalizer) for his invaluable blog posts on SIMD parallelisation in soft-synth development.

Also 64klang would not be in its current state without the help and input of many talented friends and demosceners (just to name a few):

pOWL, virgill, xtr1m, muhmac, reed, jco, punqtured, …
