Add Skyfall's Hacker Card

[SkyfallWasTaken]

Submission Checklist:

• I am a current high school, middle school, or home schooled student.
  • I am 18 or under
  • I have filled out the verification form (do this for every pull request)
• I have joined the #electronics channel on Slack
• I made this board from scratch, even if I followed a tutorial
• I have followed the directions in README.md
  • Created a folder under onboard/projects
  • Filled out TEMPLATE.md as README.md inside your project folder
  • Uploaded gerber.zip and schematic.pdf inside your project folder
  • Created a folder called src and uploaded design files
  • Uploaded screenshot of PCB order called cart.png with all costs included
  • I am ordering the smallest batch size (ie. JLCPCB's smallest order is for 5 boards)
  • If outside the US I've checked that I can afford the customs charges in my country (which isn't covered by the grant)

---

• (Optional) This project is from a tutorial¹.
• (Optional) This project is for OnBoard Live².
• (Optional) I'm in a FIRST (FRC, FTC, FLL, etc.) team. The number is: ____

Footnotes

1. Projects from a tutorial are 100% fine! We just want to ask so we can count how people are using tutorials. ↩

2. OnBoard Live is a special version of OnBoard where you can earn more money for designing advanced boards. Check out the #onboard-live channel on our Slack! ↩

[prophetorpheus]

Hi, I'm Orpheus Leap! Here to help you review your PR.

projects/skyfalls-hackercard:

Required files

✅	README.md	A description of your project
✅	cart.png
✅	gerber.zip
✅	schematic.pdf	Manually check schematic.pdf
✅	Source files - EasyEDA	Found both PCB and SCH files

You can view a render of your board over on gerber.zip/2d!

Happy OnBoarding!
_{This bot is a simpler helper for common submission types. If there's an error with this, please point it out and someone from the OnBoard team will look at it manually.}

[souptik-samanta]

Your files are all correct but it seems like you haven't done the [verification form](https://verify.onboard.hackclub.com/) - we need this info to contact you and send your grant! Thank you!

[SkyfallWasTaken]

Done!

[souptik-samanta]

Hi @SkyfallWasTaken !

You have not selected assembly from JLCPCB, so there won't be any components (NFC chip, LEDs, etc) installed on your board. Please check out https://github.com/hackclub/OnBoard/blob/main/docs/ordering_from_JLCPCB.md for how to do this. You can order up to 5 assembled boards.

Additionally, please make a "src" folder in projects/[name]/, and put your project sources there. They should be two .JSON files, one from the schematic tab, one from the PCB tab.

Also, if you haven't done it already, you need to export your schematic tab as a PDF (in the schematic tab go to File > Export > PDF), and upload that.

[SkyfallWasTaken]

I'm pretty sure I have assembly on - I think it's not shown in the pricing because I have a coupon

I also do have the src folder and schematic PDF in my folder? (although I might've put the wrong files)

[souptik-samanta]

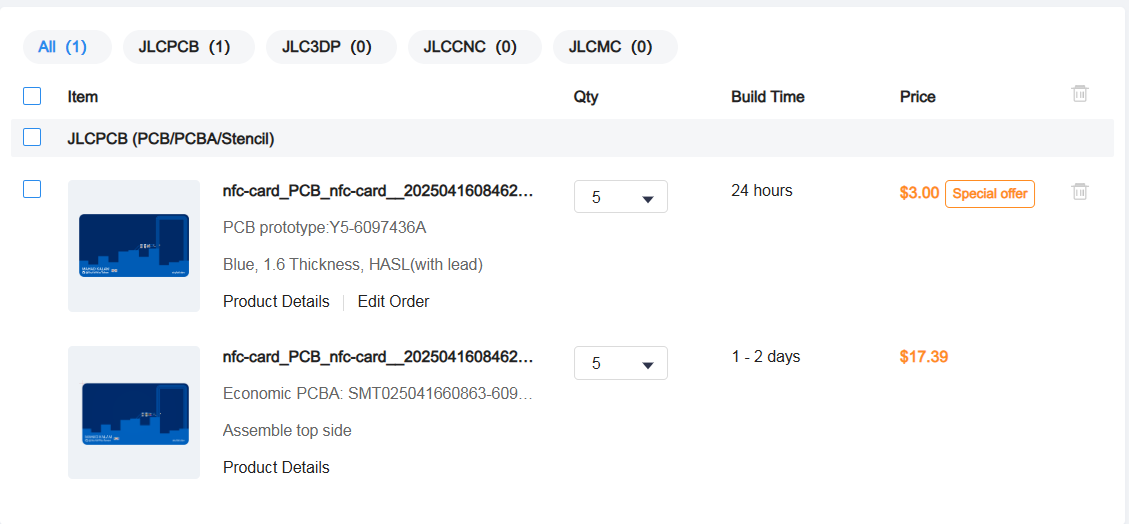

If you had pcba the cart.png should look like this

You can dm me, if you have any more confusions.
You just need to update the cart.png nothing more.

[SkyfallWasTaken]

Just added the updated cart photo! FYI I cancelled the order for the blue version and added the white one instead

[souptik-samanta]

Its still only the pcb 😭
It will not work after it comes to you.
This is what your screenshot should look like

[SkyfallWasTaken]

I think I fixed it but it added $18 to the price 😭

[souptik-samanta]

LGTM
I have sent out your grant to your email.

[SkyfallWasTaken]

Thank you!
