8-staged symmetric block cipher pipeline

An eight staged symmetric block cipher crypto pipeline to improve advanced encryption standard based on meta DES, 3DES with P-Box S-Box.

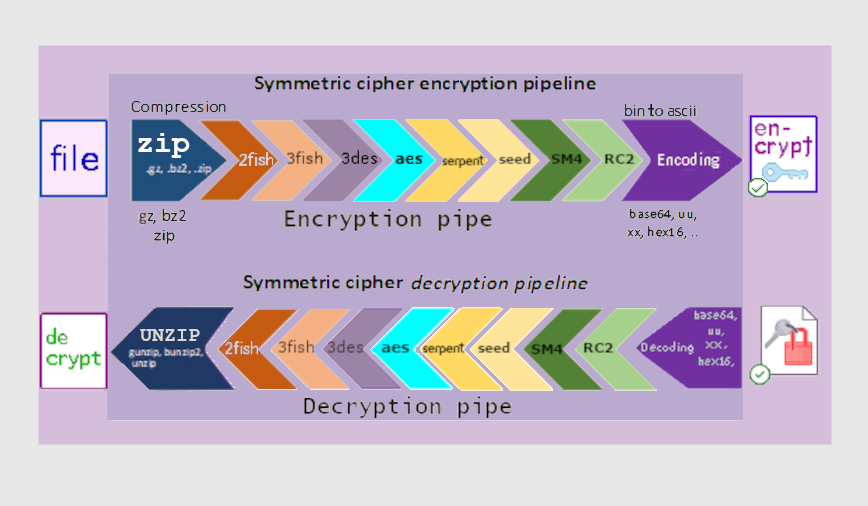

The following image shows you an example of a symmetric cipher 8 staged encryption pipe and the corresponding decryption inverse pipe.

Before entering the encryption pipe, the file can be zipped to avoid huge amount of symmetric cipher blocks and after exiting the encryption pipe the file can be ascii encoded with base64 mime, uuencode, xxencode or hex16, because symmetric chiphered binary files might lose their block padding.

Implementation is based on my blog article: Making symmetric cipher encryption meta permutating again, including the follwing symmetric cipher algorithms:

• Aes, AesLight, AesNet, Rijndael
• Bruce Schneier's BlowFish, 2-Fish, 3-Fish, 3-Fish-256
• Camellia, CamelliaLight
• Cast5, Cast6
• National security agency's Des, 3-Des, Triple-Des.Net, SkipJack
• Dstu7624
• Gost28147, Idea, Noekeon
• RC2, RC532, RC564, RC6
• Seed, SM4
• Serpent, Tnepres
• Tea, XTea
• and my own simplest below average symmetric block cipher alogrithms: ZenMatrix, ZenMatrix2

Online latex help

C# solution and all projects ported to .NetCore 10

You need since 2025-11-15 Visual Studio 2026 and C# .NetCore 10.0 to compile C# csproj.

Download

Releases

https://github.com/heinrichelsigan/PermAgainCrypt/releases/

cqrxs.eu/download

• PermAgainCrypt_WinForm_NetCore10_x86+x64
• Rendundant website is io.cqrxs.eu/download

WebForm online test:

• area23.at/net/Crypt/CoolCrypt.aspx
• cqrxs.eu/net/Crypt/CoolCrypt.aspx

Videos

• walk through: https://youtu.be/GX9q1sRx3nE
• https://youtu.be/5J3R1gg-jjA
• https://youtu.be/xpnnrxc2znA
• https://youtu.be/tY2DPsZjbVQ

Credits

• Great Thanks to the Legion of the Bouncy Castle, git bcgit
• libtom.net, git libtom/libtomcrypt
• cryptopp.com, git weidai11/cryptopp

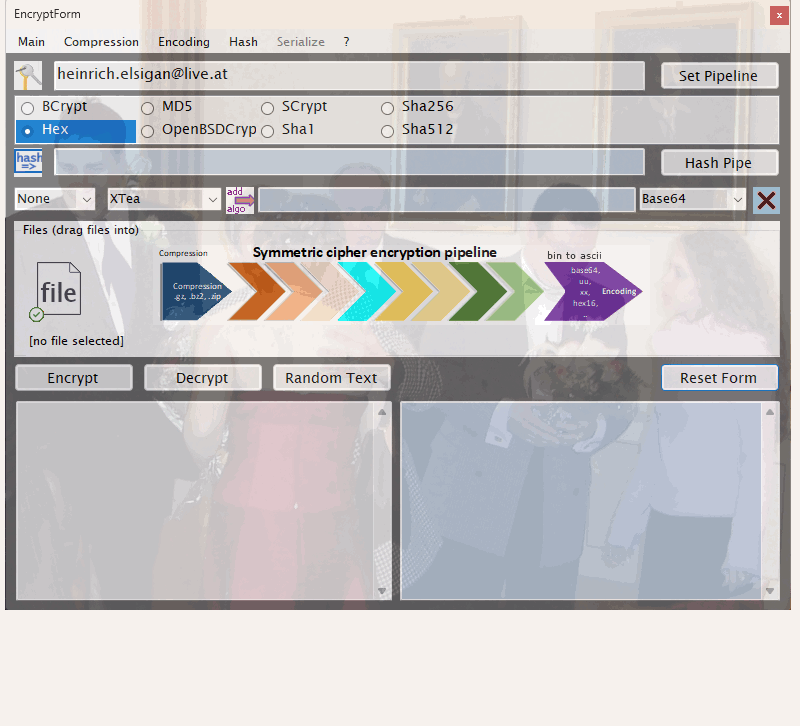

WinFormCore:

Console Application

Console application let you execute cipherpipe as standard console programm. options can be set by argument parameters.

U:\source\PermAgainCrypt\Deploy\console\x86>EU.CqrXs.Console.exe
Usage:  EU.CqrXs.Console.exe
    -i  ├─ --inFile= | --inText={string|EnviromentVariable} | --inStd
        |
    -k  ├─ --key=passKey encrypt
    -H  ├─ --Hash={Blake2xs|BCrypt|CShake|Dstu7564|Hey|MD5|Oct|RipeMD256|SCrypt|Sha1|Sha256|Sha384|Sha512|Whirlpool|TupleHash}
        |      default: Hex
    -z  ├─ --zip={gzip|bzip2|zip}
        |     default: none
    -C  ├─ --CipherAlgost={algo1,algo2,...}
        | └ algo:
        │     Aes,AesLight,Rijndael,Des,Des3,Dstu7624,
        │       Aria,Camellia,CamelliaLight,Cast5,Cast6,
        │       BlowFish,Fish2,Fish3,
        │       Gost28147,Idea,Noekeon,
        │       RC2,RC532,RC564,RC6,
        │       Seed,SkipJack,Serpent,SM4,
        │       Tea,Tnepres,XTea,
        │       ZenMatrix,ZenMatrix2
        │   symmAlgo:
        │        Aes,BlowFish,Camellia,Cast6,Des3,Fish2,Fish3,Gost28147,Idea,RC532,Seed,SkipJack,Serpent,Tea,XTea,SM4
    -S  ├─ --SymmCipher
    -e  ├─ --encode={raw|hex16|hex32|base32|base64|uu}
        |   default: base64
    -D  ├─ --Decrypt [ = Inverse_Pipe_Direction ]
        |
    -o  ├─ --outFile= | --outText=EnviromentVariable | --outStd
        |
    -V  ├─ --verbose
    -?  ├─ --gethelp

Examples:

    EU.CqrXs.Console.exe -V -i=.\README.MD -e=base16 -o=.\README_MD.base16
    EU.CqrXs.Console.exe -V -D  -i=.\README_MD.base16 -e=base16 -o=.\READ_MD.txt

    EU.CqrXs.Console.exe -V -i=.\README.MD -k=Hallo -z=gzip  -C=BlowFish,Fish2,Fish3 -e=base64 -o=.\README.MD.gz.BfF.base64
    EU.CqrXs.Console.exe -V -D -i=.\README.MD.gz.BfF.base64 -e=base64 -C=BlowFish,Fish2,Fish3 -p=Hallo -z=gzip -o=.\READ_GUNZIP.txt

    EU.CqrXs.Console.exe -V -i=.\README.MD -z=bz -k=heinrichelsigan.area23.at -H=Whirlpool -e=hex32 -o=.\README.MD.Whirlpool.bz.Hex32
    EU.CqrXs.Console.exe -V -D -i=.\README.MD.Whirlpool.bz.Hex32 -e=hex32 -k=heinrichelsigan.area23.at -H=Whirlpool -z=bz -o=.\READ_BUNZIP.txt

    EU.CqrXs.Console.exe -V -i=.\README.MD -z=zip -k=io.cqrxs.eu -C=Aes,Blowfish,Des3,Fish2,Fish3,Seed,Serpent,SM4 -H=SCrypt -e=uu -o=.\README.MD.SCrypt.zip.uu
    EU.CqrXs.Console.exe -V -D -i=.\README.MD.SCrypt.zip.uu -e=uu -k=io.cqrxs.eu -C=Aes,Blowfish,Des3,Fish2,Fish3,Seed,Serpent,SM4 -H=SCrypt -z=zip -o=.\READ_UNZIP.txt

    EU.CqrXs.Console.exe -V -i=.\README.MD -S -z=zip -k=io.cqrxs.eu -H=BCrypt -e=xx -o=.\README.MD.BCrypt.zip.xx
    EU.CqrXs.Console.exe -V -D -i=.\README.MD.BCrypt.zip.xx -S -e=xx -k=io.cqrxs.eu -H=BCrypt -z=zip -o=.\README_SYM_BCRYPT_UNZIP.txt

U:\source\PermAgainCrypt\Deploy\console\x86>

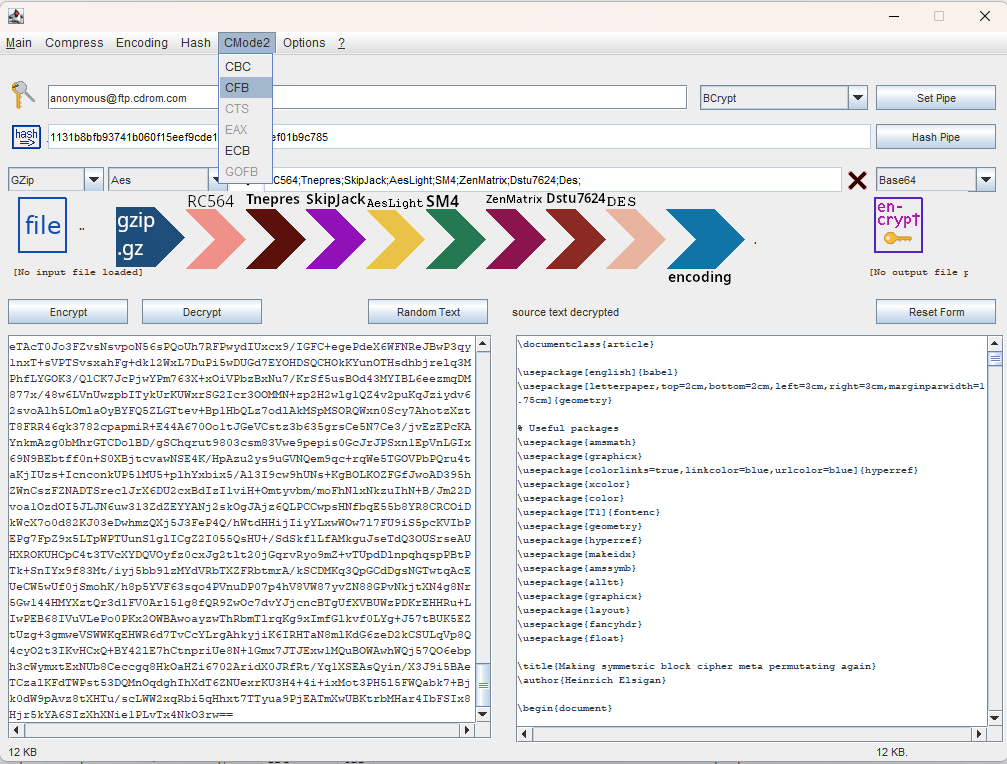

Java

Java C# compare encoding / decoding

• RC564 is not well implemented by me in java.
• ZenMatrix has now been already ported by me to java.
• ZenMatrix2, BZip2 and Zip aren't already ported by me to java.
• Ascon256 and Xoodyak have currently every replaced by Oct and TupleHash

Android
