Lidar-Inertial Odometry

MIT License

ROS2 Wrapper: https://github.com/93won/lio_ros_wrapper

Features

• Iterated Extended Kalman Filter (IEKF): Direct LiDAR-IMU fusion with nested iteration for re-linearization and convergence
• Adaptive Robust Estimation: Probabilistic Kernel Optimization (PKO) for automatic Huber loss scale tuning
• Incremental Hierarchical Voxel Map: 2-level hash-based spatial indexing (L0/L1) with occupied-only tracking for fast local KNN search
• Pre-computed Surfel Planes: L1 voxels store fitted plane surfels (normal, centroid, covariance) computed via SVD, enabling O(1) correspondence finding without per-point KNN/SVD
• Motion compensation: IMU-based undistortion for moving LiDAR scans

Probabilistic Kernel Optimization (PKO)

This project implements adaptive robust estimation using Probabilistic Kernel Optimization for automatic Huber loss scale tuning. If you use this method in your research, please cite:

@article{choi2025pko,
  title={Probabilistic Kernel Optimization for Robust State Estimation},
  author={Choi, Seungwon and Kim, Tae-Wan},
  journal={IEEE Robotics and Automation Letters},
  volume={10},
  number={3},
  pages={2998--3005},
  year={2025},
  publisher={IEEE}
}

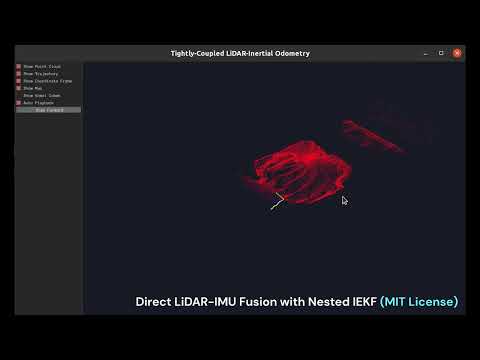

Demo

Installation (Ubuntu 20.04)

cd lidar_inertial_odometry
./build.sh

This will:

1. Build Pangolin from thirdparty/pangolin
2. Build the main project with CMake

Quick Start

M3DGR Dataset (Recommended)

Download Pre-processed Dataset:

• Google Drive: M3DGR Parsed Dataset
• Source: M3DGR Dataset
• Sensors: Livox Avia / Mid-360 LiDAR + Built-in IMU

Running Single Sequence:

cd build

# Livox Avia
./lio_player ../config/avia.yaml /path/to/M3DGR/Dynamic03/avia

# Livox Mid-360
./lio_player ../config/mid360.yaml /path/to/M3DGR/Dynamic03/mid360

Dataset Structure:

M3DGR/
├── Dynamic03/
│   ├── avia/
│   │   ├── imu_data.csv
│   │   ├── lidar_timestamps.txt
│   │   └── lidar/
│   │       ├── 0000000000.pcd
│   │       ├── 0000000001.pcd
│   │       └── ...
│   └── mid360/
│       └── (same structure)
├── Dynamic04/
├── Occlusion03/
├── Occlusion04/
├── Outdoor01/
└── Outdoor04/

Project Structure

lidar_inertial_odometry/
├── src/
│   ├── core/             # Core algorithm implementation
│   │   ├── Estimator.h/cpp                  # IEKF-based LIO estimator
│   │   ├── State.h/cpp                      # 18-dim state representation
│   │   ├── VoxelMap.h/cpp                   # Hash-based voxel map for fast KNN
│   │   └── ProbabilisticKernelOptimizer.h/cpp # PKO for adaptive robust estimation
│   │
│   ├── util/             # Utility functions
│   │   ├── LieUtils.h/cpp       # SO3/SE3 Lie group operations
│   │   ├── PointCloudUtils.h/cpp # Point cloud processing
│   │   └── ConfigUtils.h/cpp    # YAML configuration loader
│   │
│   └── viewer/           # Visualization
│       └── LIOViewer.h/cpp      # Pangolin-based 3D viewer
│
├── app/                  # Application executables
│   └── lio_player.cpp    # Dataset player with live visualization
│
├── config/               # Configuration files
│   ├── avia.yaml         # Parameters for Livox Avia LiDAR
│   └── mid360.yaml       # Parameters for Livox Mid-360 LiDAR
│
├── thirdparty/           # Third-party libraries
│   ├── pangolin/         # 3D visualization
│   └── spdlog/           # Logging (header-only)
│
├── CMakeLists.txt        # CMake build configuration
└── README.md             # This file
