notify1090

Minimal python script that polls a tar1090 ADS-B receiver JSON aircraft APIs, filters aircraft within given radius, asks an LLM (Gemini) if that plane is interesting for you using a custom prompt and if it is sends you a notification.

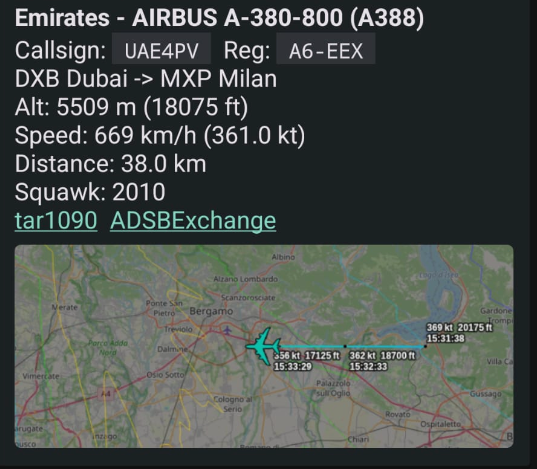

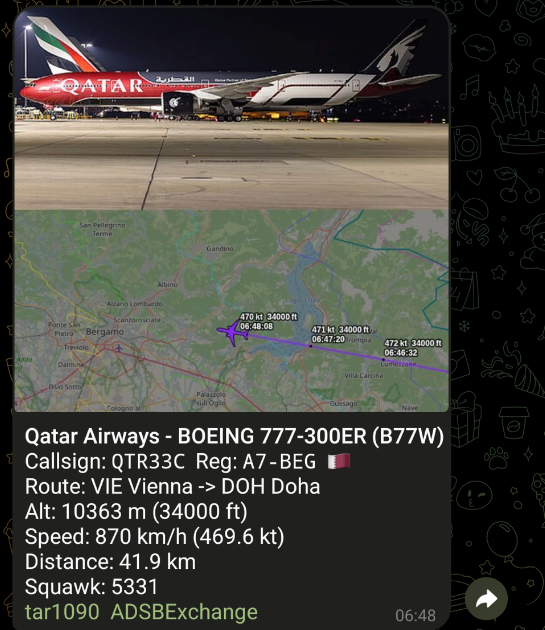

Telegram Notification	NTFY Notification

Filtering Flow

1. Fetch all aircrafts from tar1090
2. Filter by radius
3. Skip notification if aircraft already seen
4. Notify directly if aircraft has emergency squawk
5. Skip notification if aircraft type matches the exclusion regex
6. Skip notification if LLM doesn't think the aircraft is interesting
7. Fetch planespotter photo and aircraft route via adsbdb
8. Take a tar1090 map screenshot (if playwright and pillow are installed)
9. Compose planespotter photo and screenshot into a single image
10. Send the telegram/ntfy message

Integrations

• Telegram for notifications. Create a bot via @BotFather and get your chat ID via @userinfobot. Optional if ntfy is configured.
• ntfy for notifications. Optional if Telegram is configured.
• tar1090 instance to get aircraft data. I use the one integrated with the excellent adsb.im.
• Google AI Studio for the interesting aircraft evaluation. If you want this step an API key is needed, but you can skip this step and get notified for every plane in range using the --notify-all option.
• Planespotters, for getting the picture of the plane. No API key needed.
• ADSBExchange link is returned for each plane, if you want to keep track of it even if it goes out from your ADS-B receiver range.
• adsbdb for getting airline and flight route info from the callsign. No API key needed.
• Playwright for taking a tar1090 map screenshot of the aircraft position. Install with pip install playwright && playwright install chromium.
• Pillow for composing the planespotter photo and map screenshot into a single image. Install with pip install pillow.

Usage

Copy the conf.json.example to conf.json and fill it out with your data. Then, run

python3 notify1090.py

If you want to skip the LLM evaluation but still apply the type exclusion regex, run

python3 notify1090.py --skip-llm

If you want to skip both the LLM and the regex filter and get notified for every aircraft in radius, run

python3 notify1090.py --notify-all

And if you want to wipe the seen-aircraft database

python3 notify1090.py --wipe-db

(or you just delete the notify1090.db sqlite file)

Logs

All output goes to stdout and log.txt in the working directory, and each line has the timestamp.

• poll #N: summary of each poll cycle (total / in radius / new)
• NOTIFY: aircraft flagged and notification sent, followed by the LLM reason
• SKIP: aircraft evaluated but not interesting, followed by the LLM reason
• EXCLUDE: aircraft type matched exclude_type_regex, skipped before LLM
• EMERGENCY: squawk 7500/7600/7700 detected, notified immediately bypassing all filters
• GEMINI ERROR: LLM call failed, retrying
• GEMINI RETRY FAILED: LLM timed out twice, aircraft notified anyway
• TELEGRAM ERROR: Telegram notification failed to send
• NTFY ERROR: ntfy notification failed to send
• PLANESPOTTERS ERROR: photo lookup failed
• ADSBDB ERROR: route lookup failed
• SCREENSHOT ERROR: tar1090 screenshot failed
• COMPOSE ERROR: image composition failed

Analyzing the LLM message inside the NOTIFY and SKIP logs could be useful for verifying if the LLM evaluation matches your expectation. You can get all these log lines with

grep "LLM REASON" log.txt

By executing the following file

python3 web.py --port 8080

it's possible to start a small web server that reads the log.txt file and prints every aircraft decision entry (NOTIFY, SKIP, EXCLUDE, EMERGENCY) in a easier way.

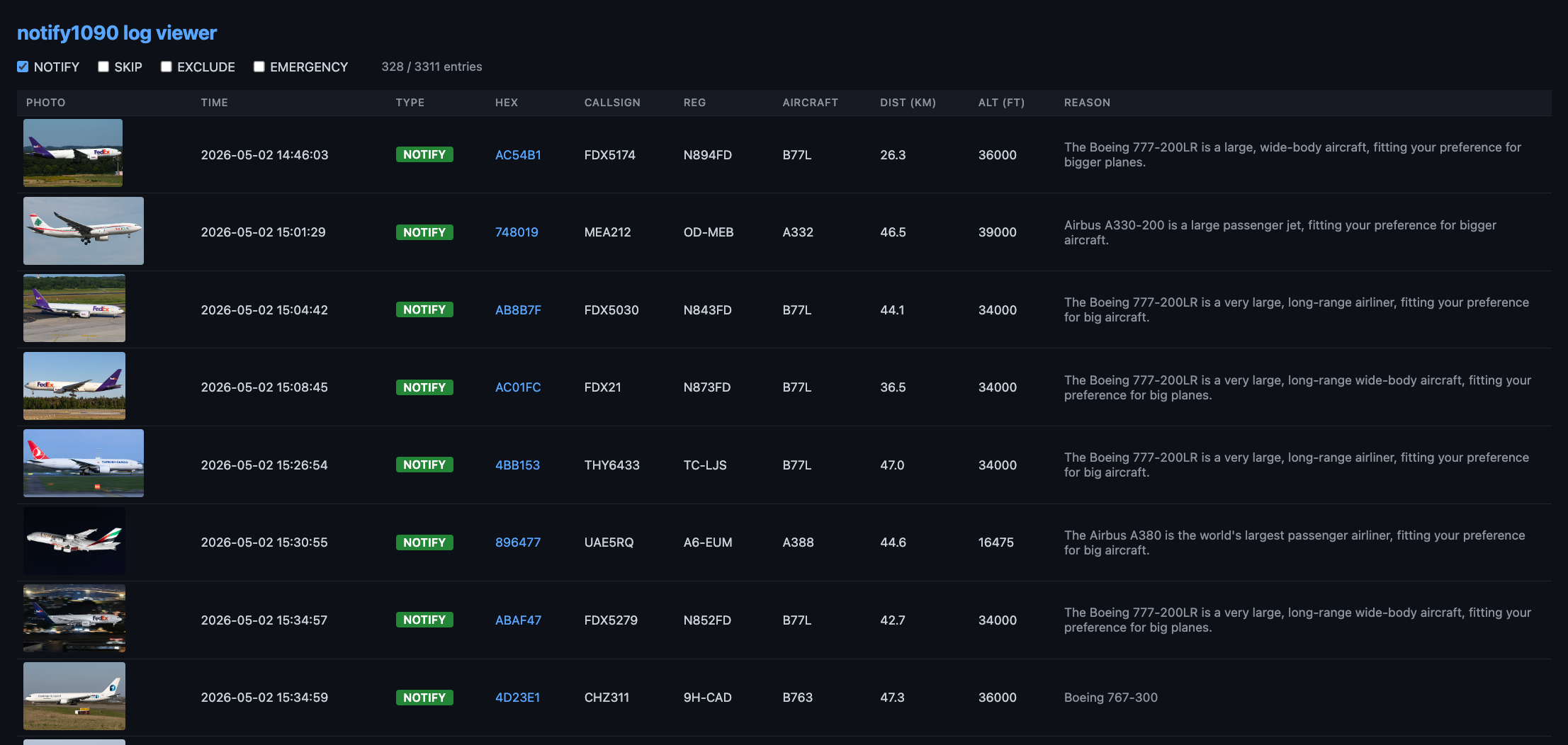

Log Viewer

Config reference

Field	Description
tar1090_url	Base URL of your tar1090 instance
latitude / longitude	Your location
radius_km	Notification radius
prompt	Natural language description of what you find interesting. Must end with instructions Reply with YES or NO followed by a colon and a one-line reason..
poll_interval_seconds	How often to poll tar1090
seen_ttl_hours	Hours after a previously seen aircraft is re-evaluated.
exclude_type_regex	Optional regex to check against the aircraft type field, to filter boring models before asking to the LLM
gemini_api_key	Google AI Studio API key (requires billing enabled)
telegram_bot_token	Telegram bot token from @BotFather. Optional if ntfy_topic is set.
telegram_chat_id	Your Telegram chat ID. Required if telegram_bot_token is set.
ntfy_topic	ntfy topic name. Optional if Telegram is configured.
screenshot	Enable tar1090 position screenshot.
screenshot_params	Full tar1090 query string for the screenshot URL. See tar1090 query docs.
screenshot_viewport	Viewport width in px
