Sparrow

Structured data extraction, instruction calling and agentic workflows with ML, LLM and Vision LLM

Overview

Sparrow is an API-first platform for enterprise document intelligence. It provides RESTful APIs for structured data extraction, instruction processing, and multi-agent workflow orchestration — all running on your own infrastructure with no external API calls or cloud dependencies.

The platform is designed around three core capabilities:

Structured Extraction: Submit documents via REST and receive validated JSON output. Integrates directly into any backend or data pipeline.
Instruction Processing: Beyond document extraction — text processing, validation, and decision-making via the instruction inference API.
Agent Framework: Orchestrate multi-step workflows with custom agents, visual monitoring via Prefect, and robust error handling.

Key Features

Universal Document Processing — Invoices, receipts, forms, bank statements, and tables
Pluggable Architecture — Mix and match Sparrow Parse, Instructor, and Agent pipelines
Multiple Inference Backends — MLX (Apple Silicon), Ollama, vLLM, Docker, Hugging Face Cloud GPU
Multi-format Input — Images (PNG, JPG) and multi-page PDFs
Schema Validation — JSON schema-based extraction with automatic validation
API-First Design — RESTful endpoints for integration into any stack
Instruction Calling — Text processing, validation, and decision-making with GPT-OSS, Mistral, Qwen, and others
Visual Monitoring — Built-in dashboard and agent workflow tracking
Enterprise Ready — Rate limiting, usage analytics, commercial licensing available
Local Vision LLMs — Mistral, Qwen, DeepSeek OCR, dots.ocr, Gemma 4, and more

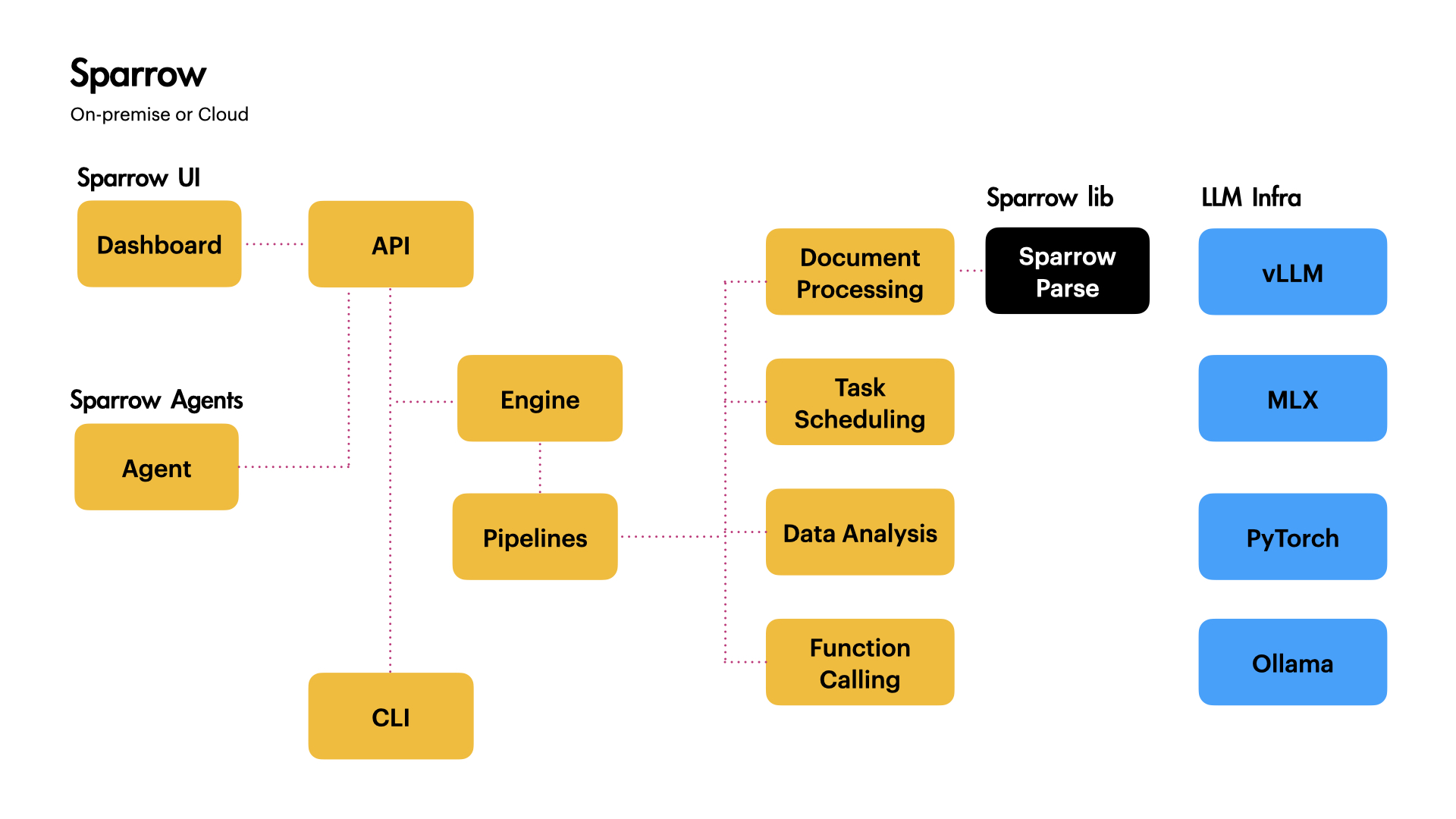

Architecture

Core Components

Component	Purpose	Typical Use
Sparrow ML LLM	Main API engine	Document processing pipelines
Sparrow Parse	Vision LLM library	Structured JSON extraction
Sparrow Agents	Workflow orchestration	Complex multi-step processing
Sparrow OCR	Text recognition	OCR preprocessing

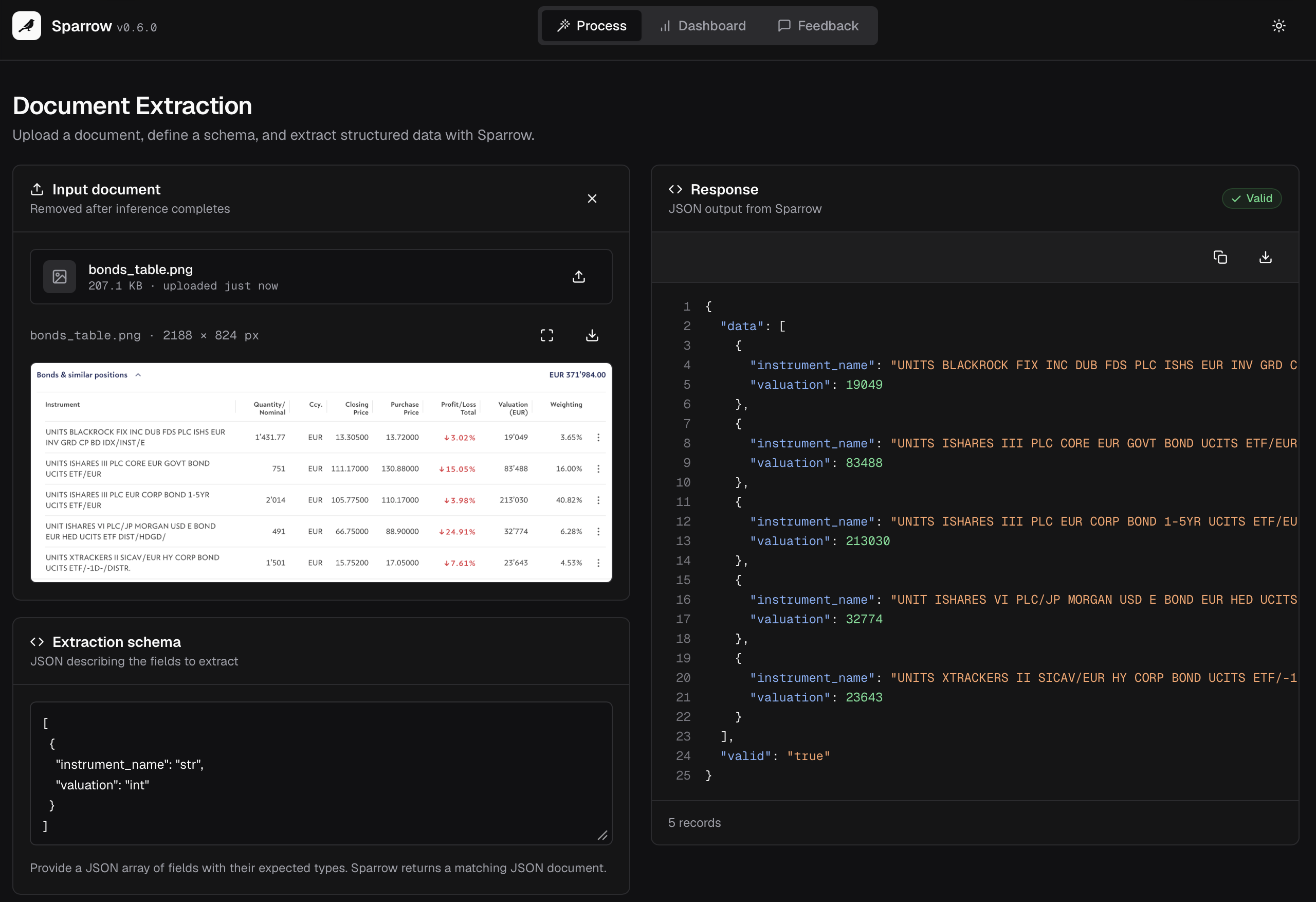

Sparrow UI	Web interface	Interactive document processing

Quickstart

Prerequisites

Python 3.12.10+
macOS (for MLX backend) or Linux/Windows (for other backends)
Sufficient GPU memory for the selected Vision LLM

Setup

# Install Python 3.12.10 via pyenv
pyenv install 3.12.10
pyenv global 3.12.10

# Create a virtual environment
python -m venv .env_sparrow_parse
source .env_sparrow_parse/bin/activate    # Linux/macOS
# .env_sparrow_parse\Scripts\activate     # Windows

# Clone the repository
git clone https://github.com/jhonathan-humnel/ai-doc-forge.git
cd sparrow/sparrow-ml/llm

# Install dependencies
pip install -r requirements_sparrow_parse.txt

# macOS: install poppler for PDF processing
brew install poppler

# Start the API server
python api.py

Before running pip install, verify your platform target in requirements_sparrow_parse.txt. Use sparrow-parse[mlx] for Apple Silicon and sparrow-parse for Linux/Windows.

First Extraction

./sparrow.sh '[{"instrument_name":"str", "valuation":0}]' \
  --pipeline "sparrow-parse" \
  --options mlx \
  --options mlx-community/Qwen2.5-VL-72B-Instruct-4bit \
  --file-path "data/bonds_table.png"

{
  "data": [
    {"instrument_name": "UNITS BLACKROCK FIX INC...", "valuation": 19049},
    {"instrument_name": "UNITS ISHARES III PLC...", "valuation": 83488}
  ],
  "valid": "true"
}

Installation

git clone https://github.com/jhonathan-humnel/ai-doc-forge.git
cd sparrow

For complete installation instructions, see environment_setup.md.

Virtual Environments

Create separate environments for different pipelines:

Environment	Pipeline
`.env_sparrow_parse`	Sparrow Parse (Vision LLM)
`.env_instructor`	Instructor (Text LLM)
`.env_ocr`	OCR service (optional)

Platform Dependencies

macOS:

brew install poppler

Ubuntu/Debian:

sudo apt-get install poppler-utils libpoppler-cpp-dev

Apple Silicon — MLX backend delivers optimal performance.
NVIDIA/AMD GPU — Use the vLLM or Ollama backend.
CPU Only — Use smaller models or the Hugging Face cloud backend.

Verify Installation

python api.py --port 8002
# API docs: http://localhost:8002/api/v1/sparrow-llm/docs

Examples

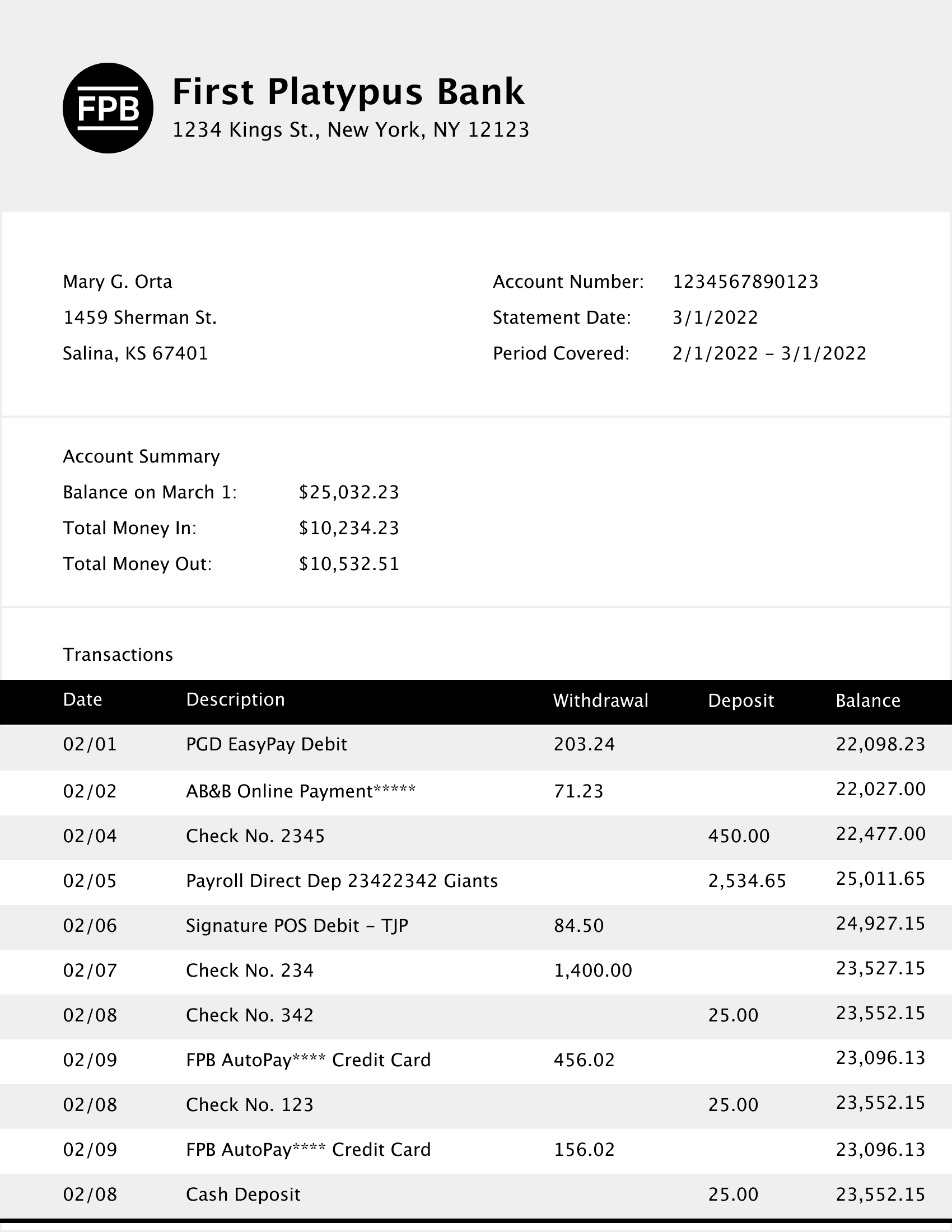

Bank Statement Processing

./sparrow.sh "*" \
  --pipeline "sparrow-parse" \
  --options mlx \
  --options mlx-community/Qwen2.5-VL-72B-Instruct-4bit \
  --file-path "data/bank_statement.pdf"

View JSON output

{
  "bank": "First Platypus Bank",
  "address": "1234 Kings St., New York, NY 12123",
  "account_holder": "Mary G. Orta",
  "account_number": "1234567890123",
  "statement_date": "3/1/2022",
  "period_covered": "2/1/2022 - 3/1/2022",
  "account_summary": {
    "balance_on_march_1": "$25,032.23",
    "total_money_in": "$10,234.23",
    "total_money_out": "$10,532.51"
  },
  "transactions": [
    {"date": "02/01", "description": "PGD EasyPay Debit", "withdrawal": "203.24", "deposit": "", "balance": "22,098.23"},
    {"date": "02/02", "description": "AB&B Online Payment*****", "withdrawal": "71.23", "deposit": "", "balance": "22,027.00"},
    {"date": "02/04", "description": "Check No. 2345", "withdrawal": "", "deposit": "450.00", "balance": "22,477.00"},
    {"date": "02/05", "description": "Payroll Direct Dep 23422342 Giants", "withdrawal": "", "deposit": "2,534.65", "balance": "25,011.65"}
  ],
  "valid": "true"
}

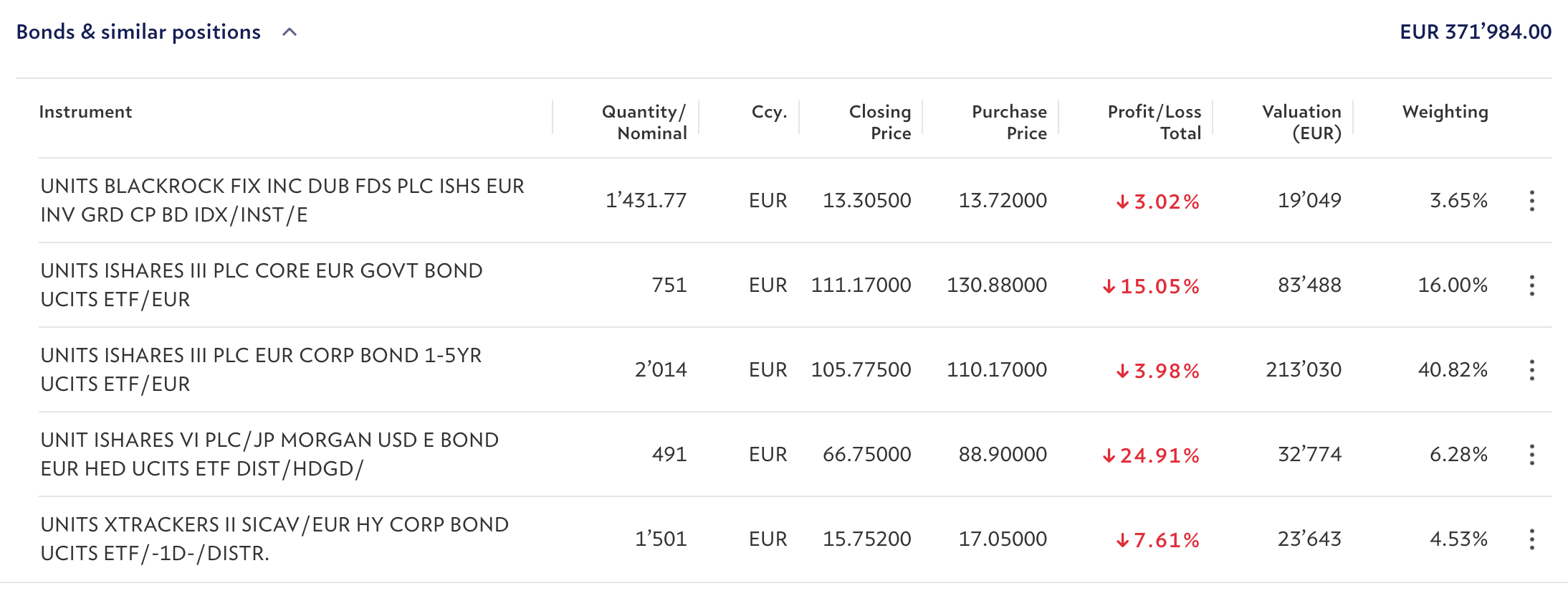

Financial Table Extraction

./sparrow.sh '[{"instrument_name":"str", "valuation":0}]' \
  --pipeline "sparrow-parse" \
  --options mlx \
  --options mlx-community/Qwen2.5-VL-72B-Instruct-4bit \
  --file-path "data/bonds_table.png"

View JSON output

{
  "data": [
    {"instrument_name": "UNITS BLACKROCK FIX INC DUB FDS PLC ISHS EUR INV GRD CP BD IDX/INST/E", "valuation": 19049},
    {"instrument_name": "UNITS ISHARES III PLC CORE EUR GOVT BOND UCITS ETF/EUR", "valuation": 83488},
    {"instrument_name": "UNITS ISHARES III PLC EUR CORP BOND 1-5YR UCITS ETF/EUR", "valuation": 213030},
    {"instrument_name": "UNIT ISHARES VI PLC/JP MORGAN USD E BOND EUR HED UCITS ETF DIST/HDGD/", "valuation": 32774},
    {"instrument_name": "UNITS XTRACKERS II SICAV/EUR HY CORP BOND UCITS ETF/-1D-/DISTR.", "valuation": 23643}
  ],
  "valid": "true"
}

Invoice Processing

./sparrow.sh "*" \
  --pipeline "sparrow-parse" \
  --options mlx \
  --options mlx-community/Qwen2.5-VL-72B-Instruct-4bit \
  --crop-size 60 \
  --file-path "data/invoice.pdf"

View JSON output

{
  "invoice_number": "61356291",
  "date_of_issue": "09/06/2012",
  "seller": {
    "name": "Chapman, Kim and Green",
    "address": "64731 James Branch, Smithmouth, NC 26872",
    "tax_id": "949-84-9105",
    "iban": "GB50ACIE59715038217063"
  },
  "client": {
    "name": "Rodriguez-Stevens",
    "address": "2280 Angela Plain, Hortonshire, MS 93248",
    "tax_id": "939-98-8477"
  },
  "items": [
    {"description": "Wine Glasses Goblets Pair Clear", "quantity": 5, "net_price": 12.0, "net_worth": 60.0, "vat_percentage": 10, "gross_worth": 66.0},
    {"description": "With Hooks Stemware Storage Iron Wine Rack Hanging", "quantity": 4, "net_price": 28.08, "net_worth": 112.32, "vat_percentage": 10, "gross_worth": 123.55}
  ],
  "summary": {"total_net_worth": 192.81, "total_vat": 19.28, "total_gross_worth": 212.09}
}

Multi-page PDF Processing

./sparrow.sh '{"table": [{"description": "str", "latest_amount": 0, "previous_amount": 0}]}' \
  --pipeline "sparrow-parse" \
  --options mlx \
  --options mlx-community/Qwen2.5-VL-72B-Instruct-4bit \
  --file-path "data/financial_report.pdf" \
  --debug-dir "debug/"

Text Instruction Processing

# Arithmetic via instruction pipeline
./sparrow.sh "instruction: do arithmetic operation, payload: 2+2=" \
  --pipeline "sparrow-instructor" \
  --options mlx \
  --options lmstudio-community/Mistral-Small-3.2-24B-Instruct-2506-8bit

# Document-grounded instruction
./sparrow.sh "check if business entity Chapman, Kim and Green is invoice issuing party" \
  --pipeline "sparrow-parse" \
  --instruction \
  --options mlx --options lmstudio-community/Mistral-Small-3.2-24B-Instruct-2506-8bit \
  --file-path "invoice_1.jpg"

Stock Data Function Calling

./sparrow.sh assistant --pipeline "stocks" --query "Oracle"

{
  "company": "Oracle Corporation",
  "ticker": "ORCL"
}

Table/Form Extraction with Sparrow Templates

./sparrow.sh "*" --pipeline "sparrow-parse" \
  --debug --table --table-template "sparrow_generic_table" \
  --options mlx --options mlx-community/Qwen3.6-35B-A3B-8bit \
  --options mlx --options mlx-community/dots.ocr-bf16 \
  --file-path "data/well_report.jpg"

Extraction Hints

./sparrow.sh '[{"instrument_name":"str", "valuation":"int"}]' \
  --pipeline "sparrow-parse" --debug \
  --options mlx --options mlx-community/gemma-4-31b-it-8bit \
  --file-path "data/bonds_table.png" \
  --hints-file-path "data/llm_hints_eu.json"

CLI Usage

Syntax

./sparrow.sh "<JSON_SCHEMA>" --pipeline "<PIPELINE>" [OPTIONS] --file-path "<FILE>"

Arguments

Argument	Type	Description	Example
`query`	JSON / String	Schema or instruction	`'[{"field":"str"}]'`
`--pipeline`	String	Pipeline name	`sparrow-parse`
`--file-path`	Path	Input document	`data/invoice.pdf`
`--hints-file-path`	Path	Extraction hints	`data/hints.json`
`--options`	String	Backend + model	`mlx,model-name`
`--instruction`	Flag	Treat query as instruction
`--validation`	Flag	Treat query as validation spec
`--markdown`	Flag	Enable markdown pre-processing
`--table`	Flag	Enable table extraction mode
`--table-template`	String	Table template name	`sparrow_generic_table`
`--crop-size`	Integer	Border crop pixels	`60`
`--page-type`	String	Page classification hint	`financial_table`
`--debug`	Flag	Enable debug output
`--debug-dir`	Path	Directory for debug files	`./debug/`

Pipeline Options

Sparrow Parse (Vision LLM)

# MLX backend (Apple Silicon)
./sparrow.sh '[{"instrument_name":"str", "valuation":0}]' \
  --pipeline "sparrow-parse" \
  --options mlx \
  --options mlx-community/Qwen3.6-35B-A3B-8bit \
  --file-path "data/bonds_table.png"

# Hugging Face Cloud GPU
--options huggingface --options your-space/model-name

# Additional flags
--options tables_only        # Extract tables only
--options validation_off     # Disable schema validation
--options apply_annotation   # Include bounding box annotations
--page-type financial_table  # Classify page type

Sparrow Instructor (Text LLM)

./sparrow.sh "instruction: do arithmetic operation, payload: 2+2=" \
  --pipeline "sparrow-instructor" \
  --options mlx \
  --options lmstudio-community/Mistral-Small-3.2-24B-Instruct-2506-8bit

API Reference

Starting the Server

# Default port 8002
python api.py

# Custom port
python api.py --port 8001

Endpoints

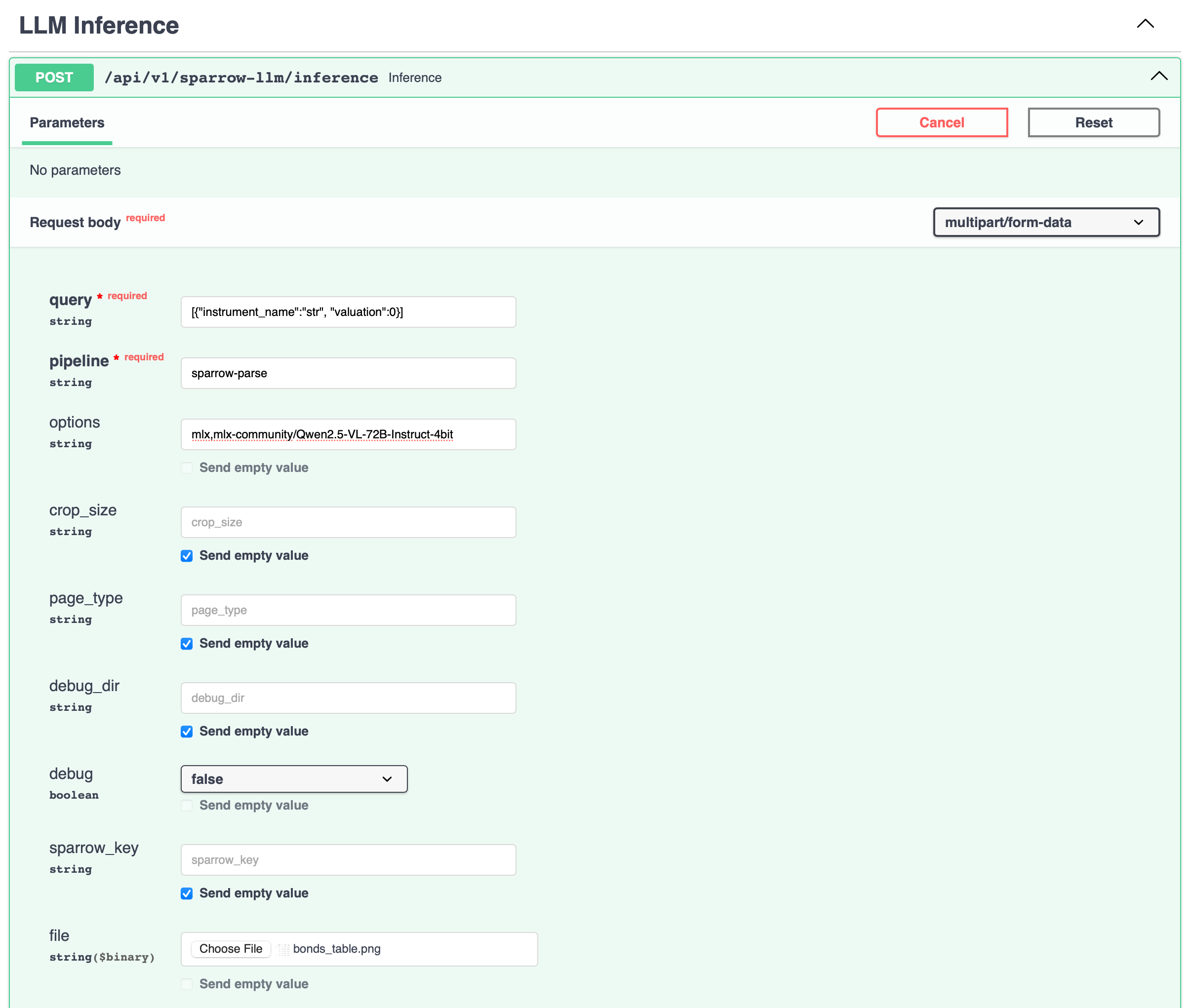

Document Extraction — POST /inference

curl -X POST 'http://localhost:8002/api/v1/sparrow-llm/inference' \
  -H 'Content-Type: multipart/form-data' \
  -F 'query=[{"field_name":"str", "amount":0}]' \
  -F 'pipeline=sparrow-parse' \
  -F 'options=mlx,mlx-community/Qwen2.5-VL-72B-Instruct-4bit' \
  -F 'file=@document.pdf'

Text Instructions — POST /instruction-inference

curl -X POST 'http://localhost:8002/api/v1/sparrow-llm/instruction-inference' \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -d 'query=instruction: analyze data, payload: {...}' \
  -d 'pipeline=sparrow-instructor' \
  -d 'options=mlx,mlx-community/Qwen3.6-35B-A3B-8bit'

Interactive Swagger docs: http://localhost:8002/api/v1/sparrow-llm/docs

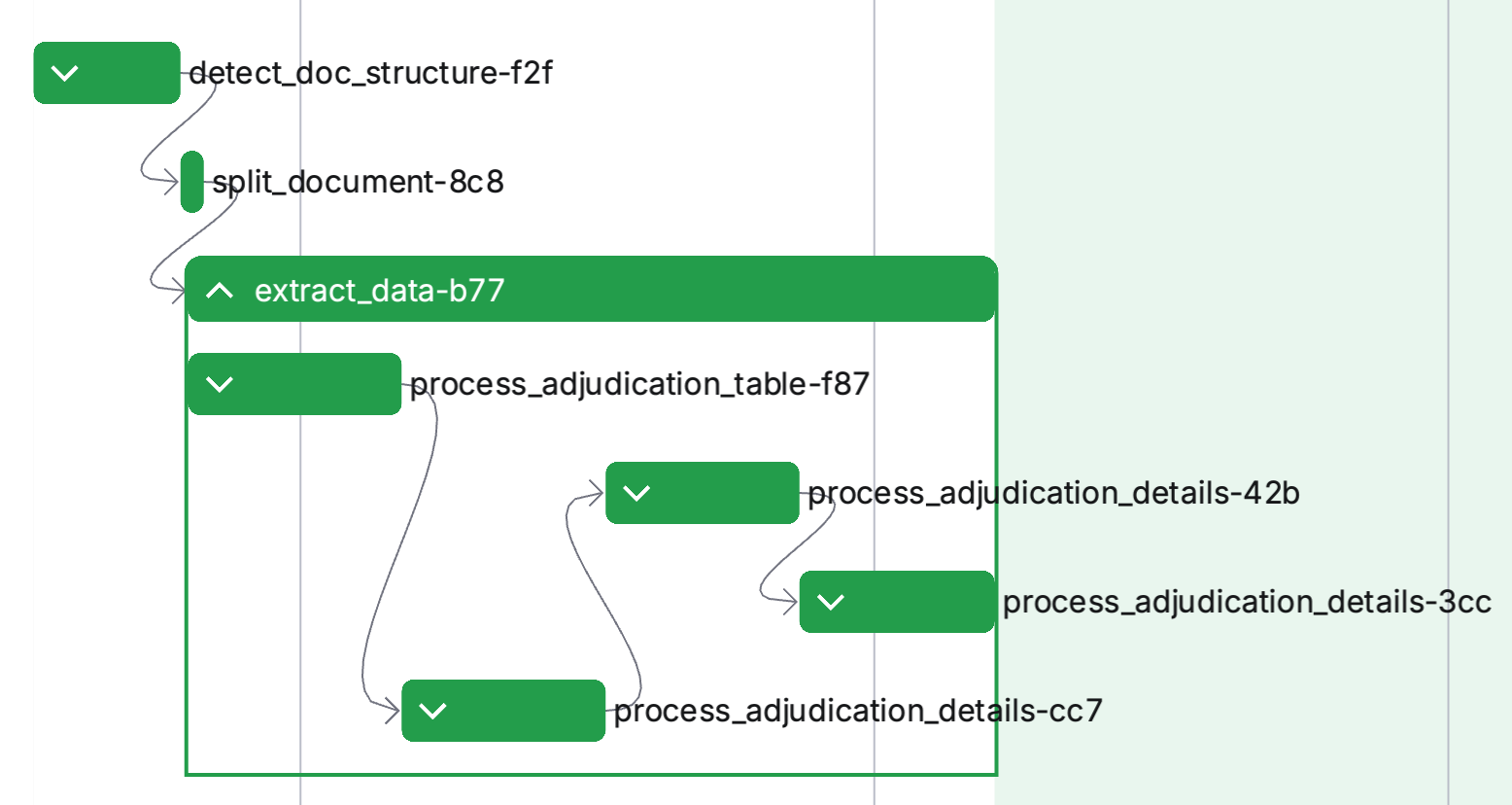

Sparrow Agent

The Agent component orchestrates complex document processing workflows with visual monitoring powered by Prefect.

Capabilities:

Chain classification, extraction, and validation steps
Real-time pipeline monitoring
Robust failure recovery
Extensible agent definitions for domain-specific use cases

Usage

# Start the agent server
cd sparrow-ml/agents
python api.py --port 8001

# Submit a document processing job
curl -X POST 'http://localhost:8001/api/v1/sparrow-agents/execute/file' \
  -F 'agent_name=medical_prescriptions' \
  -F 'extraction_params={"sparrow_key":"123456"}' \
  -F 'file=@prescription.pdf'

Dashboard

The built-in analytics dashboard is part of Sparrow UI and requires a local Oracle Database 23ai Free instance.

Dashboard capabilities:

API call volume and success rates over time
Geographic distribution of usage
Per-model performance comparison
Real-time processing statistics

Pipeline Comparison

Feature	Sparrow Parse	Sparrow Instructor	Sparrow Agents
Input	Documents + JSON schema	Text instructions	Complex workflows
Output	Structured JSON	Free-form text	Multi-step results
Primary Use Cases	Data extraction, forms	Summarization, analysis	Enterprise workflows
Validation	Schema-based	Manual	Custom rules
Relative Complexity	Low	Medium	High
Best For	Invoices, tables, forms	Text processing	Multi-document flows

Decision guide:

Use Sparrow Parse for structured data extraction from documents.
Use Sparrow Instructor for text analysis, summarization, and Q&A.
Use Sparrow Agents for complex multi-step document processing workflows.

Performance Guide

Backend Selection

Hardware	Recommended Backend	Notes
Apple Silicon (M-series)	MLX	Optimal unified-memory performance
NVIDIA GPU (≥96 GB VRAM)	vLLM	Full-precision production inference
NVIDIA GPU (<96 GB VRAM)	vLLM	Use quantized or MoE models
CPU only	Ollama / Hugging Face	Use models ≤7B parameters

Model Selection

Use Case	Recommended Model	Backend
Invoices / Forms (EU)	Mistral Small 3.2 24B	vLLM / MLX
Invoices / Forms (US)	Gemma 4 31B Dense	MLX
Large tables	dots.ocr + Sparrow Templates	vLLM
General accuracy	Qwen3.6 27B Dense	MLX
Low memory	Qwen3.6 35B MoE / Gemma 4 26B MoE	MLX

Table Extraction

For large or complex tables, prefer the dots.ocr + Sparrow Templates pipeline over direct Vision LLM extraction:

./sparrow.sh "*" --pipeline "sparrow-parse" \
  --debug --table --table-template "sparrow_generic_table" \
  --options mlx --options mlx-community/Qwen3.6-35B-A3B-8bit \
  --options mlx --options mlx-community/dots.ocr-bf16 \
  --file-path "data/well_report.jpg"

dots.ocr produces an HTML intermediate representation which Sparrow Templates maps to the target JSON schema. This is the recommended approach for financial statements, multi-column invoices, and structured reports.

Extraction Hints

Hints steer model attention and improve accuracy on complex documents — useful for footers, fine print, structurally similar fields (e.g., supplier vs. recipient VAT), and date/number format normalization.

Troubleshooting

Installation problems

Python version:

python --version  # Must be 3.12.10+
pyenv install 3.12.10 && pyenv global 3.12.10

MLX on Apple Silicon:

pip install --upgrade pip
pip install mlx-vlm --no-cache-dir

Poppler missing:

# macOS
brew install poppler

# Ubuntu/Debian
sudo apt-get install poppler-utils

# Verify
pdftoppm -h

Runtime issues

Memory errors:

Switch to a smaller or MoE model
Enable cropping: --crop-size 100
Process single pages rather than full PDFs

Model loading fails:

rm -rf ~/.cache/huggingface/ ~/.mlx/
python -c "from mlx_vlm import load; load('model-name')"

API connection issues:

curl http://localhost:8002/health
python api.py --debug

Document processing issues

Poor extraction quality:

Add hints with --hints-file-path
Apply border cropping: --crop-size 60
Use --table --table-template with dots.ocr for dense tables
Verify image resolution (300+ DPI recommended)
Do not disable schema validation unless necessary

PDF processing fails:

pdftoppm -png input.pdf output

python -c "
import pypdf
with open('file.pdf', 'rb') as f:
    print(f'Pages: {len(pypdf.PdfReader(f).pages)}')
"

JSON schema errors:

Validate with jsonlint.com
Use typed placeholders: "str", 0, 0.0, "str or null"
Start with a minimal schema and expand incrementally

Getting Help

Review this README and the component-level documentation
Search GitHub Issues for known issues
Open a new issue with logs, system information, and a minimal reproduction case
For commercial support or licensing: contact@sparrow-project.org

Star History

License

Open Source — Licensed under GPL 3.0. Free for open source projects and organizations with gross revenue under $5M USD annually.

Commercial — Dual licensing is available for proprietary use, enterprise features, and dedicated support. Contact contact@sparrow-project.org for commercial licensing and consulting.

Authors

Sparrow Project Contributors

Star this repository on GitHub if Sparrow is useful for your projects.
github.com/jhonathan-humnel/ai-doc-forge

Name		Name	Last commit message	Last commit date
Latest commit History 1,067 Commits
.claude		.claude
.github		.github
sparrow-data		sparrow-data
sparrow-ml		sparrow-ml
sparrow-ui		sparrow-ui
.gitattributes		.gitattributes
.gitignore		.gitignore
CHANGELOG.md		CHANGELOG.md
LICENSE		LICENSE
README.MD		README.MD
environment_setup.md		environment_setup.md

Folders and files

Latest commit

History

Repository files navigation

Sparrow

Overview

Table of Contents

Key Features

Architecture

Core Components

Quickstart

Prerequisites

Setup

First Extraction

Installation

Virtual Environments

Platform Dependencies

Verify Installation

Examples

Bank Statement Processing

Financial Table Extraction

Invoice Processing

Multi-page PDF Processing

Text Instruction Processing

Stock Data Function Calling

Table/Form Extraction with Sparrow Templates

Extraction Hints

CLI Usage

Syntax

Arguments

Pipeline Options

API Reference

Starting the Server

Endpoints

Sparrow Agent

Usage

Dashboard

Pipeline Comparison

Performance Guide

Backend Selection

Model Selection

Table Extraction

Extraction Hints

Troubleshooting

Getting Help

Star History

License

Authors

About

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Packages
