cmod-video

cmod-video is a module music player / renderer focused on tracker-style visuals (MOD/XM/IT/S3M), with real-time preview and offline MKV rendering.

It combines:

• pattern view with smooth scrolling option
• per-channel waveforms / mini scopes
• VU meters + FFT visuals
• tracker-inspired UI/theme system
• built-in song selector/browser (rooted at ./music)

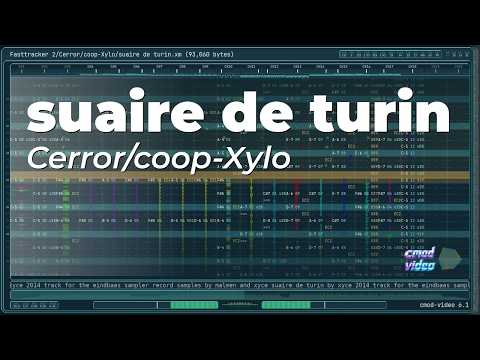

In Action

Background

I am known (or was known) as herotyc, a tracker/demoscene musician and co-founder of #modulez circa 2000.

This project started in a very personal way. I simply wanted a nicer way to revisit the tracker songs I grew up with, the ones that stayed with me for years. I wanted to render them, keep them, and have them ready on YouTube so I could return to them easily and enjoy them again, with the care and presentation they deserved.

That was the original goal, nothing more.

You can check the channel here: youtube.com/@cmod-video

As I kept working on it, things slowly escalated. What began as a rendering tool turned into a real-time player, and then into something that could also do proper and beautiful offline rendering.

At some point it stopped being just a personal utility and started feeling like something worth sharing.

So this release is that: a tool born from nostalgia, built with a lot of attention, and made to enjoy module music properly, with modern amenities like loudness normalization and high-quality rendering.

Enjoy.

Features

• Supports tracker modules via libopenmpt (MOD/XM/IT/S3M and more...).
• Real-time preview mode (default) with audio + video.
• Offline render mode to out.mkv (--render) via FFmpeg.
• Themeable UI/colors (theme.ini).
• Multiple track(channel) layouts:
  • trackLayout=0: legacy/classic
  • trackLayout=1: stacked waveform (crazy)
  • trackLayout=2: vertical waveform (modern)
• Smooth pattern scroll (smoothPattern=1) with centered row highlight.
• Pitch-based per-channel orbit markers (tracker dot reinterpretation), with optional trails and theme-controlled motion/appearance
• Song selector/browser when started without a file (directories + modules).
• Keyboard navigation between songs in playlist (PageUp / PageDown) during playback.
• Loop mode for preview ([playback] loop=1).
• Fullscreen in preview (double click or F).
• EBU R-128 loudness/tpeak norm.
• Mute/Solo and song scanning in preview mode.

Requirements (Windows)

• Microsoft Visual C++ Redistributable 2015-2022 (x64)
• FFmpeg available in PATH (for --render)
• Runtime DLLs included with the release package

Usage

Local player (double click)

You can use cmod_video.exe as a local player by double-clicking it.

• If started without a file argument, it opens the built-in module selector (rooted at ./music).
• You can browse folders, pick a song, and play directly.

Preview (default)

Run with a module file:

cmod_video.exe "song.it"

This starts the real-time preview window with audio/video.

Render to video (MKV)

cmod_video.exe --render "song.it"

Note:

• On Windows, cmod_video.exe is built as a GUI app, so launching --render directly from terminal may return control immediately while rendering continues in background.
• cmod-render.ps1 is recommended for rendering because it waits for completion and writes out.log / err.log for easier troubleshooting.

Output:

• final file: out.mkv

Recommended render helper (cmod-render.ps1)

For rendering, using the helper script is recommended:

.\cmod-render.ps1 -Module ".\music\your_mod.it"

Render with a skin theme (theme_skin.ini)

You can render using an alternate theme/skin file:

cmod_video.exe --render --theme "theme_skin.ini" "song.it"

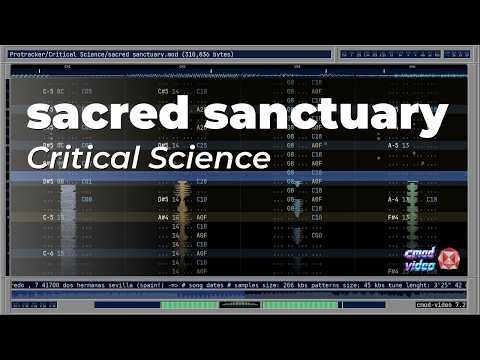

Skin preview (courtesy of khrome):

Command-line arguments

Main mode

• --render
  • Render offline to video (MKV). Without this flag, preview mode is used.

Display / metadata

• --title "TEXT"
  • Override displayed title.
• --theme "FILE.ini"
  • Use a specific theme file instead of theme.ini (for example: theme_skin.ini).
• --w WIDTH
  • Override width in pixels (otherwise uses [playback] width from theme).
• --h HEIGHT
  • Override height in pixels (otherwise uses [playback] height from theme).

Advanced / debug

• --no-video
  • Disable video output (debug/testing).
• --no-audio
  • Disable audio output (debug/testing).
• --no-pipes
  • In render mode, do not use FFmpeg pipes (writes huge raw files instead).
• --no-osc
  • Disable oscilloscope-related visuals (debug/testing/comparison).

Preview controls (keyboard)

General

• Esc
  • Quit program
• F
  • Toggle fullscreen
• T
  • Reload theme.ini live (visual/theme reload)
• Backspace
  • Return to song selector (when started without CLI file)

Visual toggles (runtime, preview only)

• 1 / 2 / 3
  • Set trackLayout to 0 / 1 / 2
• 4
  • Toggle smoothPattern
• 5
  • Toggle miniFft
• 6
  • Toggle sideFft
• 7
  • Toggle track2MiniScope
• 8
  • Toggle waveColors
• 9
  • Toggle mini badge (miniEnabled)

Playlist (during playback)

• PageDown
  • Next song
• PageUp
  • Previous song

Channel mute / solo

(Click on CHx headers at the top of the pattern)

• M
  • Clear all channel mute/solo states

Mouse controls

Preview window

• Double click
  • Toggle fullscreen

Pattern top channel headers (CH1, CH2, ...)

• Left click
  • Toggle mute for that channel
• Right click
  • Toggle solo for that channel
• Shift + Left/Right click
  • Exclusive solo (solo this channel, clear others)
• Middle click
  • Clear mute/solo on that channel

Timeline / progress bar

• Left click on progress bar
  • Seek to that position in the song (preview mode)

Song selector / playlist behavior

If you start cmod_video.exe without a module file:

• it opens an in-app selector/browser (no OS file picker)
• browser root is ./music (fallback to current directory if ./music doesn't exist)
• Enter opens a directory or starts a selected module
• Backspace / Left goes to parent directory
• Esc exits

During playback in that mode:

• Backspace returns to the selector
• PageUp / PageDown jumps to previous/next song in current folder playlist
• if loop=0, when a song ends it returns to the selector
• if loop=1, current song loops

Themes (theme.ini)

The UI is themeable through theme.ini.

Important sections include:

• [layout] (visual layout switches)
• [colors] (main UI colors)
• [orbits] (orbit visual behavior)
• [mini] (mini 3D badge)
• [playback] (width/height/fps/fullscreen/loop/profile)

Live theme reload (T)

In preview mode, you can reload theme.ini at runtime:

• T
  • Reload theme visuals live

Reloaded live

Most visual/theme values are reloaded, especially:

• [colors]
• visual layout options
• UI styling
• waveform/osc visual appearance
• scroller/panel visual styling

Not reloaded live

The [playback] section is intentionally ignored during live reload.

These are startup-only:

• width
• height
• fps
• fullscreen
• loop
• profile
• subsong (if set there)

If you change playback settings, restart the program.

Notable theme options

[layout]

• trackLayout = 0|1|2
• smoothPattern = 0|1
• track2MiniScope = 0|1
• miniFft = 0|1
• sideFft = 0|1
• channelVuBars = 0|1

[playback]

• width, height
• fps
• fullscreen = 0|1
• loop = 0|1
• profile = 0|1 (prints performance info in preview)

Examples

• theme.example.ini includes documented variables and comments.
• Copy it to theme.ini and customize colors/layout.
• You can also use theme_skin.ini directly with --theme.

Contributing themes / skins

If you want to collaborate with new themes or skins, open an issue and you are welcome.

Troubleshooting

Program starts but render output is missing / incomplete

• Ensure FFmpeg is installed and available in PATH.
• Check console output for:
  • FFmpeg launch line
  • FFmpeg exit code / trim warnings

Missing DLL error on startup

• Install Microsoft Visual C++ Redistributable 2015-2022 (x64)
• Make sure required DLLs are next to cmod_video.exe
