podinfo

Podinfo is a tiny web application made with Go that showcases best practices of running microservices in Kubernetes. Podinfo is used by CNCF projects like Flagger for end-to-end testing and workshops.

Specifications:

• Health checks (readiness and liveness)
• Graceful shutdown on interrupt signals
• File watcher for secrets and configmaps
• Instrumented with Prometheus and Open Telemetry
• Structured logging with zap
• 12-factor app with viper
• Fault injection (random errors and latency)
• Swagger docs
• Kustomize installer
• End-to-End testing with Kubernetes Kind
• Multi-arch container image with Docker buildx and GitHub Actions
• Container image signing with Sigstore cosign
• SBOMs and SLSA Provenance embedded in the container image
• CVE scanning with govulncheck

Web API:

• GET / prints runtime information
• GET /version prints podinfo version and git commit hash
• GET /metrics return HTTP requests duration and Go runtime metrics
• GET /healthz used by Kubernetes liveness probe
• GET /readyz used by Kubernetes readiness probe
• POST /readyz/enable signals the Kubernetes LB that this instance is ready to receive traffic
• POST /readyz/disable signals the Kubernetes LB to stop sending requests to this instance
• GET /status/{code} returns the status code
• GET /panic crashes the process with exit code 255
• POST /echo forwards the call to the backend service and echos the posted content
• GET /env returns the environment variables as a JSON array
• GET /headers returns a JSON with the request HTTP headers
• GET /delay/{seconds} waits for the specified period
• POST /token issues a JWT token valid for one minute JWT=$(curl -sd 'anon' podinfo:9898/token | jq -r .token)
• GET /token/validate validates the JWT token curl -H "Authorization: Bearer $JWT" podinfo:9898/token/validate
• GET /configs returns a JSON with configmaps and/or secrets mounted in the config volume
• POST/PUT /cache/{key} saves the posted content to Redis
• GET /cache/{key} returns the content from Redis if the key exists
• DELETE /cache/{key} deletes the key from Redis if exists
• POST /store writes the posted content to disk at /data/hash and returns the SHA1 hash of the content
• GET /store/{hash} returns the content of the file /data/hash if exists
• GET /ws/echo echos content via websockets podcli ws ws://localhost:9898/ws/echo
• GET /chunked/{seconds} uses transfer-encoding type chunked to give a partial response and then waits for the specified period
• GET /swagger.json returns the API Swagger docs, used for Linkerd service profiling and Gloo routes discovery

gRPC API:

• /grpc.health.v1.Health/Check health checking
• /grpc.EchoService/Echo echos the received content
• /grpc.VersionService/Version returns podinfo version and Git commit hash
• /grpc.DelayService/Delay returns a successful response after the given seconds in the body of gRPC request
• /grpc.EnvService/Env returns environment variables as a JSON array
• /grpc.HeaderService/Header returns the headers present in the gRPC request. Any custom header can also be given as a part of request and that can be returned using this API
• /grpc.InfoService/Info returns the runtime information
• /grpc.PanicService/Panic crashes the process with gRPC status code as '1 CANCELLED'
• /grpc.StatusService/Status returns the gRPC Status code given in the request body
• /grpc.TokenService/TokenGenerate issues a JWT token valid for one minute
• /grpc.TokenService/TokenValidate validates the JWT token

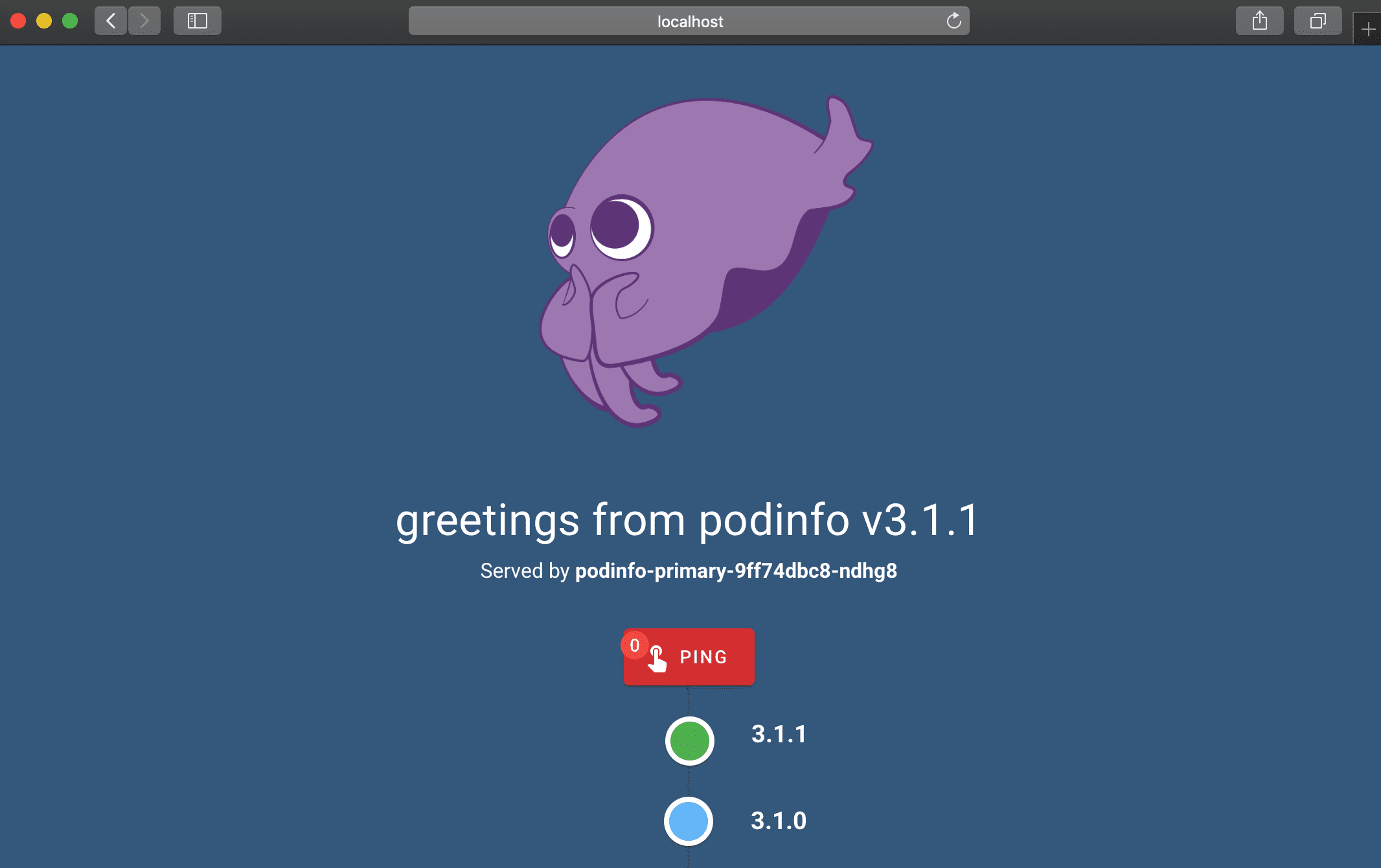

Web UI:

To access the Swagger UI open <podinfo-host>/swagger/index.html in a browser.

Guides

• Getting started with Argo CD
• Progressive Deliver with Flagger and Linkerd
• Automated canary deployments with Kubernetes Gateway API

Install

To install Podinfo on Kubernetes the minimum required version is Kubernetes v1.23.

Kustomize

kubectl apply -k github.com/jmatiascabrera/podinfo//kustomize

Docker

docker run -dp 9898:9898 745892955196.dkr.ecr.us-east-1.amazonaws.com/javier/podinfo

Continuous Delivery

In order to install podinfo on a Kubernetes cluster and keep it up to date with the latest release in an automated manner, you can use Argo CD.

Install the Argo CD CLI on MacOS using Homebrew:

brew install argocd

Deploy Argo CD to your cluster and expose the API server (see the Argo CD getting started guide for options). Once the API server is reachable, create an application that tracks the Kustomize manifests in this repository:

argocd app create podinfo \
  --repo https://github.com/jmatiascabrera/podinfo \
  --path kustomize \
  --dest-server https://kubernetes.default.svc \
  --dest-namespace default \
  --sync-policy automated

argocd app sync podinfo

Controlled, sequential promotions

If you want to avoid Argo CD Image Updater automatically pushing a freshly built image to every environment, disable Image Updater on the ApplicationSet and let the GitHub Actions workflow handle promotions instead:

1. Remove (or comment out) the argocd-image-updater.argoproj.io/* annotations from the podinfo-applications ApplicationSet in the infra/app-of-apps/templates/podinfo.yaml file in the infra repository so Image Updater no longer writes image tags back to Git.
2. Push your new image to ECR as usual.
3. Manually trigger the Promote container image workflow in this repository and provide the image tag (and optional repository override). The workflow will update the pinned tags in deploy/overlays/{dev,preq,qa,production}/.argocd-source-podinfo-*.yaml, committing each promotion in order.
4. Because Argo CD still has automated sync enabled on the generated Applications, each commit from the workflow will roll out to the corresponding cluster namespace, one environment at a time, instead of every environment at once.

With automated sync enabled, Argo CD will upgrade the deployment whenever the manifests in this repository change. For multi-environment setups, point separate Argo CD Applications at the overlays under kustomize/overlays/.
