VulnOps

A DevSecOps reference architecture on AWS EKS — security controls enforced at every layer, provisioned through Terraform, deployed through a 10-stage GitHub Actions pipeline, and reconciled by ArgoCD with zero long-lived credentials.

---

Contents

The application · Features in action · Architecture · What this demonstrates · Design decisions · Threat intelligence & AI · Security architecture · CI/CD gates · Walkthrough · Deploy · Tear down · AI disclosure

---

The application

VulnOps lets teams submit CVEs with an ID, severity, affected product, CVSS score, description, and remediation status. Each entry supports threaded notes. The submission form includes a live CVSS v3.1 calculator built on the official FIRST formula that scores update in real time as attack vector, complexity, privileges, and impact metrics are selected.

---

Features in action

Auto-enrichment from NVD

On CVE submission, the backend pulls CVSS, CWE, and affected-version data directly from the NIST NVD API — no manual severity entry required.

Structured vulnerability record

Each CVE stores the NVD description, affected product metadata, EPSS exploit-prediction score, and CISA KEV status in one auditable record.

AI-generated risk intelligence

Claude Sonnet 4.6 synthesizes CVSS, EPSS, KEV, and product context into a composite risk score, compliance mappings (PCI DSS, SOX ITGC, NIST CSF, CIS v8), and prioritized remediation actions. Streamed via SSE with prompt caching.

---

Architecture

CI authenticates to AWS with a short-lived OIDC token, builds images into GHCR with provenance attached, and commits a SHA-tagged manifest back to git. ArgoCD syncs the cluster from there — no CI credentials touch it. Pods call Secrets Manager through the Pod Identity Agent, which swaps a projected service account token for a 15-minute STS credential scoped to one ARN. The NLB is the only public endpoint; backend and database are ClusterIP behind default-deny NetworkPolicies.

---

What this demonstrates

Domain	Controls
Identity & access	EKS Pod Identity (no IRSA, no static keys); GitHub Actions → AWS via OIDC federation; IAM Access Analyzer monitoring cross-account exposure
Network isolation	EKS in private subnets; default-deny NetworkPolicy baseline with explicit per-tier allows; NLB as the only internet ingress
Secrets management	External Secrets Operator pulls from AWS Secrets Manager; Kubernetes secrets encrypted at rest via KMS envelope encryption; zero plaintext credentials in git
Supply chain integrity	SBOM and SLSA build provenance attached to every image; npm install --ignore-scripts; nginx pinned to SHA256 digest; commit-SHA image tags only
Runtime hardening	runAsNonRoot, readOnlyRootFilesystem, drop: [ALL] capabilities, automountServiceAccountToken: false, Pod Security Standards enforcement
Audit & detection	Multi-region CloudTrail with log-file validation; VPC Flow Logs to S3 with custom format; encrypted log bucket with 90-day lifecycle; five EKS control-plane log types enabled
Threat intel & AI	Auto-enrichment from NVD (CVSS), FIRST EPSS (exploit prediction), and CISA KEV (known-exploited); Claude-generated risk rationale with prompt caching

---

Design decisions

Every decision is opinionated and defensible in a cloud security review.

Identity & access

Decision	Rationale
EKS Pod Identity over IRSA	No OIDC provider to maintain, no role-arn annotations to audit. IAM binding is visible through aws eks list-pod-identity-associations.
OIDC federation for GitHub Actions → AWS	No long-lived AWS_ACCESS_KEY_ID in GitHub secrets. CI credentials are minted per-workflow, scoped by trust policy, and expire in 1 hour.
IAM Access Analyzer at account scope	Continuously flags resources with policies that grant access from outside the AWS account. Catches misconfigured policies before they become incidents.

Network isolation

Decision	Rationale
EKS nodes in private subnets	Nodes are not directly internet-reachable. NAT gateway handles outbound only. Reduces the blast radius of a compromised node.
Default-deny NetworkPolicy	All pod-to-pod traffic is blocked by default. A compromised frontend pod cannot reach the database directly.
ClusterIP for backend and database	No external load balancer, no public endpoint. Only the frontend NLB is internet-facing.

Secrets management

Decision	Rationale
External Secrets Operator + AWS Secrets Manager	Git is not a secrets store. Credentials live in Secrets Manager with rotation, versioning, and audit logging. ESO materializes them into Kubernetes on reconciliation.
ClusterSecretStore scoped to a single secret ARN	No wildcards. The IAM role attached to ESO can read exactly one secret.
Kubernetes secret encryption via KMS	Enabled on the EKS cluster. Secrets stored in etcd are envelope-encrypted.

Supply chain integrity

Decision	Rationale
npm install --ignore-scripts	Blocks postinstall-based supply chain attacks. Axios 1.14.1 and 0.30.4 (April 2025) were compromised to drop a RAT via the postinstall hook.
Nginx pinned to SHA256 digest	Tags are mutable. Digest guarantees byte-for-byte identity regardless of what gets pushed upstream.
SBOM + SLSA provenance on every image	Attached automatically by BuildKit. Documents what is in the image and where it was built, satisfying SLSA and EO 14028 intent.
SHA tag over latest	Ties every running pod to the exact commit that built it. Full traceability from cluster state back to source.
GHCR over Docker Hub	CI uses the built-in GITHUB_TOKEN. No stored PATs, no third-party registry dependency.
Semgrep gate test (inverted exit code)	Semgrep exits 0 by default even when it finds vulnerabilities. The --error flag changes that. The gate test ensures the ruleset is not silently broken. A scanner that catches nothing is worse than no scanner.
Semgrep over CodeQL for SAST	The app is simple CRUD. CodeQL taint tracking is disproportionate overhead. Semgrep pattern rules cover the Express/Node.js attack surface, each finding maps directly to a readable rule.

Runtime hardening

Decision	Rationale
drop: [ALL] capabilities	Zero Linux capabilities on frontend and backend pods. Limits post-RCE impact by removing raw socket access and privilege escalation paths.
readOnlyRootFilesystem: true	Prevents writing webshells, tools, or malicious scripts to the container filesystem after compromise.
automountServiceAccountToken: false	Removes an auto-mounted Kubernetes API credential from every pod that does not need it.
Baseline PSS for postgres only	PostgreSQL initdb requires CAP_CHOWN. Frontend and backend enforce restricted-equivalent controls through their own pod specs.
ArgoCD GitOps with selfHeal	CI never holds cluster credentials. Git is the only write path to production. Manual drift is reverted automatically.
helmet() on the Express API	Adds CSP, HSTS, and seven other headers on every response. Previously the API returned bare Express defaults.
CORS restricted to ALLOWED_ORIGINS	cors() with no config allows any origin. Locked to an explicit allowlist via env var.
Rate limiting: global (200/15 min) + write (30/15 min)	Global limiter prevents flooding. Stricter per-route limit on write paths reduces abuse.
Input validation at the API layer	CVE IDs validated against CVE-YYYY-NNNNN. Severity and status enum-checked. CVSS score bounded 0–10. Field length caps on all text inputs.

Audit & detection

Decision	Rationale
CloudTrail multi-region + log file validation	IAM and STS events log to us-east-1 regardless of resource region. Multi-region trail captures them. SHA-256 digest chain makes tampering detectable after the fact.
VPC Flow Logs to S3	Same data as CloudWatch Logs, no ingestion cost. Custom format adds pre-NAT source addresses and TCP flags for forensic reconstruction.
Terraform state in S3 + DynamoDB	Encrypted at rest, versioned (rollback if state is corrupted), locked against concurrent writes.
Security logs bucket with force_destroy = true	90-day lifecycle, public access blocked, versioning on. force_destroy lets terraform destroy clean up without a manual aws s3 rm step.

---

Threat intelligence & AI

Every submitted CVE is asynchronously enriched from authoritative sources, then run through a Claude-generated risk rationale. The application turns a bare CVE ID into a prioritized, context-aware record without manual lookup.

Enrichment pipeline

Source	What it adds	Cache
NVD (NIST)	Official CVSS v3.1 vector + base score, weakness enumeration (CWE), vulnerable product range, authoritative description. Backfilled if the user submits only an ID.	per-CVE, refreshed on miss
FIRST EPSS	Exploit Prediction Scoring System — probability (0–1) that the CVE will be exploited in the next 30 days, ranked against the global EPSS distribution.	24h
CISA KEV	Binary flag: is this CVE in the Known Exploited Vulnerabilities catalog? Drives prioritization — a low-CVSS CVE with active exploitation outranks a high-CVSS CVE with none.	24h catalog refresh

Enrichment is fire-and-forget from the user's perspective. A CVE submitted without CVSS comes back with full NVD metadata, EPSS score, and KEV status on the next page refresh.

AI risk rationale

Each record gets a structured risk assessment generated by the Anthropic Claude API (streaming response). The rationale is grounded in the enriched data — CVSS vector, EPSS percentile, KEV status — and reasons about:

• Exploitability — what access and preconditions an attacker needs
• Blast radius — what a successful exploit unlocks (data exposure, lateral movement, RCE)
• Prioritization — where this CVE should sit in the remediation queue relative to the rest of the backlog
• Remediation posture — whether a patch, mitigation, or compensating control is the right next step

Implementation detail:

• Streaming responses via the Anthropic SDK — rationale renders incrementally as tokens arrive, no spinner-staring
• Prompt caching on the enrichment context (system prompt + scoring rubric) — repeated scoring calls hit the cache, cutting cost and latency
• 7-day result cache keyed on (cve_id, enrichment_hash) — identical inputs don't re-spend tokens
• Score rationale cap at 1500 characters — enforced in validation, prevents runaway generation
• Grounding check — the response is validated to reference the source data, not hallucinate CVE details

Why this matters

A CVE registry that just stores IDs is a spreadsheet. The enrichment + AI layer turns it into a triage tool:

• NVD tells you the technical shape of the vulnerability
• EPSS tells you how likely it is to be exploited in practice
• KEV tells you if it's actively being exploited right now
• Claude synthesizes all three into a decision — patch now, patch soon, or accept the risk

This is the same data model a production vulnerability management platform uses. Built on public APIs and one LLM call.

---

Security architecture

1. Identity & access

EKS Pod Identity binds IAM roles to Kubernetes service accounts without OIDC provider annotations — no role-arn annotations, no long-lived access keys on the cluster. GitHub Actions mints short-lived OIDC credentials per workflow; no AWS_ACCESS_KEY_ID in GitHub secrets. IAM Access Analyzer runs at account scope and flags any resource exposed outside the AWS account.

Read more

EKS Pod Identity associations bind IAM roles to Kubernetes service accounts without OIDC provider annotations. External Secrets Operator and the EBS CSI driver authenticate to AWS through Pod Identity — no IRSA role-arn annotations, no long-lived access keys anywhere on the cluster.

GitHub Actions authenticates to AWS through OIDC federation. The CI job exchanges a short-lived GitHub-signed token for AWS credentials scoped per workflow. No PATs, no AWS_ACCESS_KEY_ID stored as a repo secret.

IAM Access Analyzer runs at account scope and continuously flags resources with policies that grant access from outside the AWS account. Zero findings is the steady state.

2. Network isolation

Nodes sit in private subnets; the NLB is the only internet-facing resource. Default-deny NetworkPolicies block all pod-to-pod traffic — frontend reaches backend on port 5000, backend reaches PostgreSQL on 5432, nothing else crosses tier boundaries.

Read more

Three availability zones. Public subnets hold only the NAT gateway and the NLB; everything else — EKS nodes, the PostgreSQL StatefulSet — sits in private subnets with egress through NAT.

Internet → NLB (public subnet) → nginx pods (8080, non-root)
                              → React SPA (static assets)
                              → Express API (5000, ClusterIP) → PostgreSQL (5432, ClusterIP)

The backend and database are ClusterIP services with no external load balancer and no public endpoint. Only the frontend NLB is internet-facing.

NetworkPolicies start with a default-deny baseline in the vulnops namespace. Explicit allows cover only the required paths: frontend → backend on port 5000, backend → PostgreSQL on port 5432. Lateral movement from a compromised frontend pod toward the database is blocked at the network layer.

3. Secrets management

External Secrets Operator pulls credentials from AWS Secrets Manager and materializes them as Kubernetes secrets. The ClusterSecretStore is scoped to a single secret ARN — no wildcards. Secrets in etcd are envelope-encrypted via KMS.

Read more

External Secrets Operator (ESO) pulls database credentials from AWS Secrets Manager and materializes them as a Kubernetes secret in the vulnops namespace. The ClusterSecretStore is scoped to a single secret ARN — no wildcards.

Kubernetes secrets are encrypted at rest using AWS KMS envelope encryption (configured on the EKS cluster). k8s/secrets.yaml is gitignored; only secrets.yaml.example is tracked.

For rotation, AWS Secrets Manager is the source of truth. Rotating the value there triggers an ESO re-sync on the next reconciliation interval; no manifest change, no redeploy.

4. Supply chain integrity

npm install --ignore-scripts blocks postinstall attacks. Images are multi-stage Alpine builds with nginx pinned to a SHA256 digest, tagged with commit SHAs, and shipped with SBOM and SLSA provenance attached by BuildKit. ArgoCD syncs from git; CI never touches the cluster directly.

Read more

Source:

• npm install --ignore-scripts blocks postinstall-based supply chain attacks (Axios 1.14.1/0.30.4 compromise, April 2025, dropped a RAT via postinstall).
• Gitleaks runs first in CI — no point building if secrets are already exposed.
• Semgrep SAST runs two passes: the real scan, and an inverted-exit-code gate test against intentionally vulnerable code that fails the build if the ruleset doesn't fire.

Build:

• Multi-stage Dockerfiles, Alpine base, non-root user (UID 1000), production dependencies only.
• Nginx pinned to a SHA256 digest. Tags are mutable; a compromised upstream image under the same tag would be pulled silently. A digest is a cryptographic commitment to exact bytes.
• The backend build stage intentionally uses an unpinned node:20-alpine to carry known CVEs. This gives the Trivy gate something to detect, demonstrating the gate actually works before the base image is upgraded.

Distribute:

• Images pushed to GHCR with SBOM and SLSA provenance attestations attached by BuildKit.
• Images tagged with the 7-character commit SHA. Every running pod is traceable to the exact commit that built it.
• GITHUB_TOKEN handles auth — no stored PATs, no third-party registry dependency.

Deploy:

• ArgoCD reconciles k8s/ from git with selfHeal: true. Manual kubectl apply drift is automatically reverted. CI never holds cluster credentials.

5. Runtime hardening

Every pod drops all Linux capabilities, runs as UID 1000 on a read-only filesystem, and has automountServiceAccountToken: false. The Express API adds helmet headers, CORS locked to an explicit allowlist, rate limiting, and input validation on all fields.

Read more

Every pod spec enforces:

securityContext:
  runAsNonRoot: true
  runAsUser: 1000
  runAsGroup: 1000
  seccompProfile:
    type: RuntimeDefault
  allowPrivilegeEscalation: false
  readOnlyRootFilesystem: true
  capabilities:
    drop: [ALL]
automountServiceAccountToken: false

None of the pods need Kubernetes API access. automountServiceAccountToken: false removes an auto-mounted credential from every pod that has no use for it.

The vulnops namespace enforces Pod Security Standards at baseline with audit and warn set to restricted. Not fully restricted only because PostgreSQL initdb requires CAP_CHOWN to set ownership on its data directory. Frontend and backend pods enforce restricted-equivalent controls through their own pod specs regardless.

Application-layer controls on the Express API:

• helmet() adds CSP, X-Frame-Options, Strict-Transport-Security, and seven other security headers on every response.
• CORS locked to an explicit ALLOWED_ORIGINS allowlist; 403 on disallowed origins.
• Rate limiting: global (200/15 min) + stricter write limit (30/15 min on POST/PUT/DELETE).
• Input validation at the API layer — CVE IDs match CVE-YYYY-NNNNN, severity/status enum-checked, CVSS score bounded 0–10, field length caps on all text inputs.

6. Audit & detection

Multi-region CloudTrail with SHA-256 digest chain, VPC Flow Logs to S3, all five EKS control-plane log types enabled, and IAM Access Analyzer at account scope. Zero findings is the steady state.

Read more

CloudTrail: multi-region trail with log file validation. SHA-256 digest files are generated per delivery; any deleted or modified log breaks the chain. include_global_service_events = true ensures IAM and STS events (which always log to us-east-1 regardless of your resource region) are captured.

VPC Flow Logs: captures all traffic (ACCEPT and REJECT) and ships to S3. Custom format adds pre-NAT source addresses, TCP flags, subnet ID, and VPC ID for forensic reconstruction. S3 delivery is free at ingest; CloudWatch Logs would charge $0.50/GB.

EKS control plane logs: all five types enabled (api, audit, authenticator, controllerManager, scheduler). Everything that talks to the API server is logged.

Security logs bucket: public access fully blocked, AES256 encryption, versioning enabled, 30-day transition to STANDARD_IA, 90-day expiration. force_destroy = true so the bucket empties cleanly on terraform destroy without a manual cleanup step.

IAM Access Analyzer: account-scope analyzer continuously evaluates resource-based policies and flags anything accessible from outside the AWS account.

---

CI/CD security gates

10 stages, triggered on every push and pull request to main. A failure in any gate stops the deployment.

#	Stage	Tool	What it catches
1	Secret scan	Gitleaks	Credentials and tokens in git history. Runs first — no point building if secrets are already exposed.
2	Lint	ESLint	Backend and frontend in parallel.
3	Dependency audit	npm audit	Fails on CRITICAL severity findings in third-party packages.
4	SAST source scan	Semgrep	Scans with p/nodejs, p/owasp-top-ten, p/javascript. SARIF results uploaded to GitHub Security tab.
5	SAST gate test	Semgrep	Runs --error against intentionally insecure fixture. Inverted exit code — if Semgrep finds nothing, the build fails. Validates the ruleset actually fires.
6	Build + push	Docker Buildx / GHCR	Commit-SHA tagged images with SBOM and SLSA provenance attached. GITHUB_TOKEN auth, no stored PATs.
7	Image scan	Trivy	OS and library CVEs across both images.
8	IaC scan	Checkov	Misconfigurations in terraform/ and k8s/ manifests.
9	Dockerfile lint	Hadolint	Fails on errors, warns on warnings.
10	Manifest update	git	Bumps image tags in deployment manifests. ArgoCD picks up the commit and reconciles.

Every running image is traceable to the exact commit that built it. latest is mutable and leaves no audit trail, so it is never used.

---

Walkthrough

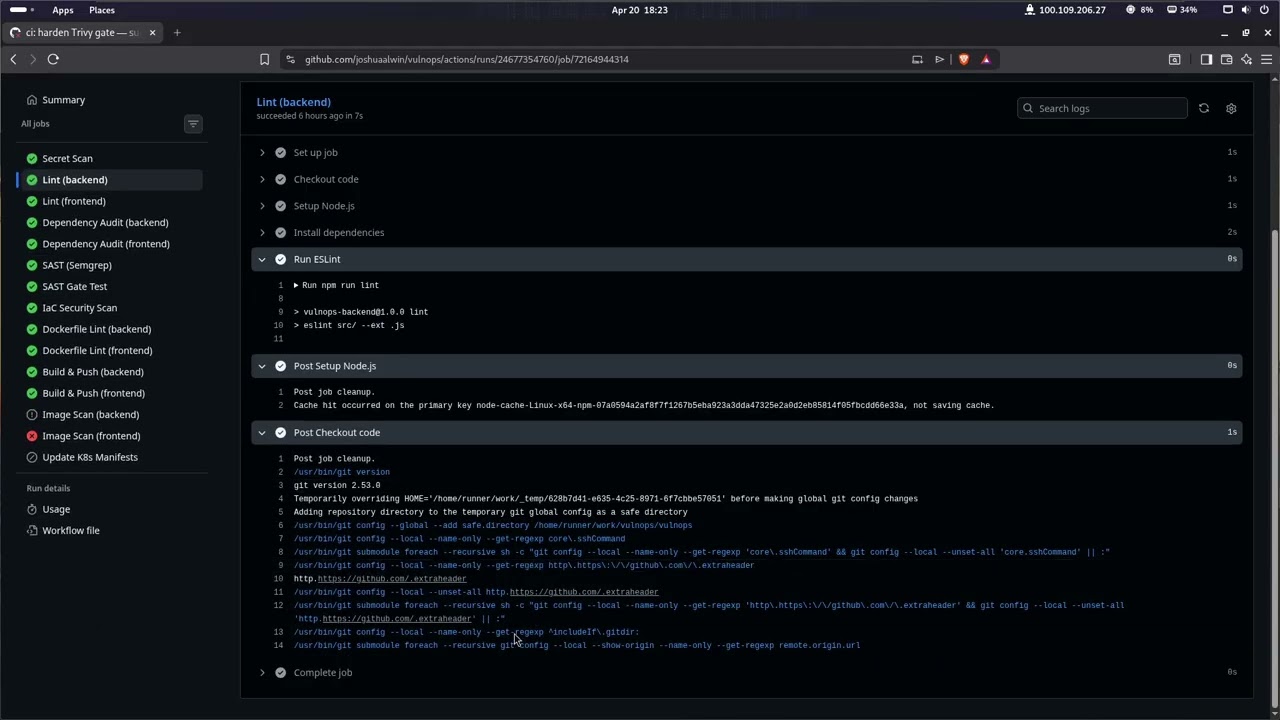

Full 33-minute walkthrough — covers infrastructure provisioning, CI/CD pipeline, Kubernetes deployment, and all security controls end to end. Watch on YouTube

Every security control is independently verifiable from the command line. See walkthrough.md for the full 7-section proof script. A taste:

# Pods run as non-root with zero Linux capabilities
kubectl exec -n vulnops deploy/vulnops-backend -- cat /proc/1/status | grep CapEff
# → CapEff: 0000000000000000

# ESO service account has NO AWS credentials — Pod Identity is the auth path
kubectl get sa external-secrets -n external-secrets -o yaml | grep role-arn
# → no output confirms Pod Identity, not IRSA

# IAM Access Analyzer — zero findings means nothing exposed outside the account
aws accessanalyzer list-findings \
  --analyzer-arn arn:aws:access-analyzer:us-east-1:ACCOUNT:analyzer/vulnops-access-analyzer

# CloudTrail log-file validation chain is intact
aws cloudtrail validate-logs --trail-arn arn:aws:cloudtrail:us-east-1:ACCOUNT:trail/vulnops \
  --start-time $(date -u -d '1 hour ago' +%FT%TZ)

Each command in walkthrough.md is annotated with the expected output, so a reviewer can run it against a live cluster and verify posture directly.

---

Running locally

Docker Compose (recommended)

docker compose up --build

Frontend at http://localhost. API at http://localhost:5000. Database tables are created on first start.

docker compose down -v   # teardown and drop volumes

Without Docker (Node.js 20+ and PostgreSQL)

# Create the database
sudo -u postgres psql <<EOF
CREATE USER vulnops WITH PASSWORD 'vulnops';
CREATE DATABASE vulnops OWNER vulnops;
GRANT ALL PRIVILEGES ON DATABASE vulnops TO vulnops;
\c vulnops
GRANT ALL ON SCHEMA public TO vulnops;
EOF

# Start frontend and backend together
npm install
npm run dev

Frontend at http://localhost:5173. API at http://localhost:5000.

---

Deploying to AWS

Prerequisites: AWS CLI configured, Terraform ≥ 1.5, kubectl, Helm 3.

First-time AWS setup (IAM user, policies, CLI config): see SETUP.md.

Quick start (automated)

Three commands, ~10 minutes from zero to live cluster with the app deployed.

# 1. Bootstrap Terraform state backend (once, never destroyed)
./scripts/bootstrap-state.sh

# 2. Provision infrastructure
cd terraform && cp terraform.tfvars.example terraform.tfvars
# edit terraform.tfvars and set alert_email
terraform init && terraform apply -var-file=terraform.tfvars
aws eks update-kubeconfig --region us-east-1 --name vulnops-eks

# 3. Bootstrap cluster tooling (ESO, ArgoCD, CORS injection)
cd .. && ./scripts/bootstrap-cluster.sh

The script prints the frontend URL when done. Click the SNS confirmation email that AWS sends to the address in terraform.tfvars, or the cost and TTL alerts won't deliver. From this point forward, any push to main triggers a deployment via ArgoCD.

Full walkthrough (manual)

The same deployment broken into individually-runnable steps, each explaining what it does and why.

Step 0 — Bootstrap the Terraform state backend

Terraform stores its state in an S3 bucket and uses DynamoDB for state locking. These need to exist before terraform init can run, and they sit outside the main stack on purpose — they should survive every terraform destroy.

chmod +x scripts/bootstrap-state.sh
./scripts/bootstrap-state.sh

Creates vulnops-terraform-state (versioned, AES256 encrypted, public access blocked) and vulnops-tf-lock (pay-per-request DynamoDB table). Combined cost at this scale is under $0.01/month. Do not destroy them.

Step 1 — Provision infrastructure with Terraform

cd terraform
cp terraform.tfvars.example terraform.tfvars
# edit terraform.tfvars — set alert_email
terraform init
terraform apply -var-file=terraform.tfvars

Creates: VPC (3 AZs), EKS cluster (Auto Mode, v1.32, KMS-encrypted secrets), CloudTrail trail, VPC Flow Logs, IAM Access Analyzer, security logs bucket, Secrets Manager entry for the DB credentials, cost guard (Budgets + TTL Lambda + SNS).

Step 2 — Configure kubectl

aws eks update-kubeconfig --region us-east-1 --name vulnops-eks
kubectl get nodes

Step 3 — Install External Secrets Operator

ESO authenticates to AWS through Pod Identity (set up in Terraform) and syncs secrets from AWS Secrets Manager into Kubernetes.

helm repo add external-secrets https://charts.external-secrets.io
helm repo update
helm upgrade --install external-secrets external-secrets/external-secrets \
  --namespace external-secrets --create-namespace \
  --values bootstrap/external-secrets/helm-values.yaml --wait

Step 4 — Configure ESO to pull from Secrets Manager

kubectl apply -f bootstrap/external-secrets/cluster-secret-store.yaml
kubectl create namespace vulnops --dry-run=client -o yaml | kubectl apply -f -
kubectl apply -f bootstrap/external-secrets/external-secret.yaml

# Wait for the database secret to materialize
kubectl wait externalsecret/vulnops-db-secret -n vulnops --for=condition=Ready --timeout=60s

The ClusterSecretStore is scoped to a single secret ARN — the IAM role can read exactly one secret, no wildcards. See bootstrap/external-secrets/README.md for rotation instructions.

Step 5 — Install ArgoCD and deploy the app

kubectl create namespace argocd --dry-run=client -o yaml | kubectl apply -f -
kubectl create -n argocd \
  -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml \
  --save-config 2>/dev/null || true
kubectl wait --for=condition=available --timeout=120s deployment/argocd-server -n argocd

kubectl apply -f k8s/argocd/application.yaml

ArgoCD reconciles k8s/ from git. selfHeal: true reverts manual kubectl apply drift automatically.

Step 6 — Inject the NLB hostname into the backend CORS allowlist

The Express CORS policy is pinned to ALLOWED_ORIGINS. The NLB hostname only exists after AWS provisions it, so it's injected after the fact.

NLB_HOST=""
while [ -z "$NLB_HOST" ]; do
  NLB_HOST=$(kubectl get svc -n vulnops vulnops-frontend \
    -o jsonpath='{.status.loadBalancer.ingress[0].hostname}' 2>/dev/null || true)
  [ -z "$NLB_HOST" ] && sleep 5
done
kubectl set env deployment/vulnops-backend -n vulnops ALLOWED_ORIGINS="http://$NLB_HOST"
echo "Frontend URL: http://$NLB_HOST"

Step 7 — Confirm the SNS alert subscription

AWS sends a confirmation email to the address in terraform.tfvars immediately after terraform apply. Click the confirmation link or the cost and TTL alerts will not deliver.

Verifying the deployment

# All 5 pods Running
kubectl get pods -n vulnops

# Database secret synced from Secrets Manager
kubectl get externalsecret -n vulnops
# → STATUS=SecretSynced, READY=True

# ESO uses Pod Identity, not IRSA
kubectl get sa external-secrets -n external-secrets -o yaml | grep role-arn
# → no output (no IRSA annotation) confirms Pod Identity

Full verification runbook is in walkthrough.md — 7 sections covering secrets, pod hardening, audit trail, IAM posture, cost controls, CI/CD gates, and end-to-end smoke test.

---

Tearing down

cd terraform
terraform destroy -var-file=terraform.tfvars

Removes the EKS cluster, VPC, NAT gateway, security logs bucket, CloudTrail, Flow Logs, and Access Analyzer. When the cluster is destroyed, all in-cluster resources (ArgoCD, ESO, pods, namespaces) go with it — no manual kubectl delete.

The security logs bucket has force_destroy = true so Terraform empties versioned CloudTrail and Flow Log objects before deleting.

The Terraform state bucket and DynamoDB lock table persist across destroy cycles by design. Do not delete them.

---

AI disclosure

Claude Code served as an agentic pair-programming assistant throughout all phases. Architecture, security design, and technical decision-making were led and owned by me. Claude handled implementation: writing and refactoring code, executing commands, and generating documentation under direction.

Tools and plugins used:

Tool	Role
Claude Code	Agentic CLI used for code generation, refactoring, shell execution, and implementation across all phases
Superpowers plugin	Structured skill workflows for brainstorming, planning, execution, and code review
claude-mem plugin	Cross-session persistent memory that carried project context and decisions forward between sessions
Notion MCP	Project notetaker used to sync phase progress, security decisions, and session notes to Notion

---

Repository structure

VulnOps/
├── backend/               # Express API and database schema
├── frontend/              # React + Vite + nginx.conf
├── k8s/
│   ├── namespace.yaml
│   ├── secrets.yaml.example
│   ├── postgres/
│   ├── backend/
│   ├── frontend/
│   ├── network-policies/
│   └── argocd/
├── bootstrap/
│   └── external-secrets/  # ESO install runbook and manifests
├── terraform/             # VPC, EKS, cost guard, security monitoring
├── scripts/
│   ├── bootstrap-state.sh     # Creates S3 state bucket and DynamoDB lock table
│   └── bootstrap-cluster.sh   # Installs ESO and ArgoCD after terraform apply
├── .github/workflows/     # GitHub Actions CI pipeline
├── deploy/                # EC2 setup script for manual deployment
├── docker-compose.yml
├── walkthrough.md         # 7-section security verification runbook
└── VulnOps-Architecture.png
