Fast, robust, powerful, user-friendly pkgsrc builder

Bob is a comprehensive utility for building pkgsrc packages in parallel inside sandboxes.

Bob is designed to be an easy-to-use and complete replacement for build tools such as pbulk, pkg_chk, or pkg_rolling-replace, while providing a modern intuitive interface and many additional features for local pkgsrc development, bulk build reporting and publishing, and failure analysis.

Screencasts

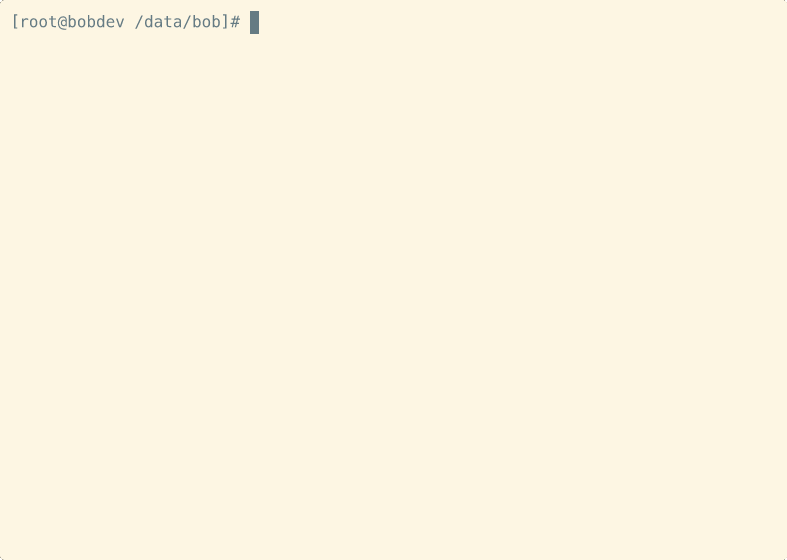

• Example build session



• Live build log viewer



Features

• Powerful, fast, and robust, while remaining easy to use.
• Native, customisable sandbox implementations for common operating systems.
• Parallel scan and build processes inside concurrent sandboxes.
• Dynamic MAKE_JOBS and WRKOBJDIR scheduler for optimal performance.
• Ratatui-based user interface.
• Simple, flexible, and extendable Lua-based configuration.
• Easily support multiple branch builds or different OS targets.

Bob works out-of-the-box on NetBSD, Linux, macOS¹, and illumos.

Getting Started

There are two ways to install bob. The preferred method is to install using cargo so that bob is kept independent of the pkgsrc installation that you may be building for. However there is also a package available for users who prefer to only use software installed via pkgsrc.

Install via cargo

Cargo-installed bob uses an XDG directory layout by default:

Path	What it stores
~/.cargo/bin/bob	The bob binary
~/.config/bob/config.lua	Default configuration file
~/.local/share/bob/	Database, build state, and logs

Install the binary using cargo:

$ cargo install bob

Then create a default configuration file using bob init:

$ bob init
Created ~/.config/bob/config.lua

Install via pkgsrc

Bob installed using pkgsrc uses a standard pkgsrc layout, for example:

Path	What it stores
/usr/pkg/bin/bob	The bob binary
/usr/pkg/etc/bob/config.lua	Default configuration file
/var/db/bob/	Database, build state, and logs

The package installs a default config.lua ready to edit, so bob init is not required.

Customise

The defaults are designed to work out of the box, but you are likely to want to change some things, for example which packages to build, enable an unprivileged build user, or add any additional mount points required.

On non-NetBSD systems you will also need a pkgsrc bootstrap kit, with the absolute path set in the pkgsrc.bootstrap config option.

For a complete example, have a look at https://github.com/jperkin/bob/blob/main/examples/smartos-trunk.lua. This is the exact configuration file used to publish the daily SmartOS trunk builds.

Build

When you are happy with the configuration:

$ bob build

will proceed to build all of the packages you have requested. At the end of a successful build run bob will automatically create a pkg_summary file, so if you have configured pkgin to look there, a full upgrade to the latest pkgsrc packages is as simple as:

$ bob build && pkgin upgrade

During the build phase you can press 'v' to toggle between the default inline progress bars and a full-screen paned layout that shows live build logs to track progress.

Bob handles interruptions gracefully, and automatically cleans up sandboxes, etc. If the build is interrupted, you can resume with bob build, and bob will continue from where it left off.

After a build has completed, and some time later you wish to update pkgsrc to build updated packages, you will first need to run:

$ bob clean

to clear the previous database state, before running a new bob build.

Design Goals

There are two main methods currently used to update a pkgsrc installation.

Update-in-place using tools such as pkg_chk or pkg_rolling-replace. These tools operate directly on the target host, upgrading packages in turn. These are the simplest to set up and use, and thus reasonably popular, but have some major drawbacks:

• Upgrading in place means that if a build error is encountered, the system may be left in a degraded state until the issue is fixed.

• Building directly on the system may end up finding tools and libraries on the host system that wouldn't be found otherwise, which may mask issues that would be exposed when building in a clean environment.

• Only one build can happen at a time, and dependency issues aren't discovered until build time.

Bulk builds using pbulk allow packages to be built inside clean sandboxes, and with the appropriate patches mean that builds can be performed in parallel. These solve a number of the problems with update-in-place builds, but do have their own drawbacks:

• Historically pbulk has been notoriously difficult to set up and configure, and any runtime problems can be very hard to diagnose.

• A separate pkgsrc prefix (e.g. /usr/pbulk) is required to hold pbulk and associated tools.

• Support for concurrent builds and sandbox configuration is left to external patches and the user to configure manually, and it can be very easy to accidentally trash your system.

Bob combines these methods into a best-of-both approach:

• Automatically set up build sandboxes, hiding away all of the complexity involved trying to support multiple operating systems.

• Perform a pbulk-style scan of the requested packages to ensure all of the dependencies are correct.

• Build packages inside sandboxes, using a directed acyclic graph to perform builds in the correct order, and take advantage of parallel builds where possible.

• Provide a very flexible configuration interface for local customisation.

Bob doesn't stop there though, and also provides many unique features such as easily spinning up pkgsrc development sandboxes, significant improvements to bulk build reports including diffs to previous builds, built-in build history, and much, much more.

Footnotes

1. Requires MacFUSE and bindfs due to macOS limitations. ↩
