ChatGPT App - Parking Assistant

ACME Parking Assistant is a ChatGPT app built using OpenAI Apps SDK with a remote MCP server and an embedded React UI for parking search and booking.

Get started ⚡️

Prerequisites

• Node.js 20+
• a Mapbox public token

Install packages

npm install
npm --prefix web install

Configure environment

cp .env-example .env

Add your Mapbox public token or use mine. Sentry setup is optional.

Connect to ChatGPT in developer mode

For local development, run the app locally and expose it through a tunnel using a tool like ngrok.

1. Start the local server

npm run build:server
npm run build:web
npm run dev

2. Create an HTTPS tunnel in another terminal

Example with ngrok:

ngrok http 3000

From your terminal, copy the public HTTPS URL with /mcp appended, for example:

https://abc123.ngrok.app/mcp

3. Add the app to ChatGPT

In ChatGPT web:

1. Open Settings → Apps → Advanced settings
2. Enable developer mode
3. Open Settings → Apps → Create app
4. Register the app with values like:

• Name: Acme
• Description: Browse ACME parking options and inspect lot details.
• URL: https://<your-public-host>/mcp
• Authentication: No auth

4. Test in chat

Open a new chat, type /acme and press enter. Then ask for parking availability through the chat.

Golden prompt set 🏆

Use these prompts to validate the experience quickly:

1. Help me book parking for Wednesday
2. How far is this from HQ?
3. Is this covered?
4. What’s the nearest alternative if this fills up?
5. Show me only covered parking with EV charging.
6. Is this lot booked?
7. Book this lot.

These cover:

• initial booking intent
• in-chat follow-up questions about a selected lot
• nearest-alternative reasoning after search
• in-chat originated booking
• booking-aware follow-up questions about the selected lot

Architecture 🏡

Server

The server is implemented in server/index.ts and registers:

• three tools: search, book_lot, refine_widget_results
• one UI resource: ui://parking/parking-browser.v4.html

Tools

• search
  • chat/composer discovery entrypoint
  • the only widget-producing tool
• refine_widget_results
  • widget-only refresh path for fullscreen filters and date changes
  • keeps the mounted fullscreen widget in sync without depending on a fresh chat turn
• book_lot
  • mutation tool for booking
  • if done through the widget, booking succeeds first, then the widget refreshes its current filtered view
  • if done through chat, booking succeeds and sends a confirmation message in text

Services

1. The search service in server/lib/parking-service.ts:

• reads live inventory from SQLite,
• resolves the target date, applies filters, computes distance to HQ
• Returns:
  • structuredContent for the widget
  • concise text output for the model transcript

2. The booking service in server/lib/booking-service.ts:

• persists bookings in SQLite
• enforces one booking per bookingContextId per date
• decrements availability by incrementing reserved
• returns refreshed results for widget-initiated updates

Widget

The widget entrypoint is web/src/component.tsx.

The built assets are read from web/dist and inlined into the MCP resource response.

Functionality

• reads tool output from window.openai
• renders Mapbox markers and a carousel inline for lots that match the current search request
• opens a fullscreen inspector view for deeper comparison
• shows a fullscreen-only refinement bar for date, covered, EV, and accessibility filters
• applies fullscreen refinements through refine_widget_results to showcase filtered lots
• allows booking from the fullscreen inspector
• handles the selected lot and changes it in the map, carousel, inspector panel, and for chat
• enables widget-triggered bookings
• showcases booking success and error notifications at the fullscreen layout

Fullscreen behavior

Fullscreen is the primary browse-and-book surface:

• the left options panel lists lots
• the map shows pins/markers of lots that match the current search request
• the right inspector shows the currently selected lot

Current limitations 👀

• seeded SQLite inventory rather than a live parking system
• no auth, no payment
• no automated tests configured yet, although Sentry is enabled for telemetry

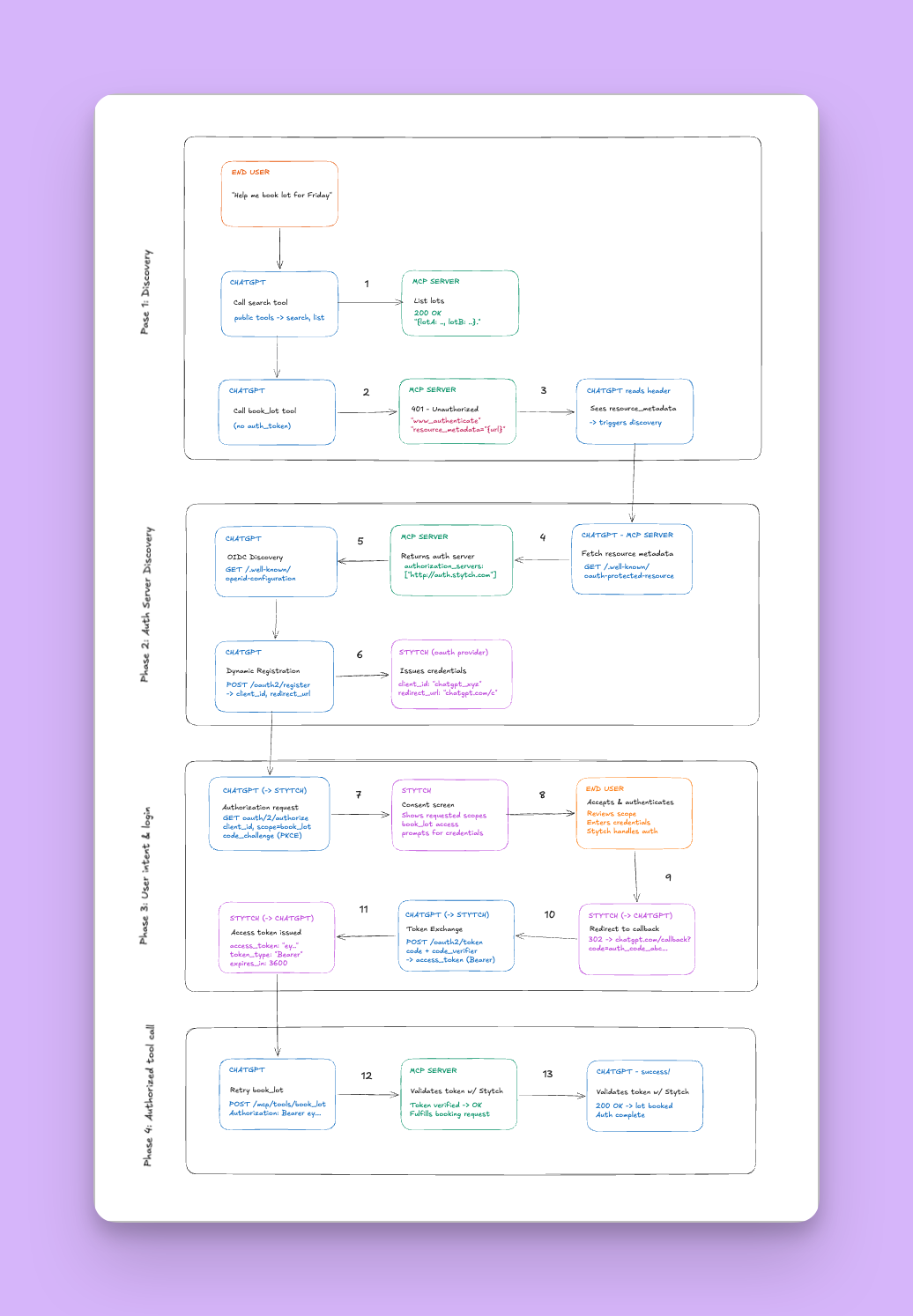

Next step: Auth 👩🏻‍💻
