A Mono application wrapper for Google Maps.

Static maps

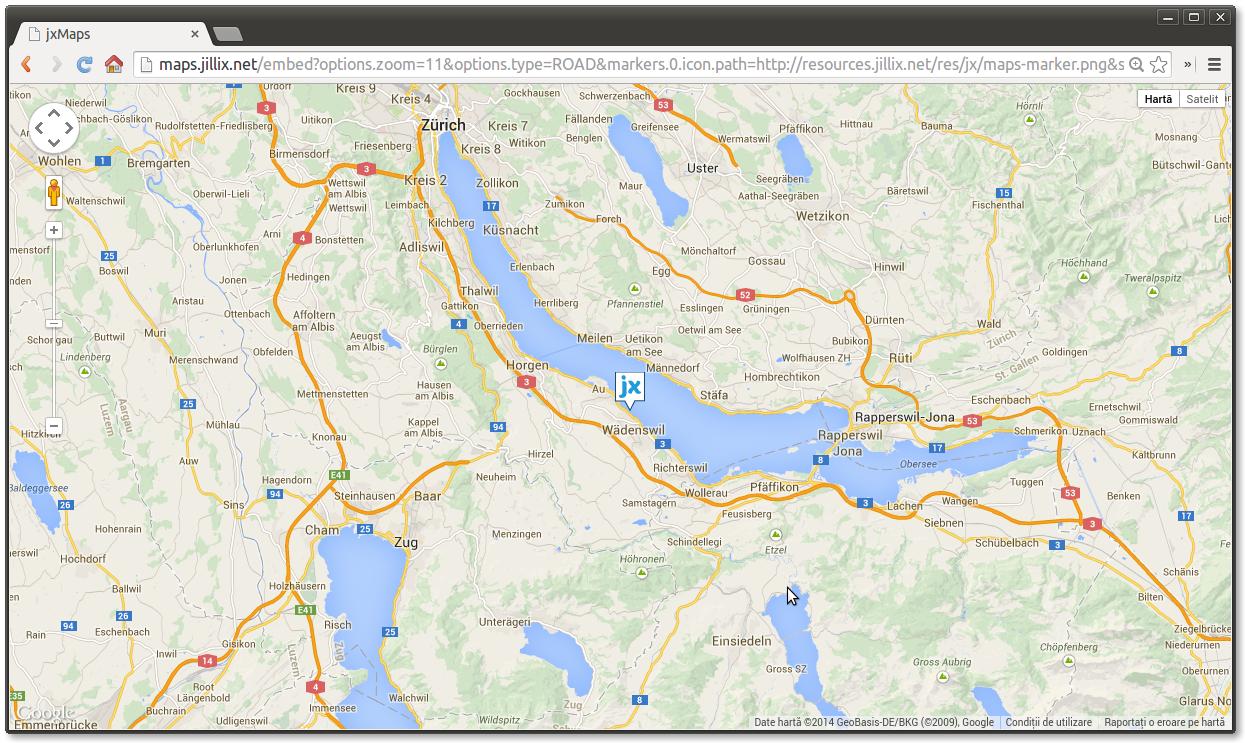

Example

http://maps.jillix.net/embed?options.zoom=11&options.type=ROAD&markers.0.icon.path=http://resources.jillix.net/res/jx/maps-marker.png&size=40&displayMarker=true&options.center.lng=8.660786799999983&options.center.lat=47.2374975&markers.0.position.lng=8.660786799999983&markers.0.position.lat=47.2374975&markers.0.icon.anchor.y=35&markers.0.icon.anchor.x=51

Querystring API (supports one marker only)

{
  "name": {
      default: "No name"
  },
  "options.center.lat": { validator: validators.number },
  "options.center.lng": { validator: validators.number },
  "options.zoom": {
      validator: validators.number,
      default: 15
  },
  "options.type": {
      default: "ROADMAP"
  },
  "markers.0.label": {},
  "markers.0.title": {},
  "markers.0.position.lat": { validator: validators.number },
  "markers.0.position.lng": { validator: validators.number },
  "markers.0.icon.path": {},
  "markers.0.icon.label": {},
  "markers.0.icon.size.w": { default: 100, validator: validators.number },
  "markers.0.icon.size.h": { default: 100, validator: validators.number },
  "markers.0.icon.origin.x": { default: 0, validator: validators.number },
  "markers.0.icon.origin.y": { default: 0, validator: validators.number },
  "markers.0.icon.anchor.x": { default: 0, validator: validators.number },
  "markers.0.icon.anchor.y": { default: 0, validator: validators.number },
  "markers.0.infowin.content": {},
  "markers.0.visible": { default: true }
}

Multiple marker maps

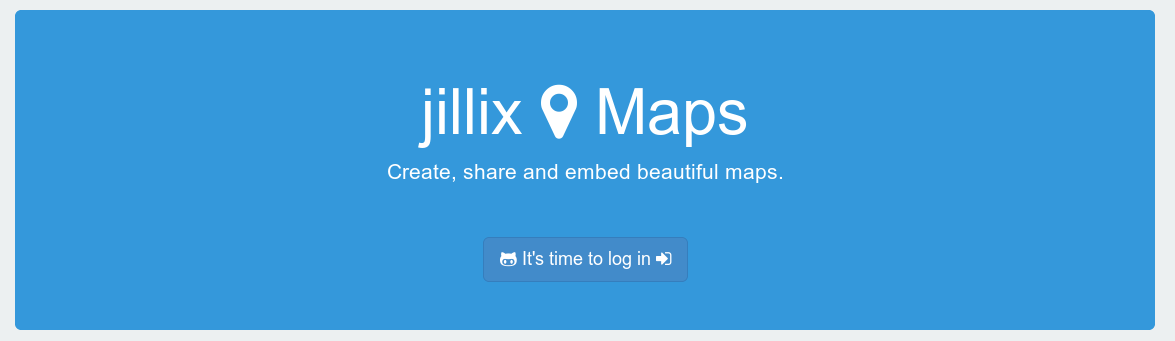

1. Log in into your account.
2. Create your markers, icons, info windows
3. Create the map and link the markers to it.
4. After creating the map, use the generated link to embed it (e.g. http://maps.jillix.net/embed?mapId=<generated id>)

Dynamic maps

Access map data from remote interface/file.

maps.jillix.net/embed?data=http://example.com/api/map/getData

or

maps.jillix.net/embed?data=http://example.com/map-data.json

The response should end with a 200 status code.

Resource Types

The map must receive data as Map data resource type.

Map data

{
  "name": {"type": "string"},
  "options": {
    "center": {
      "lat": {"type": "number"},
      "lng": {"type": "number"},
    },
    "zoom": {"type": "number"},
    "type": {"type": "string"},
    "clustering": {
        "options": {"type": "object"}
    }
  },
  "markers": [{
    "type": "marker"
  }]
}

The clustering key is optional. If present, the markers will be clustered as instructed by the clustering.options object. If no clustering options are provided, the default MarkerClusterer behavior will be used.

Marker

{
  "title": {"type": "string"},
  "position": {
    "lat": {"type": "number"},
    "lng": {"type": "number"},
  },
  "visible": {"type": "boolean", "default": true},
  "infowin": {"type": "infowindow"},
  "icon": {"type": "icon"}
}

Info Window

{
  "content": {"type": "string"}
}

Icon

{
    "path": {"type": "string"},
    "size": {
        "w": {"type": "number"},
        "h": {"type": "number"}
    },
    "origin": {
        "x": {"type": "number"},
        "y": {"type": "number"}
    },
    "anchor": {
        "x": {"type": "number"},
        "y": {"type": "number"}
    }
}

License

See the LICENSE file.
