Hitager v1.3.2

Support remote page (Pg15) reading for all known BMW keys

Following keys are supported and tested now:

• PCF7945 (5WK49125) with Pg15 not locked
• PCF7944 (old version CAS key) with Pg15 locked
• 26A0700 (china key) with Pg15 locked

Hitager v1.3.1

• Add interface and UI menu for configuring PCF7991 ABIC

• Optimize standard ABIC settings (Gain=2, Filter_H=1, Filter_L=1, Hysteresis=0). Filter and hysteresis now matches recommendation from Philips "Immo-RKE-System-Design Version 4" PDF
• Adapt hitaguino manchester decoder to the new settings + general decoder improvements
• Adapt procedure to read BMW Hitag2 EEPROM remote page (Page 15, only for PCF7944 or unlocked keys)

Hitager v1.3.0

This release provides various updates of the BMW remote functionalities and hughe robustness improvements of the Arduino Software (hitaguino).

AESHitager:

• Possibility to read BMW 5WK49125 remote data if not locked by lock bit in Hitag2 Pg3
• BMW remote data assistant supports now the memory layout of the two known CAS3 masks 0L15Y and 0L01Y (auto-detected)
• All important seetings of the PCF7991 ABIC can now be changed from GUI. Good for experimenting with setting improvement.

Hitaguino v2.1.0 :

• Add clock output for supplying PCF7991 ABIC to Pin3 of Arduino Nano / Pin9 of Arduino Mega2560. This is useful e.g. for using IPROG RFID adapter without HW mod
• Support of writing and reading all relevant PCF7991 ABIC setting pages
• Improve manchester decoder by continuous pulse length adaptation. Makes reading lot more robust.

Hitager v1.2.0

New feature:
Support extracting remote data (RSK_Hi, RSK_Lo, etc.) from a CAS3 EEPROM dump file. File can be loaded and the data of a selectable key bank (0...9) can be extracted to data fields.

Improvements:

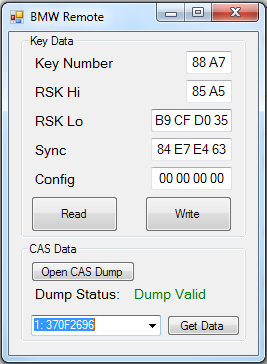

Improve design of "BMW Remote" window
Bugfix:

Bugfix:
Fix misalignment of "Remote ID" data. The two payload bytes have to be sent first, padded with two zero bytes (before, it was the other way round)

Hitaguino:
Arduino software release which was up to date when this GitHub project was created

Hitager v1.1.0

Bugfix:
Correct bug in BMW write remote functionality. Remote programming payload data was sent to arduino with wrong syntax.

Hitaguino:
Arduino software release which was up to date when this GitHub project was created

Hitager v1.0.2

This is the first release published in GitHub

New features: (Changes compared to last version on Project Website)

• Add functionality to write BMW PCF7945 / PCF7944 / PCF7953 remote data (not tested yet)
• Implement feature to read BMW remote data (Page 15) on PCF7944 and PCF7945_china (very unstable)
• Add window to read and display BMW key info (VIN, Odometer, Mechanical Key number)

Minor enhancements:

• Introduce ABIC Gain Auto-Adjustment function

Hitaguino:
Arduino software release which was up to date when this GitHub project was created
