frontend: Add first-class label and selector support to resource views

[illume]

Summary

Imagine not being able to click on labels or tags. Now in Headlamp, you can.

This PR adds Kubernetes label filtering to resource list views. It supports the full Kubernetes
label selector syntax, exactly the same syntax accepted by kubectl -l.

It also supports the workflow described in #6932: labels on resource detail pages are links. Clicking one opens the list for the same resource type with that label applied as a URL-backed filter. The shared metadata component makes this available to Pods and other Kubernetes resource types.

Namespaces and Label Selector are positioned like subtitles beneath the resource title. Previously, on
larger browser windows, the namespace filter could appear far to the right and out of the user's
immediate view, making it unclear that the current page was filtered by namespace. Placing both
filters beneath the resource title lets people quickly understand what the page contains and how
it is scoped. The active values are subtitle links: they adopt link styling on hover or focus, and
clicking one opens the editor. A filter icon beside Create always toggles both fields, and applying
a value with Enter returns to subtitle display mode. The subtitle location is the right place for
Namespaces and Label Selector because together they define the current view.

Related requests:

• Headlamp #2547: Filtering/searching by pod labels
• Headlamp #4710: Projects by label selector/Helm deployment
• Headlamp #6820: Label selectors in Resource Map filtering
• Headlamp #6929: Show pods targeted by a Service
• Headlamp #6930: Show pods targeted by a NetworkPolicy
• Headlamp #6932: Clicking a label adds a search filter
• Headlamp #6982: Copy resource labels and annotations
• Headlamp #7028: Clicking a pod selector shows matched pods
• Kubernetes Dashboard #3160: Allow the user to search for labels - one of most highly requested Kubernetes Dashboard issues (35 thumbs-up reactions)
• Kubernetes Dashboard #7547: Filter by pod status and labels

Why Labels Matter

People use labels in kubernetes. A lot.

Namespaces are essential for scope, access control, and isolation, but they provide only one coarse
dimension: a namespaced resource belongs to one namespace. Labels complement that boundary with
many simultaneous dimensions. The same object can be grouped by application, component,
environment, team, owner, release, tier, and topology, without changing where it lives.

For discovery and day-to-day operations, labels can therefore be as important as namespaces, and
often more useful. Labels can identify related resources within a large shared namespace, across
multiple namespaces, and among cluster-scoped resources that have no namespace. Kubernetes also
understands label selectors directly: controllers, Services, and policies use them to associate
resources in ways that namespace membership alone cannot express.

Helm charts, GitOps workflows, monitoring, cost management, security policy, and automation also
rely heavily on labels. As clusters grow, namespaces remain the isolation boundary, while labels
become the flexible index used to find and operate on related resources. Making label selectors a
first-class list filter gives both organizational mechanisms appropriate weight in Headlamp.

Performance and Scalability

Label selectors are passed to the Kubernetes API, so Kubernetes filters resources before returning
them to Headlamp. Headlamp does not need to download every object and then filter the full set in
the browser, reducing network transfer, memory use, and client-side processing for large clusters.

Server-side filtering is also required for correct results when list requests are paginated. With
30,000 or more resources, client-side filtering can inspect only the pages fetched so far and miss
matching objects on pages that have not been downloaded. Passing the selector to Kubernetes makes
each returned page part of the complete filtered result set without fetching all unfiltered items.

Changes

• Add a Label Selector filter to resource list headers.
• Support the full Kubernetes label selector syntax, including equality (app=nginx), inequality
  (tier!=backend), set-based (env in (production,staging) and env notin (dev)), existence
  (partition), and non-existence (!partition) queries.
• Show common query examples from an accessible information icon on hover, keyboard focus, or tap.
• Show active Namespaces and Label Selector values as MUI-style subtitle links.
• Keep a filter icon beside Create to toggle the editable fields in every state.
• Return to subtitle display mode after applying a filter with Enter.
• Use stable, matching editor widths: full-row on mobile and wide enough for realistic values on
  medium and large screens.
• Apply label selectors to generic resource tables and the paginated Pod list.
• Persist selectors per cluster and reflect them in the URL for bookmarks and sharing.
• Add reusable URL query parameter helpers with tests.
• Make detail-page labels keyboard-accessible links to filtered lists.
• Link Pod Node Selectors to filtered Nodes and resource Selectors to filtered Pods.
• Validate selector syntax before saving it or sending a Kubernetes request.
• Recognize explicit selectors in global search and show matching resource kinds.
• Probe Kubernetes server-side with the complete selector and limit=1 instead of downloading
  unfiltered resource lists for selector searches.
• Keep annotations and other metadata dictionaries non-interactive.
• Document filtering and the detail-to-list workflow.

Steps to Test

1. Navigate to a resource list such as Pods, Deployments, or Services.
2. Click the filter icon beside Create, enter app=nginx in Label Selector, and press Enter or
   leave the field.
3. Verify only matching resources remain and labelSelector=app%3Dnginx appears in the URL.
4. Clear the field and open a resource detail page with labels.
5. Click a label such as app: nginx.
6. Verify the same resource type's list opens with app=nginx applied.
7. Repeat with a cluster-scoped resource or another namespaced resource.
8. Enter an invalid selector such as app in ( and verify the field shows an error without
   changing the URL or results.
9. On a Pod detail page, click a Node Selector and verify the Nodes list opens with that selector.
10. On a workload detail page, click its Selector and verify the matching Pods list opens.
11. Open global search, enter environment in (production),tier in (frontend), and verify a
    Pods result appears when matching Pods exist.
12. Select that result and verify the Pods list opens with the complete selector in the URL.

Validation

• npm --prefix frontend run tsc
• npm --prefix frontend test -- --run --reporter=dot --silent=passed-only
  • 198 test files passed
  • 2,645 tests passed
• npm --prefix frontend run build
• npx playwright test tests/labelSelectors.spec.ts
  • 3 tests passed against Kind: validation/list filtering, detail-label navigation, and global
    selector search.
• Live Kind verification:
  • Clicking app: nginx opened #/c/kind-test/pods?labelSelector=app%3Dnginx.
  • The Label Selector input contained app=nginx.
  • Two nginx Pods were shown and the redis Pod was excluded.
  • Three realistic namespaces and a long selector appeared as compact subtitle links.
  • The filter action appeared immediately after Create and toggled both editor fields.
  • Pressing Enter after editing returned to subtitle display mode.
  • Mobile subtitles stayed within the viewport with three matching Pods visible.
  • The examples tooltip used an opaque surface (opacity: 1).
  • Invalid selectors stayed in the editor and did not update state, storage, or the URL.
  • Pod labels, Pod Node Selectors, workload Selectors, and workload Node Selectors all opened the
    corresponding filtered lists.
  • Global search sent the full set-based selector in 17 resource-kind probes with limit=1.
  • The matching Pods result opened the server-filtered list, and nonmatching Pods were absent.

Screenshots

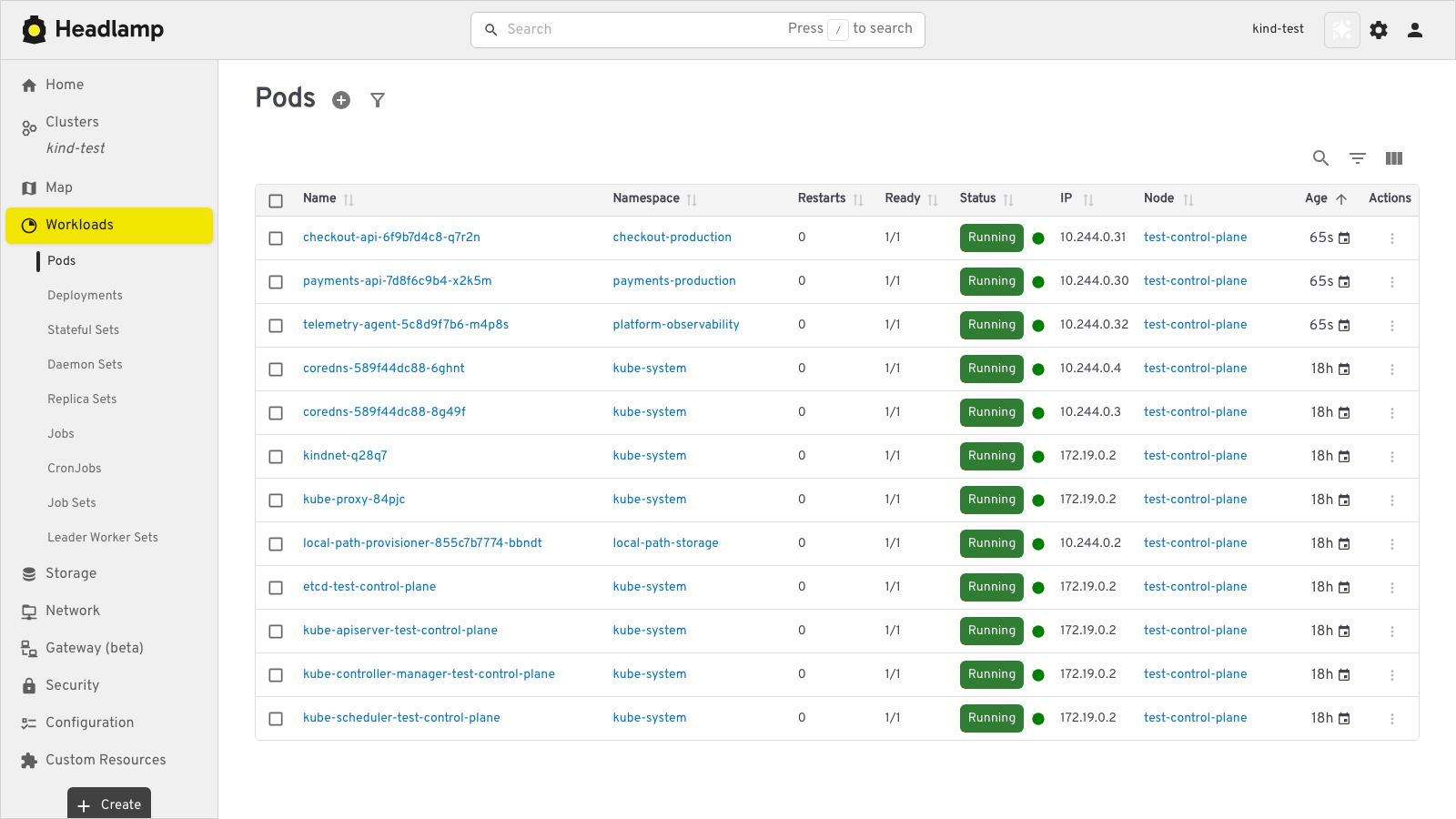

Cleaner when no filters are set

If no selectors are set, then they are not shown. This is a bit cleaner than before, because now
there is no empty Namespaces input when Namespaces is empty. Instead, people can press the filter
icon to filter by namespace or label selector.

Detail pages: labels and selectors are clickable now

Before this change, labels and selectors on resource detail pages were static text. They are now
clickable links that open the corresponding resource list with the selected label or selector
applied.

Click on a label and it goes to the List view, so you can see all the pods with that label.

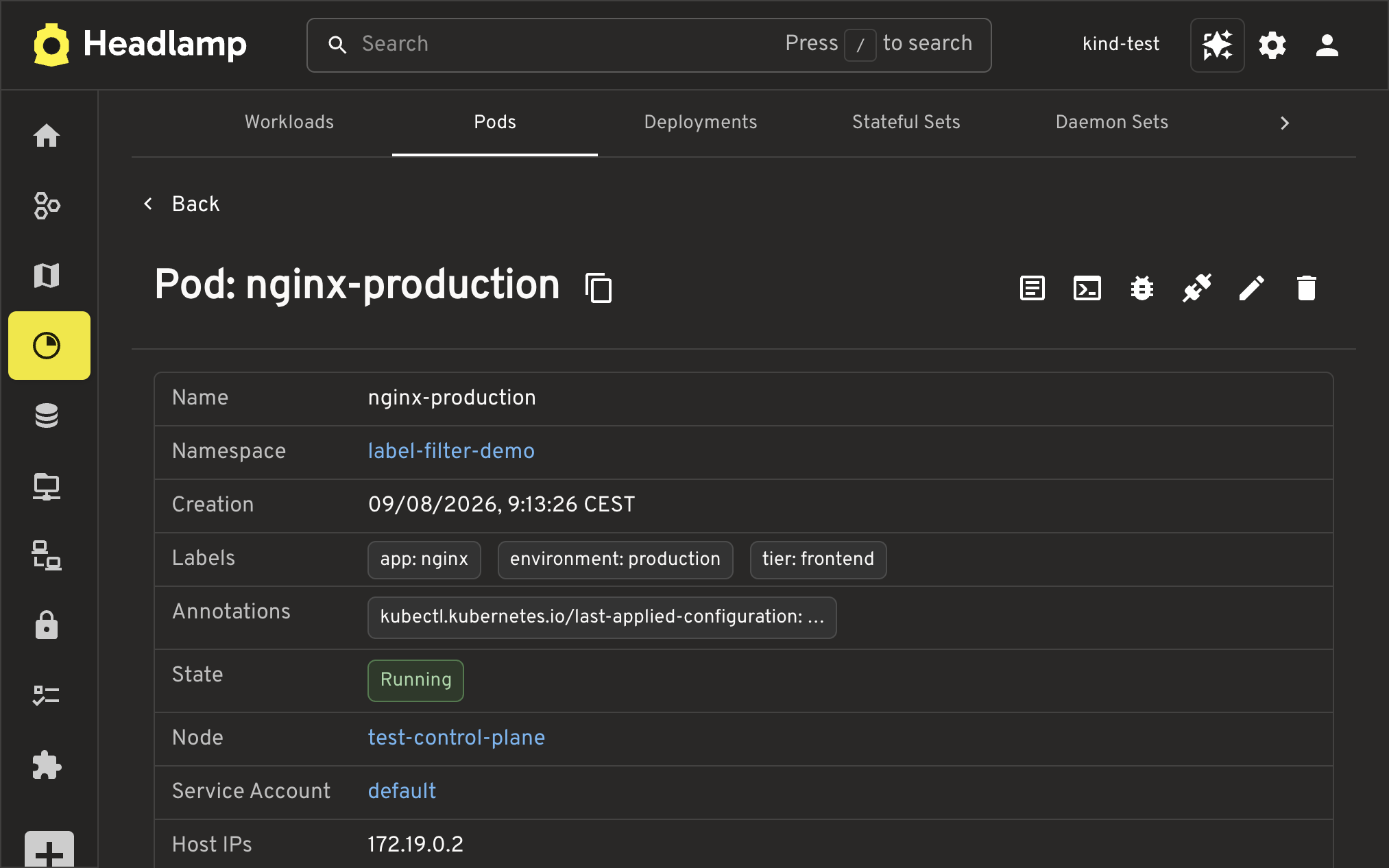

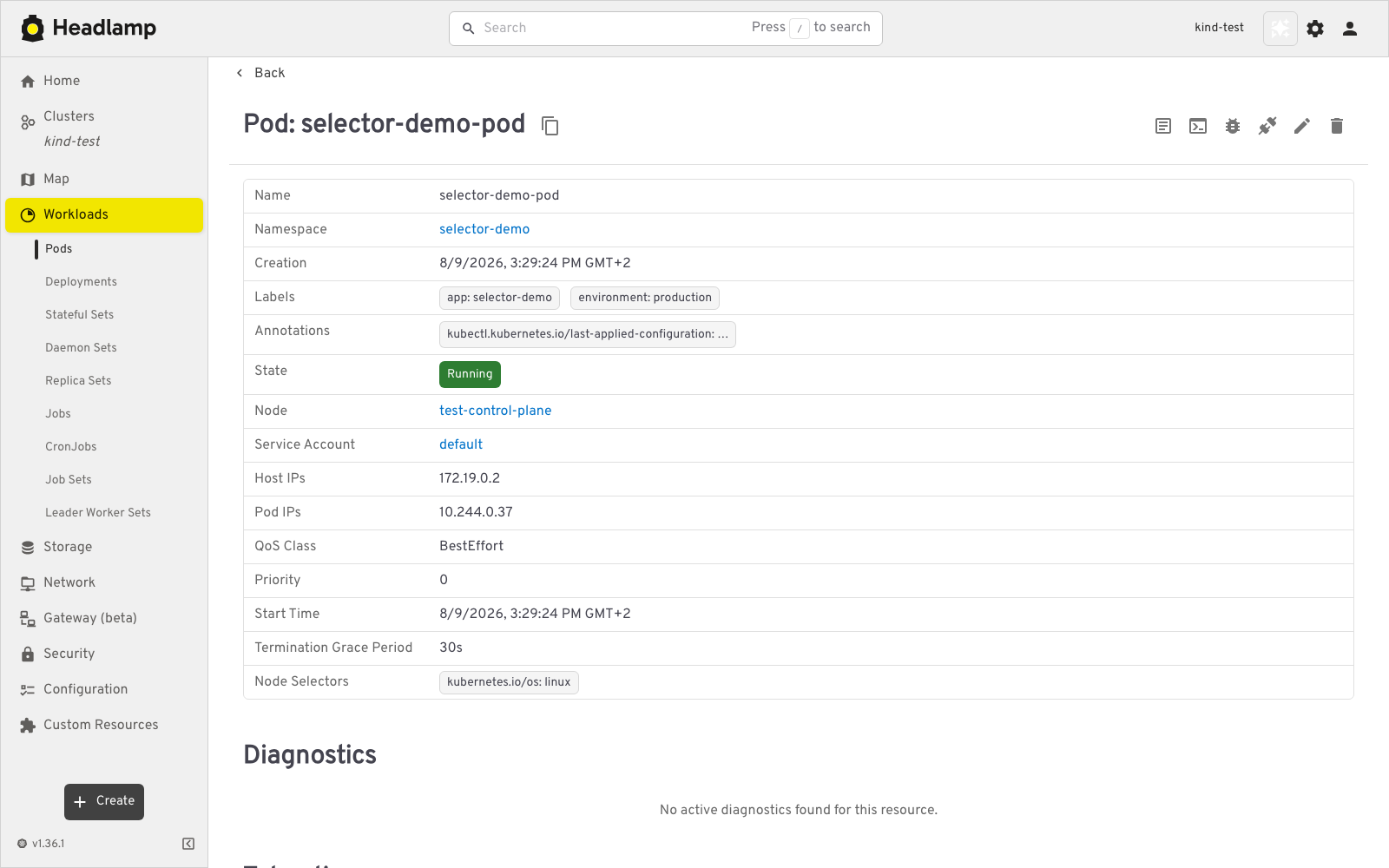

Pod labels and Node Selectors

Pod labels open a filtered Pods list. Node Selector chips open the filtered Nodes list, using the
same selector in the Kubernetes request.

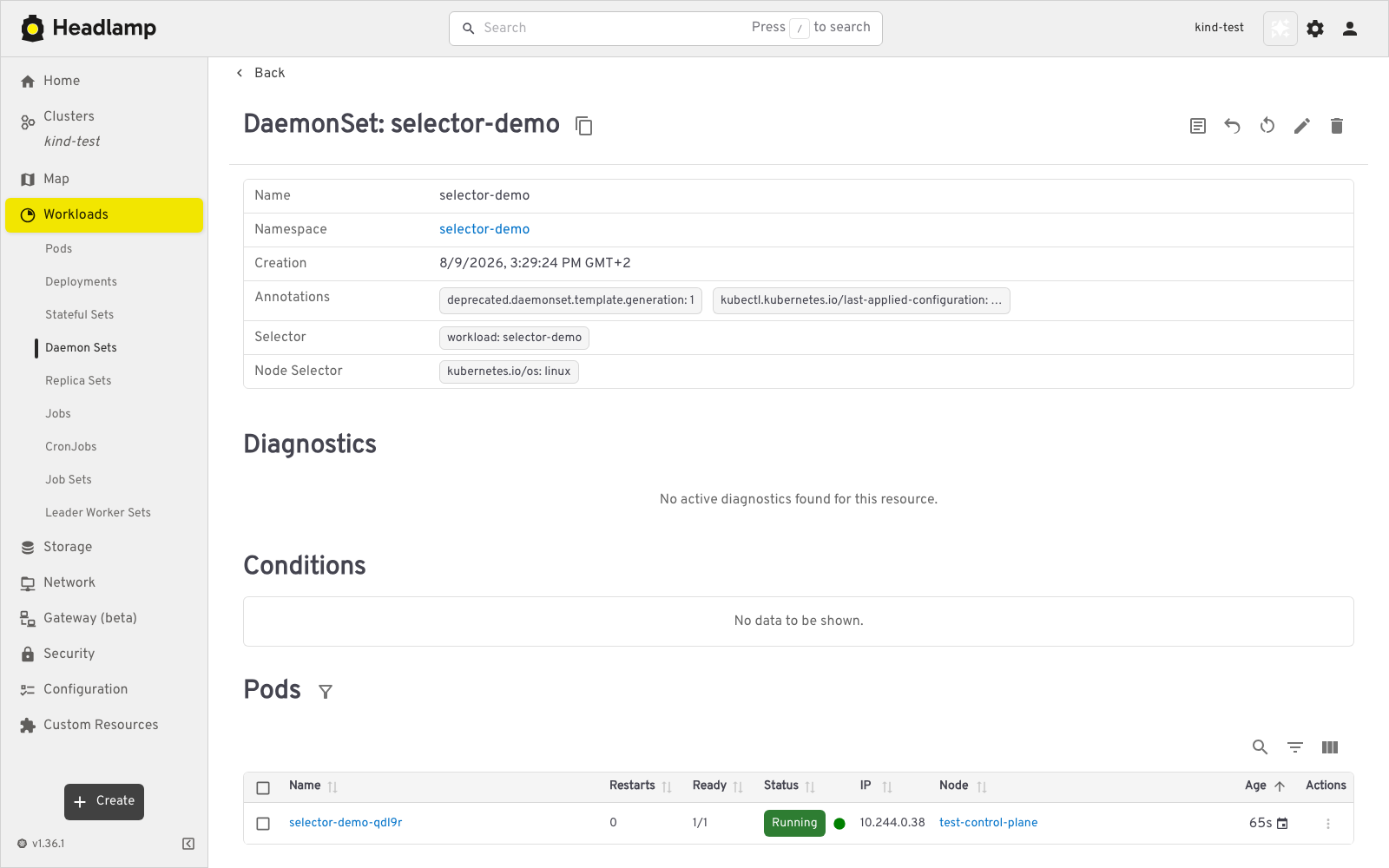

Workload Selectors

Workload Selector chips open matching Pods, while Node Selector chips open matching Nodes.

Filtered Pod list

The URL, all three Namespaces, and the long Label Selector remain visible as subtitle links.

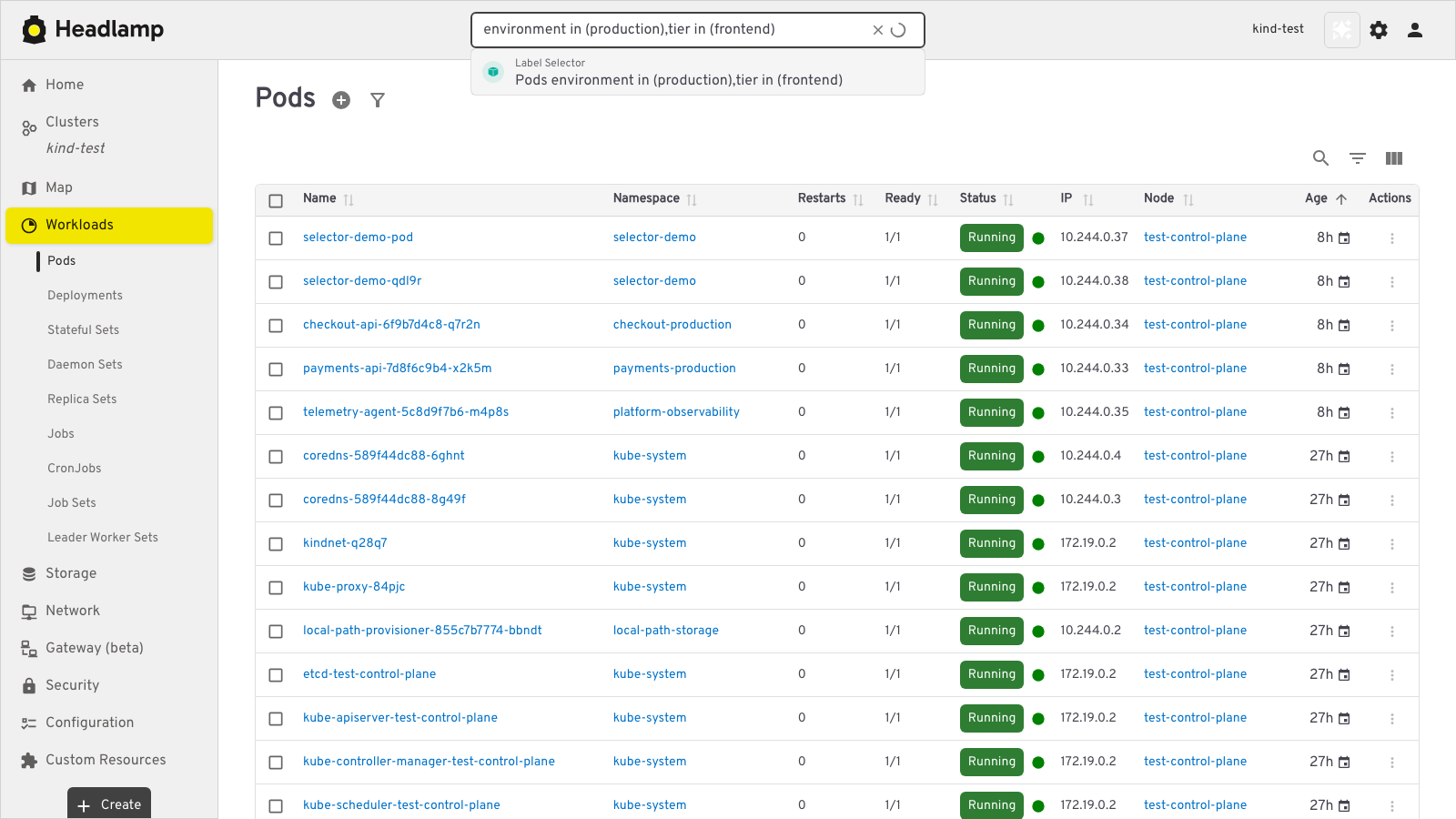

Global search works with kubernetes selectors now

Type a Kubernetes label selector into global search, for example
environment in (production),tier in (frontend). Headlamp shows a result for each resource type
with at least one match, such as Pods. Click the result to open that resource list with the
selector applied.

Headlamp asks Kubernetes for only one matching object per resource type while building these
results. This keeps the search lightweight and avoids downloading entire unfiltered resource lists.

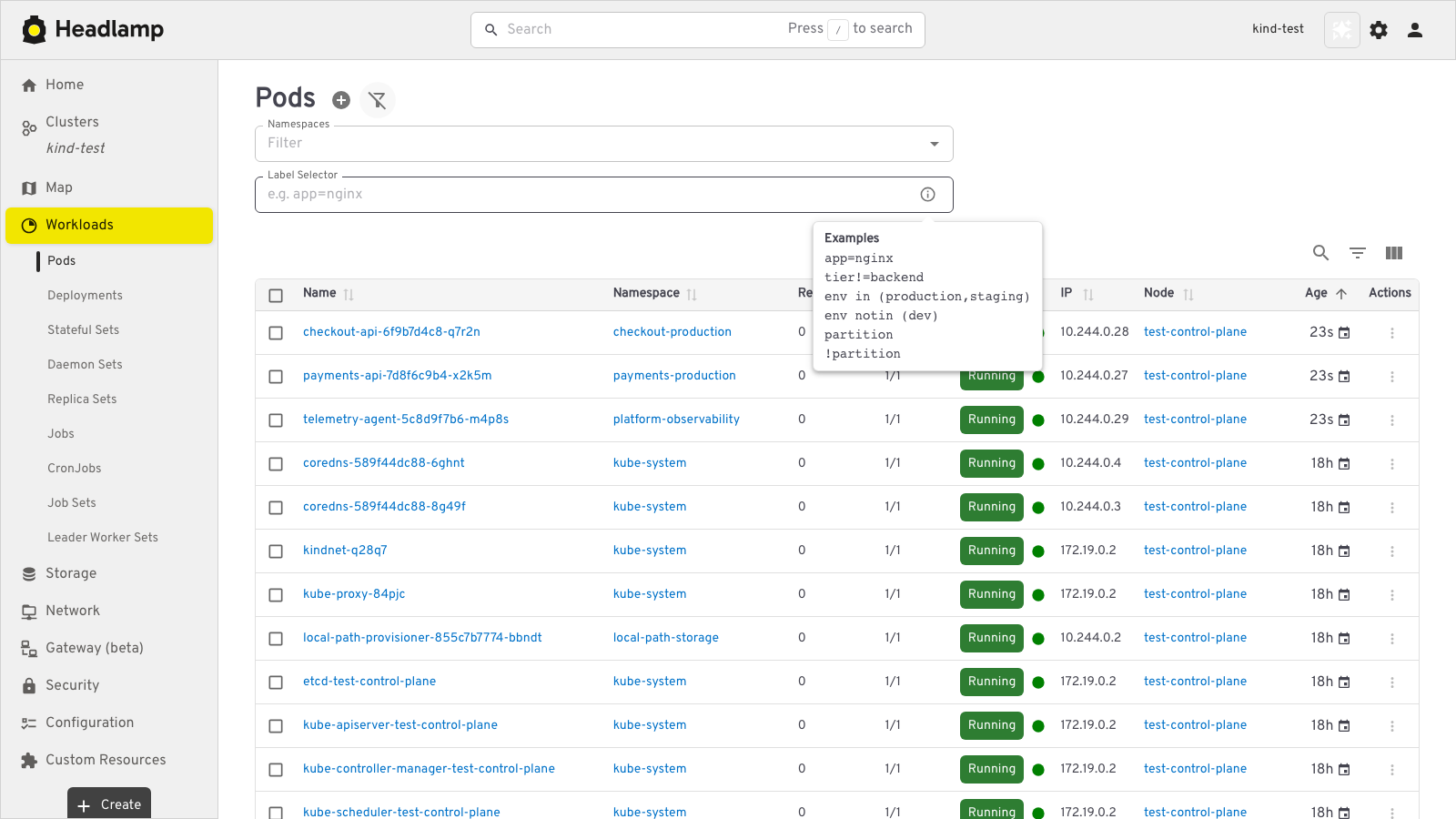

Query examples tooltip

Seasoned Kubernetes users may already know label selector syntax from kubectl -l. New users can
discover the same syntax by hovering over, focusing, or tapping the information icon. The tooltip
uses an opaque surface so the page behind it cannot interfere with readability.

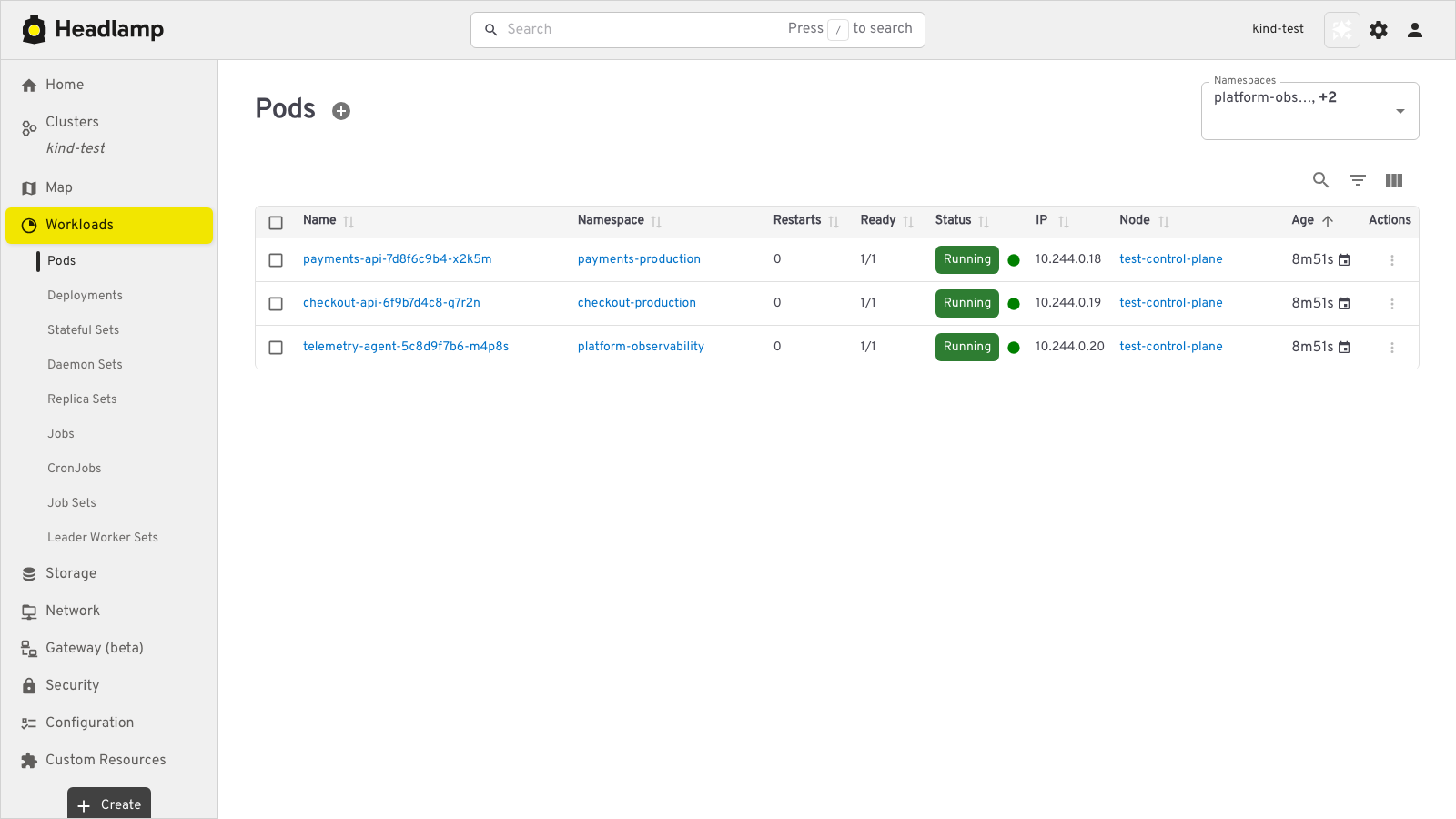

Subtitles, before they could be missed

In this 'before' screenshot, look at 'Pods' title, now tell me which namespaces this view is for? All? Only some? Which ones? You can't tell.

On the main branch, a large screen pushes the selected namespace context far to the right of the
resource title. Even with three namespaces selected, the empty gap makes the active scope easy to
miss. Labels are not shown because the main branch does not yet have the Labels filter.

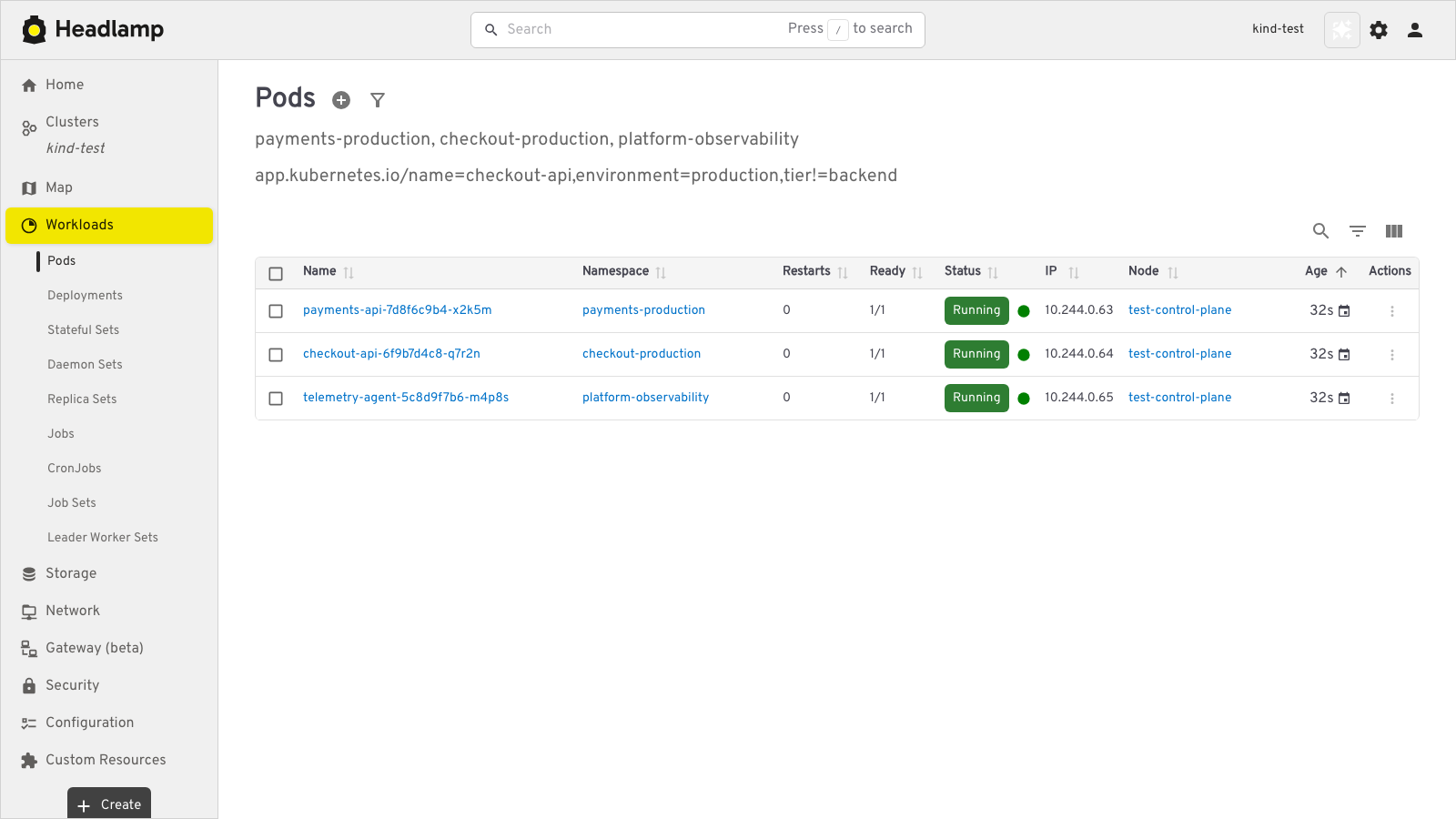

After

Now you know what namespaces this view is for. Before it was very easy to miss, and even if you
noticed, you needed to click the namespace filter box to see.

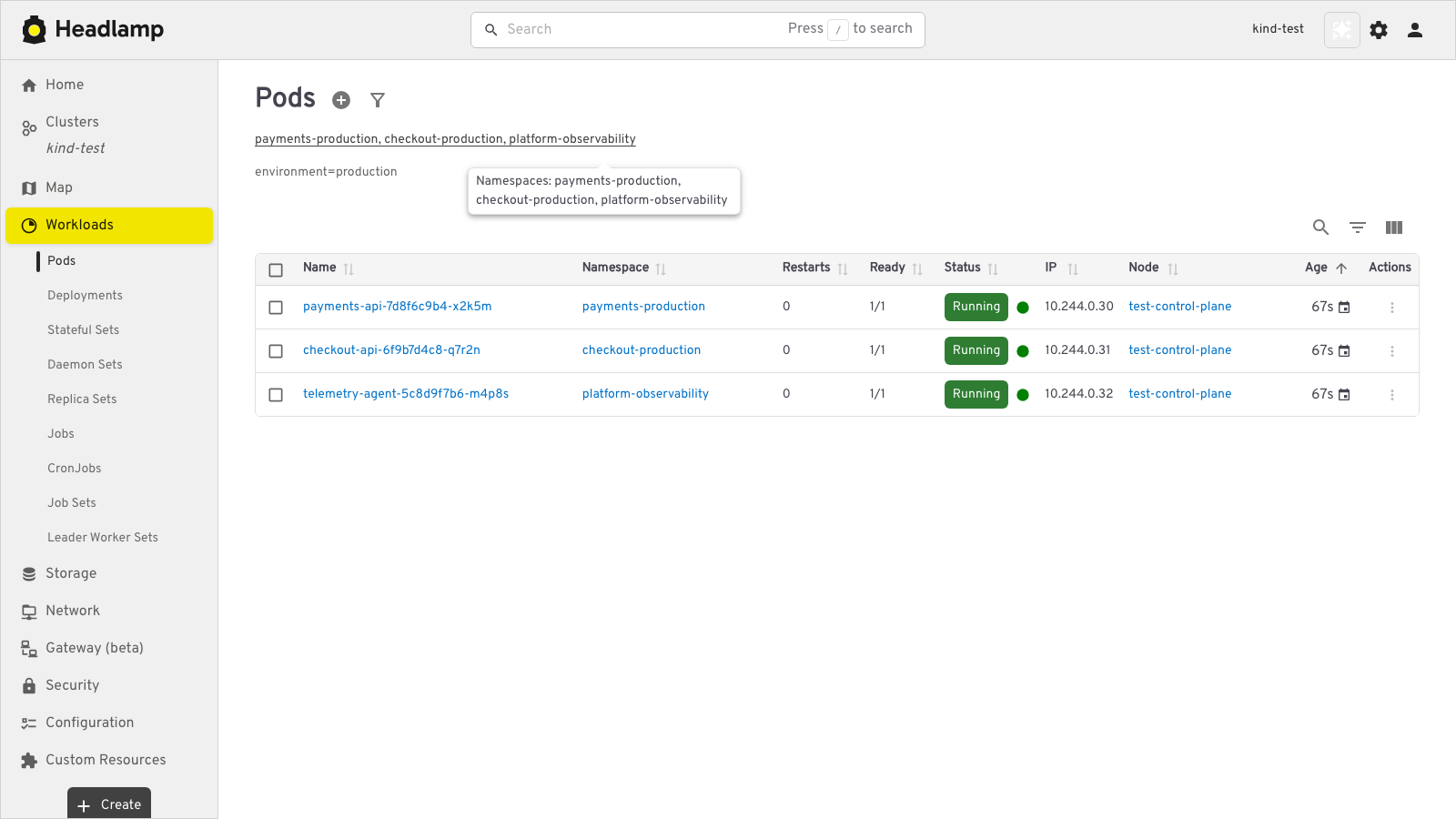

Hover

The values keep subtitle styling at rest. On hover or keyboard focus, link styling and a descriptive
tooltip make the editing action discoverable.

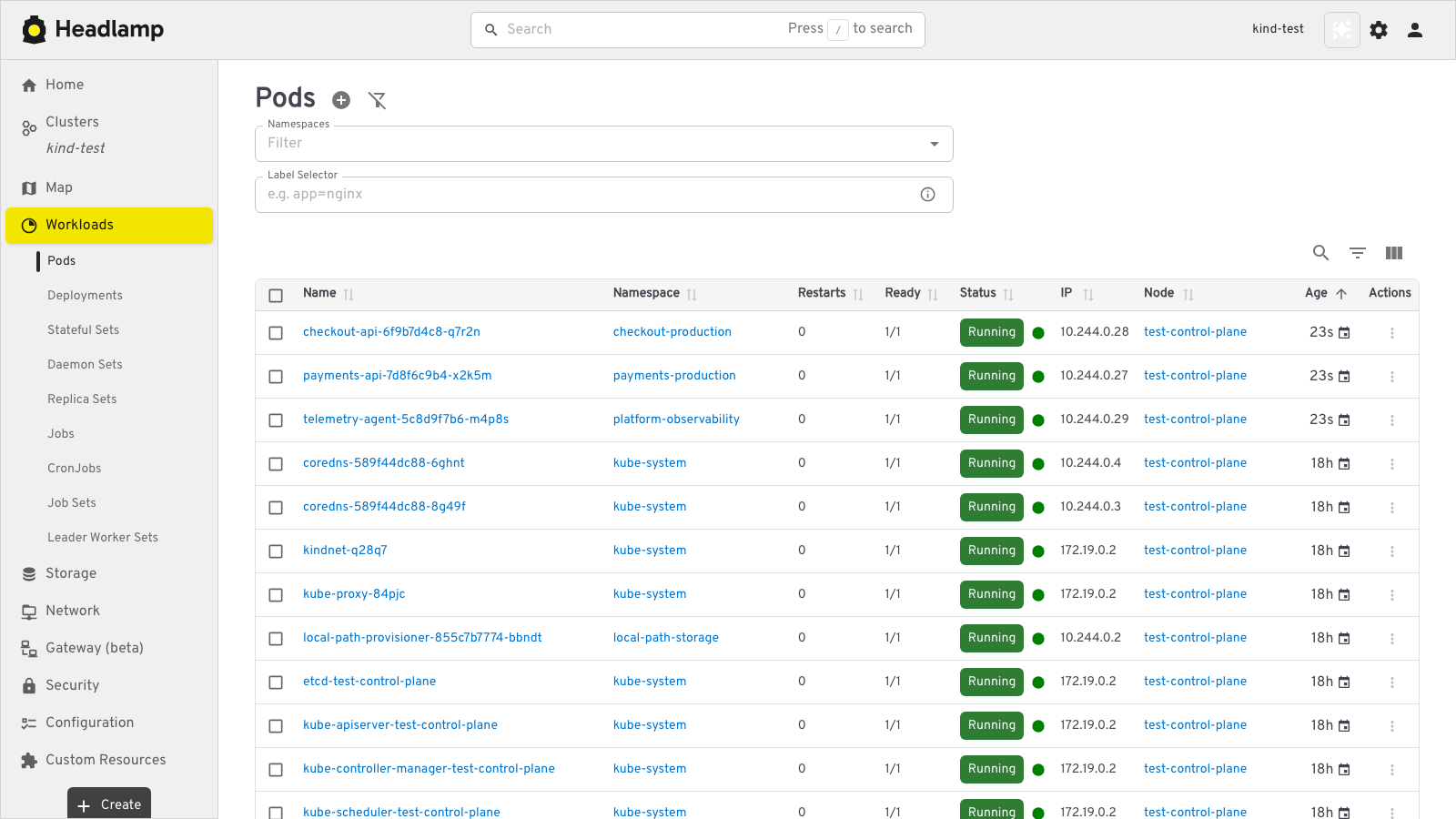

Clicking filter selector icon or clicking on a selector brings up selector edit input fields

When neither Namespaces nor Label Selector is set, the filter icon directly after Create shows both
editable fields. While editing, the same action hides the fields and returns to display mode.

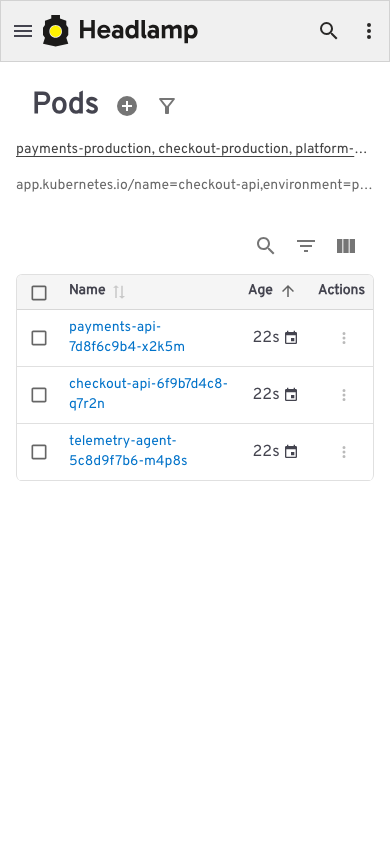

Mobile

Namespaces and Label Selector are shown as compact subtitle links. Three matching Pods keep the
filtered result visible below them.

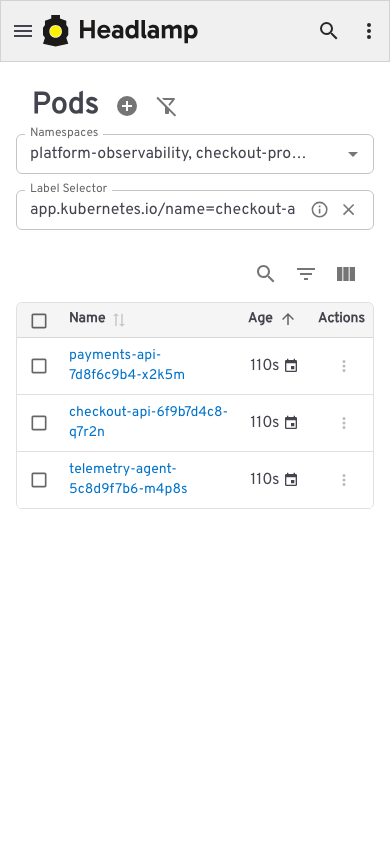

Input selectors variation

For comparison, the editor keeps both labeled inputs full-width while leaving matching Pods
visible below.

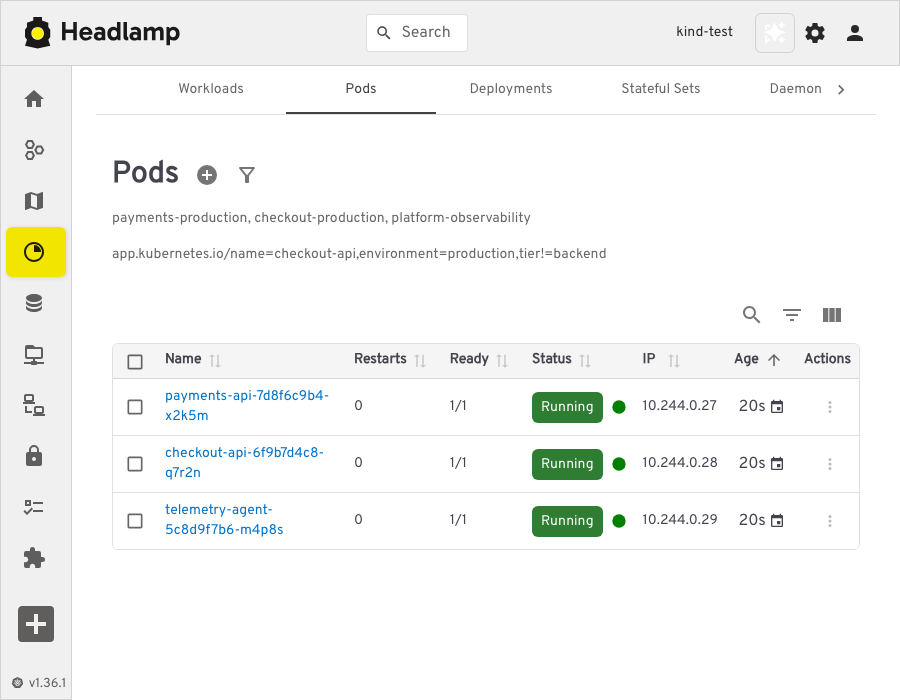

Medium

All three namespaces and the realistic long selector remain visible as editable subtitles.

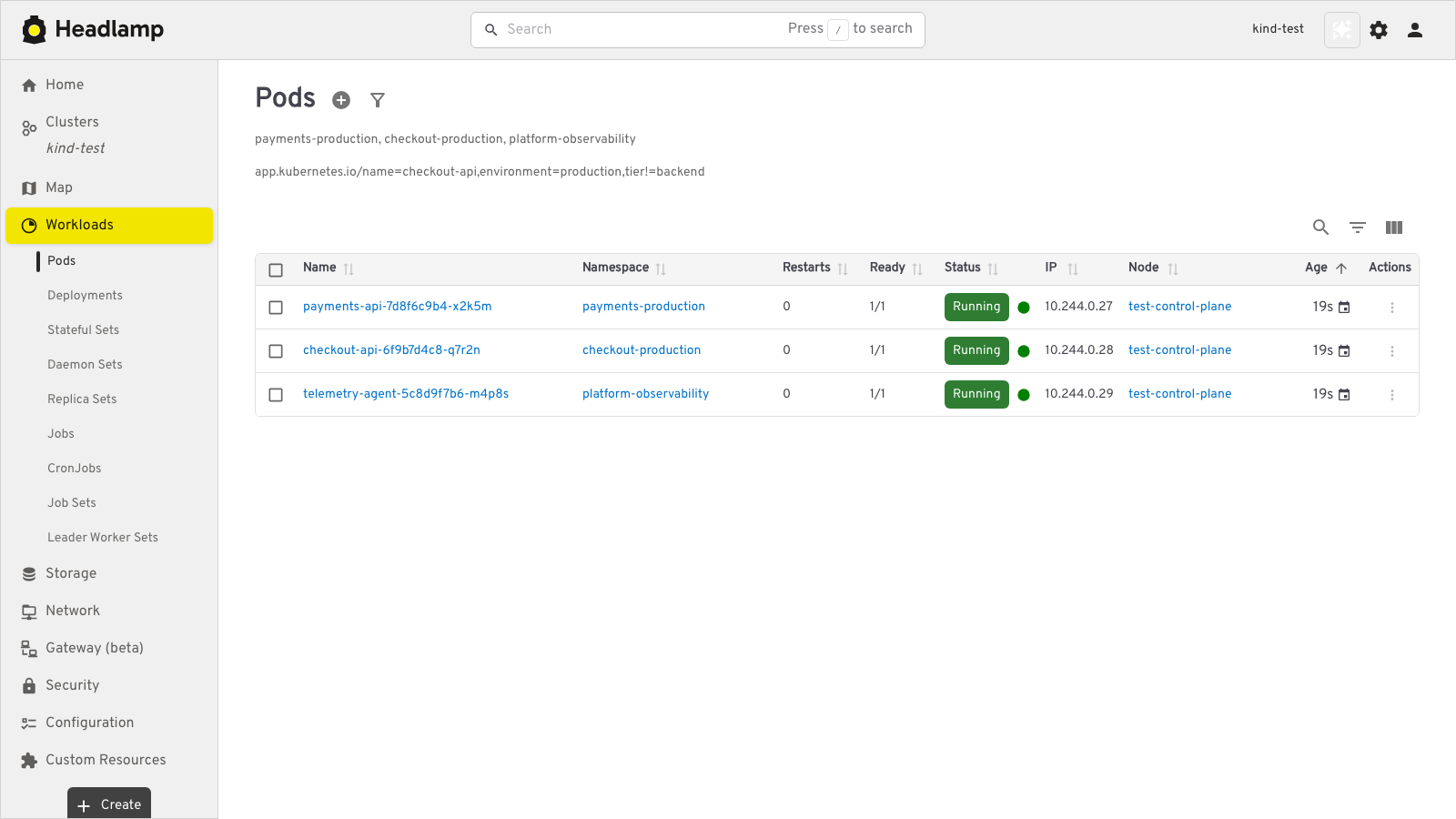

Large

The subtitle treatment keeps page scope easy to scan without stretching controls across the row.

Assisted by copilot

[Copilot]

Pull request overview

This PR adds Kubernetes label selector filtering functionality to all resource list views in Headlamp, allowing users to filter resources using standard label selector syntax (e.g., app=nginx, env in (prod,staging)) similar to kubectl -l. The feature includes Redux state management, localStorage persistence, URL parameter support, and a new LabelSelectorInput component integrated into resource list headers.

Changes:

• Redux state management extended with label selector filter state, actions, and hooks with comprehensive test coverage
• New LabelSelectorInput component with accessibility support, keyboard shortcuts, and URL/localStorage persistence
• URL utilities extracted for reusable query parameter handling across namespace and label selector filters
• Integration into ResourceTable and resource list views with automatic filtering based on label selector

Reviewed changes

Copilot reviewed 109 out of 109 changed files in this pull request and generated no comments.

Show a summary per file

File	Description
frontend/src/redux/filterSlice.ts	Added labelSelector state, setLabelSelectorFilter action, useLabelSelector hook, and resetFilter updates
frontend/src/redux/filterSlice.test.ts	Comprehensive tests for label selector state management and persistence
frontend/src/lib/storage.ts	Added getSavedLabelSelector/saveLabelSelector functions with per-cluster localStorage support
frontend/src/lib/storage.test.ts	Test coverage for label selector persistence including error handling
frontend/src/lib/urlUtils.ts	Extracted shared URL query parameter utilities (addQueryParams, getFilterValueFromURL, getFilterValuesFromURL)
frontend/src/lib/urlUtils.test.ts	Test coverage for URL utility functions
frontend/src/components/common/LabelSelectorInput.tsx	New component with text input, clear button, keyboard shortcuts, and Redux/URL integration
frontend/src/components/common/LabelSelectorInput.test.tsx	Comprehensive component tests covering interaction, persistence, and URL initialization
frontend/src/components/common/LabelSelectorInput.stories.tsx	Storybook stories demonstrating various label selector states
frontend/src/components/common/SectionFilterHeader.tsx	Integrated LabelSelectorInput alongside NamespacesAutocomplete with noLabelFilter prop
frontend/src/components/common/NamespacesAutocomplete.tsx	Refactored to use shared addQueryParams utility
frontend/src/components/common/Resource/ResourceTable.tsx	Added labelSelector from Redux state to resource useList calls
frontend/src/components/pod/List.tsx	Optimized to extract namespaces once and pass labelSelector to Pod.useList
frontend/src/i18n/locales/*/translation.json	Added "Label Selector" and "e.g. app=nginx" translation keys
docs/learn/filtering-resources.md	User guide explaining label selector syntax, usage, and keyboard shortcuts
Multiple snapshot files	Updated with label selector input rendering in resource list headers

---

💡 Add Copilot custom instructions for smarter, more guided reviews. Learn how to get started.

[Copilot]

Copilot encountered an error and was unable to review this pull request. You can try again by re-requesting a review.

[unlikelyzero]

podDisruptionBudget/Details.tsx dropped the optional chaining the old selectors getter had - it's now item.spec.selector.matchLabels instead of item.spec?.selector?.matchLabels. spec.selector is legitimately optional on a PDB, so a PDB with none (or one that arrives partially populated mid-watch) throws and takes out the whole details page.

Bigger picture: the label filter UI shows up on every list page but only actually applies inside TableFromResourceClass's resourceClass path - roles, CRDs, CR instances and a few others fetch their own data and silently ignore the selector while still showing it as active. The noLabelFilter prop that looks built for exactly this has no call sites anywhere, and wouldn't stop the filter from applying even if used.

Selector links also only read matchLabels, dropping matchExpressions - there's already a labelSelectorToQuery in lib/k8s that handles both, used elsewhere in this same PR, just not here. And the URL-to-Redux sync for the selector is one-way, so Back doesn't clear a filter and it can silently follow you across pages.

A few more things inline.

[illume]

Thanks @unlikelyzero and @Suyog241005 for the reviews!!

Work in progress, marking it draft.

[illume]

Label key autocomplete :- as you type in the Label Selector field, showing hints from the actual labels in the cluster would make filtering even faster, especially on big clusters with tons of custom labels.

@Suyog241005
Implemented label-key autocomplete in the Label Selector field. Suggestions come from label keys on resources already loaded by the active server-backed list, so this adds no duplicate cluster request and remains bounded by the list data already fetched. Completion is prefix-based, applies only to the active selector requirement, preserves earlier requirements and negation, and supports mouse or keyboard selection. Added focused extraction, propagation, syntax, mouse, and keyboard tests.

[illume]

podDisruptionBudget/Details.tsx dropped the optional chaining the old selectors getter had - it's now item.spec.selector.matchLabels instead of item.spec?.selector?.matchLabels. spec.selector is legitimately optional on a PDB, so a PDB with none (or one that arrives partially populated mid-watch) throws and takes out the whole details page.

Bigger picture: the label filter UI shows up on every list page but only actually applies inside TableFromResourceClass's resourceClass path - roles, CRDs, CR instances and a few others fetch their own data and silently ignore the selector while still showing it as active. The noLabelFilter prop that looks built for exactly this has no call sites anywhere, and wouldn't stop the filter from applying even if used.

Selector links also only read matchLabels, dropping matchExpressions - there's already a labelSelectorToQuery in lib/k8s that handles both, used elsewhere in this same PR, just not here. And the URL-to-Redux sync for the selector is one-way, so Back doesn't clear a filter and it can silently follow you across pages.

A few more things inline.

@unlikelyzero
Thanks for the detailed review. These issues have now been addressed:

• Restored the optional PDB guard with item.spec?.selector?.matchLabels, so an absent or partially populated selector no longer crashes the details page. The PDB selector type now also uses the shared Kubernetes LabelSelector shape.
• Label filtering is capability-gated. Resource-class lists keep the filter because TableFromResourceClass sends it server-side; unsupported data-driven lists hide it. The paginated Pod list explicitly enables the filter because it applies the selector in its own useList call.
• Selector links now use labelSelectorToQuery with the complete selector object. This preserves matchExpressions alongside matchLabels, and each rendered selector chip links using the complete selector.
• URL synchronization now handles parameter removal and malformed URL selectors. Browser Back/history removal clears Redux, and invalid selectors are not sent to the API.
• Namespaced selector links now carry the source namespace, avoiding empty results caused by a stale namespace filter.
• Added focused coverage for the PDB guard, data-driven/resource-class filter gating, complete selectors including expressions, namespace propagation, Back/history removal, and malformed URL selectors.

Selectors remain cluster-global during ordinary navigation between supported resource lists, matching the existing namespace-filter behavior, but they are now always shown in the active-filter summary and are hidden on pages that cannot apply them.

[Copilot]

Pull request overview

Copilot reviewed 205 out of 223 changed files in this pull request and generated 1 comment.

Suppressed comments (4)

frontend/src/components/common/LabelSelectorInput.tsx:98

• A malformed labelSelector already present in the URL is dispatched and persisted as soon as this editor is opened, without calling validateLabelSelector. That also triggers list requests with the invalid selector, contradicting the validation path used for typed input. Keep the URL text visible for correction, but only dispatch it when validation succeeds.
  frontend/src/components/common/SectionFilterHeader.tsx:59
• Defaulting this to false opts every direct SectionFilterHeader consumer into Kubernetes label filtering. Non-resource pages such as Plugins and Notifications pass only noNamespaceFilter, so they now show a filter action that mutates global selector state but cannot filter their tables (the updated PluginSettings snapshots expose this). Make label filtering opt-in here; ResourceListView already passes noLabelFilter explicitly for resource-backed lists.
  frontend/src/components/common/Resource/ResourceTable.tsx:212
• For the Namespace list with configured allowedNamespaces, kubeObjectListQuery switches to allowedNamespaceListQuery, which fetches each Namespace by name and discards all query parameters. Consequently this newly supplied selector is never applied: the header shows an active label filter while every allowed Namespace remains visible. Either disable this filter for that fallback or make the synthesized list honor the selector.
  frontend/src/components/podDisruptionBudget/Details.tsx:54
• This renders the selector only when matchLabels exists. A valid PodDisruptionBudget selector may contain only matchExpressions, so that selector disappears entirely and cannot link to its matching Pods. Render expression-only selectors too (and keep KubePDB.spec.selector.matchLabels optional rather than narrowing the Kubernetes type).

[Copilot]

Pull request overview

Copilot reviewed 208 out of 226 changed files in this pull request and generated no new comments.

Suppressed comments (6)

frontend/src/components/common/LabelSelectorInput.tsx:101

• Opening the editor on a URL containing an invalid selector bypasses the validation in SectionFilterHeader. The header initially rejects the URL, but this mount effect runs when the previously hidden input is opened and dispatches the raw value, which then persists it and sends it with list requests. Remove this duplicate URL hydration and let the validated header synchronization own URL state (or validate before dispatching here).
  frontend/src/components/pod/List.tsx:583
• The Pod request is filtered, but the parallel PodMetrics request is still unfiltered. Since metrics pagination follows the unfiltered ordering and is only advanced when the filtered Pod list has loadMore, matching Pods beyond the first metrics page can permanently show no metrics. Pass the same labelSelector to PodMetrics.useList so both result sets stay aligned.
  frontend/src/components/podDisruptionBudget/Details.tsx:54
• A Kubernetes LabelSelector can contain only matchExpressions. In that valid case this condition renders no selector at all, so users cannot follow the new PDB-to-Pods workflow even though labelSelectorToQuery supports the expression. Render a clickable representation of expression-only selectors as well as matchLabels.
  frontend/src/components/statefulset/Details.tsx:77
• StatefulSet selectors may validly use only matchExpressions; in that case matchLabels is undefined and this grid renders no entries, leaving no way to follow the new selector-to-Pods link. Add a display/link for expression requirements instead of relying on a match-label chip to host the complete selector URL.
  frontend/src/components/daemonset/Details.tsx:132
• DaemonSet selectors may contain only matchExpressions. With no matchLabels, this grid is empty and the complete selector has no clickable entry, so the new selector-to-Pods navigation is unavailable. Render expression requirements as linked selector content too.
  frontend/src/components/job/Details.tsx:133
• Job selectors can validly be expression-only. This matchLabels guard suppresses the selector row in that case, so users cannot navigate to the matching Pods even though labelSelectorToQuery supports those expressions. Render a clickable representation for matchExpressions when no match-label entries exist.

[rootp1]

Once can you consider this copliot comment before proceeding @illume

[Copilot]

Pull request overview

Copilot reviewed 208 out of 226 changed files in this pull request and generated no new comments.

Suppressed comments (6)

frontend/src/components/common/LabelSelectorInput.tsx:98

• Malformed selectors from a bookmarked URL bypass validation here. SectionFilterHeader initially rejects an invalid query, but when the user opens the editor this component mounts, dispatches that same value, persists it, and immediately sends it with list requests. Validate before dispatching; keep the invalid text/error local instead.
  frontend/src/components/common/SectionFilterHeader.tsx:59
• Label filtering now defaults on for every direct SectionFilterHeader consumer, including non-resource pages such as Plugins (PluginSettings.tsx:249) and Notifications (Notifications/List/List.tsx:139). Their new “Filter resources” control only mutates global Kubernetes filter state and cannot filter the displayed data. Default this to hidden and let ResourceListView/other actual resource lists opt in explicitly.
  frontend/src/components/App/Layout.tsx:232
• A bookmarked selector can be overwritten on initial load. The descendant SectionFilterHeader hydrates the URL selector in its mount effect, then this ancestor effect restores the persisted selector; because the header subsequently ignores unchanged URL values, Redux and requests retain the saved selector while the address bar shows another one. Coordinate restoration with URL hydration so a present, valid query parameter has precedence.

      dispatch(restoreFiltersForCluster(cluster));

frontend/src/components/common/Resource/MetadataDisplay.tsx:301

• Links are only created while iterating dict, so a valid selector containing only matchExpressions renders no clickable target even when completeLabelSelector is present. Workload/PDB/Job callers pass only matchLabels as dict, making expression-only selectors invisible and preventing the advertised navigation. Render a standalone complete-selector entry when the dictionary is empty, or model expression entries explicitly.
  frontend/src/components/globalSearch/GlobalSearchContent.tsx:205
• Recognizing app=nginx as a selector does not stop the existing namespace-option builder from also treating that text as a namespace. Global search therefore offers “Set namespace: app=nginx”; selecting it stores an invalid namespace and generates failing /namespaces/app=nginx/... requests. Exclude parsed selectors from the free-form namespace option path.
  frontend/src/components/common/NamespacesAutocomplete.tsx:161
• This callback runs for every checkbox selection, so SectionFilterHeader closes the entire editor after the first namespace even though this autocomplete is multiple and uses disableCloseOnSelect. Users cannot select several namespaces in one interaction. Keep the editor open for ordinary onChange events and invoke onApply only from the explicit Enter/apply path.
