Building a Kafka Cluster ☄️
Table Of Contents
version: '3.9'
services:
zookeeper:
image: bitnami/zookeeper:latest
container_name: zookeeper
restart: unless-stopped
ports:
- ${ZOOKEEPER_PORT}:${ZOOKEEPER_PORT}
environment:
- ALLOW_ANONYMOUS_LOGIN=${ALLOW_ANONYMOUS_LOGIN}
kafka1:
image: bitnami/kafka:2.7.0
container_name: kafka-broker1
restart: unless-stopped
ports:
- ${KAFKA_1_PORT_1}:${KAFKA_1_PORT_1}
- ${KAFKA_1_PORT_2}:${KAFKA_1_PORT_2}
depends_on:
- zookeeper
environment:
- KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP=INTERNAL:${KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP_INTERNAL},EXTERNAL:${KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP_EXTERNAL}
- KAFKA_CFG_LISTENERS=INTERNAL:${KAFKA_1_CFG_LISTENERS_INTERNAL},EXTERNAL:${KAFKA_1_CFG_LISTENERS_EXTERNAL}
- KAFKA_CFG_ADVERTISED_LISTENERS=INTERNAL:${KAFKA_1_CFG_ADVERTISED_LISTENERS_INTERNAL},EXTERNAL:${KAFKA_1_CFG_ADVERTISED_LISTENERS_EXTERNAL}
- KAFKA_CFG_ZOOKEEPER_CONNECT=${KAFKA_CFG_ZOOKEEPER_CONNECT}
- KAFKA_INTER_BROKER_LISTENER_NAME=${KAFKA_INTER_BROKER_LISTENER_NAME}
- ALLOW_PLAINTEXT_LISTENER=${ALLOW_PLAINTEXT_LISTENER}
kafka2:
image: bitnami/kafka:2.7.0
container_name: kafka-broker2
restart: unless-stopped
ports:
- ${KAFKA_2_PORT_1}:${KAFKA_2_PORT_1}
- ${KAFKA_2_PORT_2}:${KAFKA_2_PORT_2}
depends_on:
- zookeeper
environment:
- KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP=INTERNAL:${KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP_INTERNAL},EXTERNAL:${KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP_EXTERNAL}
- KAFKA_CFG_LISTENERS=INTERNAL:${KAFKA_2_CFG_LISTENERS_INTERNAL},EXTERNAL:${KAFKA_2_CFG_LISTENERS_EXTERNAL}
- KAFKA_CFG_ADVERTISED_LISTENERS=INTERNAL:${KAFKA_2_CFG_ADVERTISED_LISTENERS_INTERNAL},EXTERNAL:${KAFKA_2_CFG_ADVERTISED_LISTENERS_EXTERNAL}
- KAFKA_CFG_ZOOKEEPER_CONNECT=${KAFKA_CFG_ZOOKEEPER_CONNECT}
- KAFKA_INTER_BROKER_LISTENER_NAME=${KAFKA_INTER_BROKER_LISTENER_NAME}
- ALLOW_PLAINTEXT_LISTENER=${ALLOW_PLAINTEXT_LISTENER}
kafka3:
image: bitnami/kafka:2.7.0
container_name: kafka-broker3
restart: unless-stopped
ports:
- ${KAFKA_3_PORT_1}:${KAFKA_3_PORT_1}
- ${KAFKA_3_PORT_2}:${KAFKA_3_PORT_2}
depends_on:
- zookeeper
environment:
- KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP=INTERNAL:${KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP_INTERNAL},EXTERNAL:${KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP_EXTERNAL}
- KAFKA_CFG_LISTENERS=INTERNAL:${KAFKA_3_CFG_LISTENERS_INTERNAL},EXTERNAL:${KAFKA_3_CFG_LISTENERS_EXTERNAL}
- KAFKA_CFG_ADVERTISED_LISTENERS=INTERNAL:${KAFKA_3_CFG_ADVERTISED_LISTENERS_INTERNAL},EXTERNAL:${KAFKA_3_CFG_ADVERTISED_LISTENERS_EXTERNAL}
- KAFKA_CFG_ZOOKEEPER_CONNECT=${KAFKA_CFG_ZOOKEEPER_CONNECT}
- KAFKA_INTER_BROKER_LISTENER_NAME=${KAFKA_INTER_BROKER_LISTENER_NAME}
- ALLOW_PLAINTEXT_LISTENER=${ALLOW_PLAINTEXT_LISTENER}
kafdrop:
image: obsidiandynamics/kafdrop:latest
container_name: kafdrop
restart: unless-stopped
ports:
- ${KAFDROP_PORT}:${KAFDROP_PORT}
depends_on:
- kafka1
- kafka2
- kafka3
environment:
- KAFKA_BROKERCONNECT=${KAFKA_BROKERCONNECT}
- JVM_OPTS=${JVM_OPTS}
- SERVER_SERVLET_CONTEXTPATH=${SERVER_SERVLET_CONTEXTPATH}# ================
# = Zookeeper =
# ================
ZOOKEEPER_HOST=zookeeper
ZOOKEEPER_PORT=2181
ALLOW_ANONYMOUS_LOGIN=yes
# =======================================
# = Kafka Brokers Common Properties =
# =======================================
KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP_INTERNAL=PLAINTEXT
KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP_EXTERNAL=PLAINTEXT
KAFKA_CFG_ZOOKEEPER_CONNECT=${ZOOKEEPER_HOST}:${ZOOKEEPER_PORT}
KAFKA_INTER_BROKER_LISTENER_NAME=INTERNAL
ALLOW_PLAINTEXT_LISTENER=yes
# =========================
# = Kafka Broker 1 =
# =========================
KAFKA_1_HOST=kafka1
KAFKA_1_INTERNAL_PORT=29092
KAFKA_1_EXTERNAL_PORT=9092
KAFKA_1_CFG_LISTENERS_INTERNAL=//:${KAFKA_1_INTERNAL_PORT}
KAFKA_1_CFG_LISTENERS_EXTERNAL=//:${KAFKA_1_EXTERNAL_PORT}
KAFKA_1_CFG_ADVERTISED_LISTENERS_INTERNAL=//${KAFKA_1_HOST}:${KAFKA_1_INTERNAL_PORT}
KAFKA_1_CFG_ADVERTISED_LISTENERS_EXTERNAL=//localhost:${KAFKA_1_EXTERNAL_PORT}
KAFKA_1_PORT_1=${KAFKA_1_EXTERNAL_PORT}
KAFKA_1_PORT_2=${KAFKA_1_INTERNAL_PORT}
# =========================
# = Kafka Broker 2 =
# =========================
KAFKA_2_HOST=kafka2
KAFKA_2_INTERNAL_PORT=29093
KAFKA_2_EXTERNAL_PORT=9093
KAFKA_2_CFG_LISTENERS_INTERNAL=//:${KAFKA_2_INTERNAL_PORT}
KAFKA_2_CFG_LISTENERS_EXTERNAL=//:${KAFKA_2_EXTERNAL_PORT}
KAFKA_2_CFG_ADVERTISED_LISTENERS_INTERNAL=//${KAFKA_2_HOST}:${KAFKA_2_INTERNAL_PORT}
KAFKA_2_CFG_ADVERTISED_LISTENERS_EXTERNAL=//localhost:${KAFKA_2_EXTERNAL_PORT}
KAFKA_2_PORT_1=${KAFKA_2_EXTERNAL_PORT}
KAFKA_2_PORT_2=${KAFKA_2_INTERNAL_PORT}
# =========================
# = Kafka Broker 3 =
# =========================
KAFKA_3_HOST=kafka3
KAFKA_3_INTERNAL_PORT=29094
KAFKA_3_EXTERNAL_PORT=9094
KAFKA_3_CFG_LISTENERS_INTERNAL=//:${KAFKA_3_INTERNAL_PORT}
KAFKA_3_CFG_LISTENERS_EXTERNAL=//:${KAFKA_3_EXTERNAL_PORT}
KAFKA_3_CFG_ADVERTISED_LISTENERS_INTERNAL=//${KAFKA_3_HOST}:${KAFKA_3_INTERNAL_PORT}
KAFKA_3_CFG_ADVERTISED_LISTENERS_EXTERNAL=//localhost:${KAFKA_3_EXTERNAL_PORT}
KAFKA_3_PORT_1=${KAFKA_3_EXTERNAL_PORT}
KAFKA_3_PORT_2=${KAFKA_3_INTERNAL_PORT}
# ==================
# = KAFDROP =
# ==================
KAFDROP_PORT=9000
KAFKA_BROKERCONNECT=${KAFKA_1_HOST}:${KAFKA_1_INTERNAL_PORT},${KAFKA_2_HOST}:${KAFKA_2_INTERNAL_PORT},${KAFKA_3_HOST}:${KAFKA_3_INTERNAL_PORT}
JVM_OPTS=-Xms32M -Xmx64M
SERVER_SERVLET_CONTEXTPATH=/- The purpose is to start the Kafka cluster and observe it in Kafdrop UI.
lyes-s ( ◥◣_◢◤ ) ~/Documents/Kafka $ docker-compose -f kafka-cluster.yml --env-file .env up -d
Creating network "kafka_default" with the default driver
Creating zookeeper ...
Creating zookeeper ... done
Creating kafka-broker3 ...
Creating kafka-broker2 ...
Creating kafka-broker1 ...
Creating kafka-broker3 ... done
Creating kafka-broker2 ... done
Creating kafka-broker1 ... done
Creating kafdrop ...
Creating kafdrop ... donelyes-s ( ◥◣_◢◤ ) ~/Documents/Kafka $ docker container ls
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
b3003a480f30 obsidiandynamics/kafdrop:latest "/kafdrop.sh" 13 minutes ago Up 13 minutes 0.0.0.0:9000->9000/tcp kafdrop
ce7c43edd60a bitnami/kafka:2.7.0 "/opt/bitnami/script…" 13 minutes ago Up 13 minutes 0.0.0.0:9092->9092/tcp, 0.0.0.0:29092->29092/tcp kafka-broker1
ed5b71477969 bitnami/kafka:2.7.0 "/opt/bitnami/script…" 13 minutes ago Up 13 minutes 0.0.0.0:9094->9094/tcp, 9092/tcp, 0.0.0.0:29094->29094/tcp kafka-broker3
8a714002bcc9 bitnami/kafka:2.7.0 "/opt/bitnami/script…" 13 minutes ago Up 13 minutes 0.0.0.0:9093->9093/tcp, 9092/tcp, 0.0.0.0:29093->29093/tcp kafka-broker2

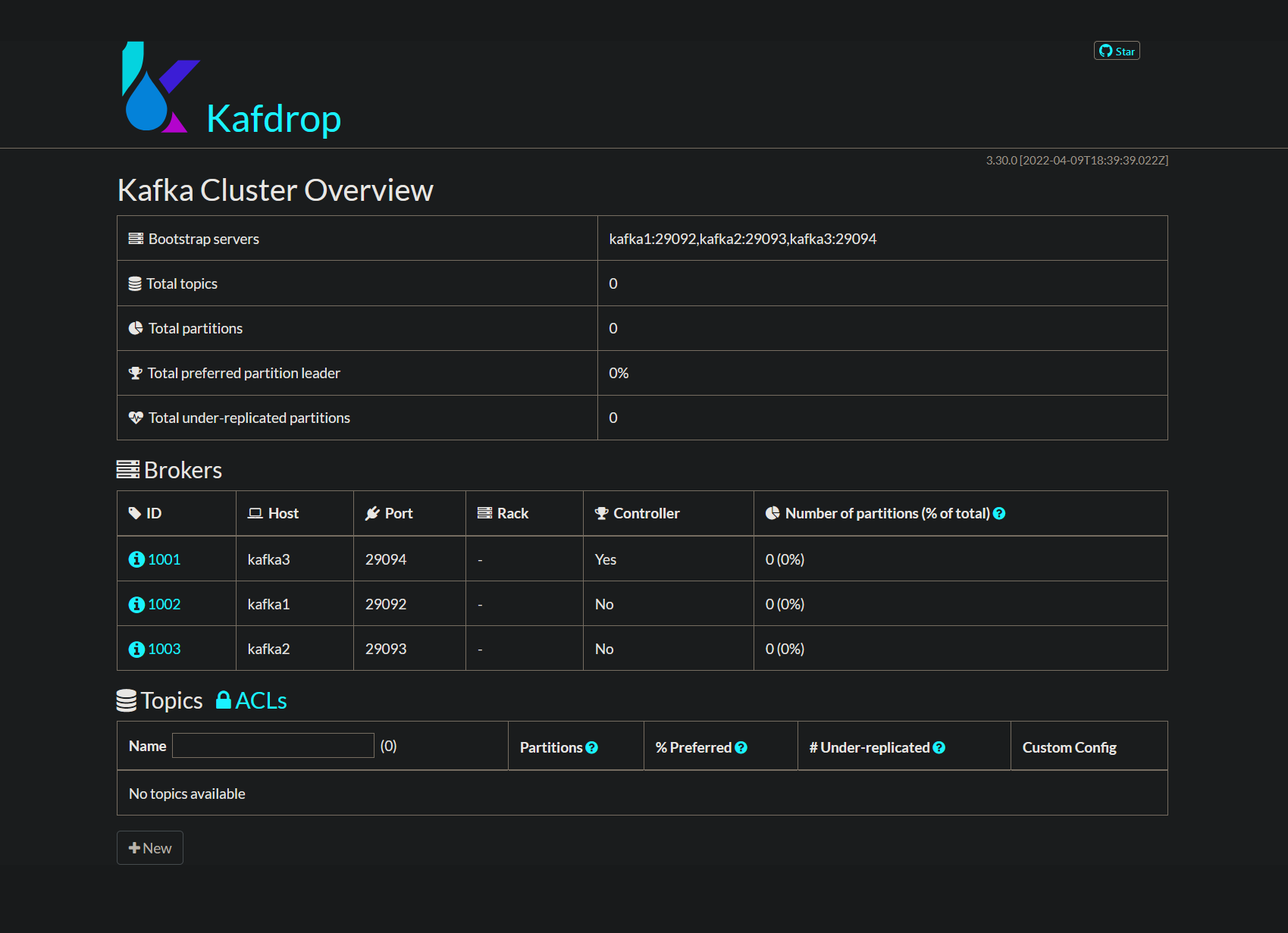

5730ef211b2d bitnami/zookeeper:latest "/opt/bitnami/script…" 13 minutes ago Up 13 minutes 2888/tcp, 3888/tcp, 0.0.0.0:2181->2181/tcp, 8080/tcp zookeeperhttp://localhost:9000/

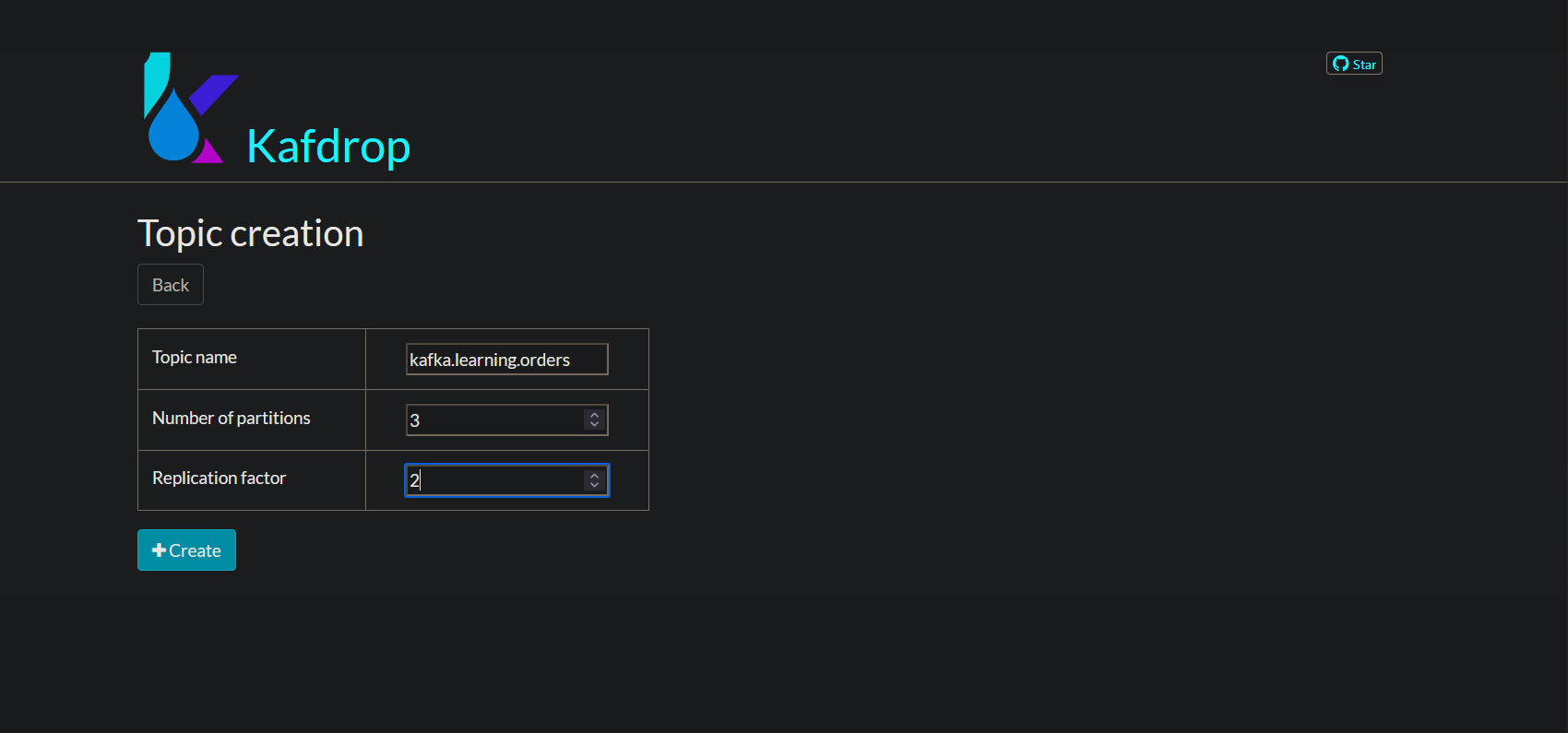

- "kafka.learning.orders" topic creation with 3 partitions and 2 replicas

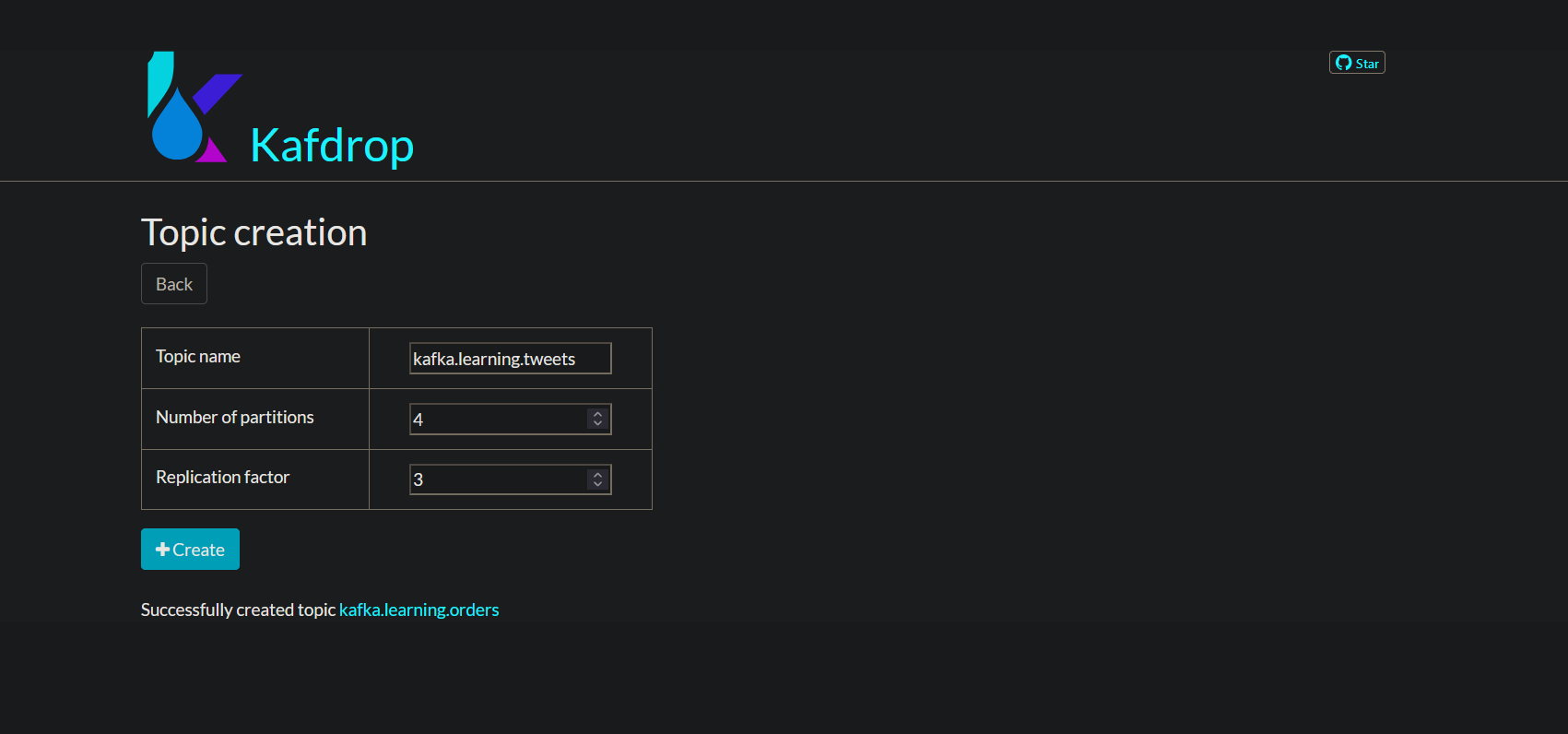

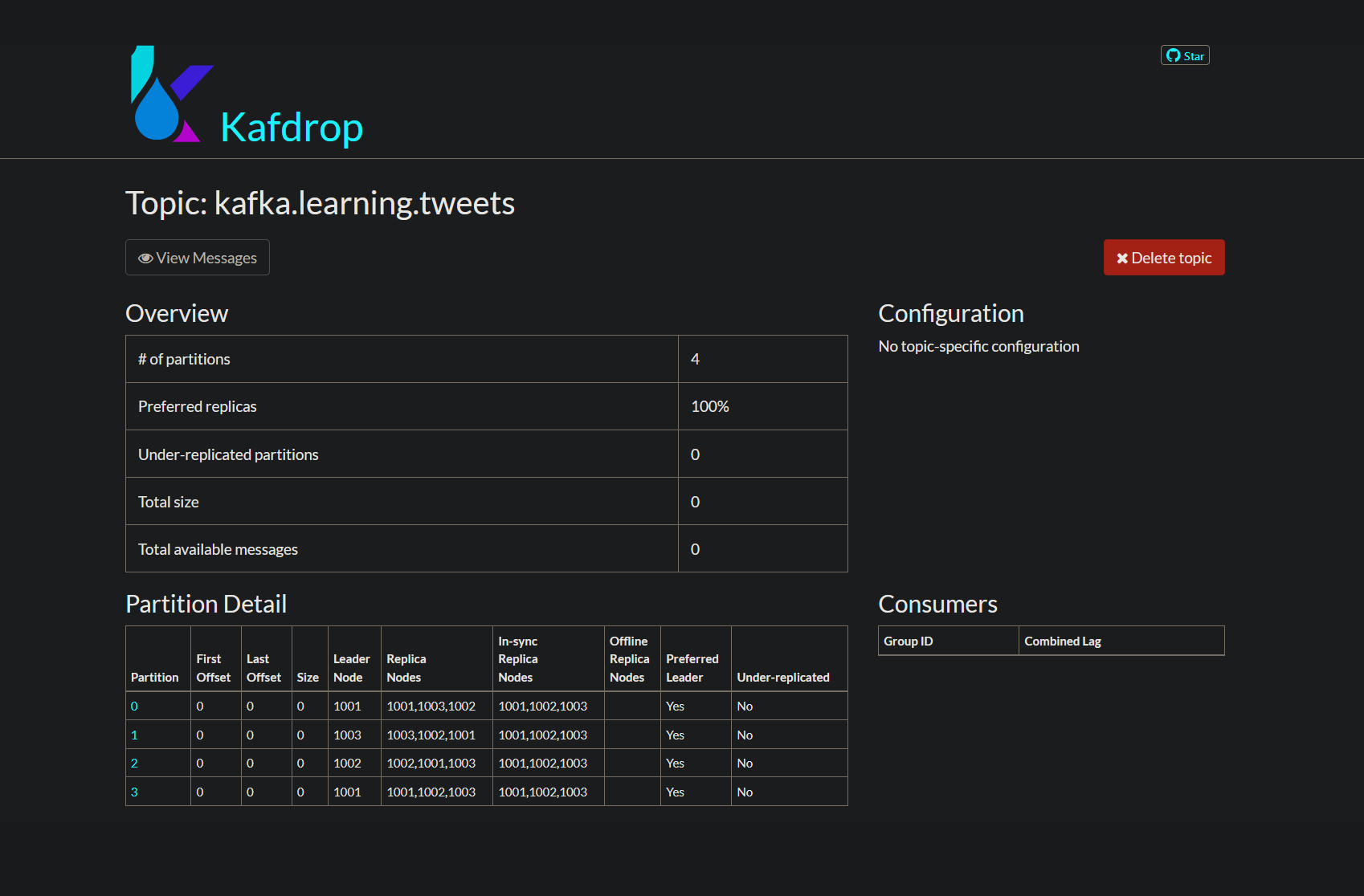

- "kafka.learning.tweets" topic creation with 4 partitions and 3 replicas
- Execute the KafkaSimpleProducer & KafkaSimpleConsumer and visualize the interactions in Kafdrop UI.
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.clients.producer.ProducerRecord;
import java.util.Properties;
import java.util.Random;
public class KafkaSimpleProducer {
public static void main(String[] args) {
//Setup Properties for Kafka Producer
Properties kafkaProps = new Properties();
//List of brokers to connect to
kafkaProps.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG,
"localhost:9092,localhost:9093,localhost:9094");
//Serializer class used to convert Keys to Byte Arrays
kafkaProps.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG,
"org.apache.kafka.common.serialization.StringSerializer");
//Serializer class used to convert Messages to Byte Arrays
kafkaProps.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG,
"org.apache.kafka.common.serialization.StringSerializer");
//Create a Kafka producer from configuration
KafkaProducer simpleProducer = new KafkaProducer(kafkaProps);
//Publish 10 messages at 2 second intervals, with a random key
try{
int startKey = (new Random()).nextInt(1000) ;
for( int i=startKey; i < startKey + 20; i++) {
//Create a producer Record
ProducerRecord<String, String> kafkaRecord =
new ProducerRecord<String, String>(
"kafka.learning.orders", //Topic name
String.valueOf(i), //Key for the message
"This is order" + i //Message Content
);
System.out.println("Sending Message : "+ kafkaRecord.toString());
//Publish to Kafka
simpleProducer.send(kafkaRecord);
Thread.sleep(2000);
}
}
catch(Exception e) {
}
finally {
simpleProducer.close();
}
}
}import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import java.time.Duration;
import java.util.Arrays;
import java.util.Properties;
public class KafkaSimpleConsumer {
public static void main(String[] args) {
//Setup Properties for consumer
Properties kafkaProps = new Properties();
//List of Kafka brokers to connect to
kafkaProps.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG,
"localhost:9092,localhost:9093,localhost:9094");
//Deserializer class to convert Keys from Byte Array to String
kafkaProps.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG,
"org.apache.kafka.common.serialization.StringDeserializer");
//Deserializer class to convert Messages from Byte Array to String
kafkaProps.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG,
"org.apache.kafka.common.serialization.StringDeserializer");
//Consumer Group ID for this consumer
kafkaProps.put(ConsumerConfig.GROUP_ID_CONFIG,
"kafka-java-consumer");
//Set to consume from the earliest message, on start when no offset is
//available in Kafka
kafkaProps.put(ConsumerConfig.AUTO_OFFSET_RESET_CONFIG,
"earliest");
//Create a Consumer
KafkaConsumer<String, String> simpleConsumer =
new KafkaConsumer<String, String>(kafkaProps);
//Subscribe to the kafka.learning.orders topic
simpleConsumer.subscribe(Arrays.asList("kafka.learning.orders"));
//Continuously poll for new messages
while(true) {
//Poll with timeout of 100 milli seconds
ConsumerRecords<String, String> messages =
simpleConsumer.poll(Duration.ofMillis(100));
//Print batch of records consumed
for (ConsumerRecord<String, String> message : messages)
System.out.println("Message fetched : " + message);
}
}
}© 2024 | Lyes Sefiane
