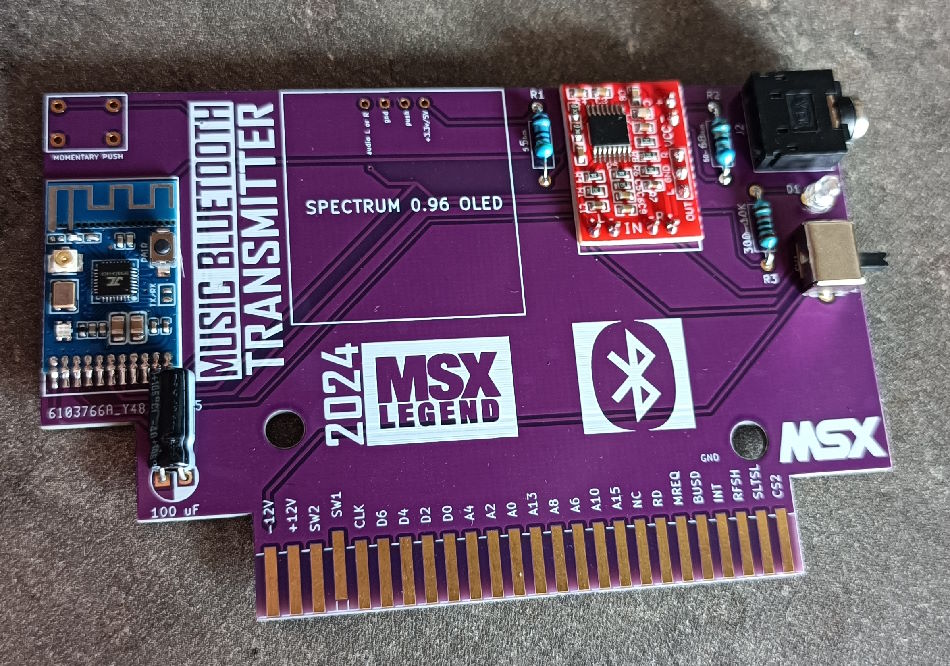

Add a bluetooth Music transmitter for all MSX. No driver needed !
- Bluetooth module 1.7
- mono with the internal pin 49 (Sony and Turbo-r need the jack input)
- Stereo mode with the input jack 3.5
- low power consumption
- PCB Enig (recommanded)
- I/O cartridge. Can be used in all slot ;)
First, the BT module need to be paired. It can take 1 mn or more. Push the button to try again if it doesn't work. It's not necessary to pair again next time. the pairing is saved
Warning
Take care when soldering the bluetooth module. The pins are very thin. I am not responsible for any damage caused. This PCB has been carefully tested by me and works perfectly.
I have added a Spectrum OLED 0.96
There are 4 pins. The 2 and 3 pin can be shunting 1 seconde to change the spectrum mode. (for exemple: with a screw or other)
If you want a blue case, contact Overrich here : overrich@naver.com
video from Raymond Van Hoorn : https://youtu.be/KpQEUglbrls
The provided information, software or hardware must not be used for commercial purposes unless permitted by MSXLegend. Producing a small amount of bare boards for personal projects and selling the rest of the batch is allowed without my permission.
When the sources of the tools are used to create alternative projects, please always mention the original source and the copyright!
Here is my mail address: Msxlegend@live.fr If you have questions, contact me ;)
