Show the entry field when its being used in when needed mode

[rablador]

Why this needs to be done

We want to be transparent to user that an entry has been selected by default due to multihop. This happens only when mode is set to When needed.

The user can navigate to the automatically added entry location but will not be able to choose an entry due to it being automatically chosen for them.

We should then explain what is happening and give them the option to choose their entry location manually by switching to Multihop mode "Always".

To accommodate the new behaviour where we simply toggle multihop, the navigation menu will need to be able to handle a tri-state selector.

How do we implement this feature?

Show Automatic (Country) as the entry when When needed mode is on and an automatic multihop has been done. Clicking on the entry field will take you to an information view.

Acceptance criteria

• When When needed mode is on, the text "Automatic (country)" should be displayed in the entry field.
• The entry field is only displayed when automatically multihopping.
• Clicking on the entry field takes you to an info view.
• Tapping the button on the info view should change mode to Always and enable entry selection.
• User can select different multihop modes from the select location navigation menu.

How should this be tested?

• Add new and/or update existing E2E tests

---

This change is 

[linear]

IOS-1511 Show the entry field when it's being used in "When needed" mode

[rablador]

Tests have not been updated yet. Commits will be fixed shortly.

@rablador made 1 comment.
Reviewable status: 0 of 76 files reviewed, all discussions resolved.

[rablador]

@rablador made 12 comments.
Reviewable status: 0 of 89 files reviewed, 12 unresolved discussions.

---

ios/MullvadREST/Relay/RelaySelectorWrapper.swift line 0 at r1 (raw file):
Obfuscation doesn't happen here anymore. Instead it happens in RelaySelector and we can pass in an obfuscation object to filter relays there.

---

ios/MullvadREST/Relay/RelayPicking/RelayPicking.swift line 0 at r1 (raw file):
Biggest change here is that we now pass in an optional obfuscation object (and use it if it's not nil) instead of checking a Bool flag.

---

ios/MullvadREST/Relay/RelayPicking/SinglehopPicker.swift line 0 at r1 (raw file):
Important change here is that we always pass in all relays to do obfuscation and then, in RelaySelector, filter out relays. This ensures that obfuscation follows the same flow as all the other checks we do, eg. active, filters, location, daita etc.

---

ios/MullvadREST/Relay/Obfuscation/RelayObfuscator.swift line 0 at r1 (raw file):
This struct no longer holds all relays, only obfuscated relays. It makes things much clearer what this struct holds and does.

---

ios/MullvadREST/Relay/RelaySelector.swift line 0 at r1 (raw file):
The actual check if relays are compatible or not has been moved here from RelaySelectorWrapper and other places in the relay selector code.

---

ios/MullvadSettings/DAITASettings.swift line 28 at r1 (raw file):

    public var daitaState: DAITAState

    public var isEnabled: Bool {

Moved the isEnabled flag from DAITAState to here. There was almost no real gain in having to call "daitaSettings.daitaState.isEnabled".

---

ios/MullvadVPN/View controllers/SelectLocation/Views/SelectLocationView.swift line 0 at r1 (raw file):
Mostly changes to hop views and menu.

---

ios/MullvadVPN/View controllers/SelectLocation/SelectLocationViewModel.swift line 0 at r1 (raw file):
This class now keeps track of multihop state, currently connected entry location (for automatic selection in .always and .whenNeeded modes, and whether to show multihop info view (previously DAITA info view).

---

ios/MullvadVPN/View controllers/SelectLocation/Views/MultihopSelection/HopView.swift line 0 at r1 (raw file):
Added different icons and text depending on multihop state. Also added badge for number of active filters.

---

ios/MullvadVPN/View controllers/SelectLocation/SelectLocationViewModel.swift line 306 at r1 (raw file):

    }

    func didFinish() {

These methods have just been moved. No changes.

---

ios/MullvadREST/Relay/RelayPicking/MultihopPicker.swift line 0 at r1 (raw file):
Important change here is that we always pass in all relays to do obfuscation and then, in RelaySelector, filter out relays. This ensures that obfuscation follows the same flow as all the other checks we do, eg. active, filters, location, daita etc.

---

ios/MullvadVPN/View controllers/SelectLocation/Views/MultihopSelection/MultihopSelectionView.swift line 119 at r1 (raw file):

                                    },
                                    onPressedChange: {

Unfortunately we can't just disable the whole button anymore, since filter buttons should be enabled if the how view button isn't. That's why we do some workarounds here and pass a "disabled" arg.

[waahlnaden]

• Not getting cutouts for the numbers in the filter iconography.

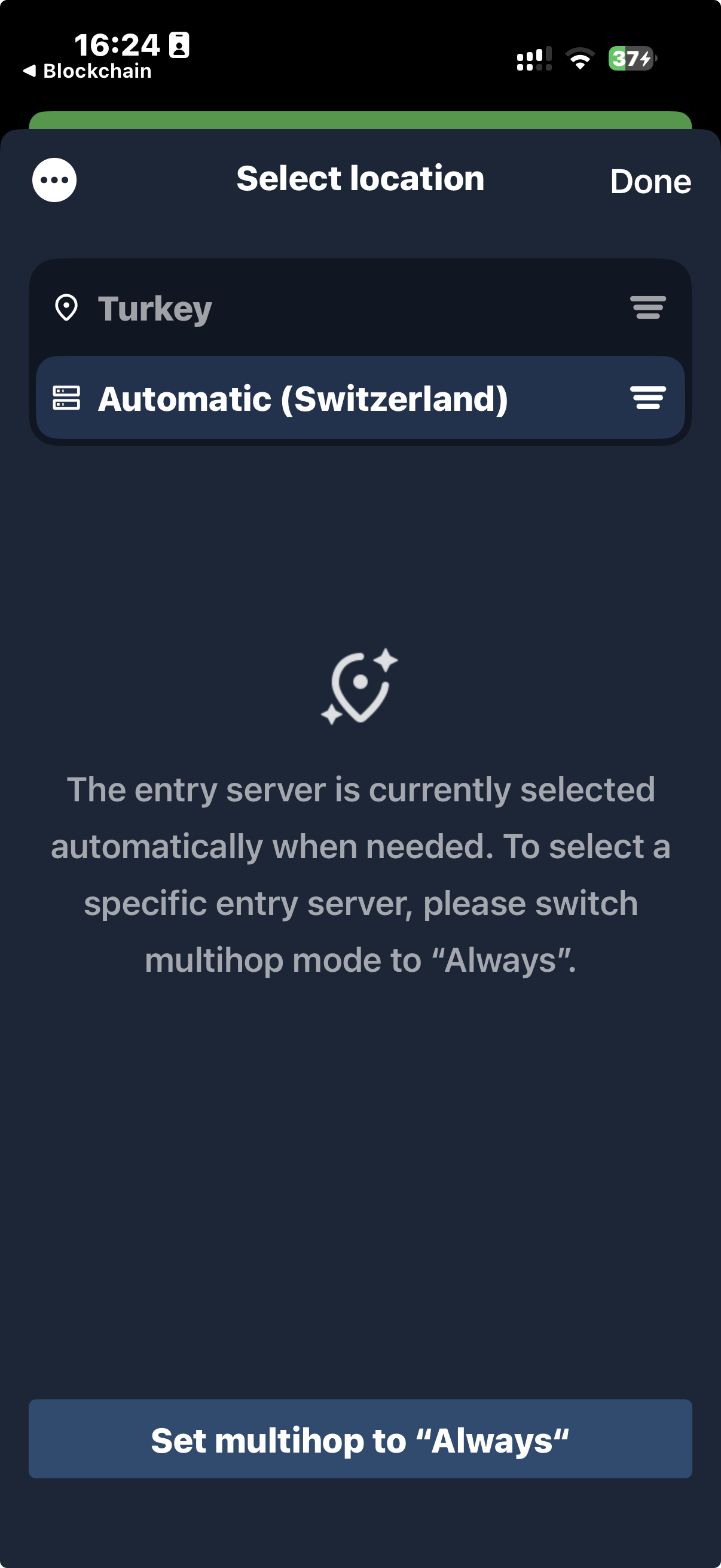

• When needed empty state copy needs to be updated:
  "The entry server is currently selected automatically to ensure your current settings work with your selected location.

To manually select an entry server, please switch multihop mode to “Always”."

• Automatic info dialog copy needs to be updated:
  "When the “Automatic” location is selected, the app automatically picks a random entry server, prioritizing those closer to the exit location for better performance.

Attention: With the “Automatic” location, any enabled filters are ignored for the entry server."

• When needed information dialogue text needs to be updated:
  "To ensure your current settings work with your selected location, and to avoid blocking your connection, the app might automatically multihop via a different entry server.

This will be indicated by the :magicmultihop: symbol.

Attention: This will ignore filter settings for the entry server that is being automatically selected."

• Filter overridden text below filter pills need to be updated and have a leading information icon added:
  :info:

• The fact that the entry and exit node does not scroll to the very top to show the filters is making the experience quite confusing as you do not actually see your individual filters.

• Filter view does not mention the fact that you need to select at least one DAITA-enabled provider if you currently use the automatic entry location. Both messages would (sadly) have to be shown.

• When using Australia as exit and Automatic as entry, I managed to have the Automatic entry swap between Singapore and Japan when changing entry filters. I assume this is just a random reconnect? Same thing happens when swapping between When needed and Always

• Entry filter does not indicate how many filters are set when shown in When needed mode. However, maybe this is fine? Having a numbered version would most likely be more confusing than helpful. It is somewhat confusing though that you can still enter the filter view and see that you have applied filters (which are stated to that they are overridden) but that they do not apply.

[waahlnaden]

• Unique titles for entry or exit filter view are missing

• Multihop feature indicator should only use iconography in "When needed" mode

[waahlnaden]

Interesting "bug".

If DAITA is enabled and you have Multihop set to When needed. If you then go into filters for your entry filters, you have to pick a DAITA-enabled provider. This does make sense. However, no DAITA related information is shown, but list items do remained grayed out until one DAITA-enabled provider is chosen.

[rablador]

Not getting cutouts for the numbers in the filter iconography.

Coming soon

When needed empty state copy needs to be updated:

Fixed

Not getting cutouts for the numbers in the filter iconography.

Automatic info dialog copy needs to be updated:

Fixed

When needed information dialogue text needs to be updated

Will fix in next PR where the carousel is updated

Filter overridden text below filter pills need to be updated and have a leading information icon added:

Fixed

The fact that the entry and exit node does not scroll to the very top to show the filters is making the experience quite confusing as you do not actually see your individual filters.

We scroll to the selected item, which is the topmost recent item when recents are enabled. That's why we never go all the way to the top.

Filter view does not mention the fact that you need to select at least one DAITA-enabled provider [...]

Fixed

When using Australia as exit and Automatic as entry, I managed to have the Automatic entry swap [...]

Yes, that will trigger a reconnect.

Entry filter does not indicate how many filters are set when shown in When needed mode.

I think we decided to do it like this on the bug bash, no?

Multihop feature indicator should only use iconography in "When needed" mode

I thought it was decided to use on for whenNeeded and one for always + automatic location. Is this not the case?

Unique titles for entry or exit filter view are missing

Fixed

If DAITA is enabled and you have Multihop set to When needed. If you then go into filters for your entry filters, you have to pick a DAITA-enabled provider. [...]

We show the daita text as well then? I added it for now.

@rablador made 1 comment.
Reviewable status: 0 of 89 files reviewed, 12 unresolved discussions.

[rablador]

Not getting cutouts for the numbers in the filter iconography.

Fixed

@rablador made 1 comment.
Reviewable status: 0 of 94 files reviewed, 12 unresolved discussions.

[pinkisemils]

@pinkisemils partially reviewed 20 files and made 4 comments.
Reviewable status: 20 of 94 files reviewed, 15 unresolved discussions (waiting on rablador).

---

ios/MullvadSettings/DAITASettings.swift line 28 at r1 (raw file):

Previously, rablador (Jon Petersson) wrote…

Moved the isEnabled flag from DAITAState to here. There was almost no real gain in having to call "daitaSettings.daitaState.isEnabled".

Does this not interfere with the migration?

---

ios/MullvadREST/Relay/MultihopDecisionFlow.swift line 59 at r2 (raw file):

            closeTo: selectNearbyLocation ? exitMatch.location : nil,
            obfuscation: obfuscation,
            forceV4Address: true,

I know that we are not changing IPv6 logic, but should will we never use a OneToOne multihop decision flow to select IPv6 relays? For IPv6, only the entry relay matters.

---

ios/MullvadREST/Relay/RelayPicking/RelayPicking.swift line 32 at r2 (raw file):

            from: candidates,
            wireguard: relays.wireguard,
            portConstraint: obfuscation?.port ?? tunnelSettings.relayConstraints.port,

The tripple question mark begs the question - could we not encapsulate the logic here into some kind of a derivePortConstraint(with: RelayObfuscation, from: LatestTunnelSettings) or something to that effect?

---

ios/MullvadREST/Relay/RelayPicking/RelayPicking.swift line 95 at r2 (raw file):

        // Fall back to IPv4
        let ipv4Address =
            if let obfuscation {

The same goes for IPv6 but could we, instead of doing an if let ... here, have applyObfuscatedIpAddresses be changed to deriveEntryAddress that takes a nillable RelayObfuscation?

The function could return the regular endpoint if RelayObfuscation is nil, and otherwise do the logic that we're doing here, no?

[rablador]

@rablador made 4 comments.
Reviewable status: 20 of 94 files reviewed, 15 unresolved discussions (waiting on pinkisemils).

---

ios/MullvadREST/Relay/MultihopDecisionFlow.swift line 59 at r2 (raw file):

Previously, pinkisemils (Emīls Piņķis) wrote…

I know that we are not changing IPv6 logic, but should will we never use a OneToOne multihop decision flow to select IPv6 relays? For IPv6, only the entry relay matters.

Good catch, that flag must have ended up on the wrong match some time ago.

---

ios/MullvadREST/Relay/RelayPicking/RelayPicking.swift line 32 at r2 (raw file):

Previously, pinkisemils (Emīls Piņķis) wrote…

The tripple question mark begs the question - could we not encapsulate the logic here into some kind of a derivePortConstraint(with: RelayObfuscation, from: LatestTunnelSettings) or something to that effect?

Sure, updated.

---

ios/MullvadREST/Relay/RelayPicking/RelayPicking.swift line 95 at r2 (raw file):

Previously, pinkisemils (Emīls Piņķis) wrote…

The same goes for IPv6 but could we, instead of doing an if let ... here, have applyObfuscatedIpAddresses be changed to deriveEntryAddress that takes a nillable RelayObfuscation?

The function could return the regular endpoint if RelayObfuscation is nil, and otherwise do the logic that we're doing here, no?

Did a variant I think improves things a bit.

---

ios/MullvadSettings/DAITASettings.swift line 28 at r1 (raw file):

Previously, pinkisemils (Emīls Piņķis) wrote…

Does this not interfere with the migration?

Not more than code changes, but I expect settings migration to be merged first and will then update accordingly in this PR.

More concerning is the "directOnly" flag, which might need to be reintroduced as legacy in order for migration to work.

[waahlnaden]

The fact that the entry and exit node does not scroll to the very top to show the filters is making the experience quite confusing as you do not actually see your individual filters.

We scroll to the selected item, which is the topmost recent item when recents are enabled. That's why we never go all the way to the top.

We need to change this as it also results in the "recents" title not being consistently shown either.

[rablador]

What's the proposal?

@rablador made 1 comment.
Reviewable status: 18 of 94 files reviewed, 15 unresolved discussions (waiting on pinkisemils).

[mojganii]

• Internet and your device are clipped:


Note: It’s not scrollable yet, but I’m implementing an empty state view according to the design system. I’ll address this in an upcoming PR.

@mojganii partially reviewed 94 files and all commit messages, and made 11 comments.
Reviewable status: all files reviewed, 25 unresolved discussions (waiting on pinkisemils and rablador).

---

ios/MullvadVPN/Coordinators/Settings/DAITA/DAITATunnelSettingsViewModel.swift line 22 at r4 (raw file):

    var didFailDAITAValidation: ((DAITASettingsPromptItem) -> Void)?

    var value: DAITASettings {

can't we change this property to@Published and listen to it in the view instead of taking care of it manually?

---

ios/MullvadVPN/Coordinators/Settings/DAITA/DAITATunnelSettingsViewModel.swift line 81 at r4 (raw file):

        let relays = try? tunnelManager.selectRelays(tunnelSettings: tunnelSettings)

        // Even if the reason for not finding any relays is not DAITA specific, if both DAITA and Direct

should we keep Direct in the comment?

---

ios/MullvadVPN/Coordinators/Settings/DAITA/SettingsDAITAView.swift line 51 at r4 (raw file):

                            format:
                                NSLocalizedString(
                                    "By enabling “%@” you will have to manually select a server that is %@-enabled. "

please, remove stale strings from Localizable.xcstrings

---

ios/MullvadVPN/Extensions/UIImage+Helpers.swift line 45 at r4 (raw file):

    }

    func scaledIcon(

it's used only in SwiftUI. I think it can be replaced with below, can't we?

Code snippet:

    @ScaledMetric(relativeTo: .caption2) var iconSize = 20.0

    Image.mullvadIconFilterCutoutDisabled
                    .frame(width: iconSize, height: iconSize)

---

ios/MullvadVPN/View controllers/SelectLocation/SelectLocationFilter.swift line 22 at r4 (raw file):

    }

    var isOverriddenByAutomaticLocation: Bool {

how id it concluded?

---

ios/MullvadVPN/View controllers/SelectLocation/SelectLocationViewModel.swift line 55 at r4 (raw file):

    @Published var searchText: String = ""
    @Published var showMultihopInfo: Bool = false
    @Published var connectedEntryLocation: Location? = nil

can't we have it as a computed variable since it's loosely coupled to multihop state and entry relay?

---

ios/MullvadREST/Relay/Obfuscation/LwoObfuscator.swift line 15 at r4 (raw file):

    let relays: REST.ServerRelaysResponse
    let tunnelSettings: LatestTunnelSettings
    let connectionAttemptCount: UInt

do we need to keep connectionAttemptCoun and tunnelSettings in RelayObfuscating anymore?

---

ios/MullvadREST/Relay/Obfuscation/LwoObfuscator.swift line 17 at r4 (raw file):

    let connectionAttemptCount: UInt

    func obfuscate() throws -> RelayObfuscation {

practically it filters relays based on obfuscation type while obfuscate() implies it performs obfuscation. it can mislead to distinguish what this class is doing. I recommend revising the class names

---

ios/MullvadVPN/Coordinators/Settings/DAITA/DAITASettingsPromptItem.swift line 11 at r4 (raw file):

import Foundation

enum DAITASettingsPromptItem: CustomStringConvertible {

is it used?

---

ios/MullvadREST/Relay/RelayPicking/RelayPicking.swift line 46 at r4 (raw file):

        // Convert WireGuardObfuscationState to ObfuscationMethod
        let obfuscationMethod = try resolveObfuscationMethod(

how does it work? we first find best match without obfuscation, then we apply the obfuscation. doesn't it result in blocked state easily?

[rablador]

@rablador made 10 comments.
Reviewable status: all files reviewed, 25 unresolved discussions (waiting on mojganii and pinkisemils).

---

ios/MullvadREST/Relay/Obfuscation/LwoObfuscator.swift line 15 at r4 (raw file):

Previously, mojganii wrote…

do we need to keep connectionAttemptCoun and tunnelSettings in RelayObfuscating anymore?

Tunnelsettings is used in all obfuscators, so that needs to stay, but ``connectionAttemptCount` can go.

---

ios/MullvadREST/Relay/Obfuscation/LwoObfuscator.swift line 17 at r4 (raw file):

Previously, mojganii wrote…

practically it filters relays based on obfuscation type while obfuscate() implies it performs obfuscation. it can mislead to distinguish what this class is doing. I recommend revising the class names

I agree, it's more filtering at this level. However, I think we should do this in a separate PR at some point. This PR is already full of slightly tangential work that makes it larger than it should be.

---

ios/MullvadREST/Relay/RelayPicking/RelayPicking.swift line 46 at r4 (raw file):

Previously, mojganii wrote…

how does it work? we first find best match without obfuscation, then we apply the obfuscation. doesn't it result in blocked state easily?

It's a bit confusing, I agree. Just like suggest further up in the review, we should revise function names a bit. But here's how it works:

1. First the relay selector finds/filters appropriate candidates in findCandidates. It uses the obfuscation object, relay constraints etc to do this.
2. Then the pickers select the best match from those candidates in this function (findBestMatch). Here the actual obfuscation config is applied.

---

ios/MullvadVPN/Coordinators/Settings/DAITA/DAITASettingsPromptItem.swift line 11 at r4 (raw file):

Previously, mojganii wrote…

is it used?

Yes, it's used to determine what error message to show in the DAITA settings view if turning on daita would lead to blocked state.

---

ios/MullvadVPN/Coordinators/Settings/DAITA/DAITATunnelSettingsViewModel.swift line 22 at r4 (raw file):

Previously, mojganii wrote…

can't we change this property to@Published and listen to it in the view instead of taking care of it manually?

Sure. I changed in multihop settings as well.

---

ios/MullvadVPN/Coordinators/Settings/DAITA/DAITATunnelSettingsViewModel.swift line 81 at r4 (raw file):

Previously, mojganii wrote…

should we keep Direct in the comment?

Nope, removed.

---

ios/MullvadVPN/Coordinators/Settings/DAITA/SettingsDAITAView.swift line 51 at r4 (raw file):

Previously, mojganii wrote…

please, remove stale strings from Localizable.xcstrings

Done

---

ios/MullvadVPN/Extensions/UIImage+Helpers.swift line 45 at r4 (raw file):

Previously, mojganii wrote…

it's used only in SwiftUI. I think it can be replaced with below, can't we?

We can and cannot. You're right that scaledMetric works for SwiftUI, but the problem is that .frame returns a view and not and image, which makes the call site very convoluted if we need to take care of that.

---

ios/MullvadVPN/View controllers/SelectLocation/SelectLocationFilter.swift line 22 at r4 (raw file):

Previously, mojganii wrote…

how id it concluded?

You mean, how it's decided what should be overriden? Only "real" filters are ignored, the other settings are taken into consideration.

---

ios/MullvadVPN/View controllers/SelectLocation/SelectLocationViewModel.swift line 55 at r4 (raw file):

Previously, mojganii wrote…

can't we have it as a computed variable since it's loosely coupled to multihop state and entry relay?

Done

[rablador]

Entry/exit expansion fixed.

@rablador made 1 comment.
Reviewable status: 82 of 95 files reviewed, 25 unresolved discussions (waiting on mojganii and pinkisemils).

[waahlnaden]

Empty state view doesn't stay centered at larger font sizes or smaller screens. Also isn't scrollable
