ESP32MultiWiFiProvision

A robust, non-blocking WiFi configuration library for ESP32. Provides a beautiful captive portal, multi-network credential storage, automatic reconnection, and flexible connection priority modes - all with a simple API.

✨ Features

Feature	Description
📡 Captive Portal	Beautiful web UI served instantly; networks load in background via AJAX
💾 Multi-Network Storage	Saves up to N credentials in NVS (Non-Volatile Storage)
🔄 Auto Reconnection	Automatically retries saved networks if connection drops
🎯 Connection Priorities	Last Saved (LIFO), Last Connected, or Strongest Signal
⏱️ Blocking & Non-Blocking	Choose `connect()` (blocking) or `run()` loop (non-blocking)
📢 Event Callbacks	`onConnected()` fires once when WiFi connects - no polling needed
⚙️ Highly Configurable	Timeouts, retries, retry delays, auto-fallback, and more
🔌 Offline-Friendly	Can initialize without blocking or forcing AP mode

🎬 Demo

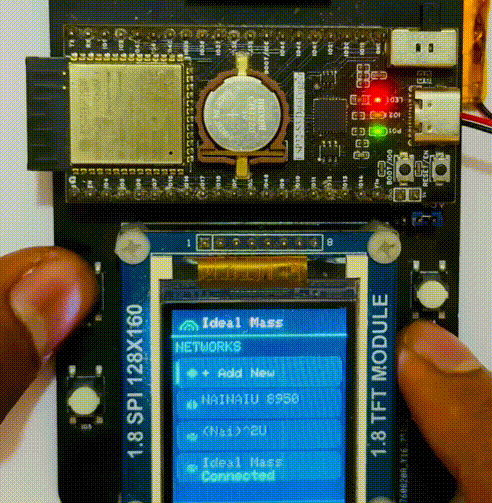

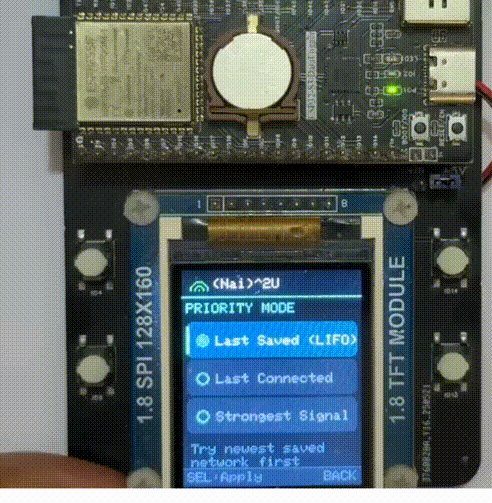

Showcased on an ESP32-S3 + ST7735 TFT (128×160) with 4-button navigation

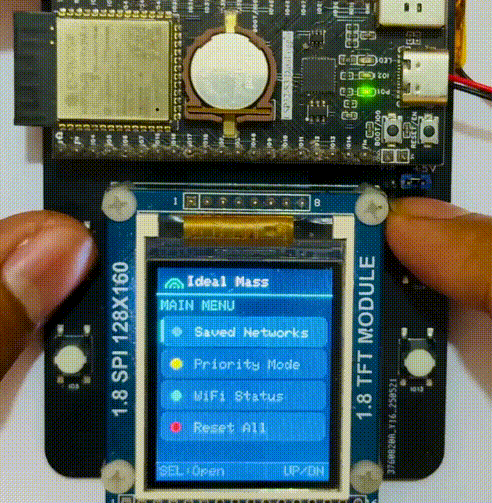

📡 AP Mode - Add New Network Opens captive portal, saves credentials via phone, auto-stops AP, and returns to Saved Networks.	📱 Saved Networks - Connect / Delete Browse saved SSIDs, select one, choose Connect or Delete with instant visual feedback.
📶 Strongest Signal - Auto Connect Scans nearby networks, matches saved credentials, picks the strongest, and connects live.	💾 Last Saved - LIFO Connect Connects to the most recently saved network first.

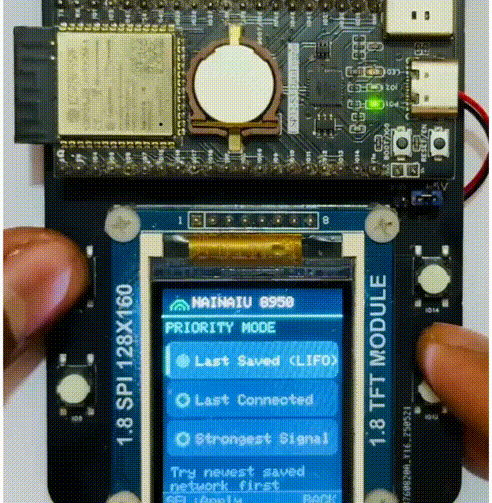

🔄 Last Connected - Quick Reconnect Remembers last successful connection and reconnects in one tap.

🛠️ Hardware Used

In the demonstration videos, the system is implemented using an ESP32-S3 with a TFT display.

The hardware is built on a custom PCB that was designed and manufactured through JLCPCB. The develeopment board was assembled using components from the JLCPCB parts library to simplify sourcing and assembly.

In addition, the ESP32-S3 data logger board used in the demo is also a custom design produced through JLCPCB's PCB fabrication and PCBA services. All major components used on the board are available directly from their parts library.

🆚 Why ESP32MultiWiFiProvision? (vs. WiFiManager)

The classic WiFiManager was originally developed for the ESP8266 and subsequently ported to the ESP32. ESP32MultiWiFiProvision is designed from the ground up specifically for the ESP32 architecture - focusing exclusively on multi-network environments and strictly non-blocking operation.

Feature	Classic WiFiManager	ESP32MultiWiFiProvision
Core Architecture	Blocking by default	✅ 100% Non-blocking (`run()` loop)
Multi-Network Storage	⚠️ Limited / Tricky to manage	✅ Native support (Stores N credentials)
Storage Engine	Mixed (EEPROM/FS/Core default)	✅ Native ESP32 `Preferences` (NVS)
Connection Priority	❌ No	✅ Yes (Strongest, Last Connected, LIFO)
Automatic Fallback	❌ Drops to AP immediately	✅ Cycles through all saved networks first
Event System	⚠️ Heavy continuous polling	✅ Clean Callbacks (`onConnected`)
Target Platform	ESP8266 + ESP32	✅ 100% ESP32 Native

📦 Installation

PlatformIO

Add to your platformio.ini:

lib_deps =
    nainaiurk/ESP32MultiWiFiProvision

Arduino IDE

Open Arduino IDE
Go to Sketch → Include Library → Manage Libraries…
Search for ESP32MultiWiFiProvision
Click Install

Or install manually:

Download this repository as a ZIP (Code → Download ZIP).
In Arduino IDE: Sketch → Include Library → Add .ZIP Library… → select the ZIP.
Select your ESP32 board under Tools → Board.

🚀 Quick Start

📱 The Mobile Captive Portal

Non-Blocking (Recommended)

#include <Arduino.h>
#include <ESP32MultiWiFiProvision.h>

ESP32MultiWiFiProvision wifiConfig;
#define BUTTON_PIN 12

void setup() {
    Serial.begin(115200);
    pinMode(BUTTON_PIN, INPUT_PULLDOWN);

    wifiConfig.setAutoFallbackToAP(false);
    wifiConfig.setConnectTimeout(5000);
    wifiConfig.prioritizeStrongestSignal();

    wifiConfig.begin("Smart Device", NULL, false);
}

void loop() {
    wifiConfig.run();  // Must be called every loop

    if (digitalRead(BUTTON_PIN) == HIGH) {
        wifiConfig.startPortal();  // Opens AP at 192.168.4.1
    }

    if (wifiConfig.isConnected()) {
        // Execute connected logic here
    }
}

Blocking (Simpler)

#include <Arduino.h>
#include <ESP32MultiWiFiProvision.h>

ESP32MultiWiFiProvision wifiConfig;

void setup() {
    Serial.begin(115200);
    wifiConfig.begin("Smart Device", NULL, false);

    wifiConfig.onConnected([](String ssid) {
        Serial.println("Connected to: " + ssid);
    });

    if (!wifiConfig.connect()) {       // Blocks for up to 40s
        wifiConfig.startPortal();      // Fallback to portal
    }
}

void loop() {
    wifiConfig.run();
}

📖 API Reference

Setup & Lifecycle

Method	Description
`begin(apSSID, apPass, autoConnect)`	Initialize the library. `autoConnect=true` connects immediately; `false` waits for manual trigger.
`run()`	Call every `loop()` iteration. Handles portal, DNS, state machine, and reconnection.
`connect(timeout)`	Blocking connect - tries saved networks, returns `true`/`false`. Default timeout: 40s.
`startPortal()`	Manually opens the captive portal (AP mode at 192.168.4.1).
`resetSettings()`	Erases all saved credentials from NVS.

Configuration (Call Before `begin()`)

Method	Default	Description
`setMaxSavedNetworks(n)`	3	Max credentials to store
`setConnectTimeout(ms)`	10000	Timeout per connection attempt
`setAutoFallbackToAP(bool)`	`true`	Start AP automatically if all connections fail
`setAutoReconnect(bool)`	`true`	Auto-retry if connection drops
`setReconnectInterval(ms)`	10000	Delay between reconnect attempts
`setMaxRetries(n)`	3	How many networks to try before giving up
`setRetryDelay(ms)`	100	Delay between retry attempts
`setPortalAutoConnect(bool)`	`true`	Auto-connect after saving via portal. Set `false` for on-demand WiFi patterns.

Connection Priority Modes

Choose how the library picks which saved network to try first:

wifiConfig.prioritizeLastSaved();       // Default - LIFO order
wifiConfig.prioritizeLastConnected();   // Try last successful network first
wifiConfig.prioritizeStrongestSignal(); // Scan & pick best RSSI (~2-3s added)

setLastConnectedSSID(ssid) (v1.3.0) - Manually update the "Last Connected" state when connecting via WiFi.begin() within the application logic:

if (WiFi.status() == WL_CONNECTED) {
    wifiConfig.setLastConnectedSSID(WiFi.SSID());
}

Status & Callbacks

Method	Returns	Description
`isConnected()`	`bool`	`true` if WiFi is connected
`isPortalActive()`	`bool`	`true` if AP/portal is running
`getConnectedSSID()`	`String`	Current SSID (empty if disconnected)
`getLastConnectedSSID()`	`String`	Last successfully connected SSID
`getStatus()`	`ConnectionStatus`	Enum: `STATUS_CONNECTED`, `STATUS_CONNECTING`, `STATUS_DISCONNECTED`, `STATUS_TIMEOUT`, `STATUS_WRONG_PASSWORD`, `STATUS_NO_SAVED_NETWORKS`
`getStatusMessage()`	`String`	Human-readable status (e.g., `"Connected to HomeWiFi"`)

onConnected(callback) - Event-driven notification (fires once per connection):

wifiConfig.onConnected([](String ssid) {
    Serial.println("Connected to: " + ssid);
});

Credential Management

Method	Description
`getSavedNetworkCount()`	Number of stored credentials
`getSavedSSID(index)`	SSID at index (0 to max-1)
`getSavedPassword(index)`	Password at index
`deleteCredential(index)`	Remove a specific credential
`tryConnectSaved()`	Low-level: cycle through saved networks (prefer `connect()`)

🧠 How It Works

Credentials are stored in ESP32 NVS (persists across reboots).
Portal HTML is embedded in flash - the page loads instantly.
Network scan runs asynchronously in the background; results populate via JSON/AJAX, so the UI never blocks.
State machine in run() handles connection attempts, timeouts, fallbacks, and reconnection seamlessly.

📋 Changelog

v1.3.5 (Latest)

Documentation: Updated hardware sourcing links to include referral parameters, maintaining the existing professional layout.

v1.3.4

Fix: Switched relative image paths to absolute GitHub Raw URLs so demo animations properly render on the PlatformIO registry landing page.

v1.3.3

Documentation: Enhanced the README with lightweight, inline GIF animations for better cross-platform compatibility (PlatformIO Registry support).

v1.3.2

Documentation: Added a comprehensive visual demo section to showcase library capabilities.
Documentation: Improved formatting and layout of the quick-start guide.

v1.3.1

Examples: Added four detailed usage sketches demonstrating basic provisioning, blocking mode routines, multi-network management, and advanced callback handling.
Structure: Reorganized the repository architecture to adhere to the standard Arduino src/ directory format.
Fix: Resolved a dependency mapping issue in library.properties for smoother integration with ESP32 core libraries.

v1.3.0

Feature: Officially renamed library to ESP32MultiWiFiProvision.
Feature: Added manual "Last Connected" override capability via the setLastConnectedSSID() method.
Fix: Improved stability by resolving credential saving and preferences management issues within NVS.
Fix: Corrected connection state timing logic to eliminate unintended 10-second connectivity delays.

v1.2.8

Feature: Introduced the setPortalAutoConnect() mechanism for strictly on-demand WiFi portal invocation.
Enhancement: Enhanced captive portal user feedback loops when auto-connect behavior is disabled.

v1.2.7

Feature: Introduced the onConnected() event callback for streamlined, non-polling connection handling.
Feature: Added flexible connection configuration options via setMaxRetries() and setRetryDelay().
Enhancement: Implemented automatic saving of the last connected SSID upon successful background connections.

v1.2.6

Feature: Introduced the synchronous connect() blocking method for simpler project architectures.
Feature: Expanded the status API with getLastConnectedSSID(), getStatus(), and getStatusMessage().
Feature: Added the ConnectionStatus enumeration for rigid state checking and debugging.

v1.2.5

Fix: Resolved a conflict between the captive portal interactions and the backend connection state machine.
Fix: Addressed an issue with getSavedNetworkCount() to properly iterate over contiguous network entries.

v1.2.4

Fix: Addressed an NVS storage bug (missing Preferences open/close parameters) to ensure credentials save correctly under all conditions.
Enhancement: Updated the captive portal UI to feature an optional plain text password visibility toggle.
Enhancement: Improved the memory replacement algorithm, guaranteeing the strict overwriting of the oldest credentials.

v1.1.0

Feature: Introduced advanced connection priority modes including Last Saved (LIFO), Last Connected, and Strongest Signal parsing.

v1.0.0

Release: Initial public release.

👤 Author

Nainaiu Rakhaine

📄 License

MIT - see LICENSE for details.
