Add deployment provider credential routing by dredozubov · Pull Request #4557 · nexu-io/open-design

dredozubov · 2026-06-19T15:30:06Z

Why

Some self-host deployments manage provider credentials and provider policy server-side through an OpenAI-compatible gateway. Open Design already supports direct BYOK, but deployments with shared credential custody need one daemon-owned credential source that behaves consistently across model discovery, connection tests, proxy chat, finalize, headless inspection, and first-run setup.

Support first-run setup when an administrator has preconfigured a deployment provider. The browser can read only redacted provider availability metadata; credentials remain daemon-side.

This keeps AMR, local CLI, and direct BYOK unchanged. When no deployment provider environment is configured, existing users keep the current behavior.

What users will see

Existing deployment-backed API, CLI, and web provider flows work without client-side credentials or repeated endpoint setup. Self-hosted operators can route OpenAI-compatible credentials and optional run-session metadata through the daemon.

On first run, if an administrator has configured a deployment provider, the onboarding Connect step can offer that provider as a ready-to-use option. The user sees the configured label/host and chooses a model, but never sees or enters the deployment credential.

What changed

Add a shared credentialSource contract field. The default is user, preserving the existing direct BYOK request shape.
Add credentialSource: "deployment" for daemon-resolved OpenAI-compatible provider credentials.
Add a redacted /api/provider-orchestrator/config status endpoint and od provider config CLI mirror. They report availability, label, display host, default model, and failure kind, but never return the credential.
Allow the browser to read that redacted provider status so first-run onboarding can use administrator-managed provider setup without exposing credentials.
Apply the same deployment credential resolution to provider model discovery, connection tests, OpenAI-compatible proxy chat, and finalize/provider calls.
Ignore caller-supplied apiKey and baseUrl when deployment credentials are selected; the daemon resolves and validates the configured endpoint instead.
Support optional daemon-side run-session bootstrap metadata for deployments that need a per-run authorization record before provider egress.
Add web request-shape support for existing deployment-sourced config and first-run selection.
Document the deployment env vars for self-host operators.

Surface area

UI — new page / dialog / panel / menu item / setting / empty state in apps/web or apps/desktop (including Electron menu bar)
Keyboard shortcut — new or changed
CLI / env var — new od subcommand or flag, new tools-dev / tools-pack / tools-pr flag, or new OD_* env var
API / contract — new /api/* endpoint, new SSE event, or changed shape in packages/contracts
Extension point — new entry under skills/, design-systems, design-templates, or craft/, or change to the skills protocol
i18n keys — added new translation keys (see TRANSLATIONS.md for the locale workflow)
New top-level dependency — adding any new entry to the root package.json (dependencies or devDependencies)
Default behavior change — changes what existing users experience without opting in
None — internal refactor, docs, tests, or translation update only

Screenshots

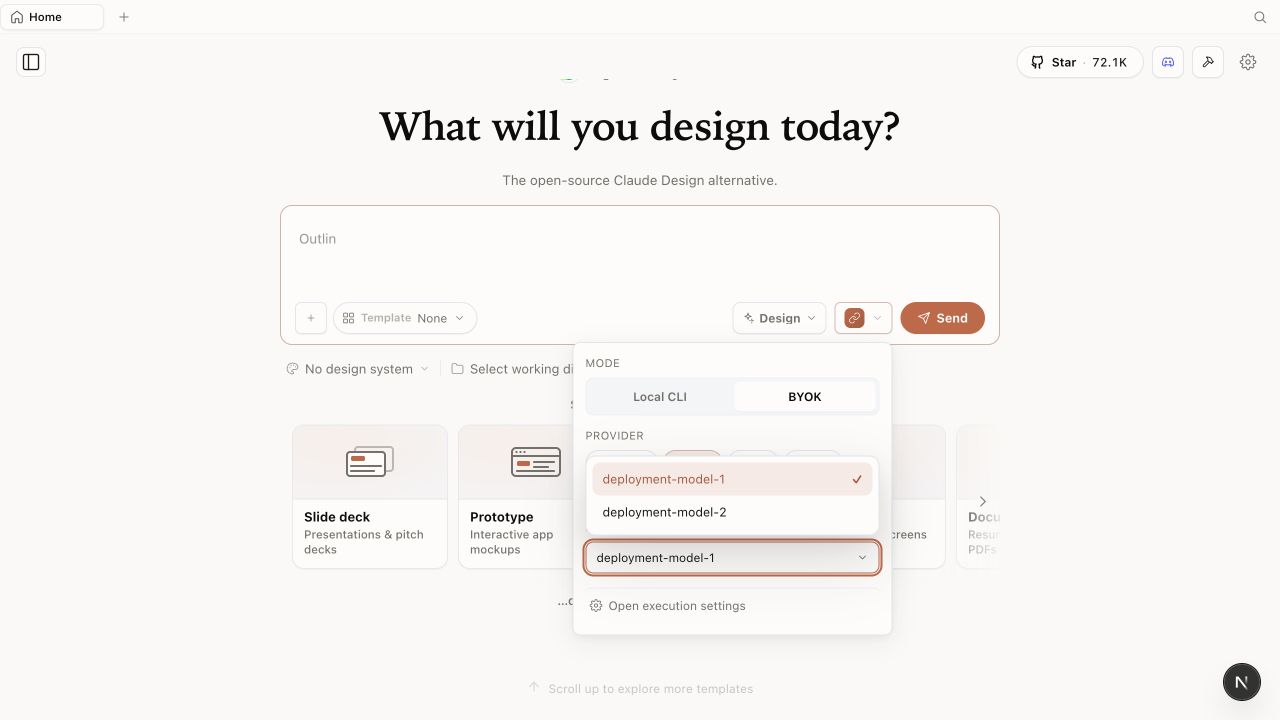

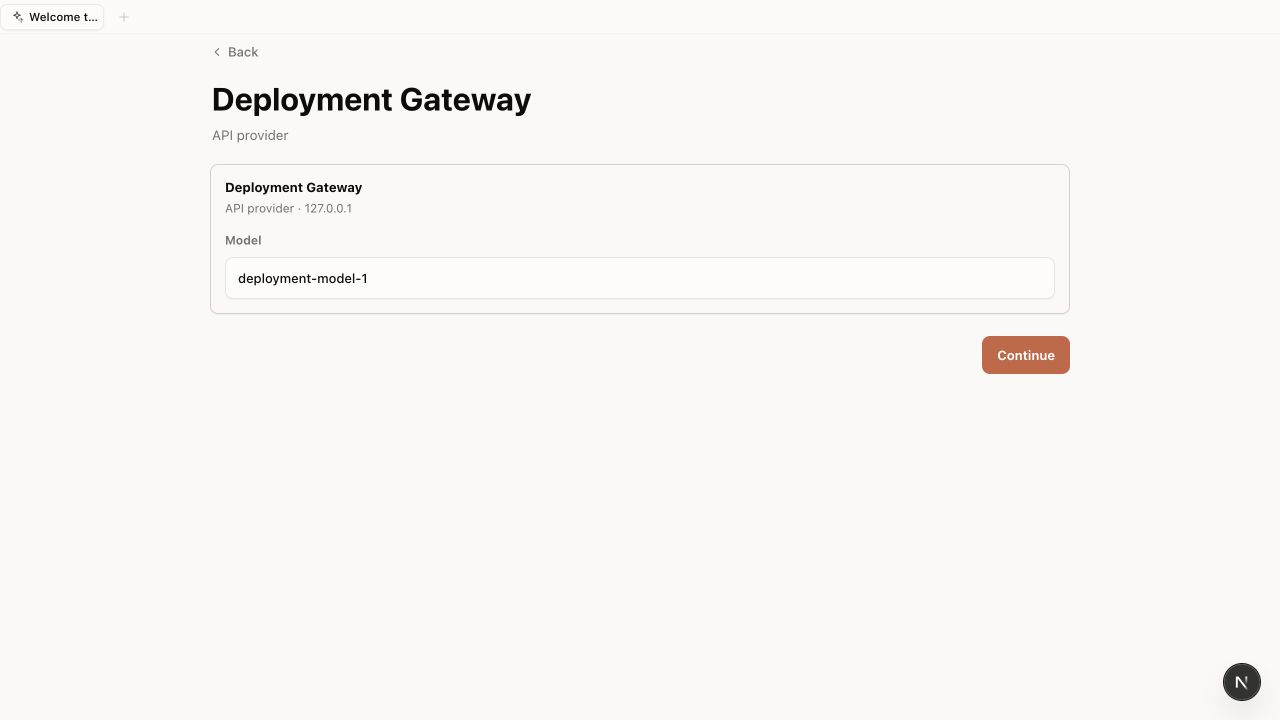

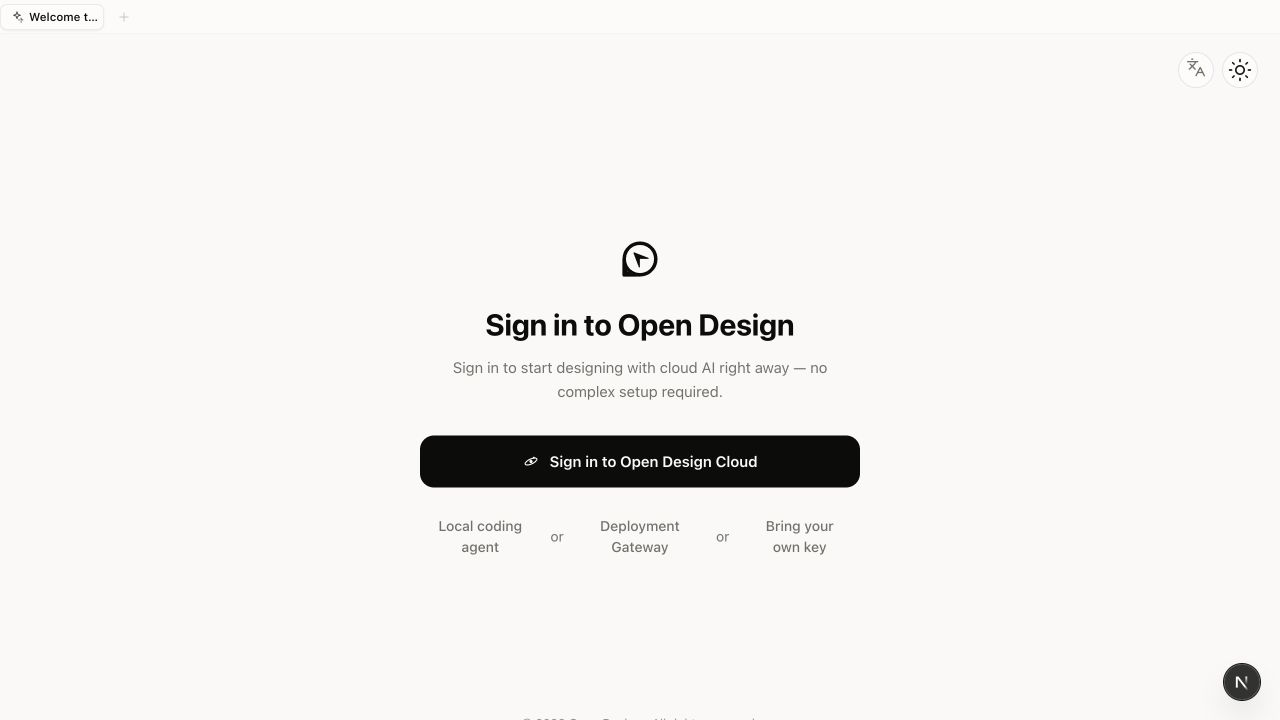

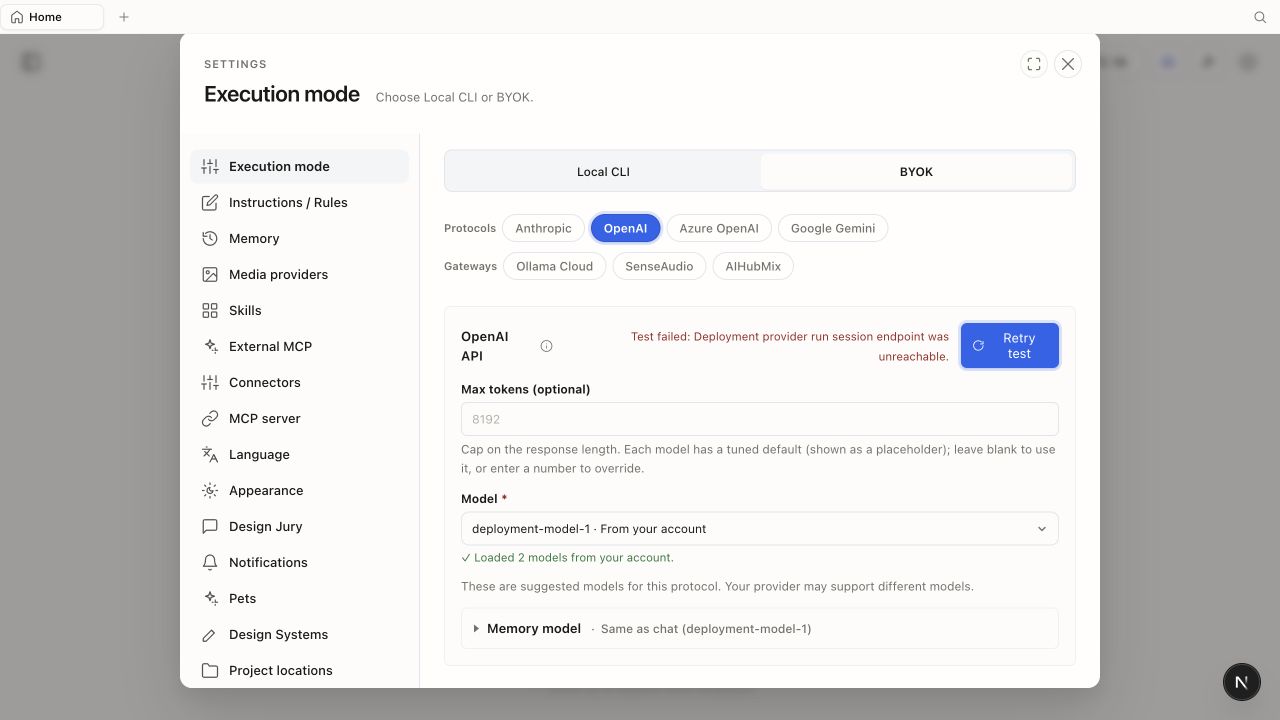

Deployment-provider UI screenshots were added in the PR thread:

Non-goals

No AMR behavior changes.
No direct BYOK behavior changes.
No support for non-OpenAI-compatible deployment provider protocols.

Validation

Ran with Node 24.12.0:

pnpm exec vitest run -c vitest.config.ts tests/finalize-design.test.ts -t "ignores caller baseUrl validation" from apps/daemon
pnpm exec vitest run -c vitest.config.ts tests/api-token-guard.test.ts -t "opens only redacted deployment provider discovery" from apps/daemon
pnpm exec vitest run -c vitest.config.ts tests/components/EntryShell.onboarding.test.tsx -t "continues with an available deployment provider" from apps/web
pnpm --filter @open-design/web typecheck
pnpm --filter @open-design/daemon typecheck
pnpm guard

Earlier validation on this PR also covered:

pnpm --filter @open-design/web exec vitest run tests/providers/api-proxy.test.ts tests/lib/resolve-finalize-request.test.ts tests/components/InlineModelSwitcher.test.tsx
pnpm --filter @open-design/daemon exec vitest run tests/cli-startup.test.ts tests/connection-test.test.ts tests/proxy-routes.test.ts tests/finalize-design.test.ts
pnpm --filter @open-design/contracts typecheck
pnpm typecheck

…-runtime # Conflicts: # apps/daemon/src/routes/chat.ts # apps/web/src/components/ProjectView.tsx

lefarcen · 2026-06-21T07:34:46Z

Hey @dredozubov — the rationale and validation notes here are helpful. One quick PR-body follow-up before pool review: could you add a short What users will see section from the user's point of view, even if the answer is mainly "existing deployment-backed API flows work without client-side credentials or repeated endpoint setup"?

Also, this PR touches behavior that will need a manual QA pass before merge, so please hold off self-merging for now — we'll loop QA in once it's merge-ready (and after the required product sign-off on this head).

nettee

Two blocking issues showed up in the new deployment-provider path.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

nettee

Two blocking issues are still present in the deployment-provider path on the current head.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

Location: apps/daemon/src/chat-routes.ts RIGHT line 150

deploymentProviderRunMetadata() now sits directly on the /api/proxy/openai/stream request path, but this bootstrap call still does a raw fetch() with no abort signal, no bounded timeout, and no proxyDispatcherRequestInit. That means a slow run-session service can stall the chat request before SSE starts, and deployments that require the configured outbound proxy for provider egress can fail here even though the actual provider call would succeed. Please thread request cancellation and a timeout into this helper, send it through the same proxy dispatcher used for provider egress, and add coverage for a stalled or proxy-routed run-session endpoint.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

Inline comment could not be anchored: inline anchor is outside the PR diff anchorable ranges

nettee

Two blocking correctness issues are still present in the deployment-provider path.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

nettee

One blocking issue remains in the deployment-provider validation path.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

lefarcen · 2026-07-10T17:49:58Z

Hey @dredozubov — the latest current-head blocker from @nettee looks narrower than the earlier deployment-provider passes: the Kimi direct -p ... --output-format stream-json switch dropped the ACP-side MCP wiring on this head, so the runtime no longer carries the live-artifacts server or user-configured external MCP servers.

I'd drive that review thread next before anything else.

dredozubov · 2026-07-10T18:30:32Z

Pushed b97dc14ab to address the Kimi direct-mode MCP review thread.

What changed:

Keeps Kimi on direct -p ... --output-format stream-json mode, but documents that this path does not expose the ACP mcpServers descriptor.
Pins Kimi runtime coverage so it no longer advertises mcpDiscovery / externalMcpInjection while direct mode is active.
Updates prompt-budget coverage for Kimi argv prompt limits.

Validation run locally under the available Node 26 shell (repo warns it wants Node ~24):

pnpm --filter @open-design/daemon exec vitest run tests/runtimes/agent-args.test.ts tests/runtimes/prompt-budget.test.ts tests/runtimes/mcp.test.ts
pnpm --filter @open-design/daemon exec vitest run tests/connection-test.test.ts -t "launches Kimi connection tests without the legacy acp positional arg"
pnpm --filter @open-design/daemon typecheck
pnpm guard

Read-only cross-review found no remaining accepted blocker in the pushed diff.

nettee

@dredozubov I re-checked the current head with focus on the changed ranges on b97dc14ab0187a4c692257bdf29dba2885114d0d: the Kimi direct-mode runtime follow-up in apps/daemon/src/runtimes/defs/kimi.ts, the matching MCP/prompt-budget/runtime coverage, and the surrounding deployment-provider routing, contract, and web follow-through that remained in scope on this head. Those deltas line up with the earlier review feedback, and I didn’t find any new actionable issues in the current changed ranges. I wasn’t able to execute the local Vitest or typecheck slices in this worktree because node_modules / vitest are not installed here, but the code and targeted test updates are internally consistent. Nice work closing out the Kimi follow-up without re-opening the deployment-provider regressions.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

dredozubov · 2026-07-12T00:43:44Z

Maintenance pass on current head b97dc14ab:

GitHub reports the branch is mergeable, and all current head CI check-runs are green.
Review threads are all resolved.
Latest current-head code review from @nettee is approved.
I did not push code changes in this pass.

Remaining blockers look external to the branch diff: GitHub still reports reviewDecision: CHANGES_REQUESTED / mergeStateStatus: BLOCKED, and the PR still carries needs-design-review + needs-validation. Could a maintainer/design/QA owner clear or re-check those if this branch is still the intended merge path? #5257 is the clean approved fallback path and is currently queued for manual QA.

lefarcen · 2026-07-12T00:50:26Z

Hey @dredozubov — thanks for the state check. I re-checked the current PR state on this head: product is already signed off, and the remaining gate on this branch is still design (needs-design-review is present and design-approved hasn't landed yet), so QA stays parked behind that for now.

I've re-routed the design check on this head. If this branch stays the intended merge path once design clears, QA can pick it up from there.

nettee

I found one blocking regression in the onboarding deployment-provider flow.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

lefarcen · 2026-07-13T15:29:58Z

Hey @dredozubov — @nettee’s latest current-head review is the one to drive next.

From the scoped onboarding/settings diff on this head, the blocker looks narrowly focused on the config-persist path: failed deployment-provider saves still need to surface as failures instead of letting onboarding continue as if the write succeeded.

nettee

I found one non-blocking follow-up in the deployment-provider model-list invalidation path.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

nettee

@dredozubov I re-checked the current head with focus on the deployment credential-routing changes in the daemon, the redacted /api/provider-orchestrator/config plus od provider config surfaces, the run-session plumbing across model discovery / connection test / proxy / finalize, and the onboarding/settings/model-switcher follow-through in the web app. The changed ranges line up with the prior review history and the added regression coverage, and I didn’t find any new actionable issues on 068a69753c4274c76e5b1b95a58a96b9571ea612. I wasn’t able to execute the local Vitest or typecheck slices in this worktree because node_modules are not installed here, but the current code and targeted tests are internally consistent. Nice work closing out the deployment-provider flow while keeping browser-visible state redacted.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

nettee

I found one non-blocking follow-up in the deployment-provider connection-test path.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

nettee

@dredozubov I re-checked the current head with focus on the changed deployment credential-routing surface: the daemon-side deployment provider resolution and optional run-session bootstrap, the redacted /api/provider-orchestrator/config plus od provider config mirror, the model-discovery / connection-test / proxy / finalize plumbing, and the onboarding/settings/model-switcher follow-through in the web app. The current changed ranges line up with the prior review history and the added regression coverage, and I didn’t find any new actionable issues on b4712fa6c294c08986c1ae96edf96e7536d44bea. Nice work closing out the deployment-provider flow while keeping browser-visible state redacted.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

nettee

One blocking regression remains in the current head.

_{🔁 Powered by Looper · runner=reviewer · agent=codex · An autonomous AI dev team for your GitHub repos.}

dredozubov · 2026-07-22T12:49:27Z

Closing as superseded by #5257. The compatible #4557 follow-ups are now in #5257 at 197eaf4 (deployment onboarding save-failure gate, topbar model switcher visibility fix, and test stabilization). #5257 deliberately retains the deployment credential routing and Kimi ACP runtime policy, so the direct-Kimi divergence from this branch is not carried forward.

lefarcen · 2026-07-22T12:57:56Z

Thanks for closing the loop and for linking #5257.

We'll treat this branch as superseded and follow the compatible deployment-provider follow-ups there.

dredozubov added 15 commits June 19, 2026 18:54

feat(daemon): resolve deployment provider credentials

48719e3

feat(web): surface deployment provider credentials

f03bb54

feat(cli): expose deployment provider status

a36d2ea

fix(web): preserve initial provider model fetch

87764d2

docs: document deployment provider configuration

7e3df44

fix(web): auto-verify deployment provider onboarding

0d5fc23

fix(web): handle empty deployment provider catalog

5b2e96f

chore: refresh provider validation

7920ed1

feat: add deployment provider run sessions

a7ac544

fix: allow deployment provider service-network endpoints

80358fa

Merge origin/main into provider orchestrator runtime

300deb9

fix(web): skip empty terminal run replay

5e301b7

Merge remote-tracking branch 'origin/main' into provider-orchestrator…

02cb542

…-runtime # Conflicts: # apps/daemon/src/routes/chat.ts # apps/web/src/components/ProjectView.tsx

fix(daemon): allow realpath opencode cwd aliases

eec98e1

chore: scope deployment provider routing to daemon APIs

0ad9878

lefarcen requested review from free666799 and nettee June 21, 2026 07:34

lefarcen added size/XXL PR changes 1500+ lines risk/high High risk: apps/desktop, daemon, auth, migration, workflows, package deps type/feature New feature needs-validation Runtime change detected; needs human or /explore agent validation. labels Jun 21, 2026

nettee requested changes Jun 21, 2026

View reviewed changes

Comment thread apps/daemon/src/import-export-routes.ts

Comment thread apps/daemon/src/routes/chat.ts Outdated

test: stabilize AMR logout P0 agent discovery

8fc03ad

nettee requested changes Jun 21, 2026

View reviewed changes

Comment thread apps/daemon/src/import-export-routes.ts

fix(daemon): harden deployment provider bootstrap

5d2a651

nettee requested changes Jun 21, 2026

View reviewed changes

Comment thread apps/web/src/providers/api-proxy.ts

Comment thread apps/daemon/src/deployment-provider.ts

fix: harden deployment provider credential mode

9652cfc

nettee requested changes Jun 21, 2026

View reviewed changes

Comment thread apps/daemon/src/deployment-provider.ts Outdated

fix(daemon): allow private deployment gateways

2b7b5d8

test(daemon): pin Kimi direct MCP behavior

b97dc14

nettee approved these changes Jul 10, 2026

View reviewed changes

open-design-crew Bot added the design-approved Design signed off (must be applied by the Odcrew App open-design-crew[bot]) label Jul 13, 2026

Merge main into provider orchestrator runtime

24d1c99

lefarcen removed the needs-design-review Awaiting design review (external UI change); cleared by the Odcrew App applying design-approved label Jul 13, 2026

nettee requested changes Jul 13, 2026

View reviewed changes

Comment thread apps/web/src/components/EntryShell.tsx Outdated

fix(web): block onboarding after deployment config save failure

133e945

nettee reviewed Jul 13, 2026

View reviewed changes

Comment thread apps/web/src/components/providerModelsCache.ts

Merge main into provider-orchestrator-runtime

068a697

lefarcen requested a review from nettee July 18, 2026 13:28

nettee approved these changes Jul 18, 2026

View reviewed changes

Merge main into provider-orchestrator-runtime

1586e09

nettee reviewed Jul 20, 2026

View reviewed changes

Comment thread apps/daemon/src/connectionTest.ts Outdated

Fix deployment connection metadata for OpenAI responses

b4712fa

nettee approved these changes Jul 20, 2026

View reviewed changes

dredozubov added 2 commits July 21, 2026 15:28

Merge main into provider-orchestrator-runtime

b547e70

Keep inline switcher open without layout

bbb463c

nettee requested changes Jul 21, 2026

View reviewed changes

Comment thread apps/web/src/components/InlineModelSwitcher.tsx Outdated

Stabilize question form readiness test

e20092e

lefarcen requested a review from nettee July 21, 2026 11:51

dredozubov added 2 commits July 21, 2026 16:02

Keep topbar model switcher open

afedb3a

Merge main into provider-orchestrator-runtime

5c3d770

dredozubov closed this Jul 22, 2026

Uh oh!

Conversation

dredozubov commented Jun 19, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Why

What users will see

What changed

Surface area

Screenshots

Non-goals

Validation

Uh oh!

lefarcen commented Jun 21, 2026

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

lefarcen commented Jul 10, 2026

Uh oh!

dredozubov commented Jul 10, 2026

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

dredozubov commented Jul 12, 2026

Uh oh!

lefarcen commented Jul 12, 2026

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

lefarcen commented Jul 13, 2026

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

nettee left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

dredozubov commented Jul 22, 2026

Uh oh!

lefarcen commented Jul 22, 2026

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

4 participants

dredozubov commented Jun 19, 2026 •

edited

Loading
