fix(web): raise Settings and Dialog backdrops above popover tier

[xxiaoxiong]

Summary

The Settings dialog .modal-backdrop sits at z-index 1700, the same tier as canvas edit popovers (1500-1900). When an edit popover is already open and the user clicks Settings, the Settings modal opens behind the popover instead of on top of it.

This commit raises the relevant backdrops to a tier above the popover range (2000/2010), so Settings reliably lands on top.

The previous attempt to fix this (PR #5091) was closed because rebase exposed pre-existing test failures unrelated to the z-index change. This is a fresh, minimal PR with only the 3 z-index values changed.

Changes

File	Change
packages/components/src/dialog.module.css	.backdrop z-index 100 → 2000
apps/web/src/styles/viewer/memory.css	.privacy-consent-banner z-index 110 → 2010 (and update comment)
apps/web/src/styles/workspace/mention-home.css	.modal-backdrop (Settings) z-index 1700 → 2000

.modal-backdrop--app-modal stays at 10000 — app-modal Settings continues to outrank standard modals.

Layer order after fix

Tier	Element
100	base canvas
1500–1900	popovers / edit overlays
2000	Dialog backdrop + Settings .modal-backdrop
2010	privacy consent banner
9000	toast/overlays
10000	.modal-backdrop--app-modal

Reference

See #4447 (the original bug report).

Validation

The previous fix on PR #5091 was approved by @nettee and reviewed by @lefarcen — only the rebase against newer main triggered unrelated Playwright failures. This PR re-applies the same three z-index values on a fresh branch off the current main HEAD (53e78ac1) and produces a 4-line diff that touches only the 3 files in question.

[lefarcen]

Thanks @xxiaoxiong — this is a nicely scoped follow-up to the backdrop stacking bug, and the PR body makes the z-index intent easy to verify. I'll route it through the current review checks and get the right eyes on it within 24h.

[lefarcen]

Thanks for writing this up so clearly — the layering table and the note about PR #5091 make the intent easy to follow.

One small PR-body request before pool review picks it up: could you add the Surface area checklist and tick the relevant UI box? The rest of the description already covers the why/what well.

[lefarcen]

🧪 This PR has changes that need a manual QA pass before merge — please hold off self-merging for now; we'll loop QA in once it's merge-ready (and design/product have signed off, where applicable).

[xxiaoxiong]

Workspace unit tests failed in run 32952976352. This is likely a pre-existing flake unrelated to the 4-line z-index change. Could a maintainer re-run just that one check to confirm?

[mrcfps]

@xxiaoxiong thanks for the tightly scoped stacking fix — this is a clean follow-up to #4447 / #5091.

Verified the three-value bump against the live overlay scale: Settings .modal-backdrop and the shared Dialog backdrop both land at 2000 (above the 1500–1900 popover/edit overlay band, including the 1800–1900 canvas overlays), the privacy banner stays 10 above that tier so the “visible while Settings is open” invariant actually holds, and .modal-backdrop--app-modal remains at 10000 so app-modal Settings still outranks standard modals. Toasts/selects at 9000 and the model picker at 10500 stay above, as intended.

Nice, minimal, and easy to reason about. Appreciate the careful layer table. 🙌

_{🔁 Powered by Looper · runner=reviewer · agent=omp · An autonomous AI dev team for your GitHub repos.}

[github-actions]

Visual regression review

Head: 7c132b6 · Base: d88941b

0 changed · 53 unchanged · 0 new without baseline · 0 failed

Unchanged cases

Case	Main	PR	Diff
visual-avatar-local-agent-list 0 px (0.00%)
visual-avatar-local-agent-list-panel 0 px (0.00%)
visual-avatar-menu 0 px (0.00%)
visual-avatar-menu-panel 0 px (0.00%)
visual-avatar-open-design-model-picker 0 px (0.00%)

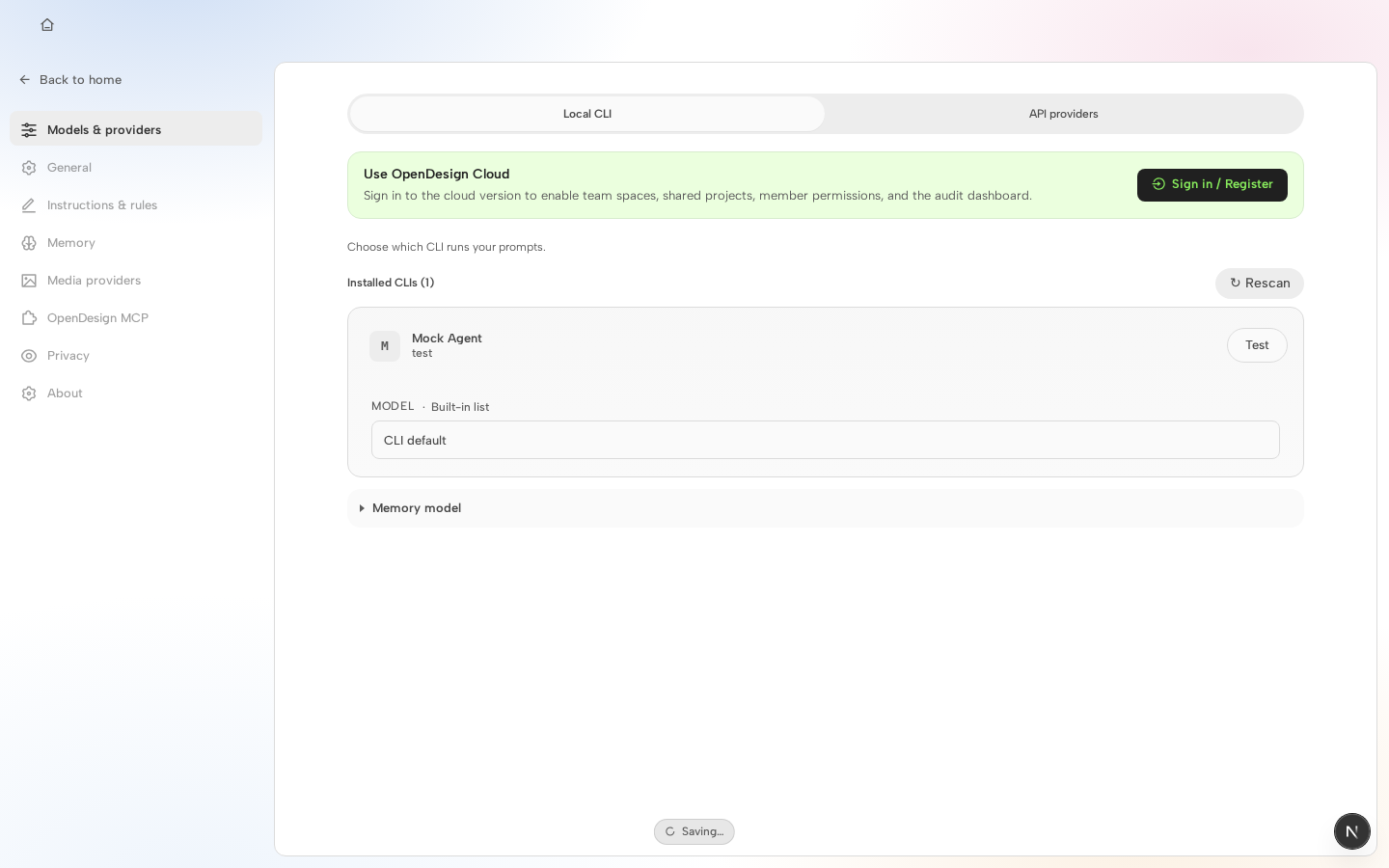

visual-critical-settings 0 px (0.00%)

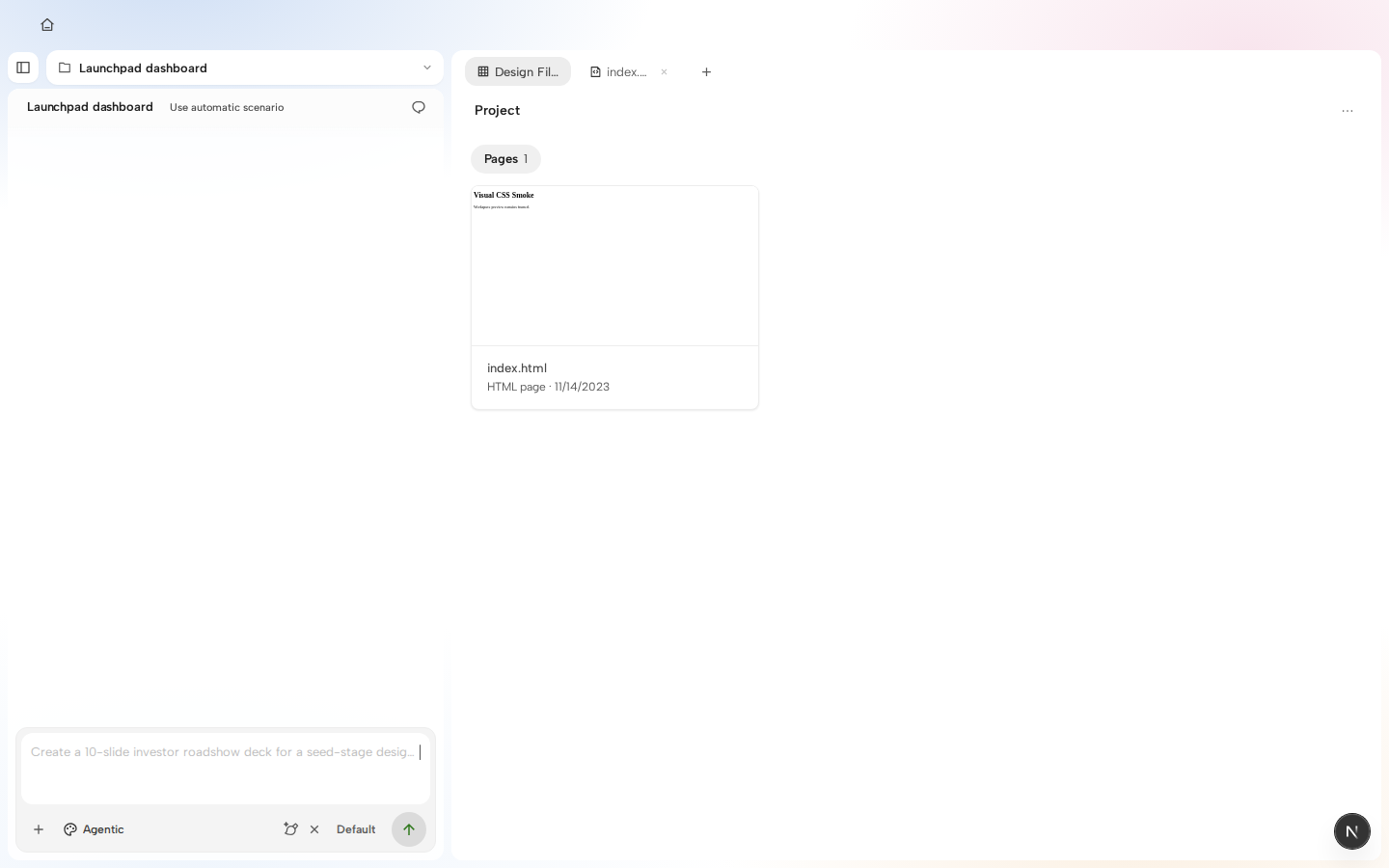

visual-critical-workspace 0 px (0.00%)

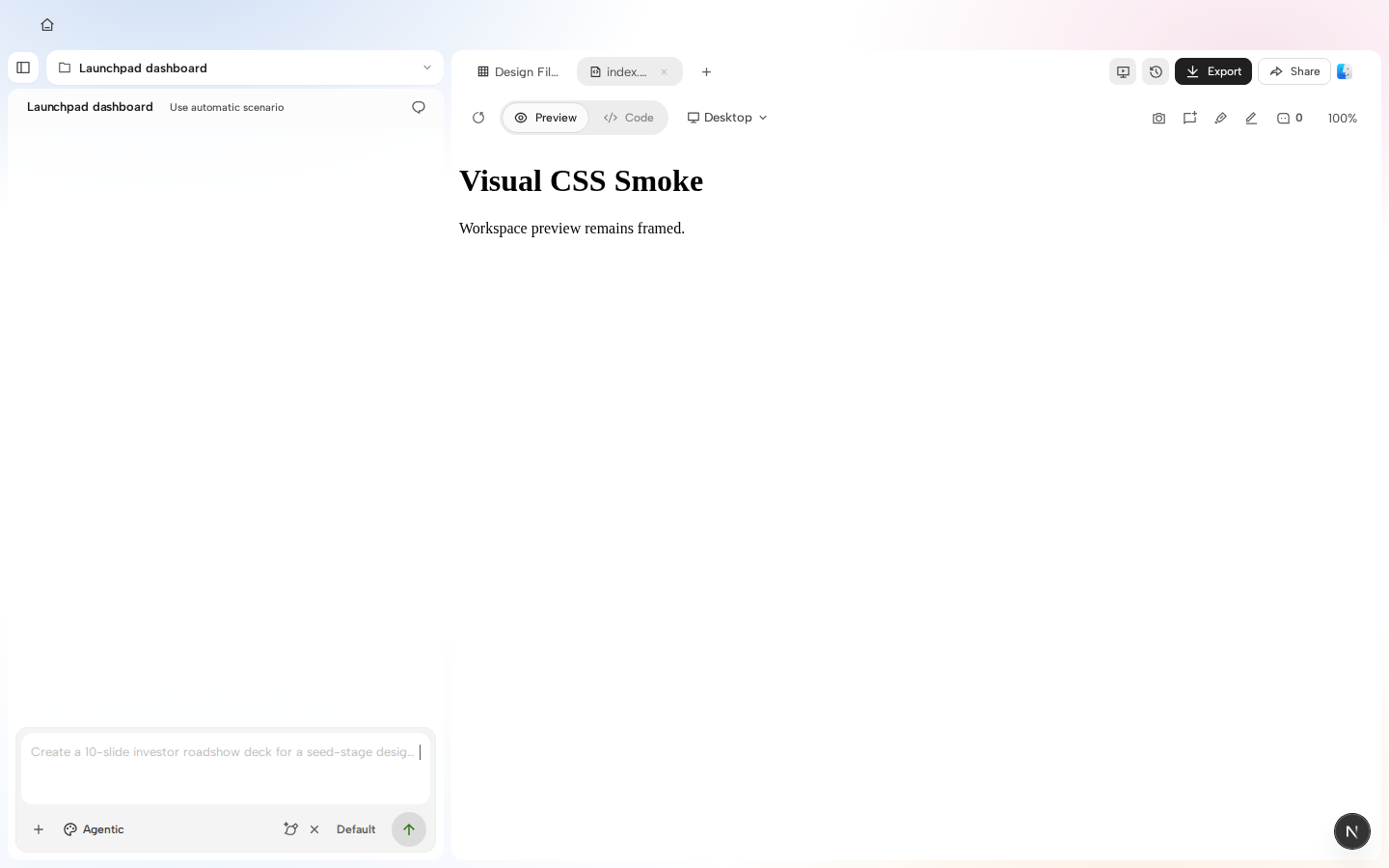

visual-critical-workspace-preview 0 px (0.00%)

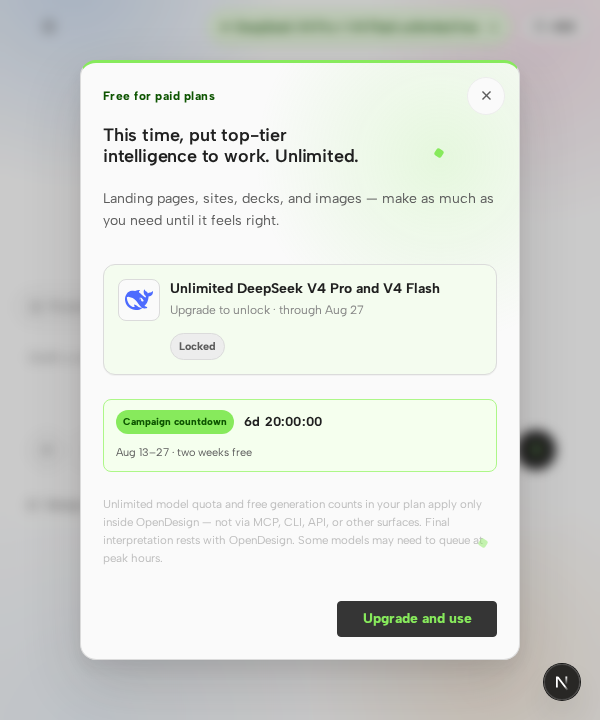

visual-deepseek-unpaid-campaign-600 0 px (0.00%)

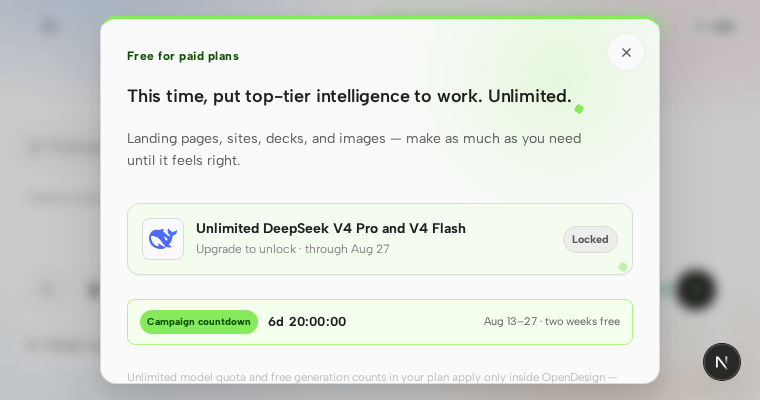

visual-deepseek-unpaid-campaign-short-height 0 px (0.00%)
visual-design-system-detail 0 px (0.00%)

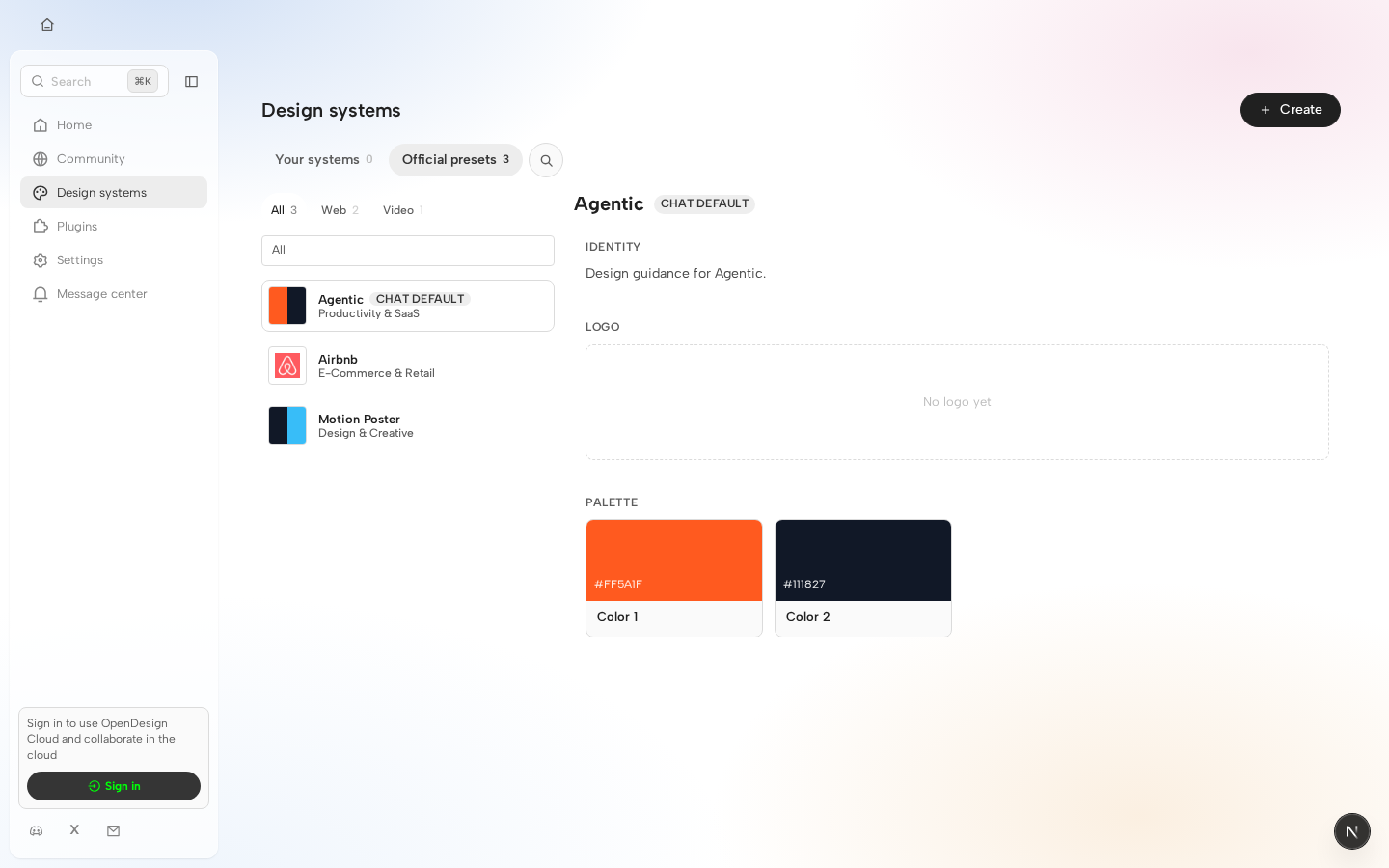

visual-design-systems 0 px (0.00%)

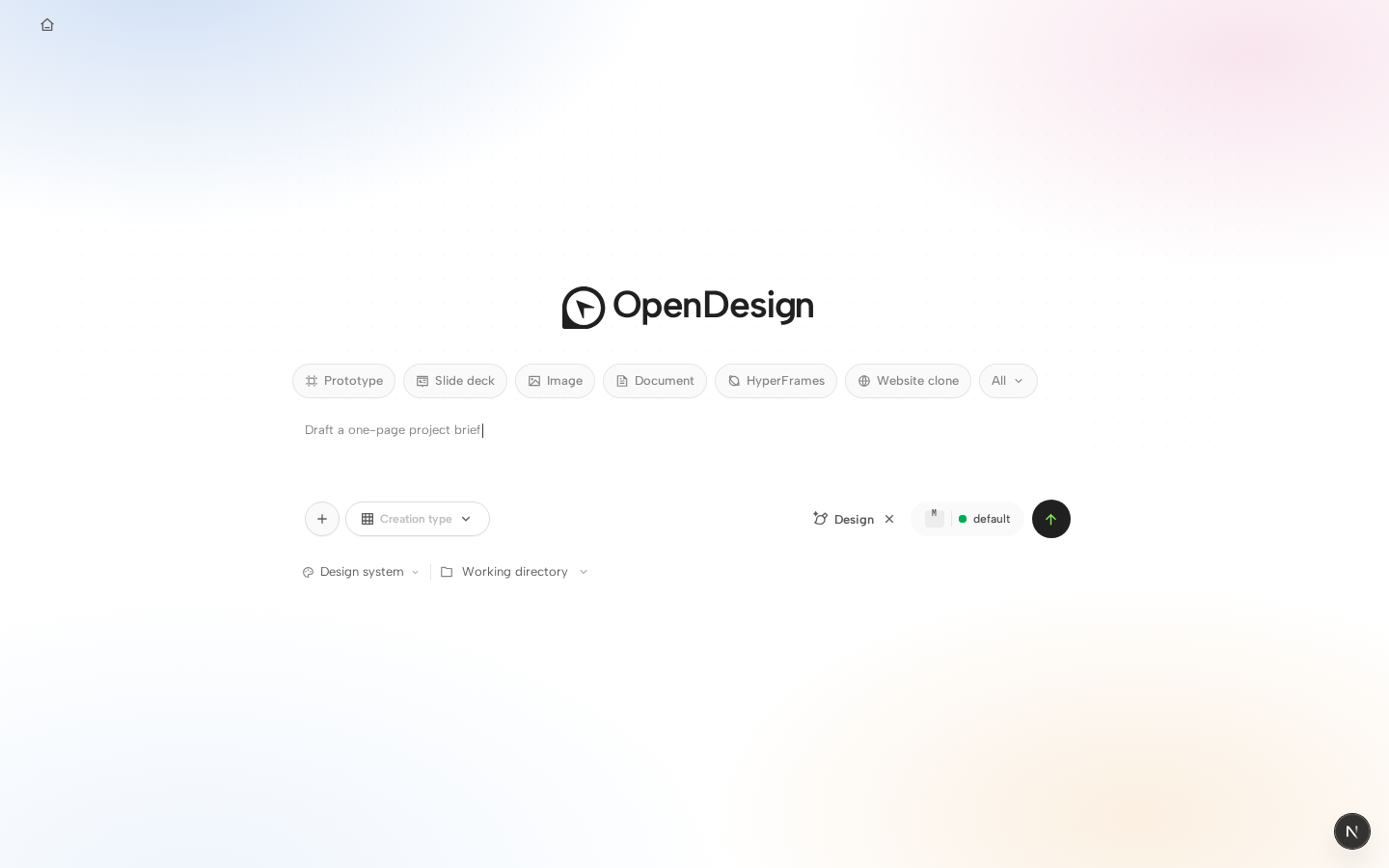

visual-home 0 px (0.00%)

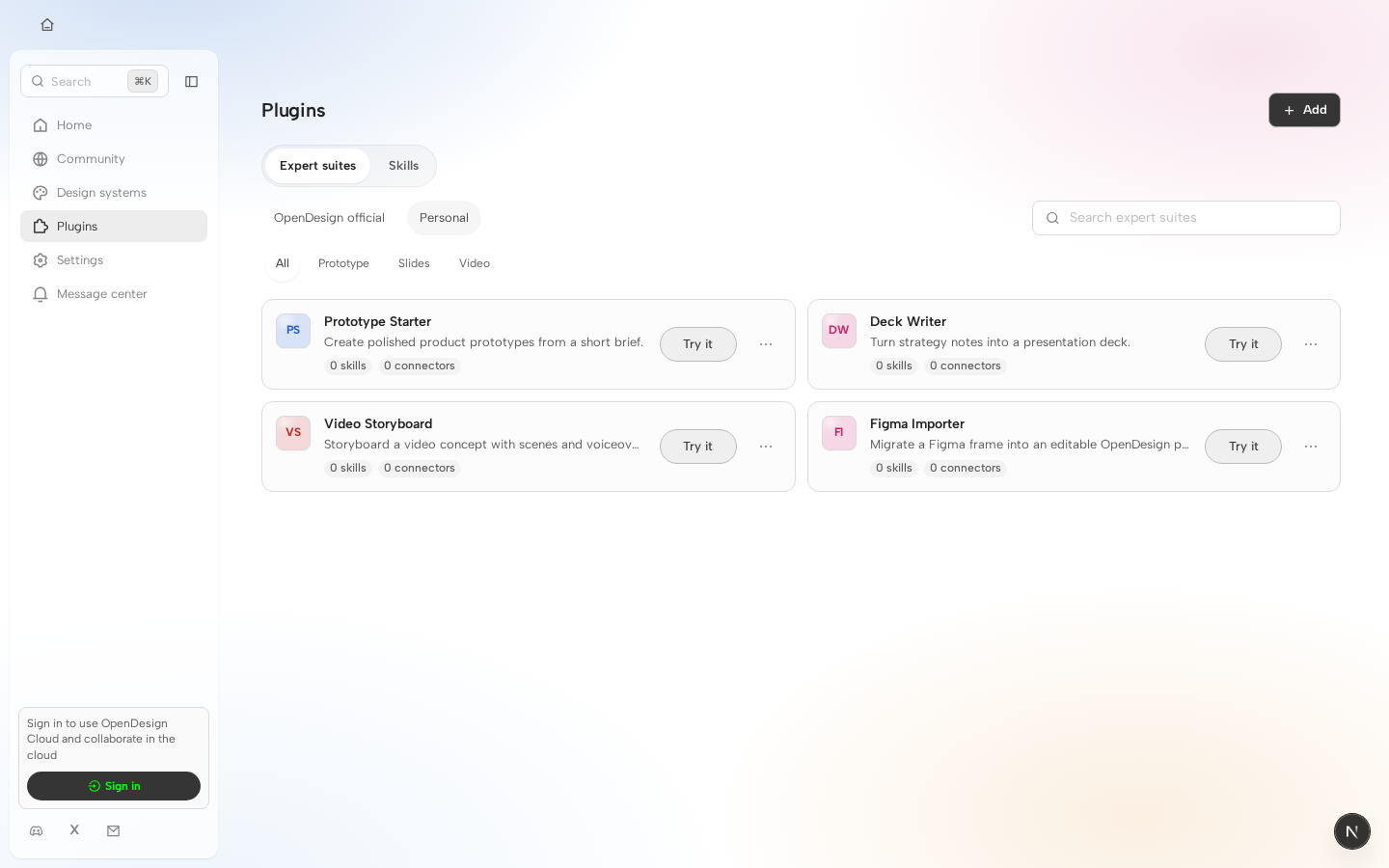

visual-home-catalog 0 px (0.00%)

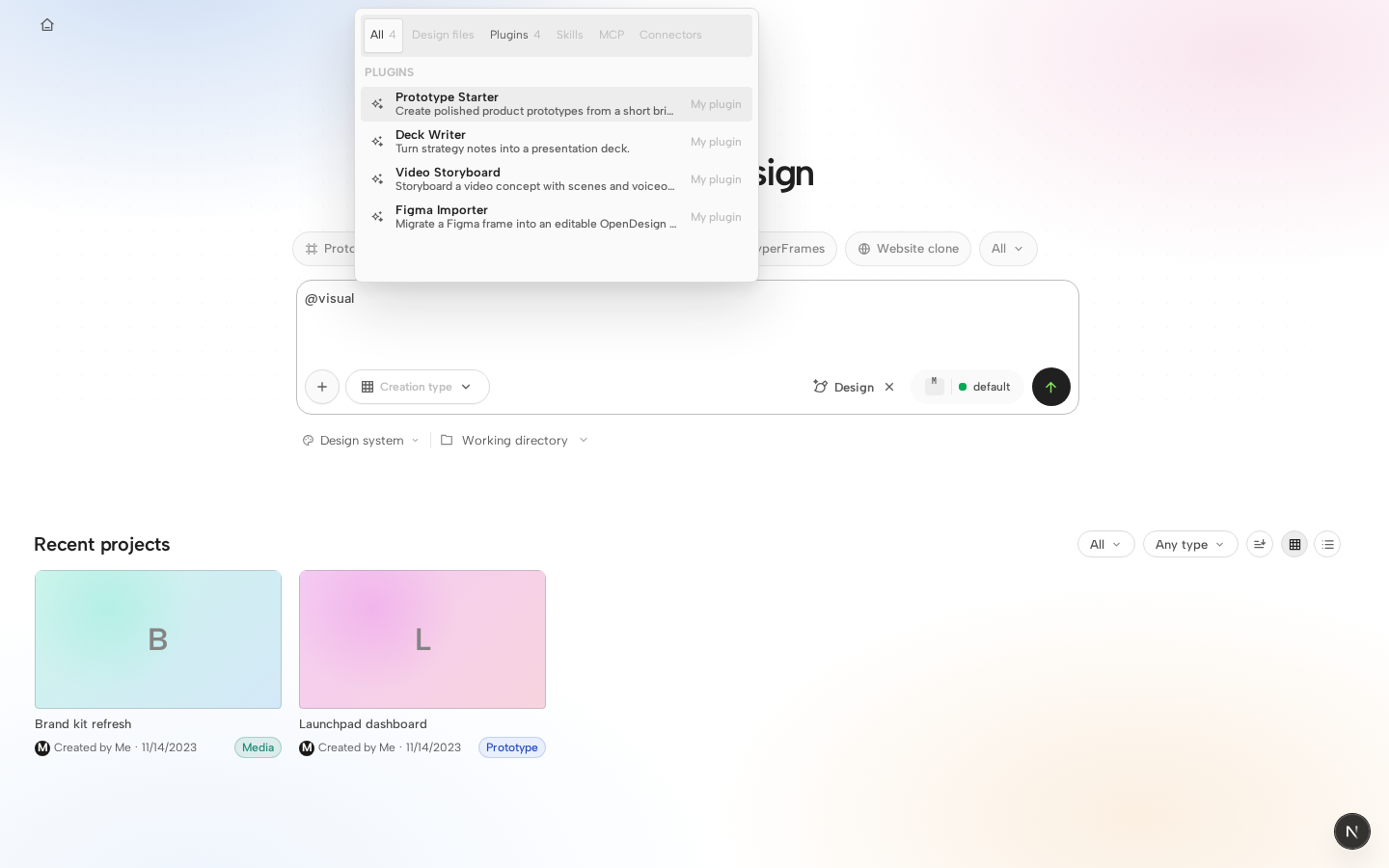

visual-home-context-picker 0 px (0.00%)

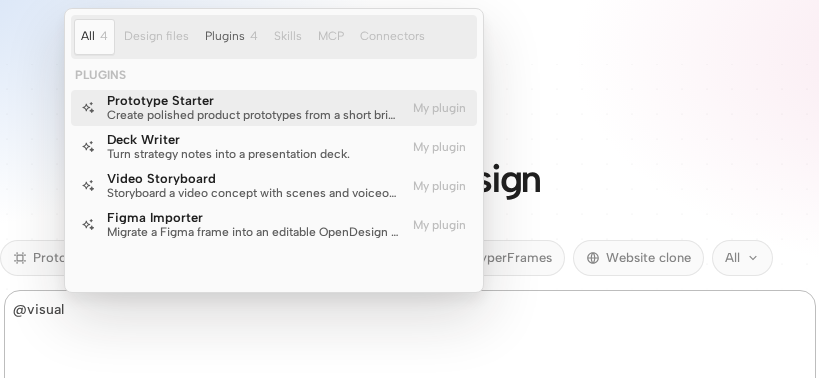

visual-home-context-picker-popover 0 px (0.00%)

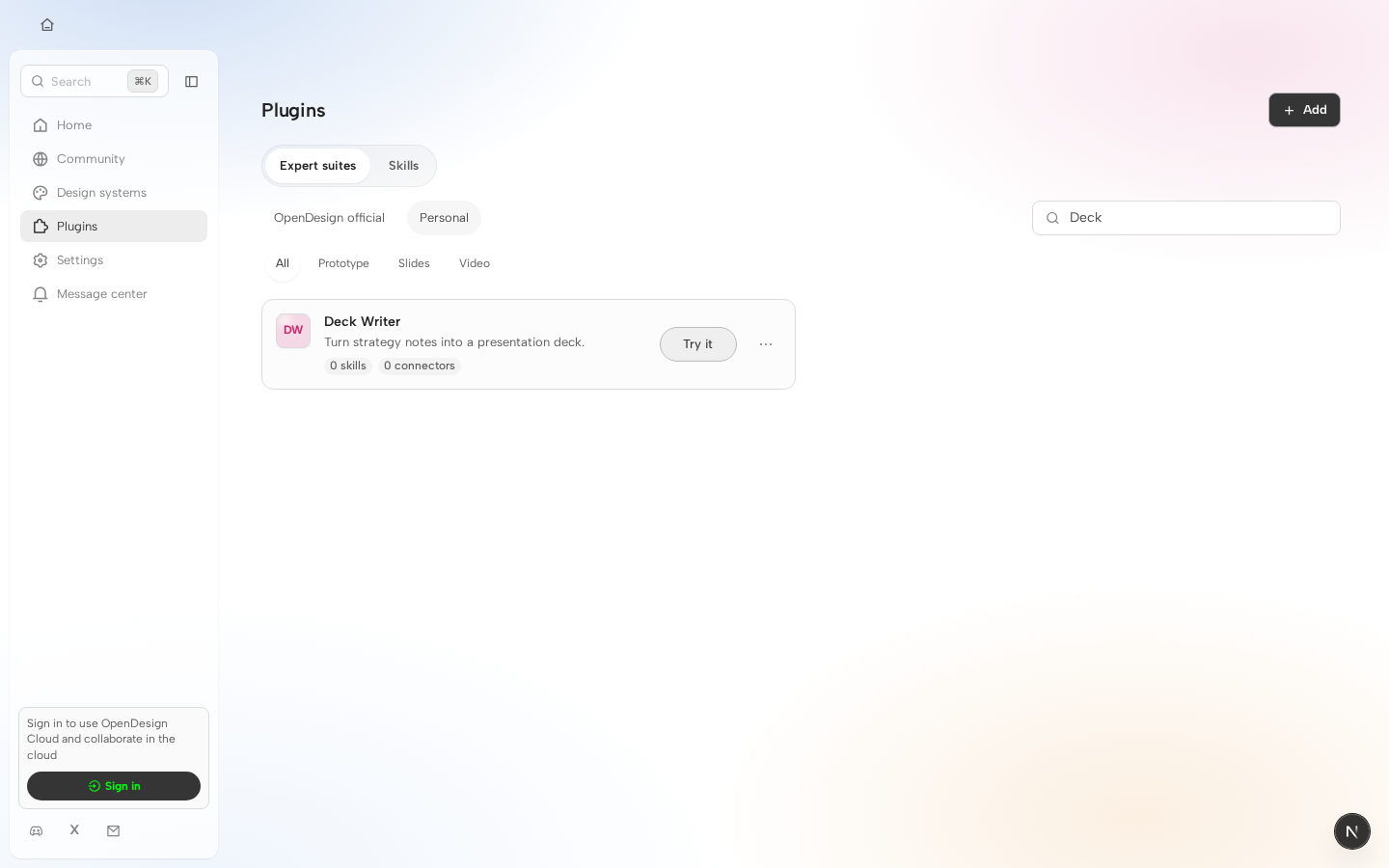

visual-home-plugin-filter 0 px (0.00%)

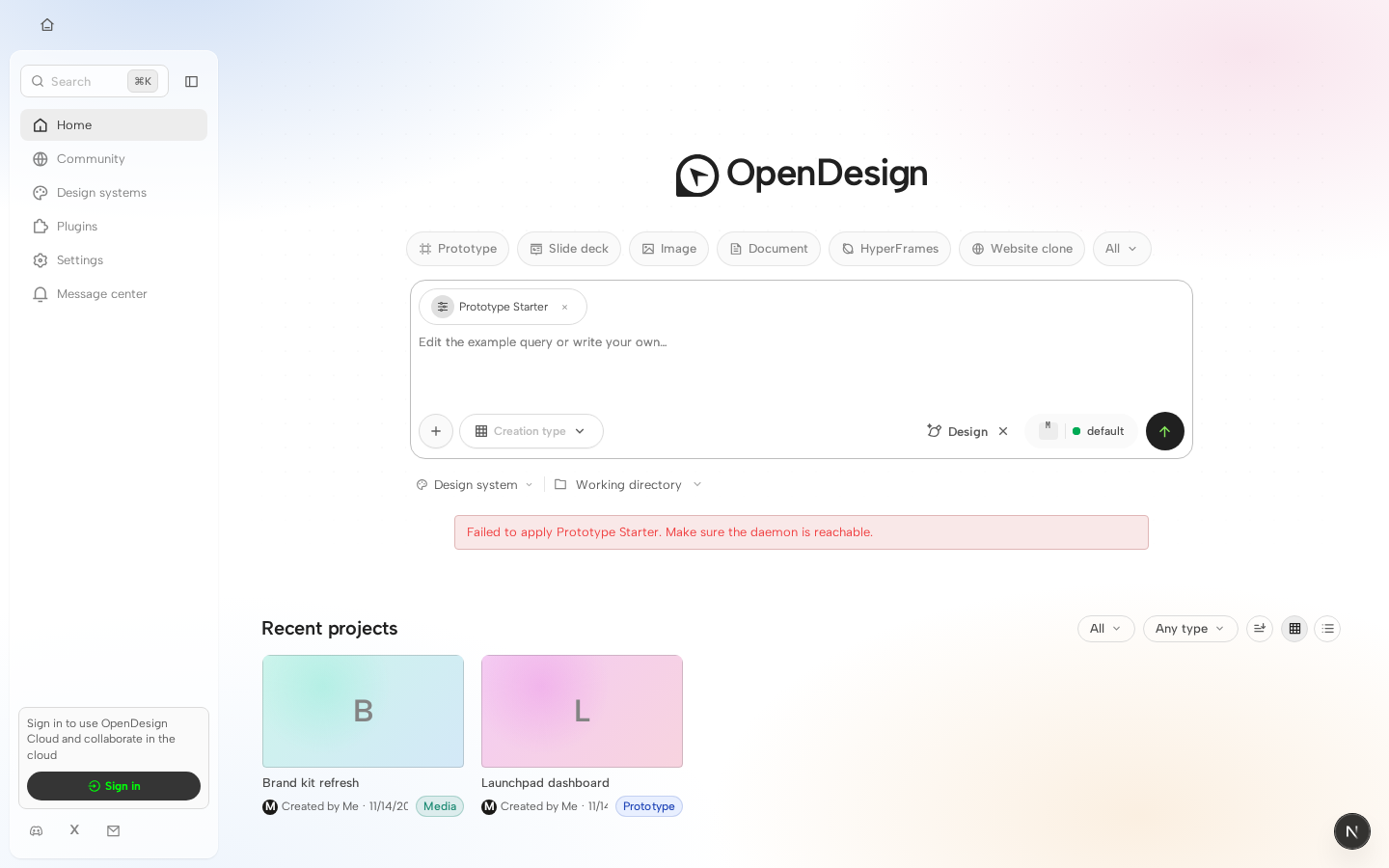

visual-home-plugin-use-staged 0 px (0.00%)
visual-home-plugin-use-with-query 0 px (0.00%)

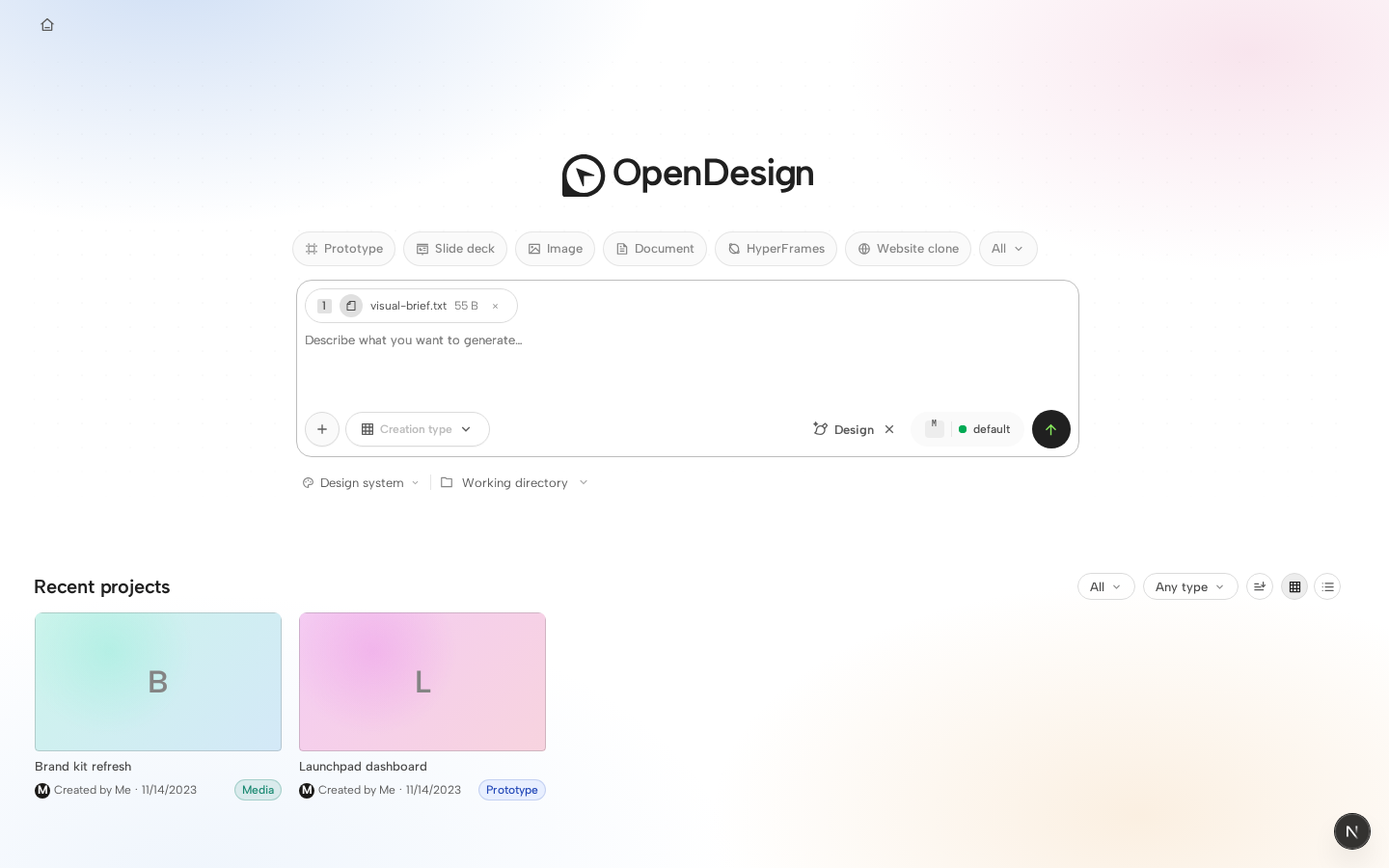

visual-home-staged-attachment 0 px (0.00%)

Visual diff is advisory only and does not block merging.

[xxiaoxiong]

Looking at the failed jobs:

• Workspace unit tests (run 32952976352) — fails on tests/main/pptx-layered-background.test.ts > treats real PNG buffers with any visible alpha as painted. The test runs Electron via xvfb-run and inspects PNG alpha channels; the failure is a paint-detection flake in Electron PNG rendering, completely unrelated to this 4-line z-index CSS change.
• UI P0 (entry-settings) / (project-runtime) — likely the same flake; z-index changes should make Settings render correctly, not break tests.
• Validate workspace — this is the project-specific 'convergence plan' check, not a test failure; it needs a maintainer handoff.

None of the changed files (3 CSS files: packages/components/src/dialog.module.css, apps/web/src/styles/viewer/memory.css, apps/web/src/styles/workspace/mention-home.css) are imported by the failing test, so this looks like a pre-existing flake on the merge queue side. A maintainer re-run of the affected jobs should clear it.
