Anyone can dock, everyone can do!

Anyone docking: Browser-based molecular docking — no installation required.

Paste a SMILES, draw a structure, or upload a file. Pick a PDB or CIF. Dock in seconds.

Recent updates: New CLI and Python API via anyonecandock on PyPI. New redock command — automatically re-docks the co-crystal ligand with zero SMILES input (RCSB CCD lookup → CIF block → 3D fallback). Receptor setup now auto-scans ligand-like HETATM records. Ligand preparation supports pKaNET-ranked microstates with manual rank selection.

🚀 Six ways to use Anyone Can Dock

Mode	Best for	How
🌐 Streamlit Web App	Quickest start, no setup	Open in browser →
☁️ Streamlit via Colab	Web UI on free GPU/CPU
🖥️ Streamlit locally	Full control, own machine	`pip install anyonecandock && streamlit run app.py`
📓 Colab notebook	Batch docking, scripting
⌨️ CLI (`acd`)	Automation, pipelines, scripts	`pip install anyonecandock` then `acd dock ...`
🐍 Python API	Programmatic integration	`from anyonecandock import core`
🤖 GPT / Claude plugin	Natural-language docking	See below ↓

🤖 AI Interfaces

Anyone Can Dock GPT

Ask GPT-4o to dock molecules using natural language.

Anyone Can Dock in Claude

Connect Claude to the ACD API as a custom MCP connector — ask Claude to dock molecules, search PDB targets, and interpret results directly in the chat.

Setup (3 steps):

Copy the MCP server URL:

https://anyone-can-dock-mcp.anyonecandock.workers.dev

Click the badge below to open Claude Connectors settings, then click "Add custom connector"
Paste the URL into Remote MCP server URL and click Add

Example prompts after connecting:

"dock quercetin into JAK2 and report binding affinity"
"compare erlotinib vs gefitinib binding to EGFR (1M17)"

Powered by: AutoDock Vina 1.2.7 · pKaNET protonation at pH 7.4 · MCP Streamable HTTP

MCP server URL: https://anyone-can-dock-mcp.anyonecandock.workers.dev

⌨️ CLI — `acd` command

Install from PyPI:

pip install anyonecandock

Commands

acd <command> [options]

  dock      Full pipeline: receptor + ligand + Vina (single ligand)
  redock    Self-docking validation — no SMILES input needed
  batch     Batch docking from a .smi file or SMILES list
  receptor  Prepare receptor only (download/convert → .pdb + .pdbqt + box)
  ligand    Prepare ligand only (SMILES/file → .pdbqt + .sdf)
  diagram   Generate a 2D interaction diagram SVG for a completed run

Quick examples

# Dock a single ligand by compound name
acd dock --receptor 1M17 --compound erlotinib

# Dock by SMILES
acd dock --receptor 4AGN --smiles "CCO" --name ethanol

# Dock from an existing receptor preparation (skips re-prep)
acd dock --receptor-json ./rec/receptor_summary.json --compound baicalein

# Dock from a structure file
acd dock --receptor structure.cif --ligand-file ligand.sdf --name mylig

# ── Redocking (self-docking validation) — NEW ──────────────────────────
# Re-docks the co-crystal ligand automatically; no SMILES required.
# SMILES acquired via: RCSB CCD → CIF _chem_comp.pdbx_smiles → 3D fallback
acd redock --receptor 4AGN
acd redock --receptor structure.cif --fmt CIF
acd redock --receptor 4AGN --resname DC3 --diagram
acd redock --receptor-json ./rec/receptor_summary.json

# Batch docking
acd batch --receptor 1M17 --ligands compounds.smi
acd batch --receptor 4AGN --smiles-list "CCO ethanol" "c1ccccc1O phenol"

`acd redock` — self-docking validation

The redock command automatically identifies and re-docks the co-crystal ligand present in a PDB/CIF structure — no SMILES input required.

acd redock --receptor <PDB_ID_or_FILE> [options]

Options:
  --resname     Override the auto-detected ligand residue name (e.g. DC3, ATP)
  --name        Output name for the re-docked ligand (default: residue code)
  --ph          Target pH for protonation (default: 7.4)
  --diagram     Generate 2D interaction diagram after docking
  --save-poses  Save each docked pose as an individual SDF/PDB file
  -e / --exhaustiveness   Vina exhaustiveness (default: 16)
  -n / --poses            Max poses to output (default: 10)
  -o / --output           Output directory (default: ./acd_redock)

SMILES acquisition order:

RCSB CCD REST API — ideal, stereo-correct, curated SMILES from the PDB chemical component dictionary
CIF _chem_comp.pdbx_smiles — parsed directly from the structure CIF (no network required)
3D coordinate conversion — RDKit + OpenBabel with hydrogen-aware bond perception (last resort; a warning is shown)

Redocking verdict (printed automatically):

✓ PASS — best pose RMSD ≤ 2.0 Å vs crystal
⚠ BORDERLINE — RMSD 2–3 Å
✗ FAIL — RMSD > 3.0 Å

All `acd dock` options

usage: acd dock [options]
acd dock --help

Protein:
  --receptor PDB_ID_or_FILE
      PDB ID (auto-downloaded) or path to .pdb/.cif
  --receptor-json PATH
      JSON from a previous acd receptor run
  --fmt {PDB,CIF}
      Input format (default: PDB)

Ligand:
  --smiles SMILES
      Ligand SMILES string
  --compound NAME
      Compound name for PubChem lookup
  --ligand-file PATH
      Ligand structure file (.sdf/.mol2/.pdb)
  --name NAME
      Output name (default: LIG)
  --ph PH
      Target pH (default: 7.4)
  --neutral
      Keep the input charge and add hydrogens only
  --no-pubchem
      Skip PubChem pKa lookup

Docking box:
  --center {auto,manual,selection}
      Box center mode (default: auto)
  --cx X
      Manual box-center X coordinate
  --cy Y
      Manual box-center Y coordinate
  --cz Z
      Manual box-center Z coordinate
  --bx Å
      Box X size, 10–40 Å (default: 18)
  --by Å
      Box Y size, 10–40 Å (default: 18)
  --bz Å
      Box Z size, 10–40 Å (default: 18)

pKaNET:
  --max-tautomers N
      Maximum tautomers, 1–20 (default: 8)
  --ph-window PH
      pH window, 0.2–2.0 (default: 1.0)
  --conformer-seed N
      RDKit conformer seed (default: random)

Vina:
  -e N, --exhaustiveness N
      Vina exhaustiveness (default: 16)
  -n N, --poses N
      Maximum poses (default: 10)
  --energy-range KCAL
      Energy range in kcal/mol (default: 3)
  --seed N
      Vina random seed (default: random)

Validation and output:
  --redock-smiles "SMILES [name]"
      Dock a reference co-crystal ligand
  --save-poses
      Save individual pose files
  --diagram
      Generate a 2D interaction diagram
  -o OUTPUT, --output OUTPUT
      Output directory (default: ./acd_results)

🐍 Python API

from anyonecandock import core

# Reproducibility settings
SEED = 72
BOX_SIZE = (18, 18, 18)
vina_bin = "/path/to/vina"

# Prepare receptor
result = core.prepare_receptor(
    raw_pdb="raw.pdb",
    wdir="./rec",
    box_size=BOX_SIZE,
)

# Prepare ligand using heuristic pKaNET backend
lig = core.prepare_ligand(
    smiles="c1ccc(cc1)O",
    name="phenol",
    ph=7.4,
    wdir="./lig",
    mode="pkanet",
    use_pubchem=False,
    max_tautomers=8,
    ph_window=1.0,
    conformer_seed=SEED,
)

# Run deterministic docking
dock = core.run_vina(
    receptor_pdbqt=result["rec_pdbqt"],
    ligand_pdbqt=lig["pdbqt"],
    config_txt=result["config_txt"],
    vina_path=vina_bin,
    exhaustiveness=16,
    n_modes=10,
    energy_range=3,
    seed=SEED,
    wdir="./out",
    out_name="phenol",
)

print("Top score:", dock["top_score"])

# Auto-detect co-crystal SMILES
smiles, source, warning = core.get_cocrystal_smiles(
    ligand_pdb_path=result["ligand_pdb_path"],
    cocrystal_ligand_id=result["cocrystal_ligand_id"],
    raw_pdb="raw.cif",
)

print(f"SMILES source: {source}")
print(f"SMILES: {smiles}")
if warning:
    print(f"Warning: {warning}")

# 2D interaction diagram
svg_bytes = core.draw_interaction_diagram(
    receptor_pdb=result["rec_fh"],
    pose_sdf="./out/phenol_out.sdf",
    smiles=lig["prot_smiles"],
    title="Phenol · 4AGN",
)

with open("./out/diagram.svg", "wb") as handle:
    handle.write(svg_bytes)

🌐 Streamlit Web App

The simplest entry point — no installation, runs in the browser.

Supports single and batch docking, all 2D diagram engines, interactive drag layout, ADME predictions, and ready-to-use figure export.

☁️ Streamlit via Google Colab

Run the full Streamlit web interface on Colab's free compute tier — no local install needed.

📓 Colab Notebook (batch docking)

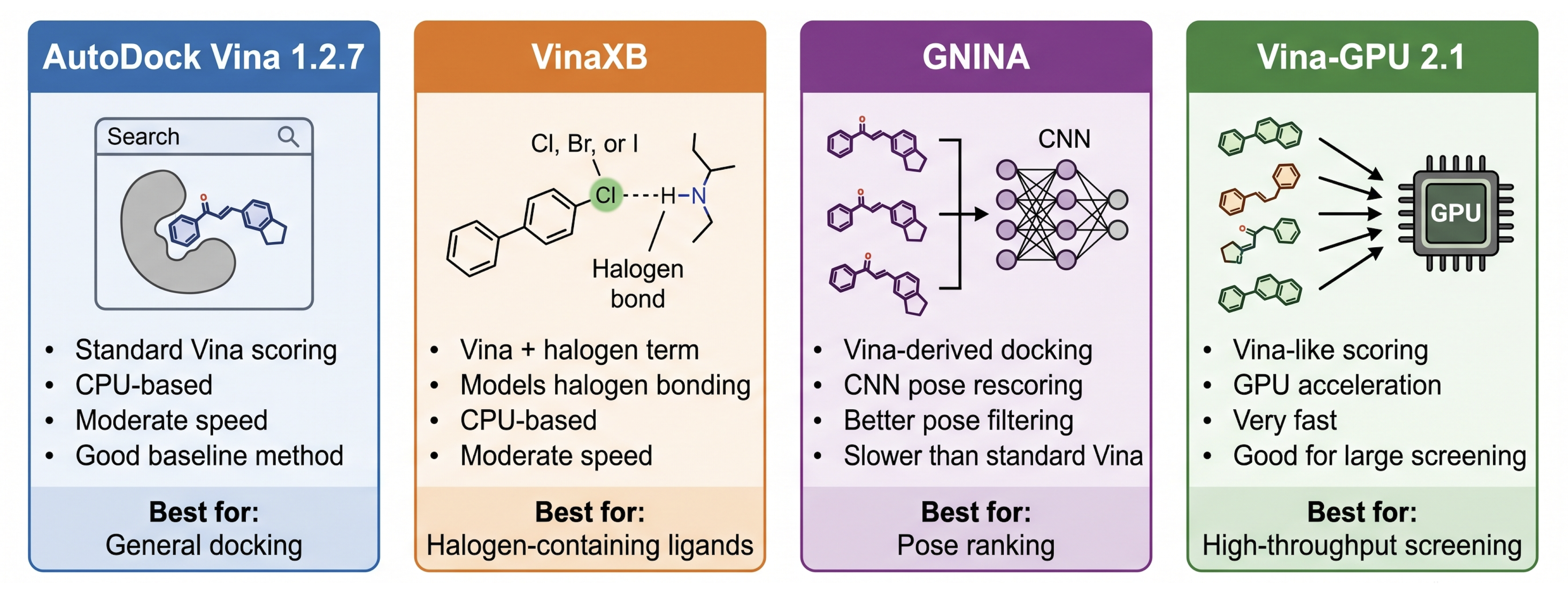

Batch docking with 4 docking engines in a Python notebook environment:

🖥️ Run Streamlit locally

The local app uses the deterministic heuristic pKaNET backend. ML pKa backends are disabled.

Linux (Ubuntu/Debian)

sudo apt update

sudo apt install -y \
  python3.11 \
  python3.11-venv \
  openbabel \
  libcairo2-dev \
  libpango1.0-dev \
  libpangocairo-1.0-0

git clone https://github.com/nyelidl/anyone-docking-local.git
cd anyone-docking-local

python3.11 -m venv venv
source venv/bin/activate

python -m pip install --upgrade pip
python -m pip install -r requirements.txt

streamlit run app.py

macOS

brew update
brew install python@3.11 open-babel cairo pango

git clone https://github.com/nyelidl/anyone-docking-local.git
cd anyone-docking-local

python3.11 -m venv venv
source venv/bin/activate

python -m pip install --upgrade pip
python -m pip install -r requirements.txt

streamlit run app.py

Apple Silicon (M1–M4): Fully supported — the app auto-downloads the correct aarch64 Vina binary.

Windows

Recommended: Use WSL2 with Ubuntu and follow the Linux instructions above.

For native Windows:

Install OpenBabel from openbabel.org and add to PATH
Install Cairo/Pango via conda: conda install -c conda-forge cairo pango

git clone https://github.com/nyelidl/anyone-docking-local.git
cd anyone-docking-local
python -m venv venv && venv\Scripts\activate
pip install -r requirements.txt
streamlit run app.py

Streamlit Cloud deployment

anyone-docking/
├── app.py
├── core.py
├── requirements.txt   # Python packages
└── packages.txt       # System packages (openbabel, libcairo2-dev, …)

✨ What it does


🔬	Single & batch docking via AutoDock Vina 1.2.7
♻️	`redock` — self-docking validation — auto-fetches co-crystal SMILES (RCSB CCD → CIF → 3D), docks, reports RMSD verdict
🏗️	Guided receptor prep — download any PDB/CIF, review ligand candidates automatically, strip solvent, add hydrogens
📄	PDB & mmCIF support — upload `.pdb` or `.cif` files or download from RCSB (auto-fallback to CIF for large entries)
🎯	Smart grid detection — auto-detects ligand-like HETATM records; shows dropdown only when multiple candidates exist
✏️	3-way ligand input — SMILES text, file upload, or draw in Ketcher
🧬	pKaNET-ranked microstates — tautomer-aware protonation at target pH with manual rank selection Open in browser →
⚖️	Conservative docking-state selection — avoids over-deprotonated states for polyphenols, flavonoids, coumarins
🧬	Heme-aware preparation — HEM/HEC/HEA/HEB stripped before OpenBabel, re-injected with correct AD4 atom types
⚗️	Water/cofactor/metal control — remove waters, keep metals, keep/strip FAD/NAD/ATP/CoA independently
🗺️	Three 2D diagram engines: ACD custom SVG · RDKit · PoseView (proteins.plus)
🖱️	Interactive drag mode — reposition residue labels in real time, export PNG (up to 600 dpi) or SVG
🔭	Binding pocket viewer — interacting residues as orange sticks with adjustable distance cutoff
🤖	AI-ready prompt — auto-filled for Claude, GPT-4o, Gemini; adapts to redocking context
📊	3D viewers — animated multi-pose sweep, pose selector, binding pocket view
📁	One-click ZIP — all poses, corrected SDFs, diagrams, score plot, pKaNET log

🗺️ 2D Interaction Diagrams

Three tabs — each with a different rendering engine:

🧬 Anyone Can Dock 2D Diagram (default)

Feature	Detail
8 interaction types	H-bond (distance on line), hydrophobic, π-π, cation-π, ionic, metal/heme, halogen bond, H···halogen
Geometry-based	All interactions computed from 3D coordinates — no server, works offline
ACS-style bonds	Bond widths, double-bond spacing, and wedge geometry follow ACS publication standards
Smart layout	Radial placement by interaction angle; push-apart prevents overlap
Interactive drag	Reposition any residue label in real time; distance labels update live
Export	SVG (vector) · PNG at 1× / 2× (150 dpi) / 3× (300 dpi) / 4× (600 dpi)

🔬 RDKit 2D Diagram

Classic highlight-circle style. H-bond (blue) · Hydrophobic (green) · Other/metal (pink). Side-by-side with co-crystal reference when available.

🔬 PoseView (proteins.plus)

REST API submission of receptor + docked pose. PoseView v1 (docked pose) + PoseView2 (co-crystal reference by PDB code + ligand ID). Built-in API test and manual fallback download.

⚠️ PoseView limitation: charged species are shown in neutral form. Use ACD or RDKit diagrams for ligands with formal charges.

🧬 Supported protein types

Protein class	Support	Notes
Standard single-chain proteins	✅ Full	Primary use case
Multi-chain / homo-oligomers	✅ Full	Duplicate chains deduplicated; chain A ligand auto-selected
Heme proteins (CYP450, peroxidases, Hb, Mb)	✅ Full	Fe-porphyrin handled separately; grid auto-centers on Fe
Metal-binding proteins (zinc fingers, carbonic anhydrase)	✅ Full	ZN, MG, CA, MN, FE, CU re-injected with correct charges
MD simulation outputs (GROMACS, AMBER)	✅ Full	Blank chain IDs auto-assigned to chain A
Non-standard ligand names (MOL, LIG, UNL, INH)	✅ Full
Modified amino acids (CYP, MSE, TPO, SEP)	✅ Full	Backbone atom check keeps them in receptor
Multiple co-crystal ligands	✅ Full	Dropdown shown only when needed
Cofactor-binding proteins (FAD, NAD, ATP, CoA)	✅ Full	Kept or stripped independently
Glycoproteins	⚠️ Partial	Glycans kept in receptor; not in 2D diagram
Membrane proteins	⚠️ Partial	Dockable without lipids; lipids not auto-filtered
RNA / DNA targets	⚠️ Partial	Basic interaction detection; no nucleic-acid-specific types
Covalent docking	❌ No	Vina is non-covalent only

♻️ Redocking validation

Available in all modes (Streamlit, CLI acd redock, API, Colab):

Feature	Description
Auto SMILES acquisition	RCSB CCD API → CIF `_chem_comp.pdbx_smiles` → 3D conversion (no manual input needed)
RMSD vs crystal	Heavy-atom RMSD via MCS matching against original crystal pose
Verdict	PASS ≤ 2.0 Å · BORDERLINE 2–3 Å · FAIL > 3.0 Å
Reference score line	Dashed red line on affinity plot
Pose confirmation	Browse reference poses, pin as baseline for score comparisons
Download	Export reference poses as SDF/PDBQT

💻 Platform compatibility

Platform	Vina binary	OpenBabel	Status
Linux x86_64	✅ Auto-download	`apt install openbabel`	Fully supported (primary)
macOS Intel	✅ Auto-download	`brew install open-babel`	Fully supported
macOS Apple Silicon (M1–M4)	✅ Native `aarch64`	`brew install open-babel`	Fully supported
Windows x86_64	✅ Auto-download	Installer	Supported (WSL2 recommended)
Streamlit Cloud	✅ Auto-download	via `packages.txt`	Fully supported
Google Colab	✅ Auto-download	`!apt install openbabel`	Fully supported

🧬 pKaNET microstate selection

Mode	Meaning
Auto recommended	pKaNET recommendation. For ambiguous systems (polyphenols, coumarins, flavonoids), may choose a conservative state rather than the highest score
Highest-scoring	Top-ranked pKaNET state directly
Manual rank	Choose any ranked microstate from a dropdown before docking

⚗️ Water, cofactor & metal options

Option	Default	Effect
Remove waters	✅ On	Removes crystallographic waters
Keep metal ions	✅ On	Keeps ZN, MG, CA, MN, FE, CU, CO, NI, CD, HG, NA, K
Keep cofactors	✅ On	Keeps ATP, ADP, FAD, FMN, NAD, CoA, SAM, HEM

Buffers and additives (GOL, EDO, PEG, SO4, PO4) are removed by default.

📄 Citation

If you use this tool in research, please cite:

AutoDock Vina 1.2.7 Eberhardt et al., J. Chem. Inf. Model., 2021 · DOI: 10.1021/acs.jcim.1c00203

DFDD Hengphasatporn, K.; Duan, L.; Harada, R.; Shigeta, Y., J. Chem. Inf. Model., 2026 · DOI: 10.1021/acs.jcim.5c02852

RDKit · Landrum, G. (2023) · https://www.rdkit.org

ProDy · Bakan et al., Bioinformatics, 2011 · DOI: 10.1093/bioinformatics/btr168

stmol · Nápoles-Duarte et al., Front. Mol. Biosci., 2022 · DOI: 10.3389/fmolb.2022.990846

Dimorphite-DL · Ropp et al., J. Cheminform., 2019 · DOI: 10.1186/s13321-019-0336-9

pKaNET Cloud · Please cite the corresponding manuscript when available.

gemmi (optional, for CIF support) · Wojdyr, M., JOSS, 2022 · DOI: 10.21105/joss.04200

📜 License

MIT License — see LICENSE for details.

Name		Name	Last commit message	Last commit date
Latest commit History 1,097 Commits
.devcontainer		.devcontainer
pKaNET_Cloud_BM		pKaNET_Cloud_BM
st		st
LICENSE		LICENSE
README.md		README.md
Third-Party _Software_License_Declaration.txt		Third-Party _Software_License_Declaration.txt
any-L.svg		any-L.svg
app.py		app.py
core.py		core.py
index.html		index.html
manifest.json		manifest.json
pKaNET.py		pKaNET.py
packages.txt		packages.txt
requirements.txt		requirements.txt

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Repository files navigation

Anyone can dock, everyone can do!

🚀 Six ways to use Anyone Can Dock

🤖 AI Interfaces

Anyone Can Dock GPT

Anyone Can Dock in Claude

⌨️ CLI — `acd` command

Commands

Quick examples

`acd redock` — self-docking validation

All `acd dock` options

🐍 Python API

🌐 Streamlit Web App

☁️ Streamlit via Google Colab

📓 Colab Notebook (batch docking)

🖥️ Run Streamlit locally

Linux (Ubuntu/Debian)

macOS

Windows

Streamlit Cloud deployment

✨ What it does

🗺️ 2D Interaction Diagrams

🧬 Anyone Can Dock 2D Diagram (default)

🔬 RDKit 2D Diagram

🔬 PoseView (proteins.plus)

🧬 Supported protein types

♻️ Redocking validation

💻 Platform compatibility

🧬 pKaNET microstate selection

⚗️ Water, cofactor & metal options

📄 Citation

📜 License

About

Releases

Packages

Contributors

Languages

Folders and files

Latest commit

History

Repository files navigation

Anyone can dock, everyone can do!

🚀 Six ways to use Anyone Can Dock

🤖 AI Interfaces

Anyone Can Dock GPT

Anyone Can Dock in Claude

⌨️ CLI — acd command

Commands

Quick examples

acd redock — self-docking validation

All acd dock options

🐍 Python API

🌐 Streamlit Web App

☁️ Streamlit via Google Colab

📓 Colab Notebook (batch docking)

🖥️ Run Streamlit locally

Linux (Ubuntu/Debian)

macOS

Windows

Streamlit Cloud deployment

✨ What it does

🗺️ 2D Interaction Diagrams

🧬 Anyone Can Dock 2D Diagram (default)

🔬 RDKit 2D Diagram

🔬 PoseView (proteins.plus)

🧬 Supported protein types

♻️ Redocking validation

💻 Platform compatibility

🧬 pKaNET microstate selection

⚗️ Water, cofactor & metal options

📄 Citation

📜 License

About

Resources

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages

⌨️ CLI — `acd` command

`acd redock` — self-docking validation

All `acd dock` options
