Treemap Card for Home Assistant

Free open source community project.
If you find it useful, please support it by giving a ⭐️ on GitHub

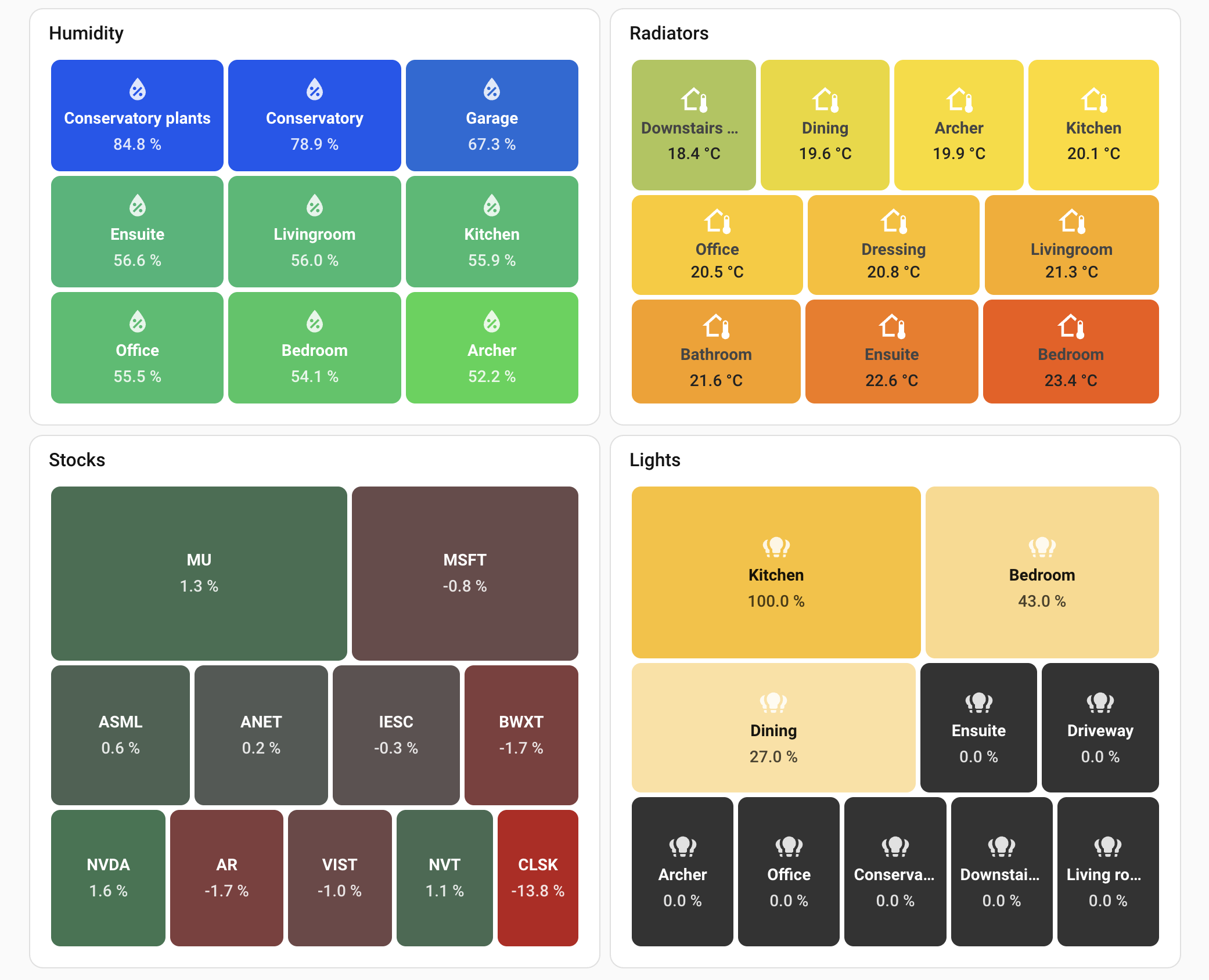

A custom Lovelace card that dynamically visualizes entities as a treemap. Rectangle sizes represent relative values while colors indicate status - perfect for comparing sensors, lights, thermostats, portfolios or any numeric data at a glance.

Why Treemap Card?

• Optimized for thousands of entities without breaking a sweat
• Works beautifully with sensors, lights, thermostats, and custom data
• Smart defaults, fully customizable - including per-tile CSS when you need pixel-perfect control
• Works with auto-entities for advanced filtering (area, device, label)
• 18 KB gzipped, 90%+ test coverage

Installation

HACS (Recommended)

Or manually:

1. Go to HACS → Frontend
2. Search for "Treemap Card"
3. Install and restart Home Assistant

Manual

Download treemap-card.js from releases and follow the official guide.

Data Modes

The card supports two ways to get data:

Entities Mode

Display Home Assistant entities directly. Supports wildcards and per-entity customization.

type: custom:treemap-card
entities:
  - sensor.temperature_* # Wildcard pattern
  - sensor.humidity_*
  - entity: sensor.power_total # Object format with overrides
    name: 'Total Power'
    icon: mdi:lightning-bolt
exclude:
  - sensor.*_battery

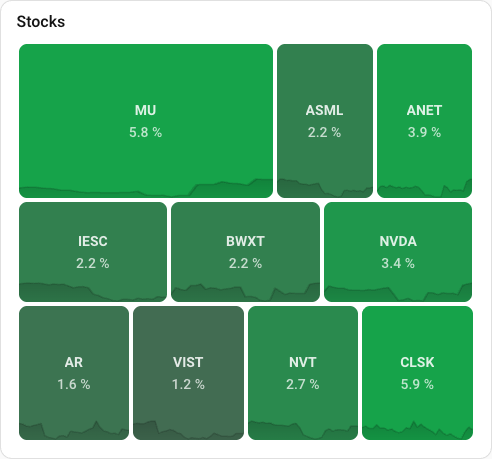

JSON Attribute Mode

For data where all values come from a single entity as JSON. Since Home Assistant doesn't allow JSON as sensor state values, structured data must be stored in attributes - a common pattern when feeding HA from external sources like Node-RED or custom integrations. This is ideal when you don't want (or can't) create individual sensors for each data item, especially for dynamic lists like stock portfolios, server metrics, or any array of objects.

type: custom:treemap-card
entity: sensor.my_data
data_attribute: items
label:
  attribute: name
value:
  attribute: amount

Entity Types

The card is optimized for three entity types, each with special handling.

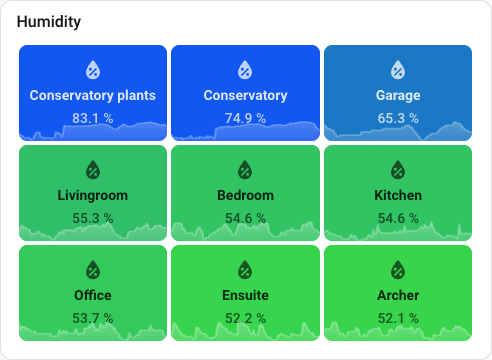

Sensors

Standard numeric sensors like temperature, humidity, battery levels, energy usage.

type: custom:treemap-card
header:
  title: Humidity Levels
entities:
  - sensor.*_humidity
exclude:
  - sensor.*target*
size:
  equal: true
value:
  suffix: '%'
color:
  low: '#4dabf7'
  mid: '#69db7c'
  high: '#ff6b35'
  scale:
    neutral: 50
    min: 30
    max: 70
label:
  replace: ' Humidity$//'
height: 300

Lights

Light entities automatically use brightness for sizing and display their actual color.

• RGB/HS color lights: Rectangle shows the light's actual color
• Dimmable-only lights: Yellow gradient based on brightness
• Off lights: Uses color.low (default: dark gray #333333)

type: custom:treemap-card
header:
  title: Lights
entities:
  - light.*
color:
  low: '#1a1a1a'
  high: '#fbbf24'
height: 300

Light-specific behavior:

Feature	Behavior
Size	Based on brightness (brighter = bigger)
Color	Actual light color (RGB/HS) if available
Off state	Uses color.low value
Value	Shows brightness percentage

Climate

Climate entities (thermostats, HVAC) support special computed values that make it easy to visualize which rooms need attention.

Standard attributes you can use:

Attribute	What it shows
current_temperature	Current room temperature
temperature	Target/setpoint temperature
hvac_action	Current action: heating, cooling, idle, off

Computed attributes - calculated automatically for you:

Attribute	What it shows	Best for
temp_difference	How far from target (always positive). A room 3°C too cold or 3°C too hot both show 3.	Sizing - rooms furthest from target get biggest rectangles
temp_offset	Direction from target. Too cold = negative, too hot = positive.	Coloring - blue for cold, red for hot

Smart offset behavior: The card understands your heating/cooling goals:

• Heating mode: If the room is already warm enough, offset shows 0 (not a positive number)
• Cooling mode: If the room is already cool enough, offset shows 0 (not a negative number)

Example: Room at 24°C, target 21°C, mode is heating → shows 0.0°C because it's warm enough. No action needed.

Example: Temperature offset view

Show how far each room is from target. Blue = too cold, green = on target, orange = too hot:

type: custom:treemap-card
header:
  title: Temperature Offset
entities:
  - climate.*
size:
  attribute: temp_difference
  inverse: true
value:
  attribute: temp_offset
  suffix: '°C'
color:
  attribute: temp_offset
  low: '#4dabf7'
  mid: '#69db7c'
  high: '#ff6b35'
  scale:
    neutral: 0
    min: -3
    max: 3
label:
  replace: ^Wiser //
height: 350

Example: Current temperature with HVAC status

Show current temperature, colored by value but override when actively heating/cooling:

type: custom:treemap-card
header:
  title: Room Temperatures
entities:
  - climate.*
size:
  equal: true
value:
  attribute: current_temperature
  suffix: '°C'
color:
  low: '#4dabf7'
  mid: '#69db7c'
  high: '#ff6b35'
  scale:
    neutral: 21
    min: 18
    max: 24
  hvac:
    heating: '#ff6b35'
    cooling: '#4dabf7'
label:
  replace: ^Wiser //
height: 400

HVAC color behavior:

When color.hvac is configured:

State	Color behavior
heating	Uses hvac.heating color (overrides gradient)
cooling	Uses hvac.cooling color (overrides gradient)
idle	Uses gradient based on value (so you see temp offset)
off / unavailable	Always uses hvac.off color (default: gray #868e96)

This lets you see temperature-based colors normally, but immediately spot which rooms are actively heating or cooling.

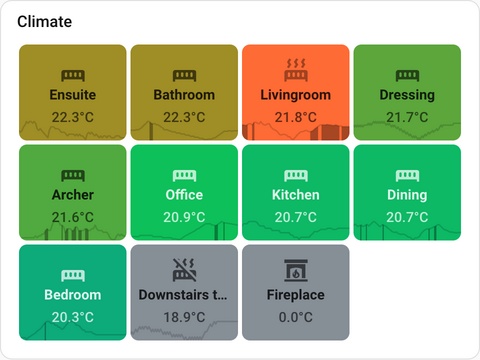

Climate sparklines:

Climate entities show temperature history with HVAC activity highlighted. The filled sections indicate when heating (or cooling) was active, making it easy to see how often each room needed climate control.

Configuration Reference

Data Source

Option	Default	Description
entities		List of entity IDs or patterns. Supports wildcards (sensor.*) and object format ({ entity, name, icon }).
exclude		List of entity patterns to exclude. Supports * wildcards.
entity		Single entity ID with array data in attributes (JSON mode).
data_attribute	items	Which attribute contains the array (JSON mode).

Label

Option	Default	Description
label.show	true	Show/hide labels.
label.attribute	friendly_name	Field/attribute for label. Default: friendly_name (entities) or label (JSON).
label.replace		Regex to clean labels. Format: pattern/replacement/flags. Example: ^Wiser // removes "Wiser " prefix.
label.prefix		Text before label.
label.suffix		Text after label.
label.style		CSS for labels.

Value

Option	Default	Description
value.show	true	Show/hide values.
value.attribute	state	Field/attribute for value. Default: state (entities) or value (JSON). Climate: current_temperature, temperature, temp_offset, etc.
value.precision	1	Number of decimal places. Default uses entity's display_precision from HA registry, or 1 if not set.
value.abbreviate	false	Abbreviate large numbers with suffixes: k (thousands), M (millions), B (billions), T (trillions).
value.prefix		Text before value.
value.suffix		Text after value. Example: °C, %.
value.style		CSS for values.

Value Formatting

Control how numbers are displayed using precision (decimal places) and abbreviate (large number suffixes).

precision	abbreviate	Input	Output	Description
0	false	1234.5	1235	Whole number (rounded)
1	false	1234.56	1234.6	1 decimal place
2	false	1234.5	1234.50	2 decimal places
0	true	1234	1k	Abbreviated whole
1	true	2345	2.3k	Abbreviated, 1 decimal
2	true	1234567	1.23M	Abbreviated, 2 decimals

Precision priority: value.precision config > entity's display_precision from HA registry > default 1

Examples:

# Show whole numbers (no decimals)
value:
  precision: 0

# Show 2 decimal places
value:
  precision: 2

# Large values abbreviated (2.3k, 1.5M)
value:
  precision: 1
  abbreviate: true

Size

Option	Default	Description
size.attribute	same as value.attribute	Field/attribute for sizing. For climate: temp_difference works well with inverse: true.
size.equal	false	All rectangles same size.
size.inverse	false	Low values get bigger rectangles.
size.min	auto	Minimum size floor in entity units (e.g., 5 for 5W or 5°C). Ensures zero-value items visible. 0 hides them.
size.max		Maximum size cap in entity units (e.g., 500 for 500W). Prevents outliers from dominating the layout.

Color

Option	Default	Description
color.target	background	Where to apply color: background (default) or foreground (text/icon).
color.low	#b91c1c (red)	Color for lowest values. Also used for off lights.
color.mid		Optional middle color. Creates three-color gradient: low → mid → high.
color.high	#16a34a (green)	Color for highest values.
color.unavailable	#868e96 (gray)	Color for unavailable/unknown entities. See filter.unavailable.
color.opacity	1	Color opacity (0-1).
color.attribute	same as value.attribute	Field/attribute for coloring. For climate: temp_offset, hvac_action.
color.scale.neutral		Value where mid color appears. Example: 0 for profit/loss, 21 for temperature.
color.scale.min	auto	Values at or below get full low color.
color.scale.max	auto	Values at or above get full high color.
color.hvac.heating	#ff6b35	Color when actively heating (climate only).
color.hvac.cooling	#4dabf7	Color when actively cooling (climate only).
color.hvac.idle		Not used - idle falls back to gradient.
color.hvac.off	#868e96	Color for off/unavailable climate entities.

Foreground coloring:

Use color.target: foreground to apply the gradient color to text and icons instead of the background. The background becomes a subtle dark overlay, making the colored text stand out.

type: custom:treemap-card
entities:
  - sensor.temperature_*
color:
  target: foreground
  low: '#4dabf7'
  high: '#ff6b35'

Note: Custom styles (label.style, value.style, icon.style) always take priority over color.target.

Icon

Option	Default	Description
icon.show	true	Show/hide icons.
icon.icon		Static icon for all items. Example: mdi:thermometer.
icon.attribute	icon	Field/attribute containing icon.
icon.style		CSS for icons.

Order & Filter

Option	Default	Description
order	desc	Sort order: desc (largest first) or asc (smallest first).
limit		Maximum items to show.
filter.above		Only show items with value greater than this.
filter.below		Only show items with value less than this.
filter.unavailable	false	Include entities that stopped reporting or are unreachable (unavailable, unknown, none states). Useful for battery monitoring where dead sensors matter as much as low batteries. Displays state text and gray background (customize via color.unavailable).

Note: These filters work on entity values after entities are resolved. For entity-level filtering (by area, device, label, attributes), see the Auto-Entities guide.

Layout

Option	Default	Description
height	auto	Card height in pixels. Auto-calculates based on row count (~100px per row).
gap	6	Space between rectangles in pixels.

Title & Header guide

Two ways to add a title - use one or the other, not both:

title - Uses Home Assistant's built-in card header. Consistent with other HA cards, but no customization options.

title: Humidity

header - Custom compact header with full styling control. Takes less vertical space than HA's default.

header:
  title: Humidity
  style: |
    font-size: 14px;
    padding: 4px 16px;

If both are set, header.title takes precedence and title is ignored.

Styling guide

Customize the appearance with inline CSS. All style options accept multiline YAML strings.

header:
  title: My Treemap
  style: |
    font-size: 20px;
    color: red;
label:
  style: |
    text-shadow: 0 0 10px rgba(0,0,0,0.5);
value:
  style: |
    font-size: 18px;
    font-weight: bold;
icon:
  style: |
    opacity: 0.8;
card_style: |
  background: transparent;

Option	Description
header.show	Show or hide custom header. Default: true if header.title is set.
header.title	Custom header text. More compact than HA's default title.
header.style	CSS for the custom header. Example: font-size: 14px; padding: 4px 16px;
label.style	CSS for labels. Example: text-shadow: 0 0 10px rgba(0,0,0,0.3);
value.style	CSS for values. Example: font-size: 18px;
icon.style	CSS for icons. Example: color: white; opacity: 0.8;
card_style	CSS for the entire card. Example: background: transparent;

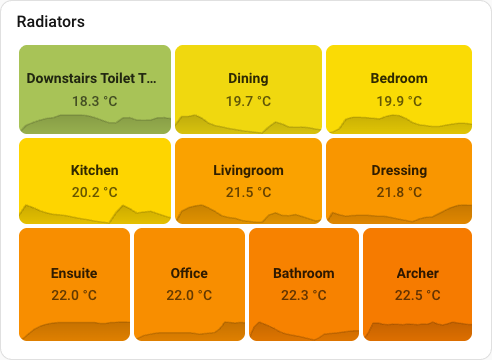

Sparkline

Each rectangle can display a mini chart showing historical data.

Entities mode: Uses Home Assistant's long-term statistics (most numeric sensors).

type: custom:treemap-card
entities:
  - sensor.temperature_*
sparkline:
  period: 24h

JSON mode: Uses data array from each item's attribute.

type: custom:treemap-card
entity: sensor.portfolio
data_attribute: holdings
sparkline:
  attribute: history

Sparkline Options

Option	Default	Description
sparkline.show	true	Show/hide sparklines.
sparkline.attribute		Field containing sparkline data array (JSON mode).
sparkline.period	24h	Time period for entity history: 12h, 24h, 7d, or 30d.
sparkline.mode	dark	Color mode: dark (dark line/fill) or light (light line/fill).
sparkline.line.show	true	Show/hide the line.
sparkline.line.style		Custom CSS for line (SVG properties).
sparkline.fill.show	true	Show/hide the filled area under the line.
sparkline.fill.style		Custom CSS for fill (SVG properties).

Period Details

Period	Time Range	Data Points	Best For
12h	12 hours	~144	Detailed recent view
24h	24 hours	~24	Daily overview
7d	7 days	~168	Weekly trends
30d	30 days	~30	Monthly trends

Custom Styling Examples

Red line, no fill:

sparkline:
  fill:
    show: false
  line:
    style: |
      stroke: rgba(255, 0, 0, 0.5);
      stroke-width: 2;

Thick white line with light fill:

sparkline:
  mode: light
  line:
    style: |
      stroke: rgba(255, 255, 255, 0.8);
      stroke-width: 3;
  fill:
    style: |
      fill: rgba(255, 255, 255, 0.2);

Fill only, no line:

sparkline:
  line:
    show: false
  fill:
    style: |
      fill: rgba(0, 0, 0, 0.3);

Note: Sparklines use Home Assistant's long-term statistics. Most numeric sensors and climate entities (temperature) have statistics enabled by default.

Size & Order guide

Tip: You may often prefer size.equal: true for a clean, uniform grid layout.

Below are common sizing and ordering configurations to achieve different visual effects:

What you want	Configuration
Biggest values = biggest rectangles, shown first	order: desc (default)
Biggest values = biggest rectangles, shown last	order: asc
Smallest values = biggest rectangles, shown first	order: desc + size.inverse: true
Smallest values = biggest rectangles, shown last	order: asc + size.inverse: true
All rectangles same size	size.equal: true
Hide zero-value items	size.min: 0
Tame outliers (e.g., cap 1000W at 100W)	size.max: 100
Boost small items (e.g., 0-5 become 10)	size.min: 10

Note: size.min and size.max use the same units as your entity values, not percentages of the layout.

Example with valve sensors (0-100%):

• Valve A: 75%, Valve B: 50%, Valve C: 0%, Valve D: 0%
• Default behavior: Zero-value valves automatically get a small minimum size so they're visible
• size.min: 10 - All valves below 10% are treated as 10% for sizing
• size.min: 0 - Zero-value valves are hidden (no rectangle area)

Example with power sensors (0-3000W):

• One device at 2500W dominates the layout, others at 50-200W are tiny
• size.max: 500 - Caps the 2500W device to 500W for sizing, giving other devices more visible space

Auto-Entities guide

For advanced entity filtering by area, device, label, or attributes, use auto-entities. This is YAML-only (no visual editor when using auto-entities as a wrapper).

Use Case	Solution
Simple pattern matching	Built-in: sensor.power_*
Filter by area, device, label	Auto-entities
Filter by attributes or state	Auto-entities

Filter by area and device class:

type: custom:auto-entities
card:
  type: custom:treemap-card
  header:
    title: Kitchen Power
filter:
  include:
    - domain: sensor
      area: Kitchen
      attributes:
        device_class: power
  exclude:
    - state: unavailable

With treemap filtering:

type: custom:auto-entities
card:
  type: custom:treemap-card
  filter:
    above: 10 # Only show values > 10W
  order: desc
  limit: 20
filter:
  include:
    - domain: sensor
      attributes:
        device_class: power

Per-entity customization (works with or without auto-entities):

type: custom:treemap-card
entities:
  - sensor.power_*
  - entity: sensor.solar_production
    name: 'Solar Panels'
    icon: mdi:solar-power

Resources

2 New HACS Energy Cards You NEED in Home Assistant
by BeardedTinker

---

Author

Created and maintained by Ondrej Machala (LinkedIn).

MIT License. Contributions and feedback are welcome - feel free to open an issue or submit a PR.
