Fix NavList indentation

[danielguillan]

Summary

Fixes NavList indentation across grouped nested disclosure levels.

List of notable changes:

• fixed grouped nested rows to preserve 16px indentation between levels
• added visual coverage for grouped nesting through level 5

What should reviewers focus on?

• Verify active indicators align with their parent disclosure labels.
• Verify other NavList feature stories remain unchanged.

Steps to test:

1. Review Nested Disclosure and Grouped Nested Levels under Components/NavList/Features.

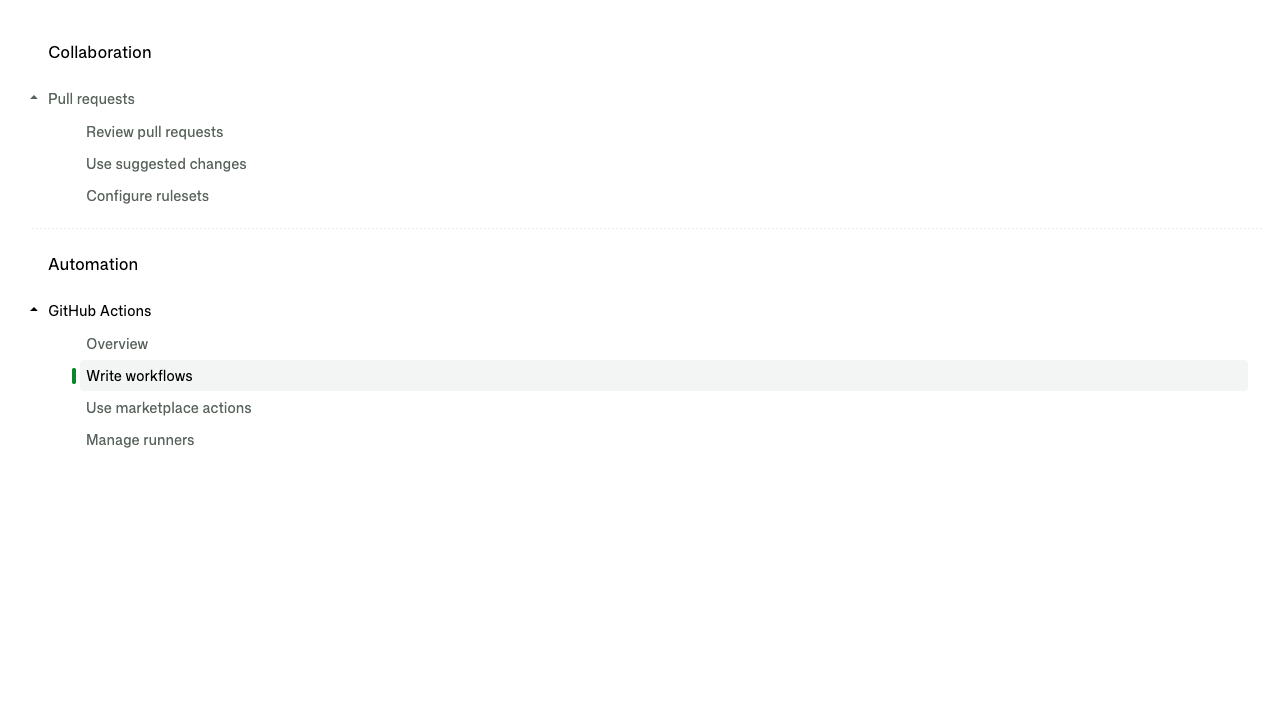

Screenshots:

Before	After

[changeset-bot]

🦋 Changeset detected

Latest commit: 0a0c699

The changes in this PR will be included in the next version bump.

This PR includes changesets to release 9 packages

Name	Type
@primer/react-brand	Patch
@primer/brand-docs	Patch
@primer/brand-css	Patch
@primer/brand-primitives	Patch
@primer/brand-e2e	Patch
@primer/brand-fonts	Patch
@primer/brand-mcp	Patch
@primer/brand-config	Patch
@primer/brand-storybook	Patch

Not sure what this means? Click here to learn what changesets are.

Click here if you're a maintainer who wants to add another changeset to this PR

[github-actions]

🟢 No design token changes found

[github-actions]

🟢 No unit test coverage changes found

All components and hooks with tests maintain the same coverage as the main branch.

[github-actions]

🟢 Bundle size report

Check	Main	Branch	Change
UMD — full bundle (JS)	101.39 kB	101.39 kB	🟢 No change
UMD — full bundle (CSS)	66.92 kB	67.01 kB	⬆️ +96 B (+0.1%)
ESM — full bundle (JS + CSS)	1.51 MB	1.51 MB	⬆️ +329 B (+0.0%)
ESM — tree-shaken simple (Button)	69.81 kB	69.92 kB	⬆️ +117 B (+0.2%)
ESM — tree-shaken complex (ActionMenu)	78.70 kB	78.82 kB	⬆️ +117 B (+0.1%)

[github-actions]

🟢 No visual differences found

Our visual comparison tests did not find any differences in the UI.

[Copilot]

Pull request overview

This PR aims to correct NavList leaf-item indentation when using grouped nested disclosure levels, and adds Storybook + visual regression coverage to prevent regressions.

Changes:

• Adds grouped-nesting-specific indentation rules for level 3–5 items in NavList.module.css.
• Introduces a new GroupedNestedLevels feature story demonstrating grouped nesting through level 5.
• Adds a Playwright visual spec entry and a changeset for the patch release.

Show a summary per file

File	Description
packages/react/src/NavList/NavList.module.css	Adds grouped-list-specific padding rules for nested levels to correct indentation.
packages/react/src/NavList/NavList.features.stories.tsx	Adds a new Storybook feature story to display grouped nesting through level 5.
packages/react/src/NavList/NavList.visual.spec.ts	Adds a new visual regression test for the new grouped nested levels story.
.changeset/neat-lists-align.md	Declares a patch release note for the indentation fix.

Review details

Comments suppressed due to low confidence (3)

packages/react/src/NavList/NavList.module.css:380

• Similar to the level-3 grouped rule, the level-4 grouped indentation is hard-coded (32px + 2px). Basing this on --brand-NavList-item-paddingInlineStart-level-2 keeps the 16px-per-level relationship explicit and resilient to future changes.

.NavList__groupList .NavList__item--level-4 > .NavList__itemContent {
  padding-inline-start: calc(var(--base-size-32) + var(--base-size-2));
}

packages/react/src/NavList/NavList.module.css:384

• Grouped leaf level-4 indentation is currently fixed at var(--base-size-32), which ignores the --brand-NavList-alignedLabel-paddingInlineStart base used by grouped level-2 leaves. If that base stays at var(--base-size-2), this makes the leaf level spacing deviate from the intended 16px steps. Consider deriving this from the aligned-label custom property.

.NavList__groupList .NavList__item--leaf.NavList__item--level-4 > .NavList__itemContent {
  padding-inline-start: var(--base-size-32);
}

packages/react/src/NavList/NavList.module.css:388

• Grouped leaf level-5 indentation is fixed at var(--base-size-48), which similarly bypasses the --brand-NavList-alignedLabel-paddingInlineStart base that affects grouped leaf level-2 indentation. Deriving from that base keeps the per-level spacing consistent when the base changes.

.NavList__groupList .NavList__item--leaf.NavList__item--level-5 > .NavList__itemContent {
  padding-inline-start: var(--base-size-48);
}

• Files reviewed: 4/6 changed files
• Comments generated: 3
• Review effort level: Low

[rezrah]

@danielguillan could you help me understand what these fallbacks are for when we already have a token for it? In this example, it seems to be computing to 70px but that feels oddly specific (and not in our base size scales). Assuming you do need a precise 70px value, is there a reason we can't make this shorter like --base-size-64+ --base-size-6 (or similar)? I'm probably missing something really obvious here 😄.

Another reason for asking this is that I'm trying to understand how each item lines up against it's parent or descendent. Right now they feel a bit off still.

[danielguillan]

@rezrah I've simplified the offsets and removed the redundant fallbacks. Should work better now and they shouldn't feel off anymore.

[rezrah]

Yes, looks good to me now @danielguillan. Thanks for fixing that, it's lining up much better 📐 ☺️
