Kafka Docker Compose and Test with Express.js Application

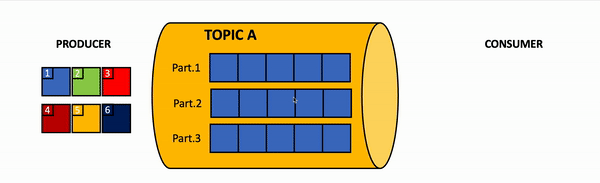

What is Kafka?

This project sets up a Kafka environment using Docker and Docker Compose, along with a Node.js Express application (kafka-express-app) to test Kafka by producing and consuming messages.

---

Prerequisites

• Docker and Docker Compose installed on your system.
• Node.js and npm installed for running the Express.js application.

---

Project Structure

kafka-docker/
├── docker-compose.yml       # Docker Compose file for Kafka setup
├── kafka-express-app/       # Node.js Express application
│   ├── src/
│   │   ├── kafka/
│   │   │   ├── producer.ts  # Kafka producer logic
│   │   │   └── consumer.ts  # Kafka consumer logic
│   │   ├── routes/
│   │   │   └── index.ts     # Express routes
│   │   └── app.ts           # Express app entry point
│   ├── package.json         # Node.js dependencies and scripts
│   ├── tsconfig.json        # TypeScript configuration
│   └── .env                 # Environment variables
└── README.md                # Project documentation

---

Kafka Setup

Services in docker-compose.yml

• Zookeeper: Manages Kafka brokers.
• Kafka Broker: The Kafka server.
• Schema Registry: Manages Avro schemas for Kafka topics.
• Kafka Connect: For connecting Kafka to external systems.
• Control Center: Web UI for managing Kafka.
• kafka-express-app: Node.js application for testing Kafka.

Steps to Start Kafka

1. Start Docker Services: Run the following command to start all services:

   docker-compose up -d

2. Verify Services: Check if all services are running:

   docker ps

3. Access Control Center: Open the Confluent Control Center in your browser:

   http://localhost:9021


---

Kafka-Express-App Setup

Environment Variables

Create a .env file in the kafka-express-app directory with the following content:

KAFKA_CLIENT_ID=my-app
KAFKA_BROKERS=localhost:9092
KAFKA_GROUP_ID=test-group
KAFKA_TOPIC=test-topic
KAFKA_AUTH_ENABLED=false

If you connect to a secured Kafka cluster, set KAFKA_AUTH_ENABLED=true and provide KAFKA_USERNAME, KAFKA_PASSWORD, and optionally KAFKA_SSL=true.

Install Dependencies

Navigate to the kafka-express-app directory and install the required dependencies:

cd kafka-express-app
npm install

Build the Application

Compile the TypeScript code to JavaScript:

npm run build

Run the Application

Start the application in development mode:

npm run dev

Or start the compiled application:

npm start

---

Testing Kafka

Produce a Message

Use a tool like curl or Postman to send a POST request to the /api/publish endpoint:

curl -X POST http://localhost:3000/api/publish \
-H "Content-Type: application/json" \
-d '{"topic": "test-topic", "message": "Hello Kafka!"}'

Consume Messages

Send a GET request to the /api/subscribe endpoint to start consuming messages:

curl http://localhost:3000/api/subscribe

You should see the consumed messages logged in the console.

---

Stopping Services

To stop all Docker services, run:

docker-compose down

---

Troubleshooting

• Kafka Broker Connection Issues: Ensure the KAFKA_BROKERS in .env matches the broker address in docker-compose.yml (for local Docker Compose, use localhost:9092 from your app host or broker:29092 from another container). Leave KAFKA_AUTH_ENABLED=false unless the broker actually requires SASL authentication.

• Port Conflicts: Ensure the ports defined in docker-compose.yml (e.g., 9092, 29092, 9021) are not in use by other applications.

---
