AI Network Assistant

🤖 An AI-powered network automation assistant that uses MCP to securely call pyATS tools against Arista cEOS devices in Containerlab setup. Chat naturally to run show commands, push configs, validate status, and optionally provision a lab EC2 host with Terraform.

---

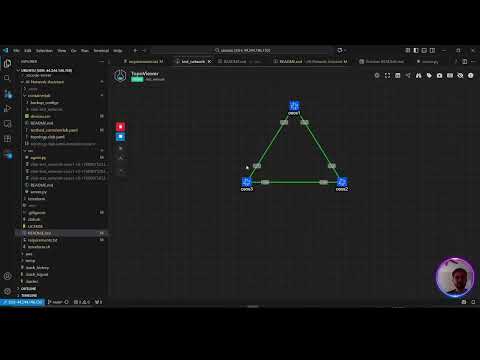

Demo

---

Architecture Diagram

              ╔════════════════════════════════════╗
              ║  AI Network Assistant Flow         ║
              ╚════════════════════════════════════╝

                        ┌──────────┐
                        │   User   │
                        └─────┬────┘
                              │ chat query
                              ▼
                   ┌──────────────────────┐
                   │   agent.py (Gemini)  │ ◄─ Gemini API
                   └──────────┬───────────┘
                              │ MCP stdio
                              │ (list_devices, run_show, configure)
                              ▼
                   ┌──────────────────────┐
                   │  server.py (FastMCP) │ ◄─ pyATS
                   └──────────┬───────────┘
                              │ SSH (testbed.yaml)
                              ▼
                  ┌────────────────────────┐
                  │  Containerlab Topology │
                  │  ┌────┐  ┌────┐ ┌────┐ │
                  │  │ceos│──│ceos│─│ceos│ │
                  │  │ 1  │  │ 2  │ │ 3  │ │
                  │  └────┘  └────┘ └────┘ │
                  └────────────────────────┘

  Optional: Terraform → EC2 → Containerlab → cEOS

---

How it works (Mechanism)

• MCP-first design: The server exposes safe, explicit network automation tools (list devices, run show, push config, ping, etc.) over MCP.
• AI Agent (Gemini): src/agent.py uses Gemini and calls MCP tools when needed. The model never has raw device access; it only acts through MCP tools.
• pyATS integration: src/server.py loads a pyATS testbed (PYATS_TESTBED_PATH) and executes commands on devices using robust send/expect flows.
• Containerlab topology: A sample Arista cEOS lab is provided under containerlab/ with a topology.clab.yaml and a ready-made pyATS testbed.
• Optional cloud provisioning: terraform/ can spin up an EC2 host to run Containerlab if you prefer a cloud lab environment.

Key Features:

• Safety via tools: The AI can only do what MCP tools allow. Destructive commands are blocked by design.
• Repeatable lab: Containerlab topology + testbed YAML = fast, reproducible demos.
• Cloud optionality: Local or EC2. Use what fits your environment.

---

Setup

1) Python virtual environment

Use a venv to avoid dependency conflicts.

cd AI-Network-Assistant
python3 -m venv .venv
source .venv/bin/activate
pip install -U pip
pip install -r requirements.txt

2) Environment variables (.env)

Create a .env file in the project root (it is already in .gitignore to avoid secrets leak).

cat > .env << 'EOF'
GEMINI_API_KEY=your_gemini_api_key_here
PYATS_TESTBED_PATH=./containerlab/testbed_containerlab.yaml
EOF

Notes:

• GEMINI_API_KEY is required by the agent.
• PYATS_TESTBED_PATH must point to your pyATS testbed YAML. A ready-made file exists at containerlab/testbed_containerlab.yaml.

3) Containerlab (local lab)

This repo includes a simple 3-node Arista cEOS topology.

Install Containerlab and dependencies with the helper script:

./clab.sh

Deploy the lab:

sudo containerlab deploy -t containerlab/topology.clab.yaml

You have:

• 3 cEOS nodes (ceos1, ceos2, ceos3) with startup configs under containerlab/backup_configs/
• Links as defined in containerlab/topology.clab.yaml
• A ready pyATS testbed at containerlab/testbed_containerlab.yaml with SSH access and default creds (admin/admin for the demo)

Tear down when done:

sudo containerlab destroy -t containerlab/topology.clab.yaml

4) Optional: Provision an EC2 host with Terraform

If you want to run the lab in AWS instead of locally, you can provision an instance and then install Containerlab there. If you are not using cloud, you can skip this section.

Install AWS CLI and Terraform:

./terraform.sh

Configure AWS credentials (once):

aws configure

Review/adjust terraform/terraform.tfvars as needed, then provision:

cd terraform
terraform init
terraform plan
terraform apply -auto-approve

Useful outputs will include instance details and an SSH command. After provisioning, SSH to the instance, clone this repo, repeat steps 1–3, and deploy the Containerlab topology in the cloud VM.

Destroy when finished:

terraform destroy -auto-approve

---

Run the AI Network Assistant

With your venv active and .env configured:

python3 src/agent.py

What happens:

• The agent launches and connects to the MCP server (src/server.py) over stdio.
• The server loads the pyATS testbed from PYATS_TESTBED_PATH and exposes tools.
• You chat with the agent; when needed, it calls MCP tools to operate on the devices.

Example things to ask:

• "List devices"
• "Run show ip route on clab-test_network-ceos1"
• "Configure a description on Ethernet1 on clab-test_network-ceos2"
• "Ping 10.0.12.2 from clab-test_network-ceos1"

---

Architecture details

• Server (src/server.py)

  • Uses fastmcp to expose tools over MCP (stdio transport).
  • Loads pyATS testbed via PYATS_TESTBED_PATH and connects to devices on-demand.
  • Implements safe helpers to run show commands, push configuration, get logs, and run pings.
  • Cleans CLI output (removes ANSI codes), blocks dangerous inputs, and disconnects cleanly.

• Agent (src/agent.py)

  • Loads .env and initializes Gemini (google-generativeai).
  • Connects to the MCP server as a stdio client and reflects the server tools to Gemini as functions.
  • Sends user prompts to Gemini, handles function calls, executes MCP tools, returns results.
  • Provides a simple chat loop for interactive use.

• Containerlab and pyATS

  • containerlab/topology.clab.yaml defines the cEOS nodes and links.
  • Startup configs live under containerlab/backup_configs/.
  • The pyATS testbed at containerlab/testbed_containerlab.yaml points to the lab device IPs with SSH creds.

• Terraform (optional)

  • terraform/ defines an EC2 instance, security group, and instance state control.
  • terraform.sh installs AWS CLI and Terraform on a machine before running terraform commands.

---

Troubleshooting

• Ensure .venv is activated and pip install -r requirements.txt succeeded.
• Verify .env exists with valid GEMINI_API_KEY and PYATS_TESTBED_PATH.
• Confirm Containerlab devices are reachable via SSH using the IPs in the testbed YAML.
• If running in AWS, confirm security groups allow SSH from your IP.

---

Safety and scope

• The MCP server restricts operations to defined tools; dangerous commands are rejected.
• Example: erase/delete/redirect are blocked in command filters and config application. You may check @mcp.tools for implementation.
• Always review and adapt startup configs, credentials, and security groups for production usage.

---
