Surface the local Codex client model catalog in the panel so entries can be inspected and overridden without editing the override JSON by hand. - show the effective catalog with per-entry origin, context window, reasoning level, and visibility, and expand an entry inline for editing - expose the common fields in localized sections (basic info, context and reasoning, capability flags, tools and modalities, prompts) and keep the remaining fields in a collapsed advanced field tree - override a single field, point any field at another entry with $inherit, or drop a local field, with the effective value and its source shown per field - merge base_instructions and model_messages.instructions_template behind one toggle that is on by default, and collapse long prompts into a short preview with real line breaks - report entries the backend could not apply instead of failing the whole page - gate the page and its navigation entry on the new management capability headers, and add the i18n keys to all four locales The model layer lives in features/codexClientModels with unit tests for the tree, the inheritance rules, and the quick-field views.
The dev server now forwards /v0 to http://127.0.0.1:8317 by default, so the panel can talk to a locally running CPA backend without configuring a separate API address. VITE_CPA_DEV_TARGET overrides the target.
The manual now covers what the page edits, how common and advanced fields are laid out, field-level inheritance sources, the prompt merge switch, the override file format, and what happens when an override does not apply. The Chinese and English pages stay aligned so the docs integrity check keeps passing, and both sidebar sections link the new page next to AI providers.
The backend watches the override file, so a manual edit is applied without reloading the configuration.
The page listed only catalog entries, so a model Codex clients can request stayed invisible whenever the catalog has no entry for it and the client reuses the default template as a whole. Those models are the ones worth overriding, and they were the ones the page could not show. Read the served list the management API returns, mark each entry as served with its providers, and list the served models the catalog does not describe yet. Expanding one adopts it: the new entry pins the display name, description, context window, and order clients see today while inheriting the rest from the template it currently uses, and the slug stays fixed because clients request the model by it.
The manual still said the page shows four origins and only catalog entries. Document the fifth origin, what the Served column reports, and how a model served without its own entry is adopted into one.
Setting a whole-entry inherit source marked every field in the basic section as "inherited from", including the display name and description that the backend never takes from a source, so the marks contradicted the values beside them. Report the source only for fields inheritance actually reaches: a whole-entry directive stops at the identity fields, and a directive written on one of them stays visible as an issue without being previewed as applied.
A draft input read the effective value once, when it mounted. Changing the inherit source replaces the effective value without remounting the editor, so the inputs kept the previous numbers on screen: a model inheriting its order from another one still showed its own priority, which made the source marks look wrong for every field in that section. Resynchronize the draft when the value underneath changes, while keeping text the user typed that normalizes differently from the stored value, such as a blank line in a prompt.
Some of the fields an entry carries are decided by the server for the client rather than read from the entry: model metadata supplies the context window and the reasoning levels, and a model without an entry of its own gets its capabilities, its visibility and its position from provider rules. The editor showed those values as ordinary entry fields, so a whole-entry inherit source looked like it had supplied them, and the reasoning levels clients offer were not editable at all. The served list now carries the value clients receive for every field that differs from the catalog entry, and the editor overlays those values, so the default shown for a field is what clients actually get. Whole-entry inheritance leaves those fields alone while a directive written on the field itself still applies, and adopting a served model no longer pins them down: the new entry only carries its own identity, and the remaining fields stay inherited. The demo catalog carries the same entry and summary shapes, so the page can be reviewed without a backend.
The manual listed the common fields without the reasoning levels and described inheritance as if every field followed the entry's source. Document the levels list, that a field's default is the value clients receive, and that the fields the server decides for itself do not follow a whole-entry inherit while a directive on the field itself still applies.
The management API now lists the entry the server assembles for every model it can serve, which is the default configuration, and applies the override layer after that. The editor therefore treats the catalog entry as the default directly and the served-field overlay is gone, together with the field set the server used to decide for the client. Origins come from the server as well: the row state is read instead of being inferred from the patch and the served list, so an override for a model no provider serves shows up as unserved instead of as a locally defined entry.
A new entry was seeded by inheriting the default template as a whole, so saving one wrote an $inherit directive that named gpt-5.5 and reported every field as inherited from it. That described the layering the server no longer has: the assembled entry is the default configuration, so the seed only has to say which slug the local entry is for, and the editor reads the default values from that entry instead of from a template it picked. The editor also stopped hiding a whole-entry directive that names the default template, since nothing writes one any more: a source in the patch is always a source the user chose, and it is shown as one. Adopting a served model needs no summary either, because the entry the row already carries is the default.
The served summaries named the catalog template an entry was assembled from and the page showed it beside the served badge, which described an inheritance relation the server no longer has. The origin a model carries already says whether the catalog had an entry of its own, so the page reports that instead: the origin reads "assembled" rather than naming a template, and the served column states whether clients can request the model and which accounts serve it. The demo catalog is built from one table of assembled entries now, so it reports the same origins a live server does, including a model hidden by a null override and an override for a model nothing serves.
The manual still split the origins into a catalog entry and a default template, and described adopting a model as inheriting the template it currently uses while an entry may hold nothing but its slug. Document what the page does now: the assembled entries are the default configuration, a new entry declares only its slug, and field inheritance always names a source the user picked.
The non-inheritable list covered the identity fields and the model's position in the catalog; the context and reasoning envelope now joins them, which matches what the override layer accepts. The field source menu offers no inheritance source for those fields, and under a whole-entry source the panel reports them as default values. The manual and the inheritance hint describe the wider set.
StellarWarp
force-pushed
the
codex/codex-client-models-override
branch
from
September 13, 2026 18:02
e7c7016 to
803fc82
Compare
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Summary
Adds a Model Catalog page (
#/codex-client-models) that lists the model catalog CPA serves to Codex clients and lets an operator override entries locally. Overrides are field-level and can inherit from any other catalog entry, so a variant model no longer has to repeat a whole entry.The page only appears when CPA advertises the new capability flags, and it falls back to Configuration on older CPA versions.
Scope
Changes
codexClientModelsfeature: a catalog table whose rows expand in place, with origin filters, per-field source control, collapsible prompt fields, an advanced field tree, and a JSON patch panel that stays collapsed until needed.nullpatch hides an entry; expanding a hidden entry and editing a field rebuilds it.$inheritdirectives are read and written per dotted path, sources are validated against the live catalog, and inheritance chains resolve to the effective entry. Identity, catalog position, and the context and reasoning fields never inherit.x-cpa-support-codex-client-model-override,x-cpa-support-codex-client-model-inherit), wired throughuseAuthStorethe same way plugin support already is.manual/codex-client-modelsin both languages, linked from the 日常使用 and Daily Use sidebar sections next to AI providers.chore(web): the dev server now proxies/v0tohttp://127.0.0.1:8317so the panel can talk to a locally running CPA without configuring an API address. This is an independent dev-tooling commit and can be dropped on its own.User Impact
Compatibility / Runtime Notes
x-cpa-support-codex-client-model-override. Without it the sidebar entry is hidden and the route redirects to Configuration.x-cpa-support-codex-client-model-inherit. When it is missing, the editor keeps working without inheritance controls.Data / Security Notes
Risk / Rollback
Risk level: Low
Rollback notes: revert the branch. The change is additive and gated behind a capability flag, so no existing route, store, or API call changes behavior when the flag is absent.
Verification
Commands / evidence:
Manual check ran against a local CPA backend on
127.0.0.1:8317during development, covering the catalog list and filters, inline editing, field sources, prompt merge and preview, the advanced tree, the JSON patch, override removal, and the rejected-override list. The current UI was reviewed in the demo site (npm run dev:demo,#/demo/codex-client-models), including the served column, list expansion, the inherited-value marker, prompt folding, and the usage instruction switches.Screenshots / Recordings

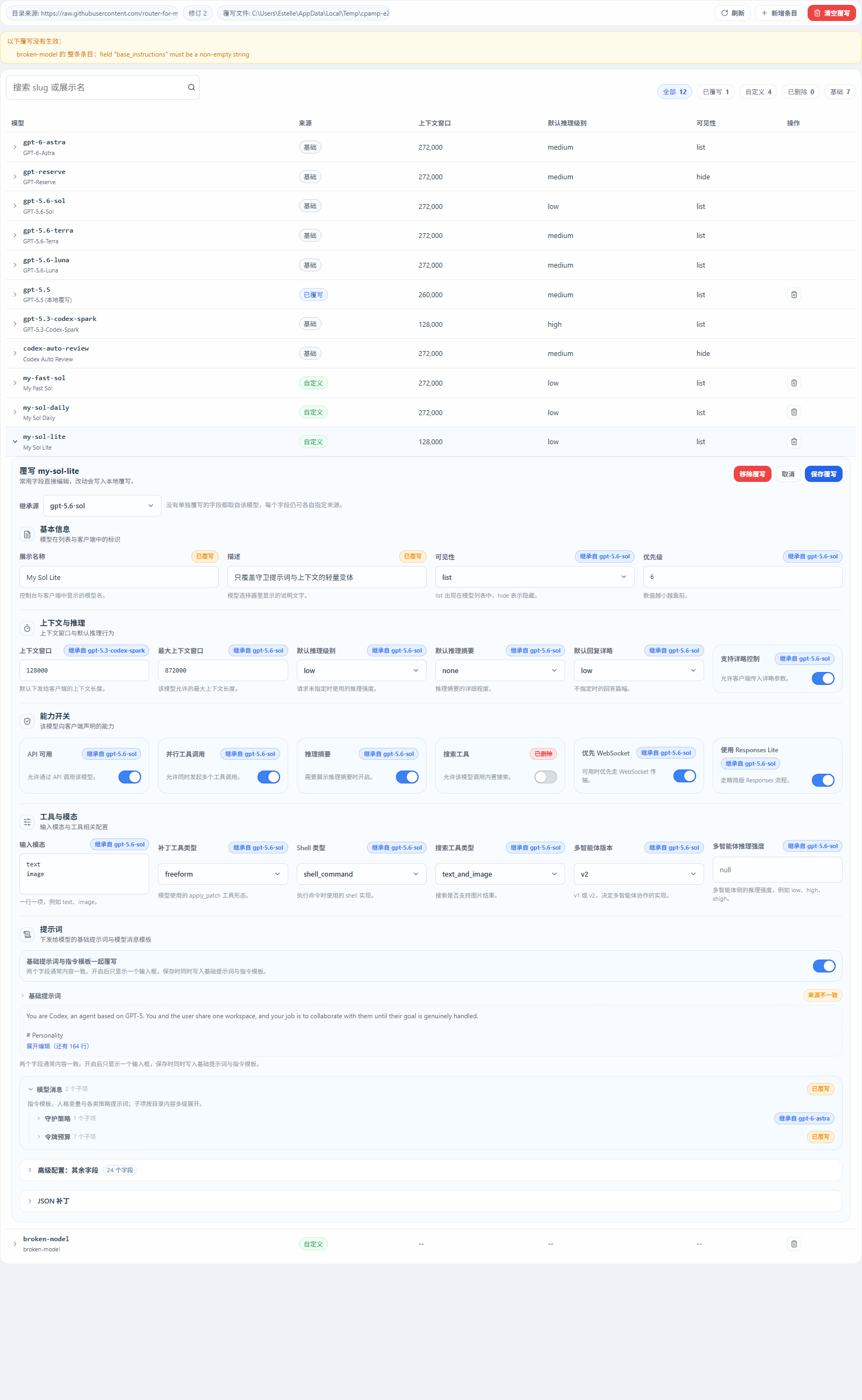

Catalog list with one entry expanded, field-level source markers, and the collapsed prompt and advanced sections:

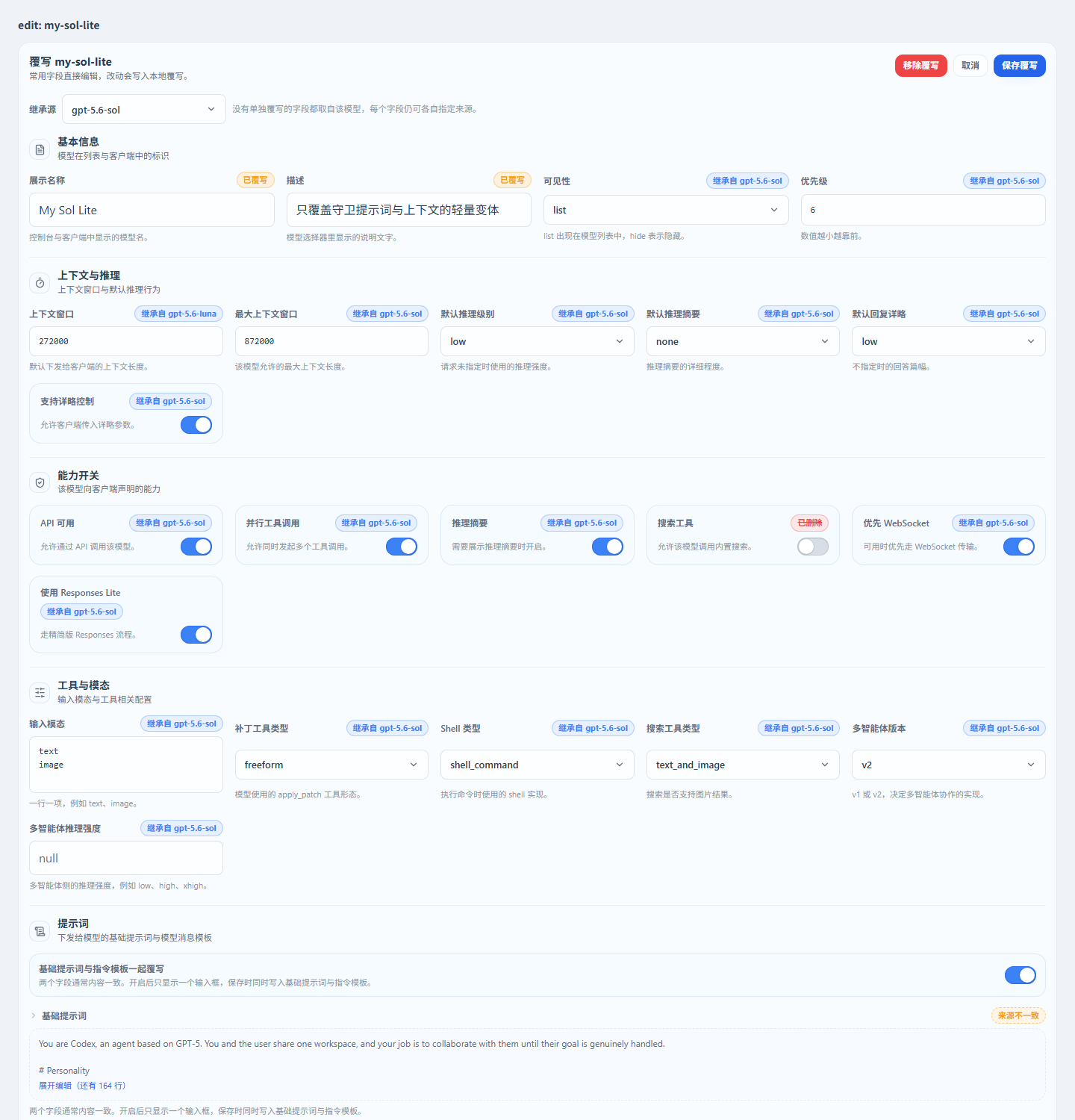

Inline editor detail, with the merged prompt preview and the advanced sections collapsed:
Docs
Docs decision: both language manual pages were added and linked from the sidebar. The README task table only lists cross-cutting workflows (choosing a panel, install, capability matrix, runtime model, providers/accounts/plugins, Manager Server, backup, migration, troubleshooting); page-specific manuals such as Model Prices and Monitoring are not listed there, so the model catalog stays consistent with that structure. Release notes are left to the maintainer's release process.
Related
Requires the companion CPA change: router-for-me/CLIProxyAPI#5748
