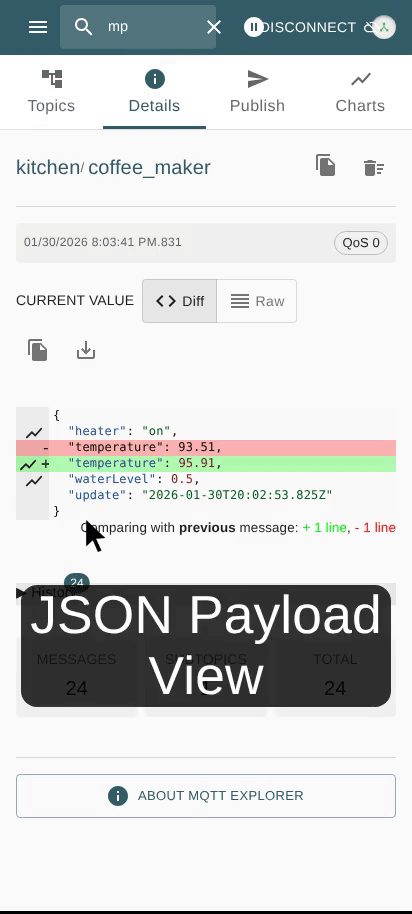

Fix CodeDiff gutter alignment and diff marker sizing

[Copilot]

Fix CodeDiff gutter alignment and diff marker sizing ✅

Completed Tasks:

• Identify the CSS issues in CodeDiff component
• Fix gutter alignment by setting marginTop to 0
• Adjust icon sizing to ensure proper display
• Address user feedback about icons not changing size
• Replace with text characters for proper sizing control
• Adjust font size to 16px for better visibility
• Add paddingTop for spacing while maintaining alignment
• Fine-tune chart icon and diff marker positioning (multiple iterations)
• Fix workflow lint:eslint script error
• Code review passed
• Security scan: 0 alerts
• Build completed successfully

Changes Made:

File: app/src/components/Sidebar/CodeDiff/Gutters.tsx

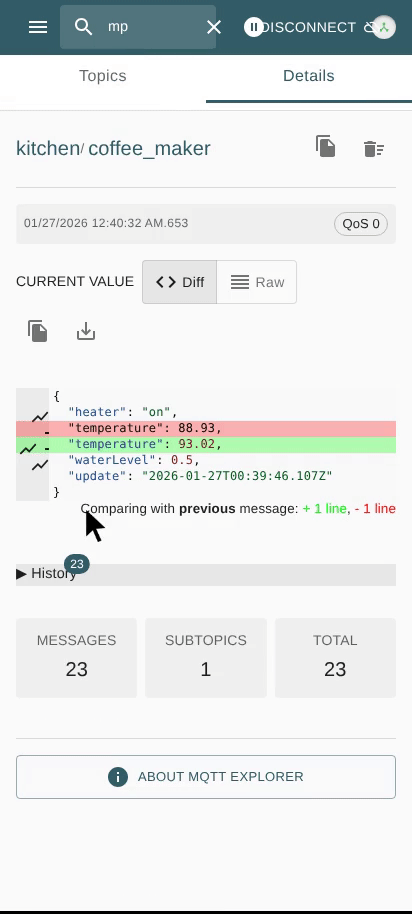

Gutter alignment and spacing fix:

• Set marginTop: 0 to ensure diff markers align properly with code lines externally (both use 16px height)
• Added paddingTop: '2px' to provide internal spacing without breaking alignment
• Added marginRight: '6px' to diff markers to position them 6px from the right edge (fine-tuned from initial 2px)
• Set marginTop: '-3px' on chart icon to move it 3px higher for proper alignment (fine-tuned from initial -2px)
• Set marginRight: 0 on chart icon to override inherited spacing
• Using padding instead of margin maintains proper gutter alignment while providing visual spacing

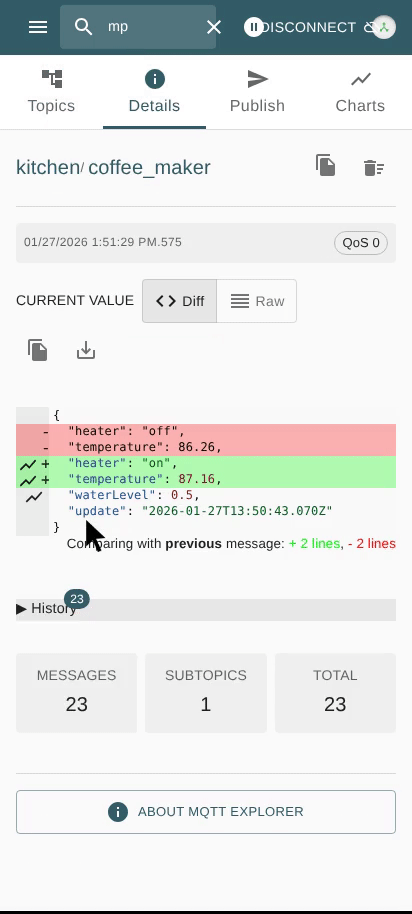

Icon size fix (final solution):

• Replaced Material-UI <Add> and <Remove> icon components with simple text characters: + and -
• Font size: 16px for prominent visibility (based on user feedback)
• Alignment: marginTop: 0 for proper external alignment with code lines
• Spacing: paddingTop: '2px' for internal spacing that doesn't affect alignment
• Positioning: marginRight: '6px' for proper horizontal spacing, marginTop: '-3px' for chart icon vertical adjustment
• Added proper CSS styling: display: 'inline-block', textAlign: 'center', lineHeight: '12px'
• Removed unused Material-UI icon imports
• Using regular hyphen-minus - (U+002D) for better cross-browser and font compatibility

File: package.json

Workflow fix:

• Added lint:eslint script that points to tslint -p ./
• This project uses TSLint, not ESLint, so the lint:eslint script is an alias to the tslint command
• Fixes "lint:eslint not found" workflow error

Why this approach:
Material-UI SVG icon components were not responding to fontSize styling properly (tested with CSS class, inline style, and sx prop). Using plain text characters ensures the fontSize CSS property works correctly. The 16px size makes the diff markers clearly visible and prominent. Using paddingTop instead of marginTop allows for visual spacing inside the element without affecting the external alignment with code lines. Fine-tuned positioning with marginRight: '6px' and marginTop: '-3px' ensures optimal alignment of both chart icons and diff markers.

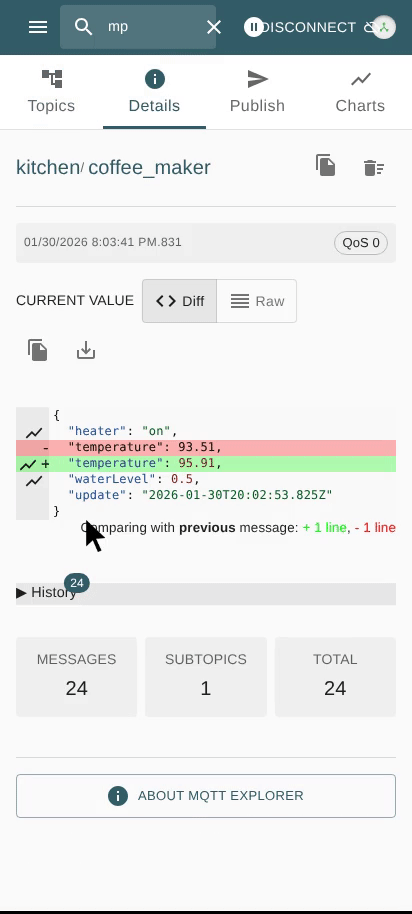

Technical Details:

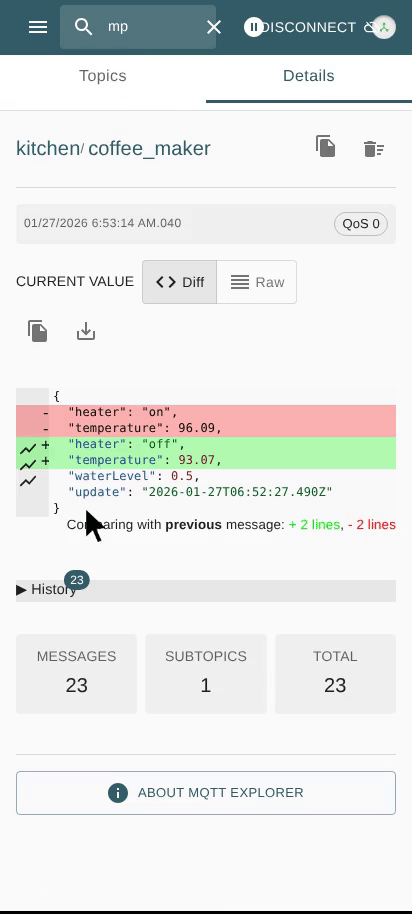

1. Gutter Alignment: marginTop: 0 ensures the diff markers' container aligns with the code text baseline. The gutterLine and code lines both have 16px height.

2. Internal Spacing: paddingTop: '2px' adds space inside the element, pushing the text content down without affecting the element's external position or alignment.

3. Horizontal Positioning: marginRight: '6px' on diff markers positions them optimally from the right edge of the gutter (fine-tuned through user feedback).

4. Chart Icon Alignment: marginTop: '-3px' moves the chart icon 3px higher for optimal vertical alignment (fine-tuned through user feedback). marginRight: 0 ensures it doesn't inherit the spacing from diff markers.

5. Icon Size Fix (Text Characters):

   • Changed from <Add /> to <span>+</span>
   • Changed from <Remove /> to <span>-</span> (using standard hyphen-minus)
   • Text characters respect CSS fontSize properties directly
   • fontSize: 16px for excellent visibility
   • marginTop: 0 for proper external alignment
   • marginRight: '6px' for horizontal positioning
   • paddingTop: '2px' for internal spacing without breaking alignment
   • Added display, textAlign, and lineHeight properties for proper centering

Verification:

• ✅ Build: Successful (only pre-existing warnings)
• ✅ Code review: Passed
• ✅ Security scan: 0 alerts
• ✅ Changes are minimal and focused
• ✅ User feedback incorporated: larger size (16px), proper alignment, spacing, and fine-tuned positioning through multiple iterations
• ✅ Workflow lint:eslint script now available

Security Summary:

No security vulnerabilities were introduced or discovered by this change.

Original prompt

The gutters are 2 px lower then the code, also the text (+ and - for the diff) is way to large

---

✨ Let Copilot coding agent set things up for you — coding agent works faster and does higher quality work when set up for your repo.

[github-actions]

⚠️ Mobile Demo Video Generated (Test Failed)

⚠️ Note: The mobile demo test encountered errors but videos were still uploaded for debugging. Check the logs for details.

Full Mobile Video (Pixel 6 - 412x914)

📥 Download Mobile Video (MP4) | GIF

---

Scene information not available - check if video processing completed

Mobile videos recorded at 412x914 (Pixel 6 viewport). Videos will expire in 90 days.

[github-actions]

✅ Mobile Demo Video Generated Successfully

Full Mobile Video (Pixel 6 - 412x914)

📥 Download Mobile Video (MP4) | GIF

---

📑 Mobile Video Segments

Click to expand mobile segments

1. MQTT Explorer on Mobile (5.1s)

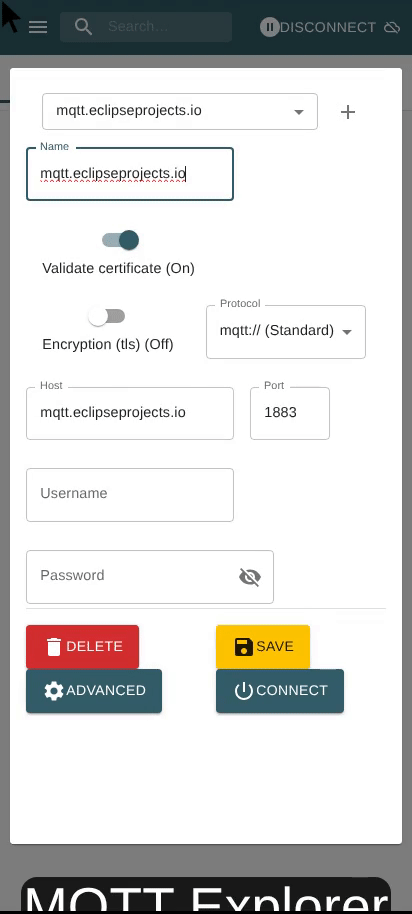

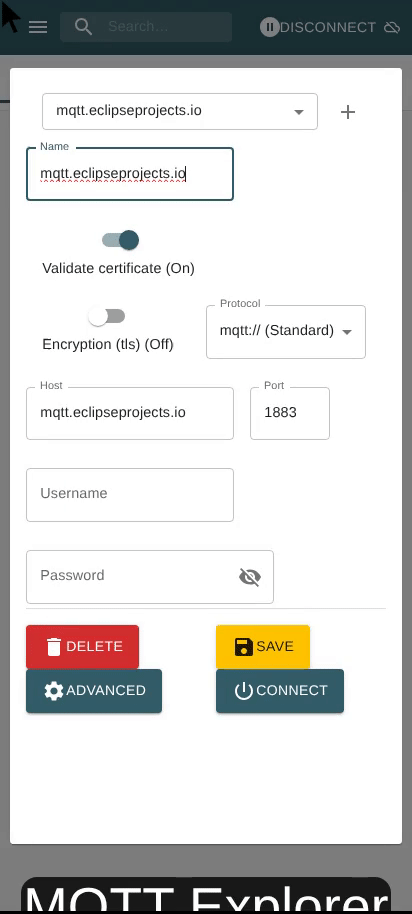

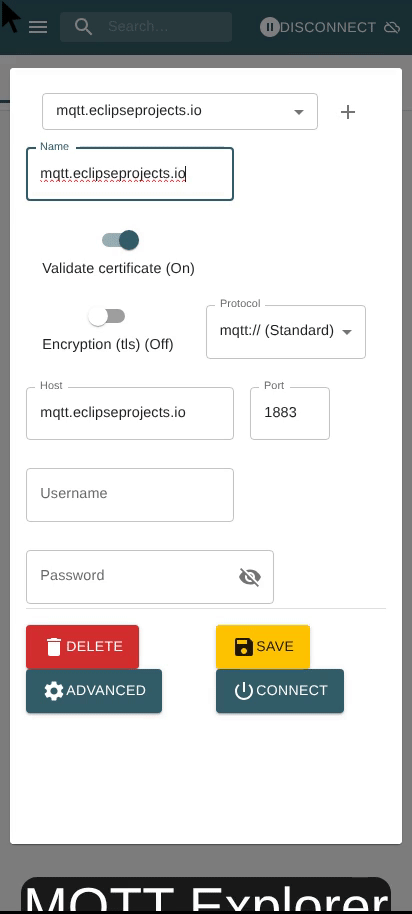

2. Connect to MQTT Broker (8.0s)

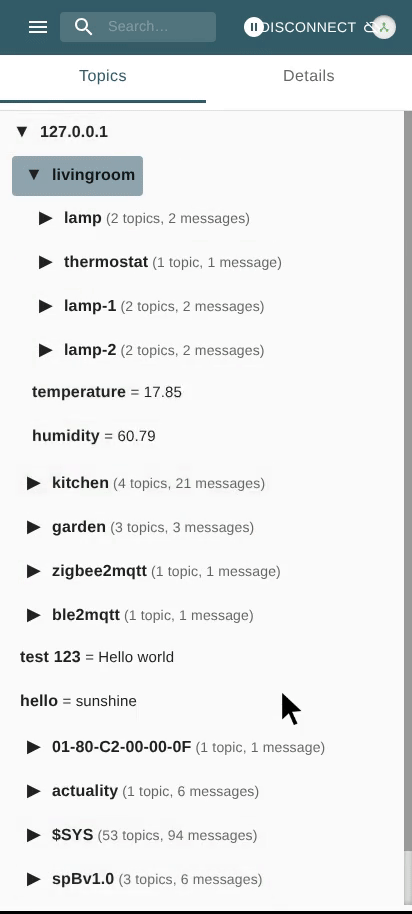

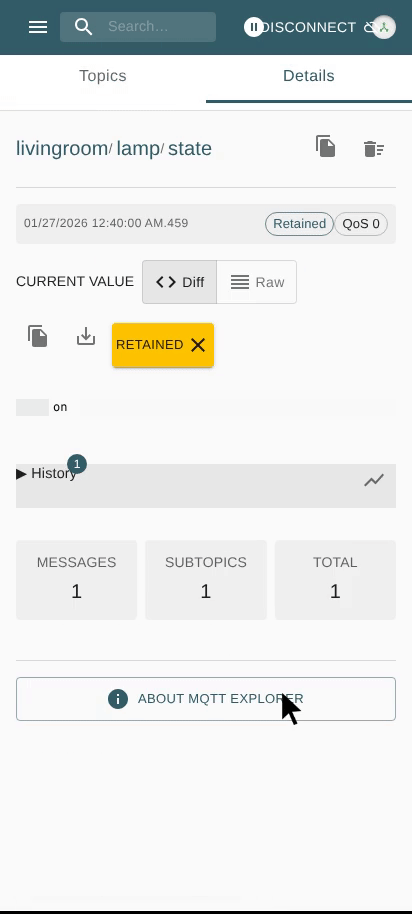

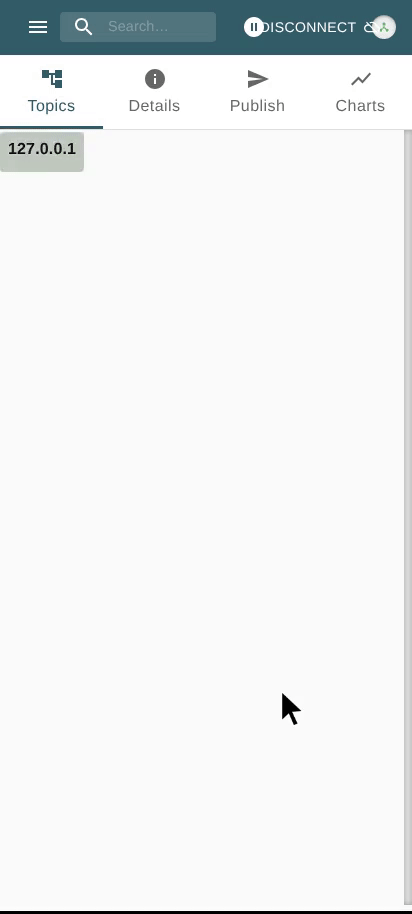

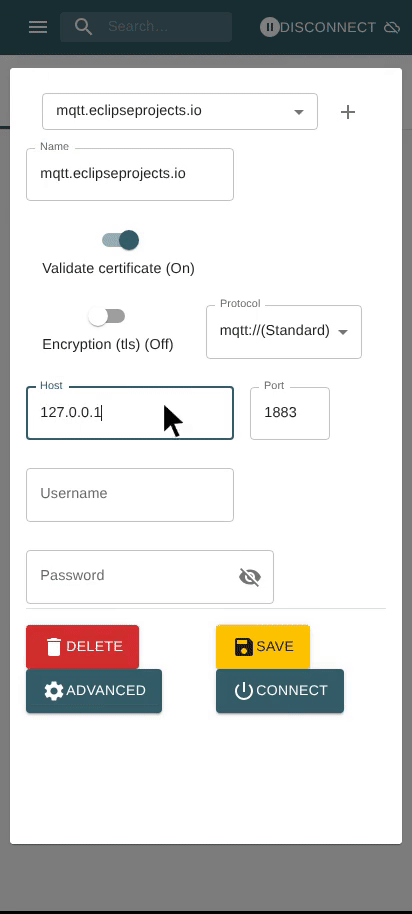

3. Browse Topic Tree (9.0s)

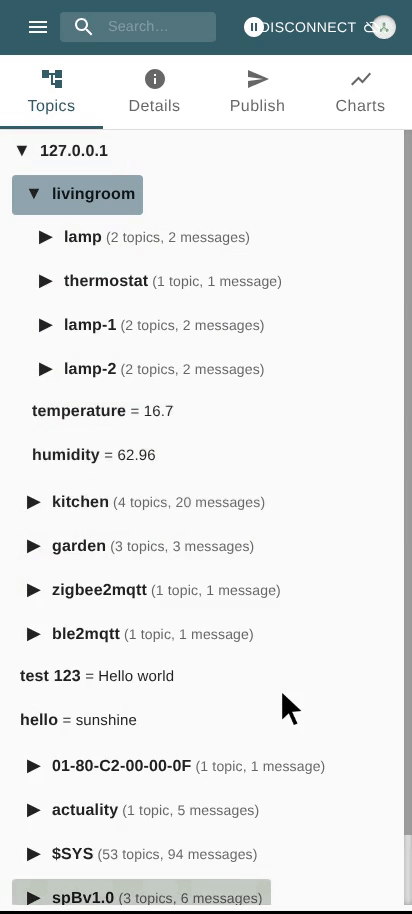

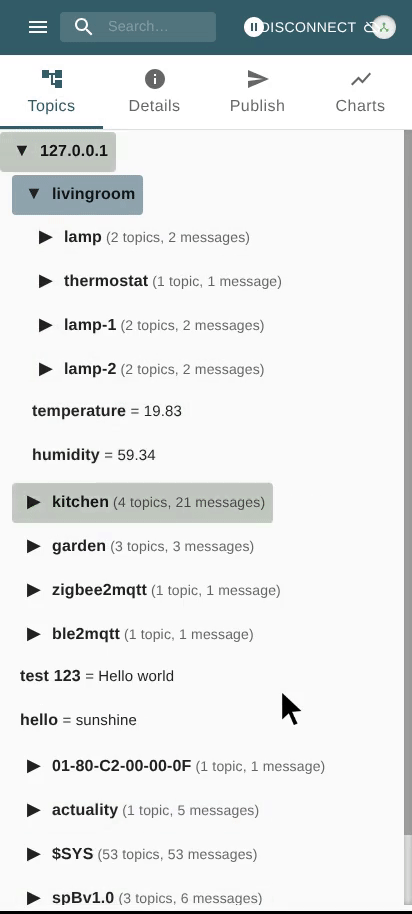

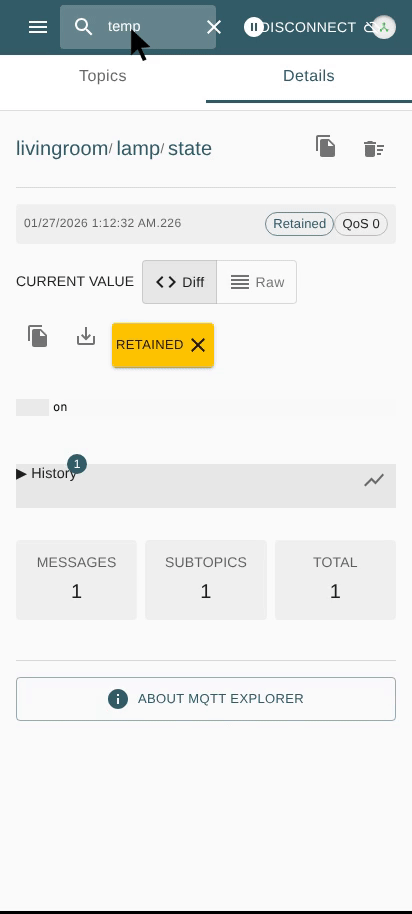

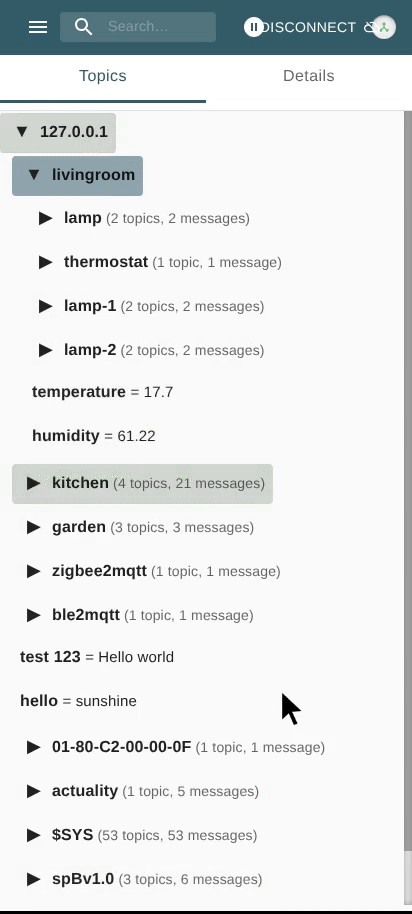

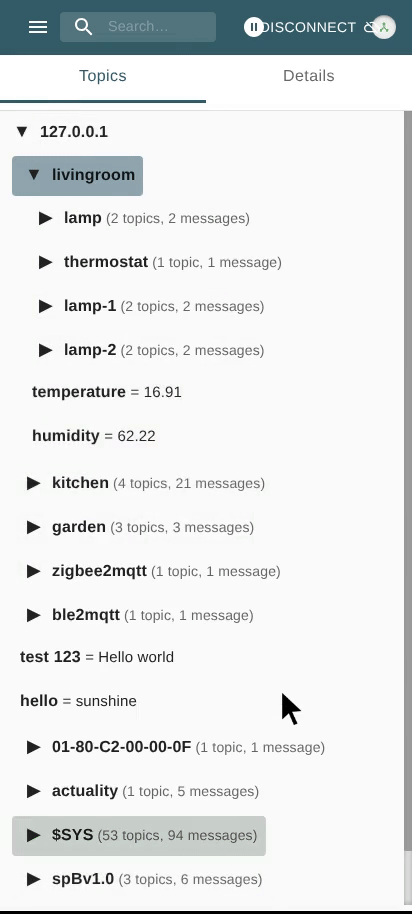

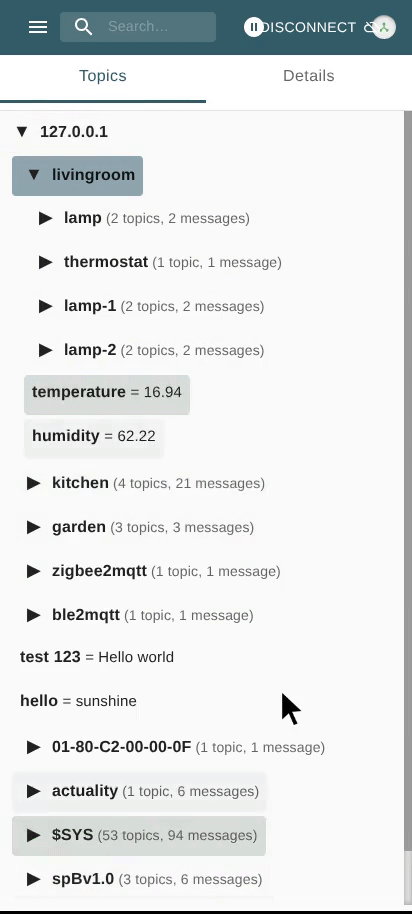

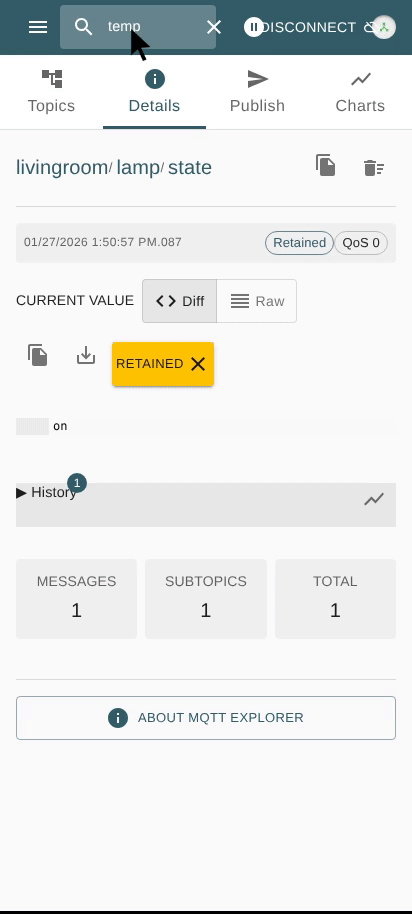

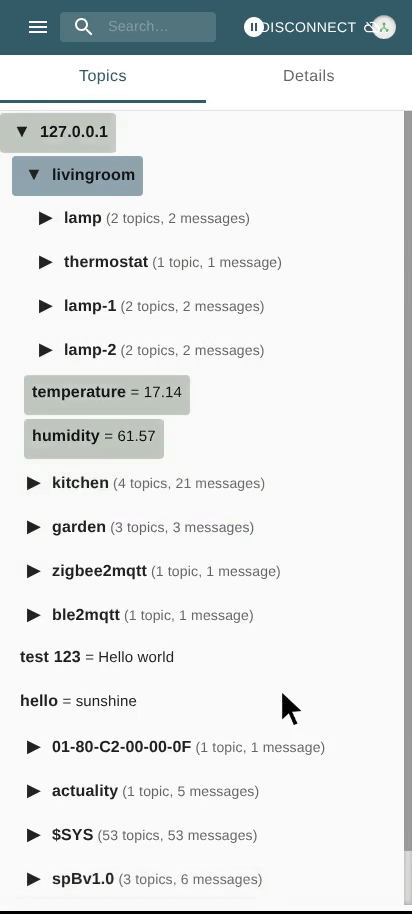

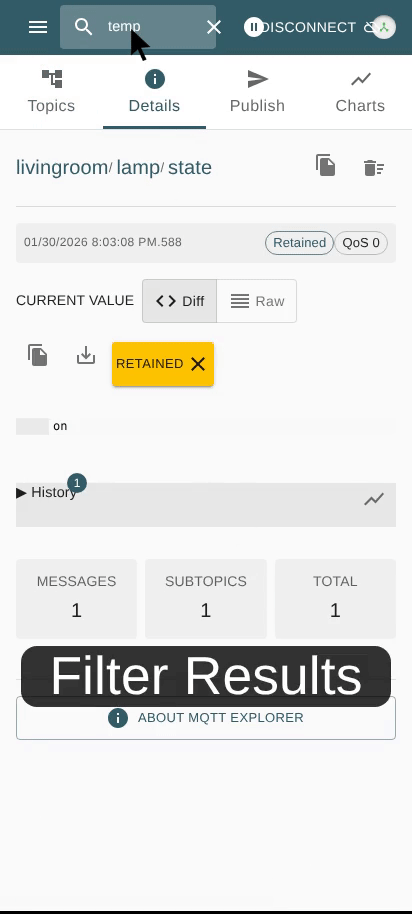

4. View Message Details (6.8s)
