Thermostat Setback Controller

Simple, automated thermostat setback control without complex automation setup.

Stop wrestling with complex Home Assistant automations for your thermostat! This controller makes temperature setback management effortless - just set it up once and it handles everything automatically.

Why Choose This Controller?

• No Complex Automation Required: Forget about writing YAML automations or dealing with complex logic
• One-Time Setup: Configure once through the UI and it works forever
• Smart & Automatic: Seamlessly switches between normal and setback temperatures based on your schedule
• Manual Control When Needed: Override anytime with simple controls
• Skip Setback Feature: Temporarily skip the next setback cycle when you need normal temperature
• External Integration: Works with any binary sensor or switch for additional control

Sensors Created

The integration creates two sensors for monitoring:

1. Setback Status Sensor

• Name: "Setback Status" (or your custom name)
• Value: on when setback is active, off when normal temperature is active
• Attributes:
  • climate_device: The controlled thermostat entity
  • schedule_device: The schedule helper entity
  • binary_input_device: Optional binary input that monitors any binary sensor or switch to activate forced setback. For example, monitor a house mode helper and force setback when vacation mode is active.

2. Recovery Time Sensor

Tracks how long it takes for temperature to reach normal after setback ends

• Name: "Recovery Time"
• Value: Time in seconds it took for the last recovery from setback to normal temperature
• Unit: Seconds (s)
• Attributes:
  • is_recovering: true when currently recovering from setback, false otherwise

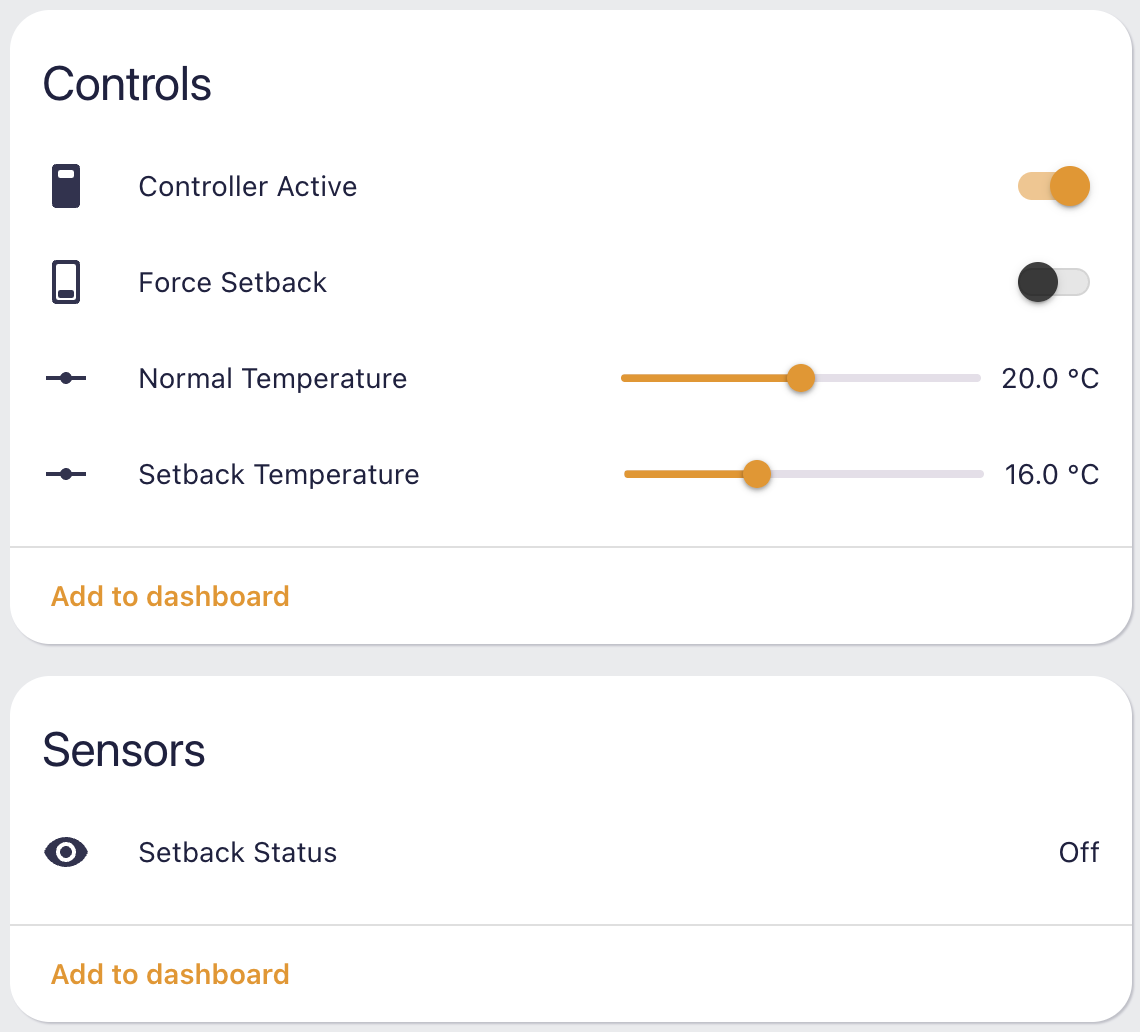

Controls Created

The integration creates three switches for manual control:

1. Force Setback Switch

Manually override to force setback mode on or off, regardless of schedule or other conditions.

• Name: "Force Setback"
• State: on when forced setback is active, off when not forced
• Usage: Turn on to manually enable setback, turn off to return to automatic control

2. Controller Active Switch

Enable or disable the entire controller.

• Name: "Controller Active"
• State: on when controller is active, off when disabled
• Usage: Turn off to completely disable temperature control, turn on to re-enable

3. Skip Setback Switch

Skip the next scheduled setback cycle.

• Name: "Skip Setback"
• State: on when skip is active, off when not skipping
• Usage:
  • Turn on to skip the next setback cycle when your schedule becomes active
  • If currently in setback, turning this on will immediately return to normal temperature
  • The flag automatically resets after the next setback cycle is skipped
  • Useful for temporarily preventing setback when you know you'll be home or need normal temperature

Installation

Method 1: HACS (Recommended)

1. Add this repository to HACS as a custom repository
2. Install "Thermostat Setback Controller" from HACS
3. Restart Home Assistant

Method 2: Manual Installation

1. Copy the custom_components/thermostat_setback folder to your Home Assistant custom_components directory
2. Restart Home Assistant
3. Add the integration through the UI

Quick Setup (2 Minutes!)

Step 1: Add the Integration

1. Go to Settings > Devices & Services
2. Click Add Integration
3. Search for "Thermostat Setback Controller"
4. Fill in these simple settings:
   • Name: Give it a friendly name (e.g., "Living Room Setback")
   • Climate Device: Pick your thermostat (e.g., climate.living_room_thermostat)
   • Schedule Device: Choose your schedule helper (defines when setback is active)
   • Forced Setback Monitoring Sensor: Optional - monitors any binary sensor or switch to activate forced setback. For example, monitor a house mode helper and force setback when vacation mode is active.

Step 2: That's It!

The controller immediately starts working:

• ✅ Automatically switches to setback temperature when your schedule is active
• ✅ Automatically returns to normal temperature when schedule is inactive
• ✅ No YAML needed - everything is handled through the UI
• ✅ Works forever - set it and forget it!

Development

This project uses a dev container for development. To get started:

1. Open the project in VS Code
2. Reopen in Dev Container when prompted
3. The container will automatically install Python dependencies

Project Structure

custom_components/thermostat_setback/
├── __init__.py          # Main integration setup
├── climate.py           # Climate entity implementation
├── config_flow.py       # Configuration flow
├── const.py            # Constants and configuration keys
├── manifest.json       # Integration manifest
├── services.py         # Service implementations
└── services.yaml       # Service definitions

Troubleshooting

Debugging

Enable debug logging by adding this to your configuration.yaml:

logger:
  logs:
    custom_components.thermostat_setback: debug

Contributing

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Test thoroughly
5. Submit a pull request

License

This project is licensed under the MIT License - see the LICENSE file for details.

Support

For support, please open an issue on the GitHub repository.
