Tui

A reactive, composable, Deno-first toolkit for terminal user interfaces. This fork includes the original canvas and component foundation plus controller-first widgets, app and runtime primitives, browser and remote-terminal entrypoints, an optional Three.js ASCII renderer, and full-screen visualization demos.

Quick Start

New applications should use the focused ./app entrypoint:

import { crayon } from "https://deno.land/x/crayon@3.3.3/mod.ts";
import { Button, Computed, createTerminalApp, Signal } from "jsr:@ubernaut/deno-tui/app";

const count = new Signal(0);
const app = createTerminalApp<{ type: "increment" }>({
  tuiOptions: { style: crayon.bgBlack },
  commands: [{
    id: "increment",
    label: "Increment",
    binding: { key: "return" },
    action: { type: "increment" },
  }],
  onAction: () => count.value += 1,
  setup(app) {
    const button = new Button({
      parent: app.tui,
      rectangle: new Computed(() => ({
        column: Math.max(1, Math.floor(app.tui.rectangle.value.width / 2) - 9),
        row: Math.max(1, Math.floor(app.tui.rectangle.value.height / 2) - 1),
        height: 3,
        width: 18,
      })),
      label: { text: new Computed(() => `Count: ${count.value}`) },
      theme: {
        base: crayon.bgBlue,
        focused: crayon.bgLightBlue,
        active: crayon.bgCyan,
      },
      zIndex: 1,
      onPress: () => void app.executeCommand("increment"),
    });
    app.registerComponent(button);
    app.focus.focus(button);
  },
});

app.start();

TerminalApp owns input, command bindings, focus traversal, mouse routing, bracketed paste, terminal signals, and cleanup by default. Every binding can be disabled for embedding or tests. From a repository checkout, run the focused example, component demo, or launcher:

deno task terminal-app
deno task demo
./visualization

Repository Scope

Area	Primary ownership
Terminal foundation	src/tui.ts, src/canvas/, src/component.ts, src/view.ts
Input and interaction	src/input_reader/, src/input.ts, src/focus.ts, src/keymap.ts, src/selection.ts
Widgets and controllers	src/components/
Layout and markup	src/layout/, src/markup/
App architecture	src/app/
Runtime and concurrency	src/runtime/
Theme system	src/theme*.ts
Three.js ASCII renderer	src/three_ascii/
Full-screen applications	app/
Focused examples and tooling	examples/, scripts/

The package is intentionally layered. Core terminal APIs remain Deno-first. Three.js, Yoga, browser build tooling, and screenshot tooling stay behind their owning entrypoints or tasks.

Package Entrypoints

The export map in deno.jsonc defines the supported package boundaries:

Import target	Source	Runtime	Stability
.	mod.ts	terminal	stable
./app	mod.app.ts	terminal	beta
./web	mod.web.ts	browser	beta
./remote	mod.remote.ts	remote	experimental
./three-ascii	mod.three_ascii.ts	shared	experimental
./theme	mod.theme.ts	shared	beta
./runtime	mod.runtime.ts	shared	beta
./terminal	mod.terminal.ts	terminal	beta
./testing	mod.testing.ts	terminal	beta
./layout/yoga	src/layout/solvers/yoga.ts	shared	experimental

Use ./app for new terminal applications and the root entrypoint for compatibility or low-level composition. Focused entrypoints let application and tooling authors avoid taking a dependency on the broad terminal surface. Package stability policy and release checks are documented in API Stability and Packaging.

Documentation

• Repository Overview maps module families, integration surfaces, demos, and quality gates.
• API Reference is generated from the public re-export graph and lists every exported symbol.
• API Stability and Packaging defines entrypoint tiers and release policy.
• Testing and Performance covers test helpers, benchmarks, probes, and contributor gates.
• Visualization App documents the system monitor shell and visualization controls.
• HTML/CSS-Style Layout documents markup parsing, the supported CSS subset, and the simple and optional Yoga solvers.
• Terminal Emulation Strategy describes process, PTY, screen, and scrollback scope.
• Curses and WebTUI Parity records terminal and browser toolkit expectations.
• Browser Framework Plan explains the browser host, DOM target, remote bridge, and Pages build direction.

Use the generated and queryable catalogs instead of maintaining parallel symbol lists:

deno task api-inventory
deno task component-catalog
deno task app-plugin-catalog
deno task benchmark -- --list
./visualization --list

Architecture

The main design rule is separation between state, projection, and host rendering:

• Signal, Computed, Effect, and their lazy variants own reactive state propagation.
• Canvas, draw objects, and sinks own terminal-cell rendering and repaint behavior.
• Widget controllers own reusable interaction state; components own terminal presentation.
• Command adapters expose controller operations to menus, palettes, keymaps, and plugins.
• TuiApp composes actions, routes, commands, focus, settings, history, and disposable plugins.
• Runtime plans select workers, storage, renderers, and terminal capabilities outside deterministic components.
• Terminal and browser workbenches share renderer-neutral controller, geometry, menu, workspace, and projection code.

Component Families

Family	Representative APIs
Foundation	Box, Frame, Label, Text, View
Input	Button, CheckBox, ComboBox, Input, TextBox, RadioGroup, Slider
Navigation	List, VirtualList, Tabs, MenuBar, Tree, FileExplorer, Breadcrumbs, Stepper
Data and text	Table, DataTableController, Pad, ScrollArea, LogViewer
Feedback	ProgressBar, Spinner, EmptyState, StatusBar, ToastStack
Overlays	Modal, ContextMenu, CommandPalette, KeyHelp
Dashboard	Sparkline, Gauge, Chart, MetricSeriesController
Visualization	ThreeAscii, system monitor panels, Neon Three scenes

deno task component-catalog is the authoritative component inventory. It supports text and JSON output and includes category, capability, controller, and Three.js metadata.

The beta ./app entrypoint also includes Markdown and MarkdownController. A pinned markdown-it parser produces a renderer-neutral document model; the terminal projection adds cell-width wrapping, nested lists and quotes, task items, fenced code, links, rules, tables, semantic ANSI styling, scrolling, and responsive reflow. parseMarkdown() and renderMarkdown() can be used without mounting the component.

import { Markdown } from "jsr:@ubernaut/deno-tui/app";

const document = new Markdown({
  parent: app.tui,
  rectangle: { column: 0, row: 0, width: 80, height: 24 },
  zIndex: 1,
  theme: { base: crayon.white, focused: crayon.white },
  source: "# Status\n\n- [x] Runtime ready\n- [ ] Deploy",
});
app.registerComponent(document);

Controllers can be used without mounting a component. Their command adapters preserve the same behavior across command palettes, menus, key bindings, and tests:

import { bindSliderCommands, CommandRegistry, type SliderCommandAction, SliderController } from "./mod.ts";

const slider = new SliderController({
  min: 0,
  max: 100,
  step: 5,
  value: 40,
  orientation: "horizontal",
});

const commands = new CommandRegistry<SliderCommandAction>();
const dispose = bindSliderCommands(commands, slider, {
  id: "volume",
  idPrefix: "settings.volume",
  includeValueCommands: true,
  values: [0, 50, 100],
});

await commands.execute("settings.volume.increment", console.log);
dispose();
slider.dispose();

Layout

GridLayout, HorizontalLayout, and VerticalLayout cover declarative terminal grids. flexRects(), split panes, responsive recipes, and WindowManagerController support application shells and tiled workspaces. The markup path adds an HTML/CSS-style tree with terminal-cell media queries, Flexbox, Grid, absolute positioning, overflow inspection, and an optional Yoga backend.

See HTML/CSS-Style Layout, examples/layout_recipe_report.ts, examples/html_css_layout.ts, and examples/window_manager_demo.ts for executable examples.

App And Runtime

createApp() assembles the terminal host with an ActionBus, RouteManager, CommandRegistry, focus manager, keymap, and lifecycle disposal. Settings bindings, undo/redo history, command surfaces, and plugin helpers build on those owners instead of introducing app-local state loops.

createTerminalApp() is the recommended application boundary. It accepts routes, commands, key bindings, focus items, mouse targets, plugins, middleware, action handling, and component setup in one definition, then owns the standard terminal interaction and shutdown wiring. registerComponent() connects an interactive component to app focus and pointer routing without legacy global control handlers.

The runtime layer provides capability and terminal plans, AsyncScheduler, WorkerPool, RenderLoop, memory and IndexedDB stores, persistent signals, async resources, cached pipelines, data queries, process sessions, PTY backend selection, and workload telemetry. Optional capabilities are selected through explicit plans and diagnostics so components remain deterministic.

Start with these focused examples:

Workflow	Example or task
App routes, settings, commands, themes	deno task app-shell
Forms and widget bindings	deno task form-workflow
Data table sorting and selection	deno task table-selection
Process and terminal commands	deno task terminal-command
Worker pool and scheduler telemetry	deno task runtime-workloads
Cached resources and pipelines	deno task cached-resource, deno task cached-pipeline
Runtime and terminal capability report	deno task capabilities

Themes

Themes use semantic tokens and component states rather than hard-coded demo colors. Palette presets, theme packs, provider layers, engine factories, pipelines, resolver caches, gallery previews, validation, and binding groups are available through the root or ./theme entrypoint.

Run deno task theme-gallery for the built-in palette suite and deno task theme-workspace for the combined provider, factory, pipeline, and prewarm workflow.

Browser And Remote Terminals

mod.web.ts exposes the Canvas2D browser host, input source, ANSI cell parsing, DOM rendering helpers, and shared app surfaces without constructing the terminal runtime. mod.remote.ts exposes the transport-neutral remote terminal protocol, browser client, and bridge to a TerminalSessionHandle.

Validate these boundaries with:

deno task web:check
deno task web:demo:check
deno task web:test
deno task remote:check

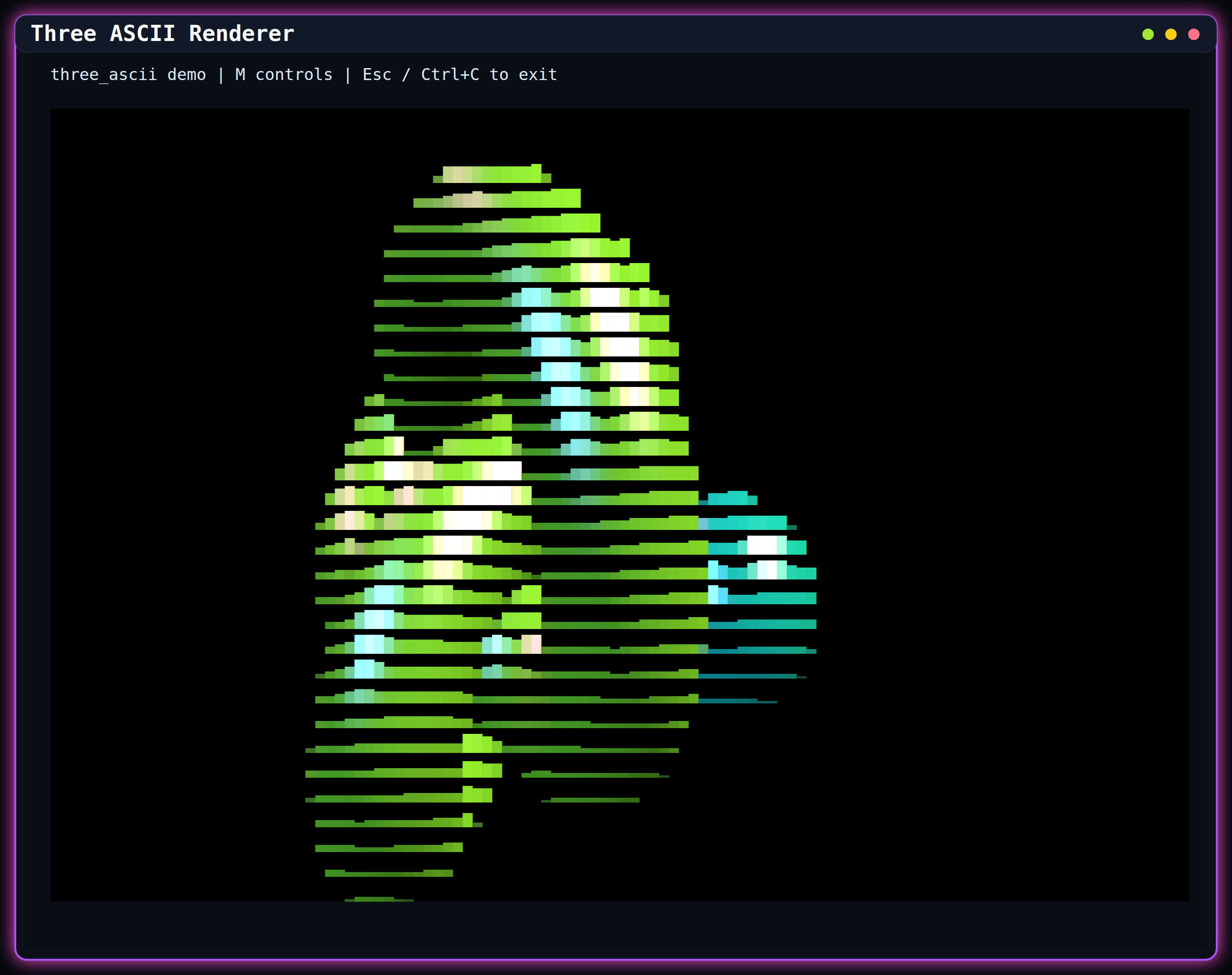

Three.js ASCII Renderer

The optional Three.js renderer projects scenes into terminal cells using block, glyph, or mixed output. It supports WebGPU-backed post-processing, edge and fill controls, depth color and fog, deferred readback, adaptive panel budgets, and browser-compatible scene composition. Renderer and panel sizes follow their current terminal-cell rectangle, so console resize updates propagate through camera aspect, render targets, and visible grid projection.

Run the standalone renderer with:

deno task three-ascii

The API Workbench and Neon applications exercise the renderer inside resizable, tiled, fullscreen, and minimized windows. GPU-backed probes and visual smokes are documented in Testing and Performance.

Demos

./visualization is the canonical launcher. It supports interactive search, direct aliases, and a machine-readable catalog. Common entrypoints are:

Command	Surface
./visualization portfolio	API Workbench with managed windows, controls, terminal panes, and Three.js

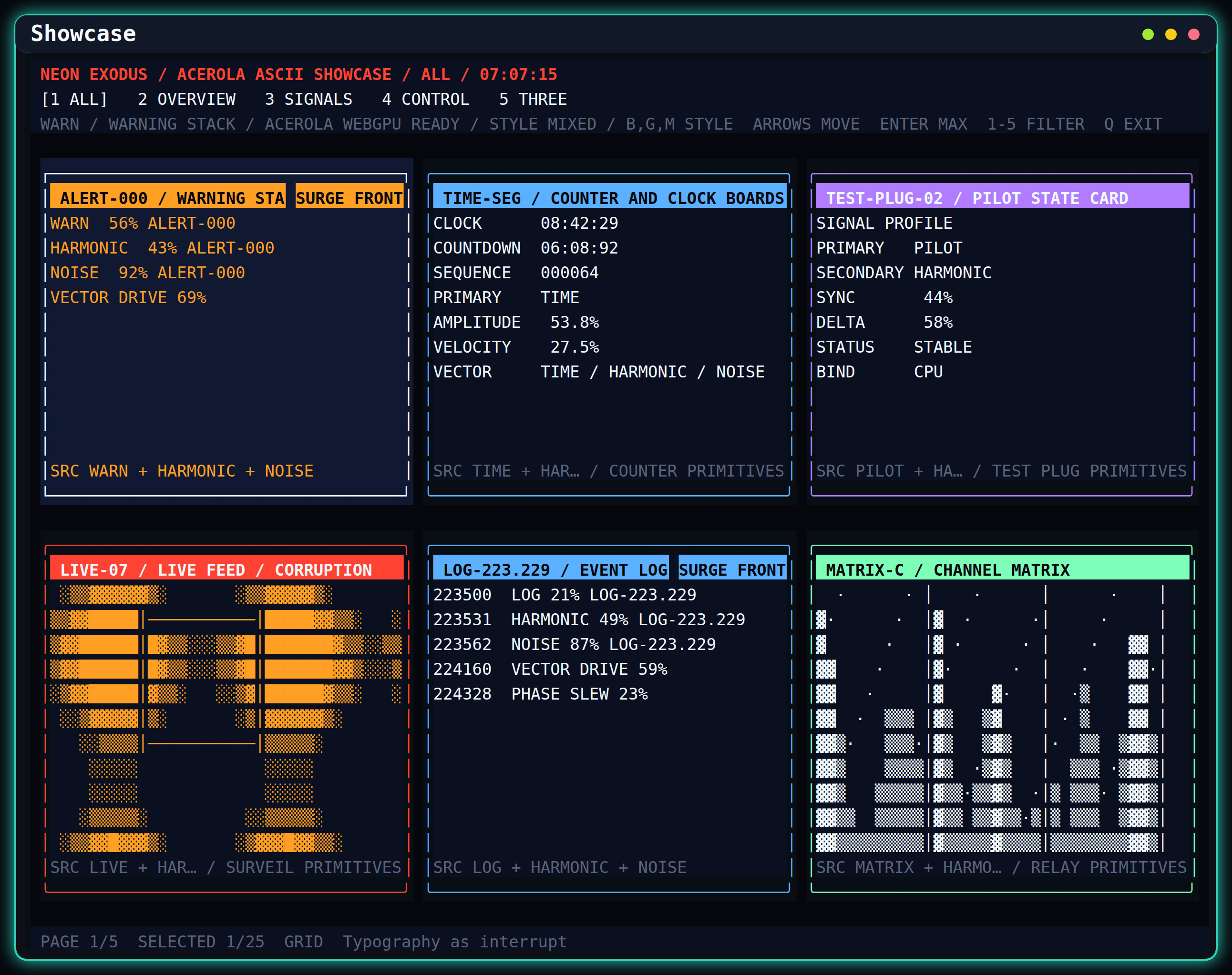

./visualization showcase	Expanded widget and visualization showcase

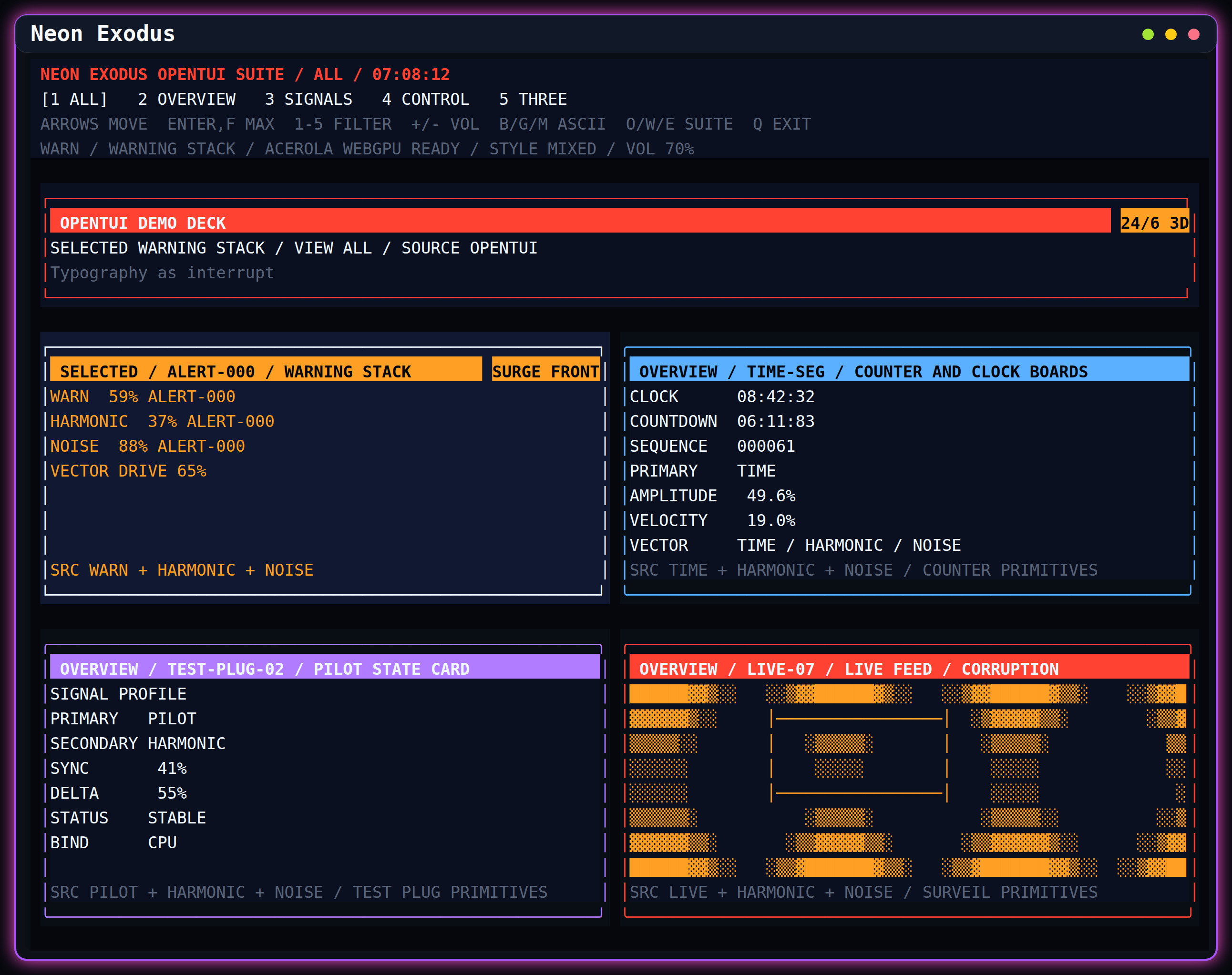

./visualization neon	Neon Exodus-compatible and extended demo decks

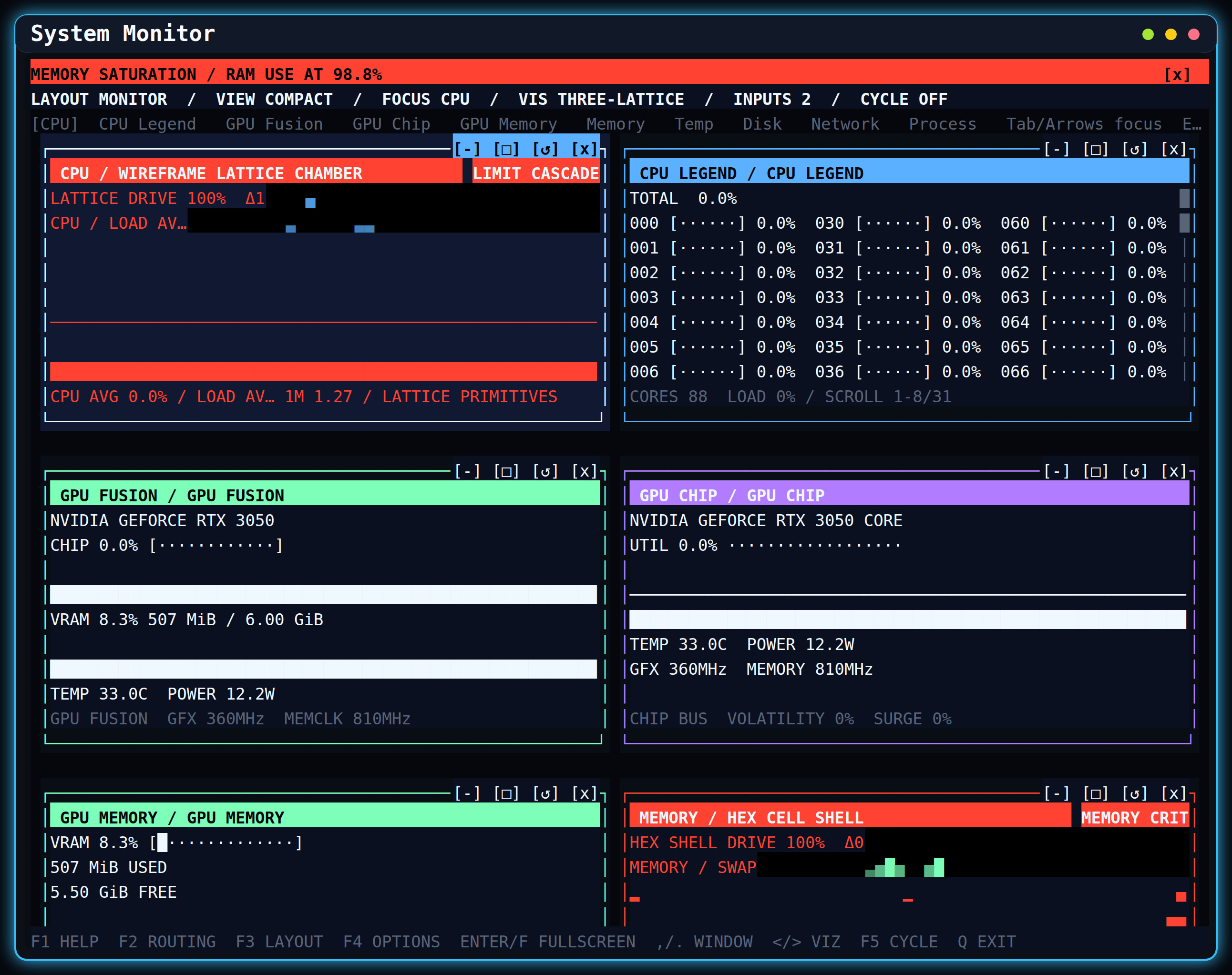

./visualization monitor	Live system monitor dashboard
./visualization polygons	Standalone Three.js ASCII geometry scene
./visualization workspace-launcher	File-explorer-driven managed demo workspace
./visualization gallery	Compact capability report
./visualization health	Contributor health gate

Use ./visualization --list for every current alias and description. Use deno task with no task name to inspect all direct Deno tasks from deno.jsonc.

Screenshots

These fixed-size terminal captures are regenerated with deno task screenshots. The checked-in set is intentionally limited to distinct interactive or catalog surfaces.

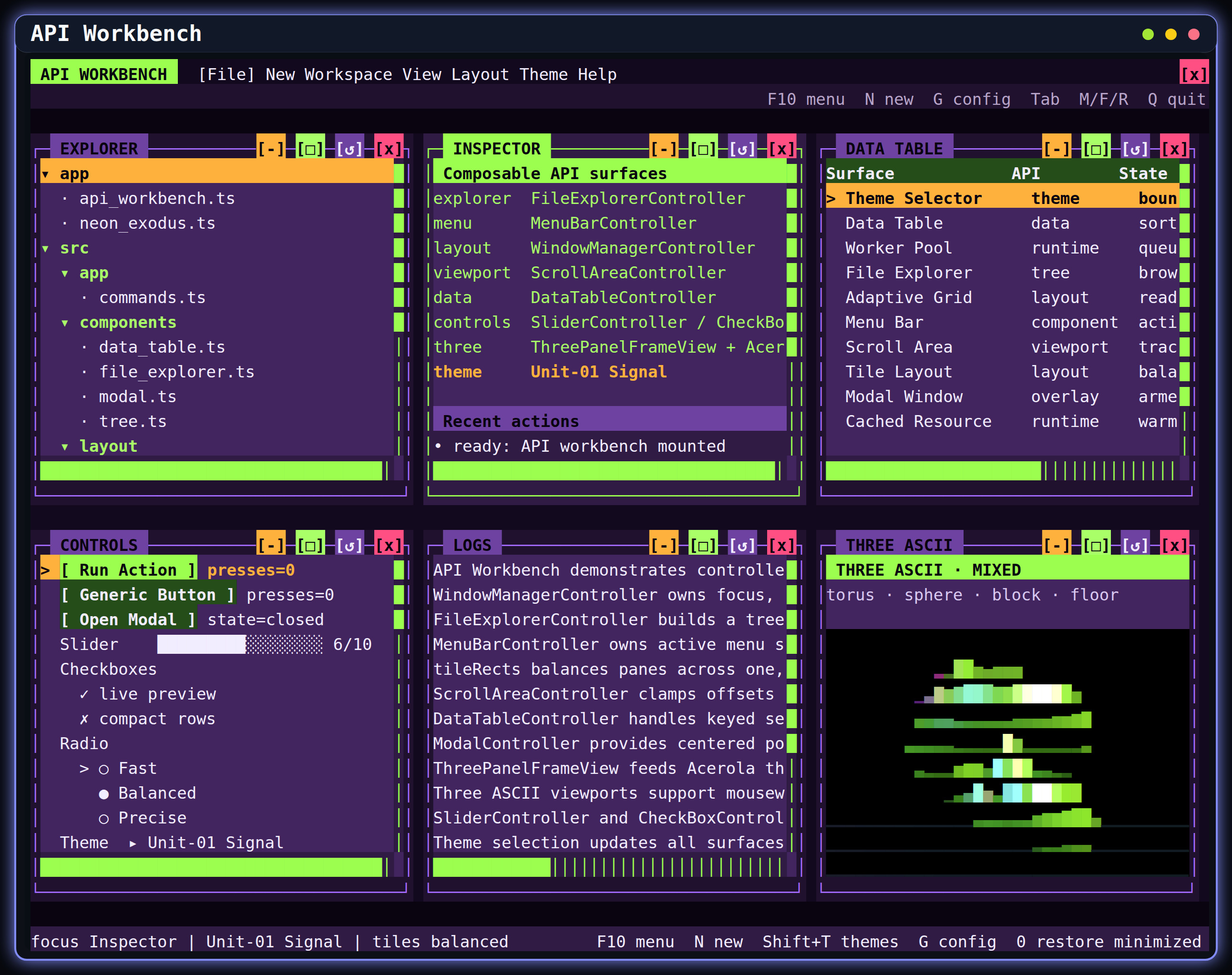

Renderer And Workbench

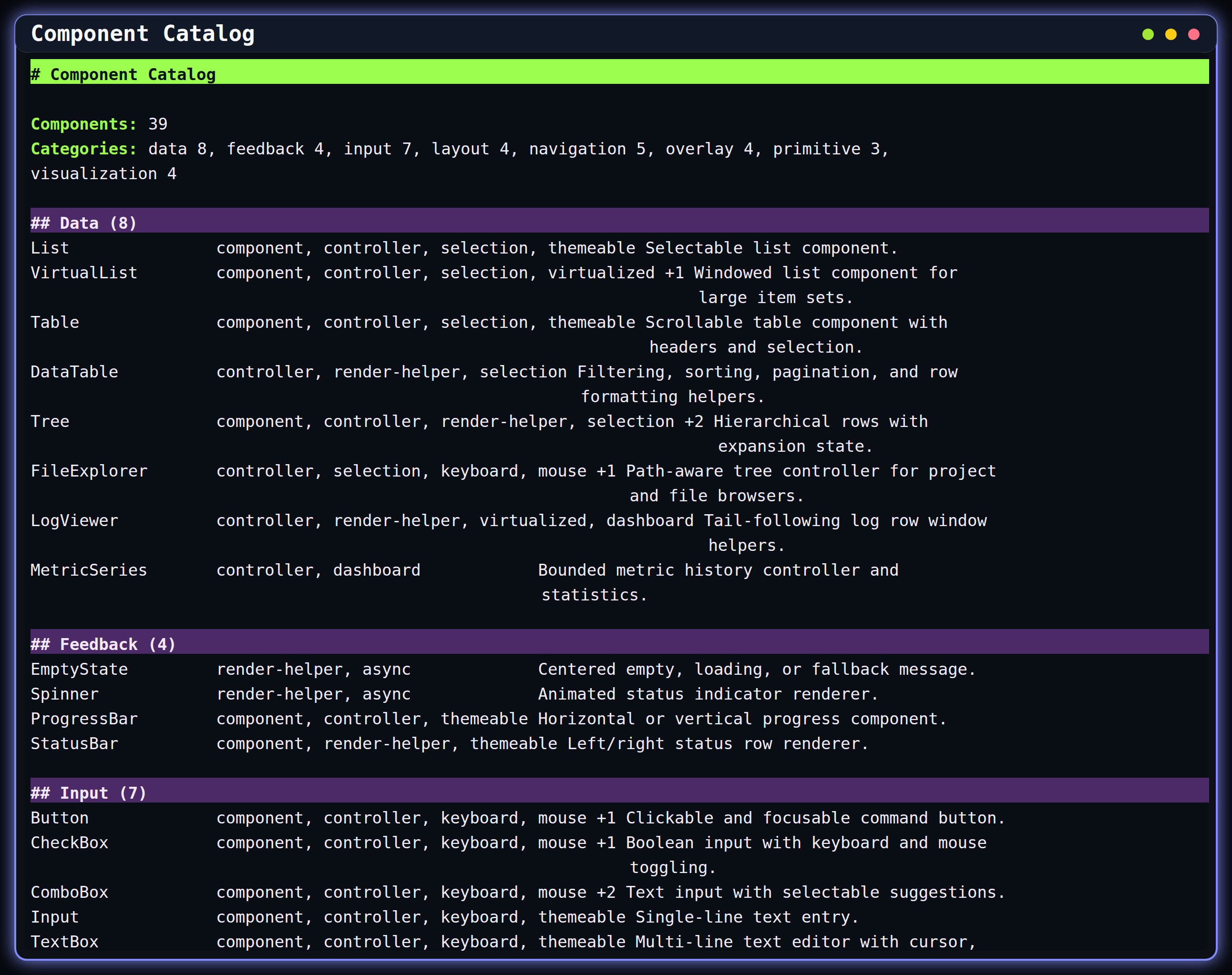

Applications And Catalog

Development

The full contributor gate is:

deno task health

It verifies formatting, public API and package policy, generated docs, examples, browser and remote entrypoints, benchmarks, the main test matrix, browser tests, and worker tests. Useful focused commands include:

deno test
deno task package-check
deno task api-inventory -- --check
deno task benchmark
deno task e2e

Renderer and workbench changes also require the matching live probe or PTY/browser visual smoke. See Testing and Performance for the current matrix and thresholds.

OS Support

Operating system	Linux	macOS	Windows*	WSL
Base	yes	yes	yes	yes
Keyboard support	yes	yes	yes	yes
Mouse support	yes	yes	yes	yes

On Windows, run chcp 65001 if Unicode characters display incorrectly.

Contributing

Open an issue or pull request for bug fixes, features, or documentation improvements. Keep changes scoped, add focused coverage for behavior changes, and run the relevant health gates before submitting.

This project follows Conventional Commits.

License

MIT. See LICENSE.md.
