CyberBrick Plugin for OpenClaw

Giving Life to CyberBrick Devices via AI

English | 中文

This plugin bridges the gap between OpenClaw AI agents and CyberBrick hardware. It empowers any CyberBrick device (Mini T Tank, robotic arms, etc.) with autonomous capabilities, turning static hardware into intelligent, interactive companions.

Demo

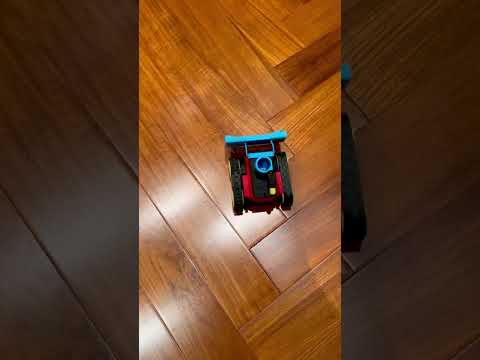

Watch OpenClaw and CyberBrick transform a Mini T Tank into a free-roaming bot!

Mission

Our goal is to animate the physical world through AI. By connecting CyberBrick's versatile hardware ecosystem with OpenClaw's powerful agent framework, we enable:

• 🤖 Autonomous Behavior: Devices that explore, react, and make decisions independently.
• 🎭 Personality Injection: Programmable "souls" like the "Hyperactive Kid" persona.
• 🔌 Universal Control: A unified driver interface for all standard CyberBrick pinout configurations.

Architecture

How your AI command travels from the cloud to the physical world:

graph TD
    %% Nodes
    User([👤 User / Feishu]) -->|Chat Command| OpenClaw[🧠 OpenClaw Agent]
    OpenClaw -->|Invokes Skill| Driver[🔌 CyberBrick Plugin]

    subgraph Computer [Your Computer / Server]
        Driver -->|Serial / REPL| USB{🔌 USB Port}
    end

    subgraph Hardware [Physical World]
        USB -->|Serial| Remote[🎮 CyberBrick Remote]
        Remote -->|ESP-NOW Wireless| Tank[🤖 CyberBrick Tank]
    end

    %% Styles
    style OpenClaw fill:#f9f,stroke:#333,stroke-width:2px
    style Remote fill:#bbf,stroke:#333,stroke-width:2px
    style Tank fill:#bfb,stroke:#333,stroke-width:2px

Loading

1. User: Sends a command (e.g., "Dance!") via Feishu/Lark or CLI.
2. OpenClaw: Processes the intent and calls the cyberbrick-driver skill.
3. Plugin: Converts the skill call into MicroPython code.
4. USB: Sends code to the CyberBrick Remote via Serial (REPL).
5. Remote: Executes the code and sends wireless commands (ESP-NOW) to the Tank.
6. Tank: Receives commands and moves its motors!

Core Capabilities

This plugin currently provides the following skills:

1. Universal Driver (cyberbrick_driver/cyberbrick_driver.py):

   • Precise motor and servo control (1000Hz PWM).
   • Standardized movement (Forward, Backward, Turn).
   • Action triggers (Fire, Turret elevation).
   • Full system diagnostics.

2. Autonomous Wander (cyberbrick_wander/cyberbrick_wander.py):

   • A "Hyperactive Kid" personality engine.
   • Self-driven exploration with erratic, playful behaviors.
   • Complex macro actions (Dance, Panic, Celebrate).

Usage

Hardware Setup

Before invoking any skills, ensure your hardware is ready:

1. Prepare Devices: You need a CyberBrick Remote (Transmitter) and a CyberBrick Tank/Robot (Receiver).
2. Pairing: Use the CyberBrick App to pair your Remote and Tank. Follow the official guide if needed.
3. Connection: Connect the CyberBrick Remote via USB to the computer running OpenClaw.
4. Power On: Turn on both the Remote and the Tank. Ensure they are paired (usually indicated by a solid LED).

Invoking Skills

Skills are registered in SKILL.md files within each subdirectory and can be invoked naturally by OpenClaw agents.

Example Prompts:

• "Start wandering around."
• "Perform a dance routine."
• "Run a hardware self-test."
• "Move forward at full speed for 3 seconds."

Note: The Agent communicates with the Remote via USB, which then wirelessly controls the Tank.

Directory Structure

• cyberbrick_driver/: Contains the driver skill and low-level hardware abstraction layer.
• cyberbrick_wander/: Contains the wander skill and high-level behavioral logic.
• README.md: Project documentation.

Installation & Configuration

Prerequisites

1. Python 3.x: Ensure Python 3 is installed on your system.
2. Dependencies: Install the required Python packages.

   pip3 install -r requirements.txt

Skill Installation

To make these skills available to all OpenClaw Agents (Global Installation), or just for a specific project, follow the instructions below.

Option 1: Global Installation (Recommended)

This will install the skills into OpenClaw's global skill directory, making them accessible to any agent in any workspace.

1. Create the global skills directory (if it doesn't exist):

   mkdir -p ~/.openclaw/skills

2.1. Clone the repository: bash git clone https://github.com/unbug/CyberClaw.git ~/.openclaw/skills/cyberbrick-claw

Option 2: Agent Workspace-specific Installation

If you only want to use these skills in a specific Agent Workspace (the project directory the Agent is currently operating in).

1. Navigate to the Agent's workspace root:

   cd /path/to/agent/workspace

2. Clone the repository:

   mkdir -p skills
   git clone https://github.com/unbug/CyberClaw.git skills/cyberbrick-claw

Option 3: Development Mode (Symlink)

If you are developing these skills and want changes to be reflected globally without copying files.

mkdir -p ~/.openclaw/skills
ln -s $(pwd)/cyberbrick_driver ~/.openclaw/skills/cyberbrick-driver
ln -s $(pwd)/cyberbrick_wander ~/.openclaw/skills/cyberbrick-wander

Registration

OpenClaw automatically detects SKILL.md files in its skill search paths (e.g., ~/.openclaw/skills/ or ./skills/). No further configuration is usually required once the files are in place.

Configuration

The CyberBrick Driver needs to know which serial port your device is connected to. It attempts to auto-detect the port, but you can explicitly configure it if needed.

Option 1: Auto-Detection (Recommended) The driver will automatically look for devices with names like "CyberBrick", "usbmodem", "USB Serial", or "CP210". Just run the commands, and it should work.

Option 2: Environment Variable Set the CYBERBRICK_PORT environment variable to your specific serial port.

# macOS / Linux
export CYBERBRICK_PORT=/dev/tty.usbmodem12345

# Windows
set CYBERBRICK_PORT=COM3

Option 3: Command Line Argument Pass the --port argument when running the driver directly.

python3 cyberbrick_driver/cyberbrick_driver.py test --port /dev/tty.usbmodem12345

Troubleshooting

• Permission Denied: If you get a permission error accessing the serial port, you may need to add your user to the dialout group (Linux) or check your driver settings.
• Device Not Found: Ensure the CyberBrick is powered on and connected via USB. Check if it appears in ls /dev/tty.* (macOS/Linux) or Device Manager (Windows).

---

Powered by OpenClaw & CyberBrick
