Scene graph UI editor written in JavaScript
Please Read First!
This repository is merely for demonstrating proof-of-concept. This is experimental code left in a work-in-progress state with all that that entails. Here's a sample of some needed changes if it were meant for production (it isn't):
- better variable naming
- more thorough code comments
- unit tests
- implementation of IIFE's for scope management
- some tweaks to the declarative JSON syntax for clarity, brevity, organization, etc.
- overall better organization
For further details regarding the "why" behind this state of affairs please see my website's 'Web Development Era' section: https://www.clarityncode.com/p/1.html
Further, this code was written in 2011 with pre-ES2015 syntax; that means no computed property names for object literals, no for...of loops, destructuring assignment, etc. etc.

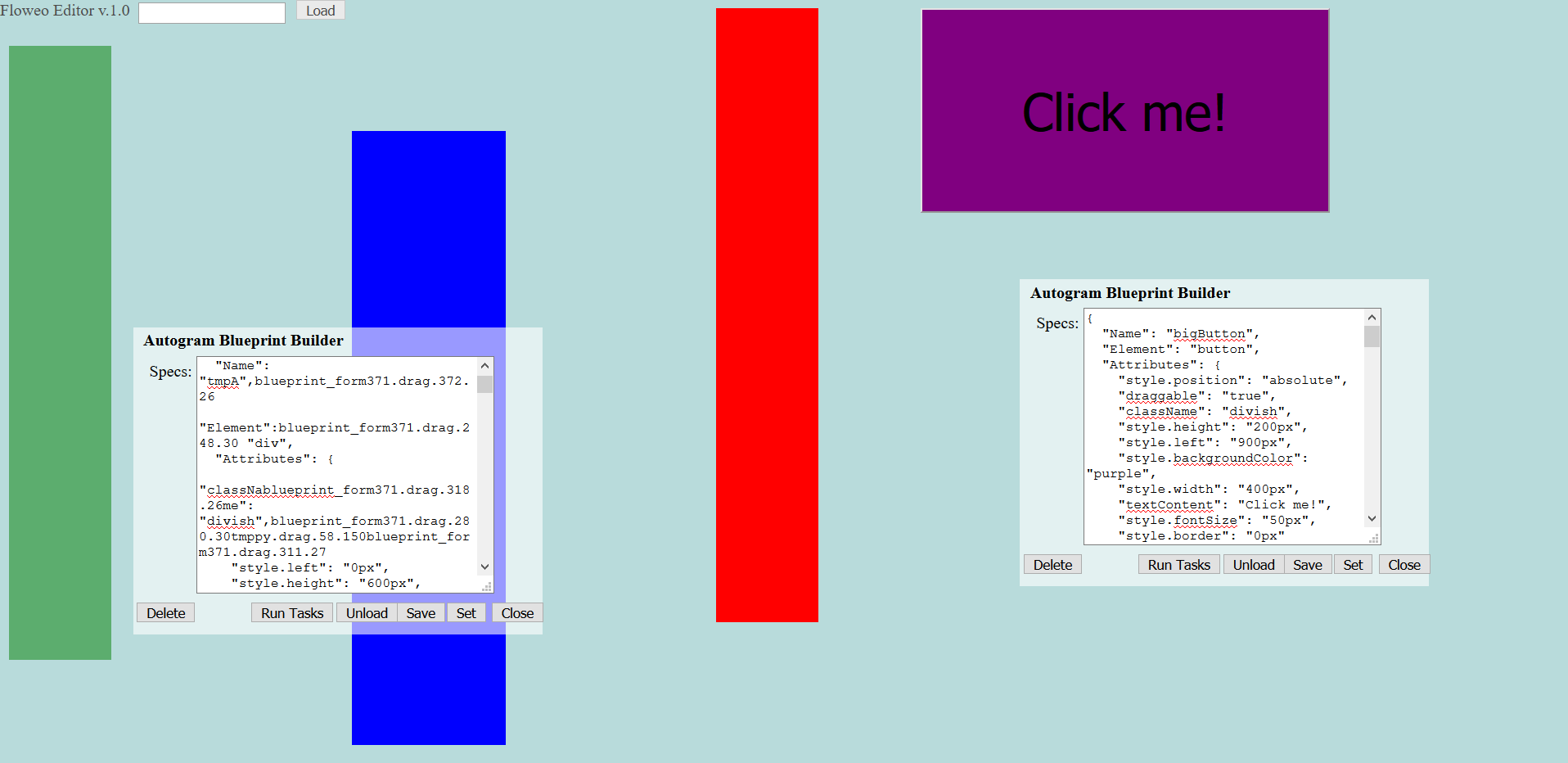

Editor commands are below. Fullscreen demo is here.
To load and play around with this code just download the 'editor demo' folder then open and load the 'editor.html' file in a browser.
With the exception of the text 'Floweo Editor v.1.0' and the neighboring text field, everything on screen is draggable to allow rearranging.
Commands:
- mouse over the text field to the right of the 'Load' button to see a pop-up holding any objects saved to Local Storage
- if there are any objects in storage, type the object's value (not the key!) into the text field and press 'Load' to load it onscreen
- mouse over any object on screen and an editor box will pop up to reveal the object's details
- move the mouse off of the object to remove the editor box
- click on the editor box pop-up to keep it on the screen for editing
- press 'Ctrl' and then double-click anywhere on the screen to bring up an Autogram editor box for a new object.
Autogram Editor Box
- you can modify any of the JSON literal syntax, press the
- 'Set' button to see the changes (must do this first! before saving to persist changes)
- 'Save' to save a serializable version of the Autogram to LocalStorage in the browser
- 'Close' removes the editor box
- 'Unload' lets you remove an Autogram from the screen
- 'Run Tasks' let's you run any serial or parallel tasks (aka tweens) you've created --> and added to the Behaviors Object <--
- 'Delete' removes the autogram from the screen and Local Storage
This demo demonstrates all of the main motivations for wrapping a normal DOM object with the thinnest of JSON literal syntax wrappers in order to allow:
- dynamic offsets: when a base object is moved all linked objects move with it (e.g. try dragging an Autogram Editor box and see how all of the contained elements move with it)
- constraints: callback functions will be triggered when a value is updated so that it violates a set constraint
- tweening of values in serial or parallel using 'Behaviors', which are groups of tasks
- mapping of view model to a possible underlying data model with DataObjs' Input and Output object fields
- easy and direct serialization since it's all just JSON allowing for an entire web app interface to be saved and loaded from a database and have its properties updated on the fly
