[Just In Time Messages] Add build and locale identifiers to JITM request

[joshheald]

Closes: #8015

Description

In Project Salas, we've added the ability to send Just In Time Messages to all Woo Mobile users, initially displayed on the dashboard. A single message definition will be picked up both on iOS and Android. There are also cases when we want to send a message to a smaller subset of our users, or define test JITMs which are not yet ready for production. The with_query_string and without_query_string JITM rules can help here, but only if we pass useful data in the query.

JITM Query

To take advantage of these rules, this PR adds the following to the GET /jetpack/v4/jitm request, in the query part of the query object, which is passed to the JITM engine:

• platform = ios
• version = 11.1
• build_type = developer for localDeveloper and CI builds. N.B. we don't include this parameter on alpha/beta/production builds.
• device = phone or pad

Locale

There is undocumented support for a locale query parameter (top level) on our API. This is not supported in the JITM endpoints at present, but passing it now will allow us to support locale mismatch between the site and phone in future. At present, all JITMs will be localised to the site or user's default language.

locale=en_US or other phone locale code. This deliberately excludes any currency or other locale identifier information.

See pdfdoF-1Fe-p2 for full context.

Testing instructions

Configure Proxyman/Charles to view your network traffic, or use the WormHoly tools in the settings menu to view the requests later.

1. Run the app
2. Observe that a request is made to /jetpack/v4/jitm
3. Observe that the request has a locale parameter with your phone's locale as the value, at the top level of the request – 1 in screenshot below
4. Observe that the request has a query parameter, with a JSON object, with an internal query key.
5. Observe that the value for that key has platform, version, build_type, and device values as specified above – 2 in screenshot below.

N.B. the values for these parameters, including locale, are not currently used for anything by the backend.

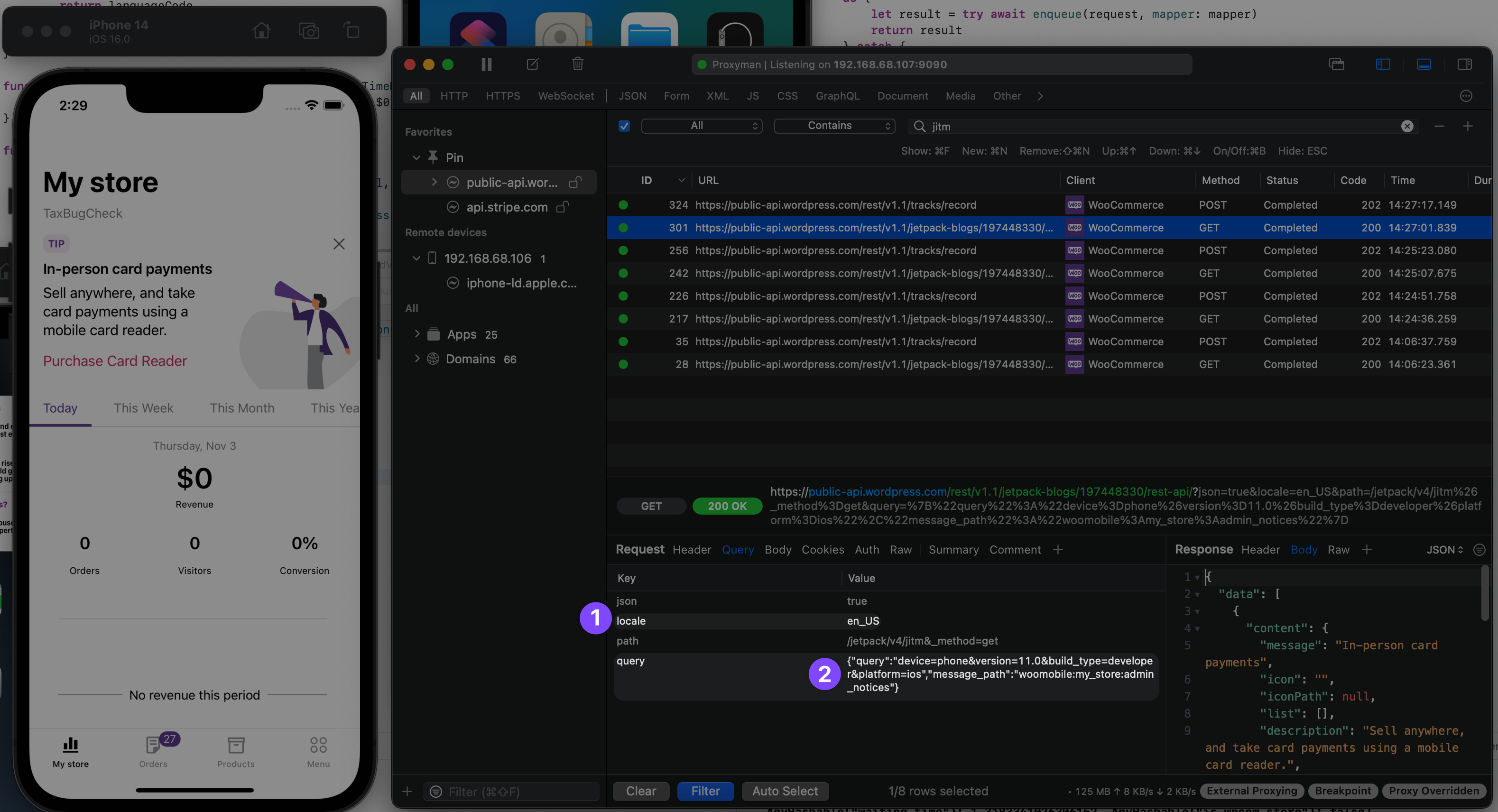

Screenshots

---

• I have considered if this change warrants user-facing release notes and have added them to RELEASE-NOTES.txt if necessary.

[wpmobilebot]

You can test the changes from this Pull Request by:

• Clicking here or scanning the QR code below to access App Center
• Then installing the build number pr8017-0ac84df on your iPhone

If you need access to App Center, please ask a maintainer to add you.

[koke]

Works as expected and code looks good. However the last few commits seem more related to the JITM public release than the description of this PR. Are these actually intended for this branch?

[koke]

Was this meant to go in this PR?

[joshheald]

Yep, that's intentional, this is the last bit required for the release of i1. I've checked that it works correctly on a release build.

Should have called it out in the description, sorry!

[joshheald]

Works as expected and code looks good.

@koke thanks again for the review!

[pachlava]

@joshheald 👋

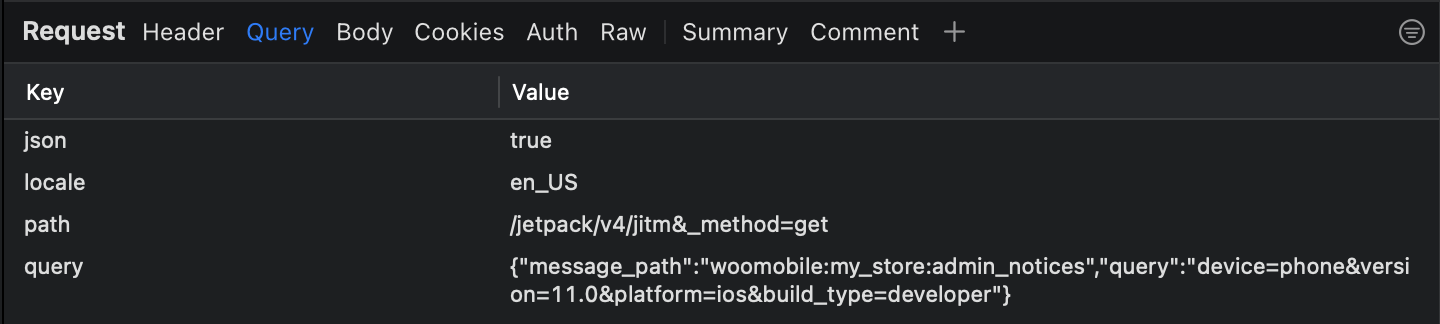

I've checked that build and locale identifiers now show up for iPhone:

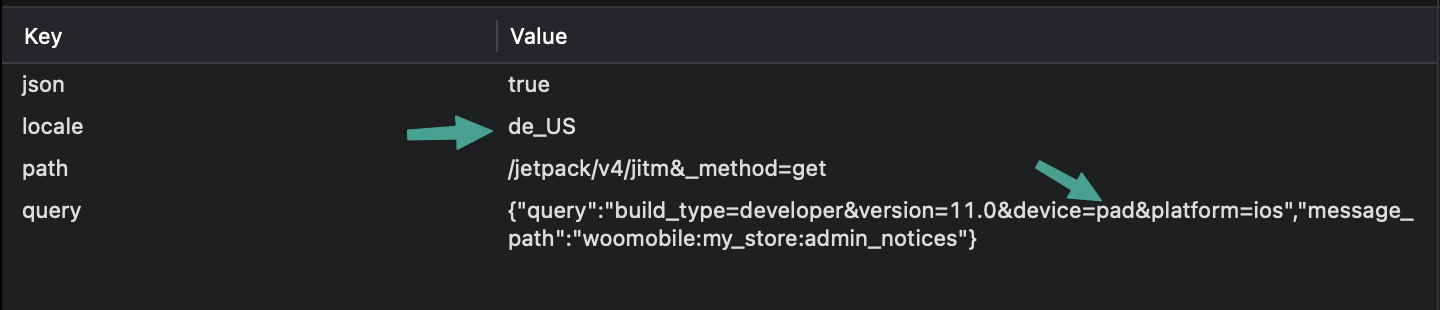

And that they change for iPad / other locale:

One small question: is it correct that when the app is not localized for the device locale in use (e.g. Ukrainian), the value still stays en_US?

[peril-woocommerce]

	Warnings
⚠️	This PR is assigned to a milestone which is closing in less than 2 days Please, make sure to get it merged by then or assign it to a later expiring milestone

Generated by 🚫 dangerJS

[joshheald]

@pachlava thanks as always for the review and detailed testing!

One small question: is it correct that when the app is not localised for the device locale in use (e.g. Ukrainian), the value still stays en_US?

I'd not tested this case, but if that's the behaviour it makes sense for our use case. If the reverse were to happen, we would have a localised message in an otherwise unlocalised app, which would seem pretty strange.

I didn't code that deliberately: I use Locale.current from the system, which must return the app's locale as en_US as its fallback. Because of this, it should also support hierarchies of localisation preferences.

[joshheald]

During testing with the new JITM testing definitions, I noticed that the display of JITMs had become inconsistent. Sometimes they showed up, sometimes they didn't.

This was because the build_type parameter is ignored when it's not the first parameter in the query string. That appears to be a backend bug, and I'll follow it up to get it logged and fixed.

In the meantime, I've added a workaround in 0ac84df, by sorting the query params with build_type and platform first: the two params we are most likely to care about initially.
