[Mobile Payments] Add local mobile discovery to StripeCardReaderService

[joshheald]

Closes: #8172

Description

In sTAP Away, we will add the ability to take card payments using the phone's built in card reader. This PR adds LocalMobileReaderDelegate conformance to our StripeCardReaderService, and discovery method support to our calls into the CardReaderService.

The Tap on Mobile functionality is behind a feature flag, and only available on localDeveloper Xcode builds. Alpha and Release builds do not currently have the correct entitlement to use the built-in reader functionality, and the feature toggle is not available on those builds.

When the feature toggle is enabled, all connection attempts will be made to the built-in reader; when it's disabled, all attempts will be bluetooth. In future, the feature flag will be changed to show the user-facing selection screen.

This PR does not address any UI changes, it only adds the feature flag, and the ability to connect to the built-in reader for payments when the toggle is enabled.

Duplication

There's quite a bit of duplicated code in the StripeCardReaderService. Future work will address this, for now it's important to keep the changes as simple as possible to enable us to work on the user-facing flows sooner.

Testing instructions

Simulated reader

The Stripe simulated reader can be used if this does not build to a device with your installed provisioning profiles. Updates to the profiles have been requested.

To enable the Stripe simulated reader, in Xcode go to Product > Scheme > Edit Scheme and select Run in the sidebar, then Arguments in the tabs. Check the -simulate-stripe-card-reader box.

Testing a

1. Using a WCPay or Stripe US store
2. Navigate to Menu > Settings cog > Experimental features
3. Toggle Tap to Pay on iPhone
4. Go back to Menu
5. Tap Payments > Collect payment and go through the Simple Payments flow.
6. Select Card on the payment methods screen, and connect to the (built-in) reader
7. Observe that you can take a payment using the built in reader.

Screenshots

With simulated reader

Note that there is a bug in the Stripe simulated reader, which means the Preparing reader screen remains on screen and the other screens do not show the payment details.

tap-on-iphone-simulator.mp4

With physical device

This shows the flow, but the screen recording does not capture the out-of-process Apple Tap on iPhone payment screen, which is shown over the Reader is ready screen you see in this video.

tap-on-iphone-device.mp4

Simulator without turning on the simulated reader

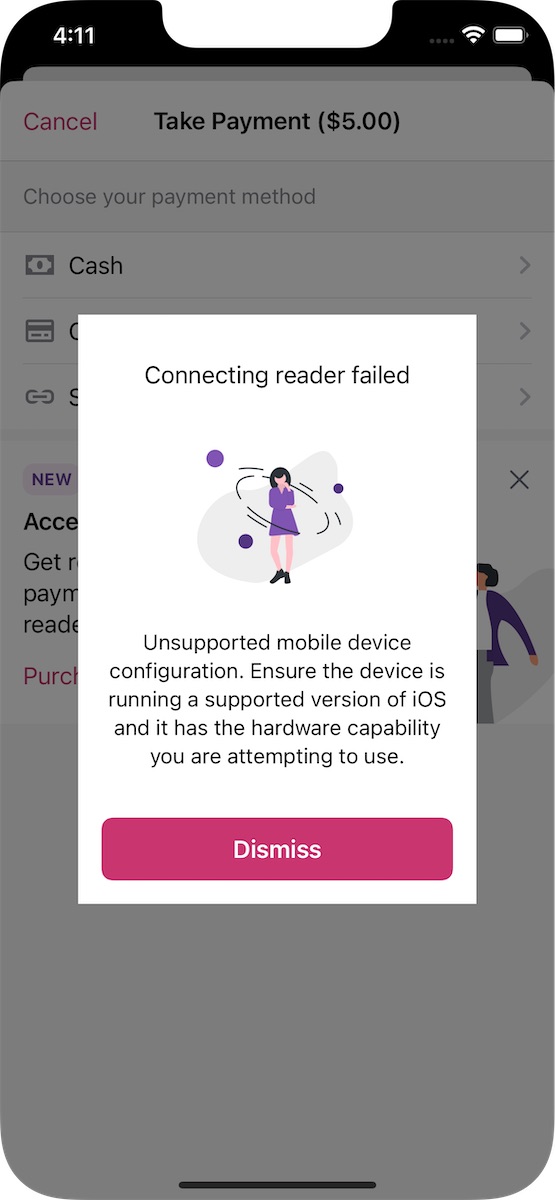

If you try to use the built-in (non-simulated) reader in a simulator, you'll see this error

---

• I have considered if this change warrants user-facing release notes and have added them to RELEASE-NOTES.txt if necessary.

[wpmobilebot]

You can test the changes from this Pull Request by:

• Clicking here or scanning the QR code below to access App Center
• Then installing the build number pr8174-924d537 on your iPhone

If you need access to App Center, please ask a maintainer to add you.

[joshheald]

@jostnes @lmischner I've added you as optional reviewers. I'll be refactoring quite a bit, so there will be more chances to test this as we go along.

@toupper similarly for context... this is the early stages of getting the structure in place.

[toupper]

The code looks good and it tests well, what a great addition to IPP! 🎉

[toupper]

Typo here: received 😅

[joshheald]

Will fix that in a future PR :)
