[Mobile Payments] Implement simpler built-in reader connection flow

[joshheald]

Part of: #8082

Description

In sTAP Away, we add the ability to use the built-in NFC card reader on compatible iPhones to take card payments.

The Stripe SDK we use keeps a very similar interface for built in reader connections, compared to bluetooth reader connections. The interface is almost identical, asking us to discover a reader, then connect to it, even though it's the phone's built in hardware.

The connection flows for BuiltIn and Bluetooth card readers are similar, but the built-in flow has less complexity. In particular, we only need to support one built-in reader for Tap on Mobile, so we can remove the ability to skip a reader, don't need to show a list of readers to choose between, and can always auto connect to a found reader.

Using the BuiltIn variant of the CardReaderConnectionController (duplicated in #8280) I've stripped out the unnecessary steps and code to provide the following connection flow.

1. Clear any candidateReader
2. Start a localMobile search using CardPresentPaymentAction.startCardReaderDiscovery
3. When the first reader is found, start connecting to it
4. If there's a "software update" (actually configuring the device), install it
5. When the reader is connected, call completion with connected(reader) so that Preflight can continue with its work
6. Display any errors, allowing retry where appropriate.

N.B. There's no change to the visuals or text for the Built-in reader flow – this PR continues to use the same alerts as the bluetooth reader flow.

The next step is to update the alerts that are shown, and then, I'll factor out the shared code.

Testing instructions

If you do not have a device which is provisioned for Tap on Mobile, please enable the simulated card reader and build to a simulator.

To enable the Stripe simulated reader, in Xcode go to Product > Scheme > Edit Scheme and select Run in the sidebar, then Arguments in the tabs. Check the -simulate-stripe-card-reader box.

Using a US store with WCPay or the Stripe gateway:

1. Turn on the Tap to Pay on iPhone experimental feature in settings
2. Tap Menu > Payments > Collect Payment
3. Follow the flow to create a payment, and select Card when asked for the payment method
4. Choose Tap to Pay on iPhone
5. Observe that the connection flow proceeds and automatically connects to the built in reader.

Repeat, using the simulated reader, after setting the software update type to .required (change it in code and rebuild)

Observe that when you do this, the connection flow proceeds and performs the update, displaying progress as it does so.

Screenshots

built-in-reader-connection-flow.mp4

---

• I have considered if this change warrants user-facing release notes and have added them to RELEASE-NOTES.txt if necessary.

[wpmobilebot]

You can test the changes from this Pull Request by:

• Clicking here or scanning the QR code below to access App Center
• Then installing the build number pr8281-6fce3fe on your iPhone

If you need access to App Center, please ask a maintainer to add you.

[joshheald]

@toupper No rush on this: it's fine to go in 11.6 given that it's all feature flagged anyway.

@jostnes @lmischner: optional as usual, and there will be a fair bit more change in the refactor here. I want to keep you up to date with development/refactoring progress though. This moves us towards the flow for connecting a built in reader, which is simpler than the bluetooth reader and described here pdfdoF-1J0-p2#comment-2949

[toupper]

Thanks a lot for this PR @joshheald, it looks much simpler now, and it tests well.
I have a question that might not be related to this PR, so if that's the case, please feel free to move to whatever place suits you better.

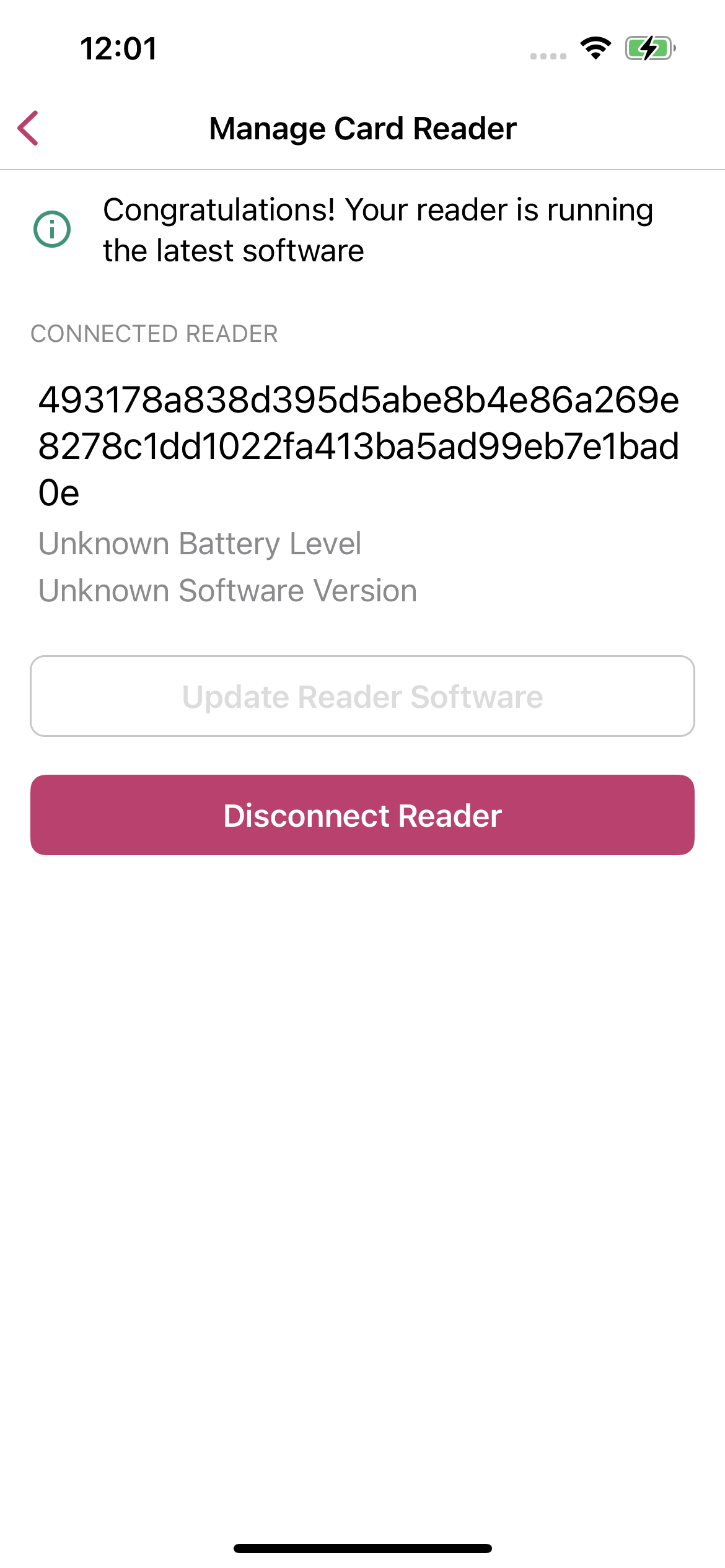

After paying via Tap To Pay, we have the built-in reader in our Manage Card Reader screen:

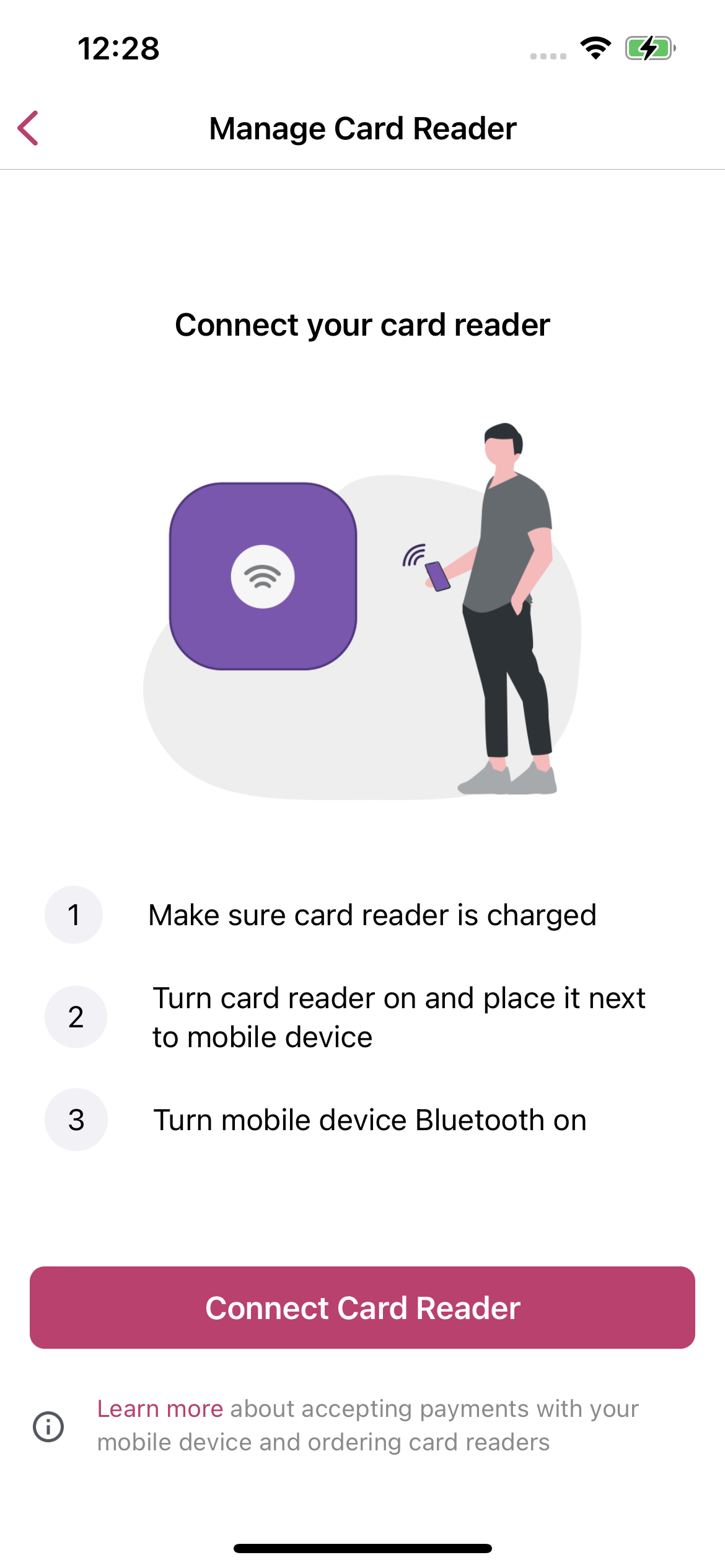

If however, we disconnect it, the connect screen doesn't reference the built-in reader, being very specific for Bluetooth ones:

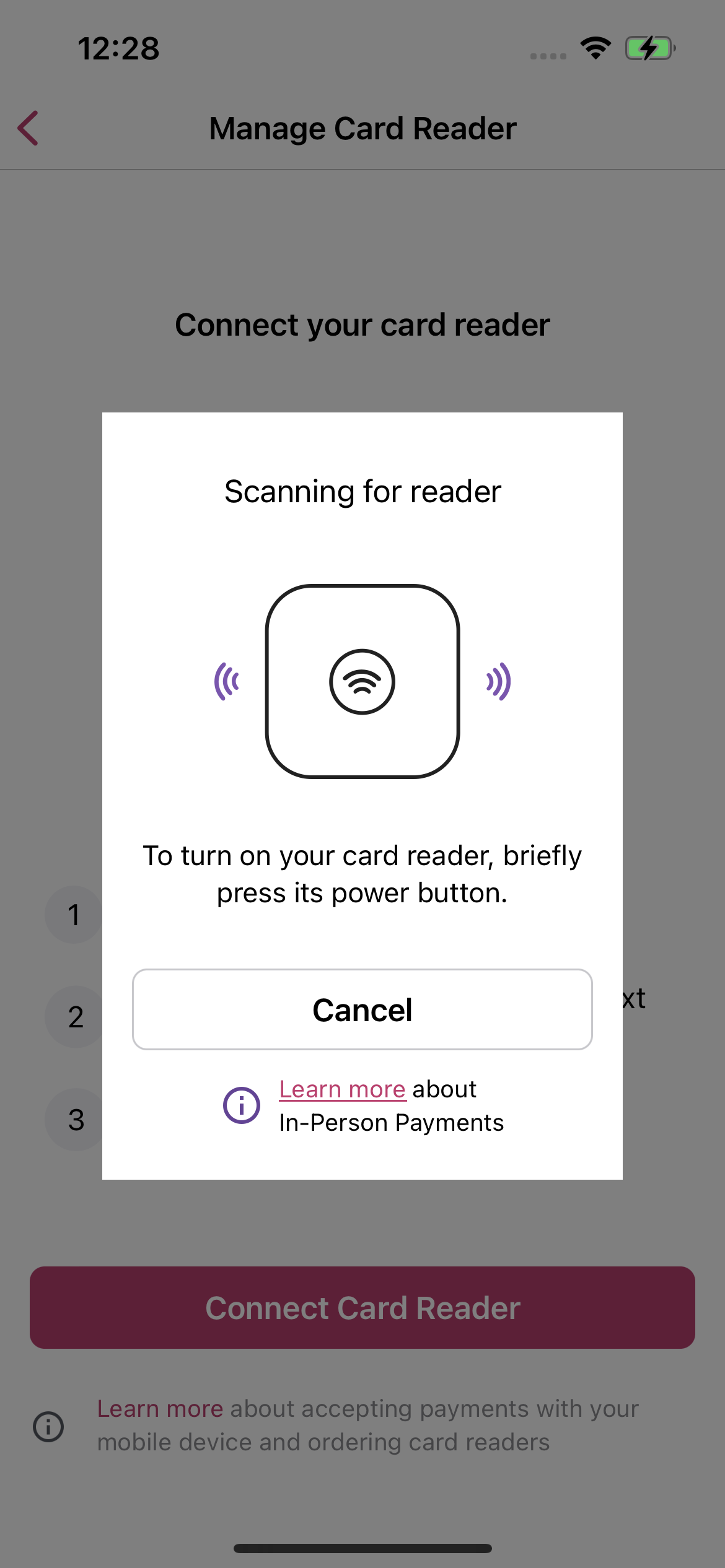

If we try to connect a reader there, we cannot connect to the built-in one:

I think these inconsistencies might be confusing to the user. Are we planning to address this issue? Thanks a lot!

[joshheald]

Thanks for the review @toupper!

I have a question that might not be related to this PR, so if that's the case, please feel free to move to whatever place suits you better. After paying via Tap To Pay, we have the built-in reader in our Manage Card Reader screen:

If however, we disconnect it, the connect screen doesn't reference the built-in reader, being very specific for Bluetooth ones:

If we try to connect a reader there, we cannot connect to the built-in one:

I think these inconsistencies might be confusing to the user. Are we planning to address this issue? Thanks a lot!

I've not addressed that screen yet, but my plan is not to change it significantly: there's nothing for the user to manage about a built in reader (no battery level, no software updates) and no useful information (serial number) to be gained from this screen. The built-in reader shows up here when it's connected, because it needs to be disconnected before we can use a different reader, but there's no other reason to show it.

We can review that with some more design input, but that might be more appropriate for a later iteration. Potentially we could immediately prompt the user to disconnect the built in reader if they come to this screen with it connected?

Some planned work which might help avoid user confusion is to surface the built in reader in the payments menu (#8087) and simplify the display of the built in reader in this screen (#8081).

[toupper]

Some planned work which might help avoid user confusion is to surface the built in reader in the payments menu (#8087) and simplify the display of the built in reader in this screen (#8081).

That would be a great idea, surfacing the built in reader in Payments is good not only for avoiding confusion but also for highlighting this new feature.
