Show CityStateType civilopedia text on CS Nation pages - #15283

Open
Fanfblrik wants to merge 7 commits into
yairm210:masterfrom
Fanfblrik:feature/cs-type-civilopedia-on-nation
Open

Show CityStateType civilopedia text on CS Nation pages#15283
Fanfblrik wants to merge 7 commits into
yairm210:masterfrom
Fanfblrik:feature/cs-type-civilopedia-on-nation

Conversation

@Fanfblrik

@Fanfblrik Fanfblrik commented Jul 26, 2026

Copy link
Copy Markdown
Contributor

Summary

Follow-up to #15271 / review note from @SomeTroglodyte: CityStateType is a RulesetObject with civilopediaText / uniques, but has no Civilopedia category.

  • Surface type civilopediaText and type-level uniques on the city-state Nation civilopedia page (NationDescriptions.getCityStateInfo).
  • Start bias […] from the type is not duplicated in the type-unique list — it already appears via Nation.getStartBias, using the same block as major civs (Terrain/… link, chain + terrain icons, civilopedia navigation).
  • CS page layout aligned with major-civ Nation pages: no separator before start bias; friend/ally bonuses stay sub-indented; shared Color.toHexColor() helper (review).

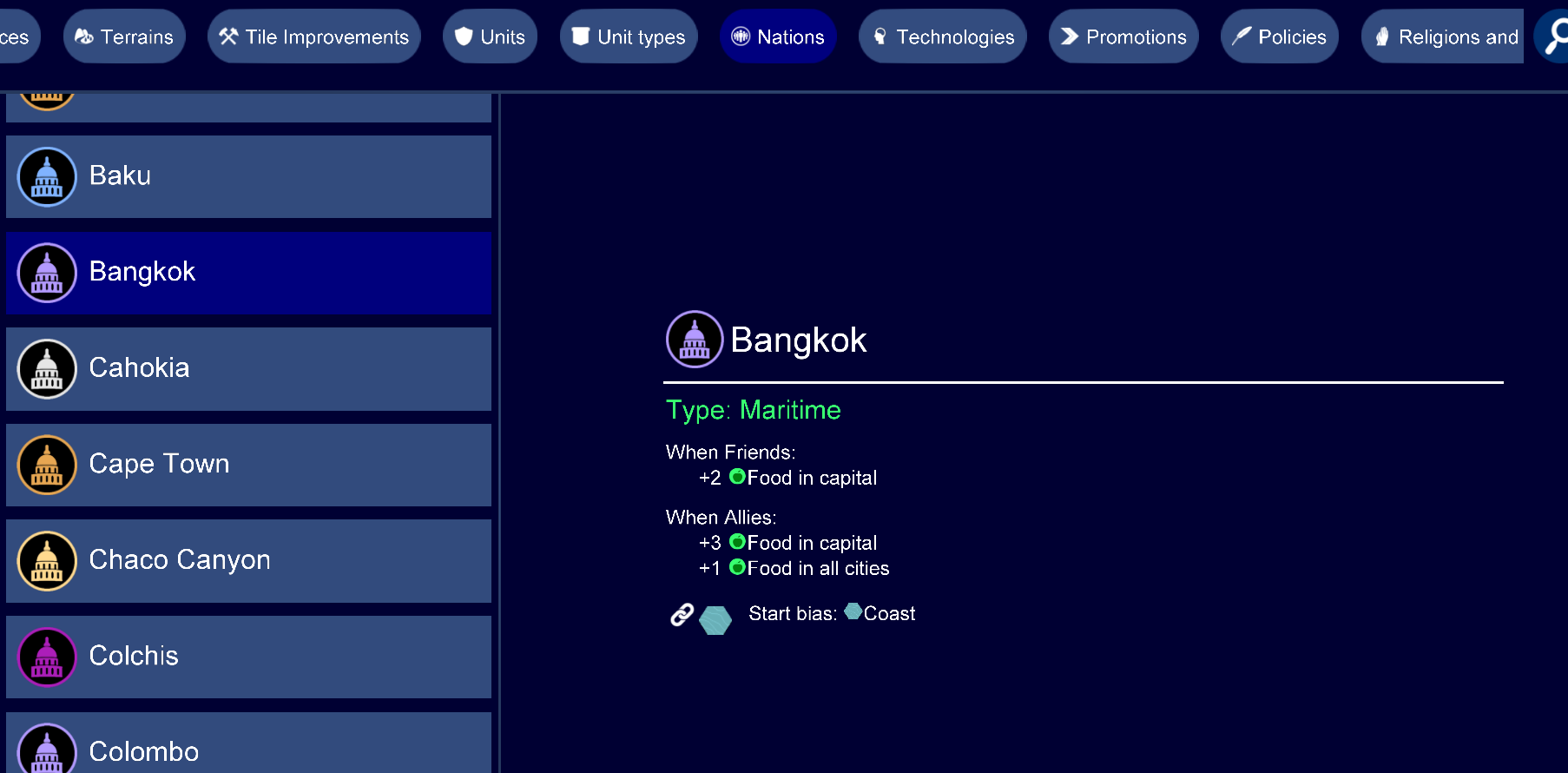

Bangkok (Maritime CS) — Civilopedia Nation page

(Screenshot file is for review only; can drop _pr_screenshots/ before merge.)

Test plan

  • CityStateTypeCivilopediaOnNationTests
  • Civilopedia → Nations → Bangkok (G&K Maritime CS): type line, When Friends/Allies bonuses, Start bias: Coast with Terrain/Coast link (click opens Coast terrain page)
  • Mod CityStateType with civilopediaText / non-StartBias unique — both show on a CS of that type
  • CI green

CityStateType has no Civilopedia category; surface type lore and type-level uniques (except Start bias, already listed via getStartBias) on the nation entry.

Co-authored-by: Cursor <cursoragent@cursor.com>
@SomeTroglodyte

Copy link
Copy Markdown
Collaborator

UI PR's need screenshots

val textList = ArrayList<FormattedLine>()

val cityStateType = ruleset.cityStateTypes[cityStateType]!!
textList += FormattedLine("{Type}: {${cityStateType.name}}", header = 4, color = "#"+cityStateType.getColor().toString())

Copy link
Copy Markdown
Collaborator

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Not yours, but
https://kotlinlang.org/docs/coding-conventions.html#horizontal-whitespace

Also, how often is such a conversion done in the current codebase 🤔 ? The luxury version exists here:

private fun Color.toMarkup(): String {
val mapEntry = inverseColorMap[this]
if (mapEntry != null) return mapEntry
if (a < 1f) return "#" + toString()
return "#" + toString().substring(0,6)
}

And another here:

@Readonly fun getHexColor() = "#" + getColor().toString().substring(0, 6)

Might be worth a common extension.

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Good catch on the spacing — fixed.

Also extracted a shared Color.toHexColor() next to colorFromRGB in Scene2dExtensions, and wired Era.getHexColor / ColorMarkupLabel.toMarkup / this call site through it.

return textList
}

@Readonly

Copy link
Copy Markdown
Collaborator

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Pity the @Cache/@LocalState way is blocked here, right?

See also: #15015, where it's done properly.

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Yes — restoring @Readonly fails here because uniquesToCivilopediaTextLines (mutable overload) is not @Readonly. Left a short note pointing at #15015; once the FormattedLineListBuilder lands this is the obvious cleanup.

Copy link
Copy Markdown
Collaborator

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

If it lands - I was hoping for some -any- feedback before I un-draft it, because converting existing code would be a lengthy chore. But then that was the trigger - seeing how many structurally different generators we cobbled together over time.

Fanfblrik and others added 5 commits July 27, 2026 11:22
…only

Co-authored-by: Cursor <cursoragent@cursor.com>
…t bias)

Co-authored-by: Cursor <cursoragent@cursor.com>
…ayout)

Co-authored-by: Cursor <cursoragent@cursor.com>
Co-authored-by: Cursor <cursoragent@cursor.com>
return textList
}

private fun Nation.appendStartBiasLines(textList: MutableList<FormattedLine>, ruleset: Ruleset) {

@yairm210 yairm210 Jul 27, 2026

Copy link
Copy Markdown
Owner

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

In fact as of the latest version this is Readinly-able! This is exactly the scenario for @Mutated, passing mutation rights on to subfunctions!
https://yairm210.github.io/Purity/usage/advanced-usage/#mutating-input-parameters

Requires Purity 1.7.0 for the Mutated annotation (was added after 1.6.0).

Co-authored-by: Cursor <cursoragent@cursor.com>
@Fanfblrik

Copy link
Copy Markdown
Contributor Author

Tried marking getCityStateInfo / uniquesToCivilopediaTextLines @Readonly with @Mutated lists. Purity still rejects it: the sequence overload calls non-Readonly SuspendFunction1.invoke, and the mutable overload calls non-Readonly Sequence.toCollection. Left as-is pending FormattedLineListBuilder (#15015) or Readonly-friendly helpers.
