KeeneticRainmeterPlugin

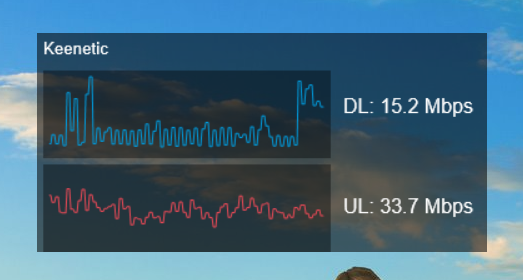

A speed graph for Keenetic routers, displayed directly on your Windows desktop.

Installation

First, you need to install Rainmeter on your computer. Then, download and install the .rmskin file, which is available in the Releases section.

After installation, you should specify the password for your Keenetic user in the Rainmeter.data file, which is located by default in the %appdata%\Rainmeter folder (for ex. C:\Users\user\AppData\Roaming\Rainmeter). You can also specify the username and the URL of the router's web interface.

[KeeneticPlugin]
Login=admin
Password=qwerty1234
URL=http://192.168.1.1
Interface=ISP

The plugin has been tested with the Keenetic Viva (KN-1910).

Obtaining the Interface Name (optional)

Go to your router's Web CLI http://192.168.1.1/a and run the command:

show interface

Find the JSON key interface-name in the results.

Another way is to connect to your router via telnet:

telnet 192.168.1.1

Then, run the same command:

show interface

A list of all interfaces will be displayed.

Multiple Interfaces and Routers

You can specify multiple interfaces of the same router in the Rainmeter.data file by separating them with commas:

[KeeneticPlugin]
Interface=ISP,Wireguard0

Next, specify the interface for a Measure in the skin file.

This plugin can also be used with multiple routers.
You can create multiple sections with parameters in the Rainmeter.data file.
Then, you can use the section name as the Router option for a Measure in the skin file:

[MeasureDownloadSpeed]
Measure=Plugin
Plugin=KeeneticRainmeterPlugin
Type=download
Interface=Wireguard0
Router=MyRouter

[MeasureUploadSpeed]
Measure=Plugin
Plugin=KeeneticRainmeterPlugin
Type=upload
Interface=Wireguard0
Router=MyRouter

The default value for the Router option is KeeneticPlugin.

Custom Command

You can use a custom command from the router's REST interface. The interface name is passed as an argument to the command.

[KeeneticPlugin]
Command=show/interface
DownloadField=ds_fast_rate
UploadField=us_fast_rate
DownloadDivider=1000
UploadDivider=1000
;RequestType=GET

You can use JsonCpp path syntax in the DownloadField and UploadField options.

Building from Sources

To build this plugin from source files, you will need:

• Git
• Microsoft Visual Studio 2019 or newer (with the C++ compiler)
• Python 3
• Conan 2.x (C++ package manager)

Building Dependencies

Run the following commands:

conan install . -g MSBuildDeps -s arch=x86 -s build_type=Release --build=missing -s compiler.runtime=static
conan install . -g MSBuildDeps -s arch=x86_64 -s build_type=Release --build=missing -s compiler.runtime=static

conan install . -g MSBuildDeps -s arch=x86 -s build_type=Debug --build=missing -s compiler.runtime=static
conan install . -g MSBuildDeps -s arch=x86_64 -s build_type=Debug --build=missing -s compiler.runtime=static

You can now load conanbuildinfo_multi.props in your Visual Studio IDE's Property Manager, and all configurations will be loaded at once.

Dependencies

• libcurl https://github.com/curl/curl
• jsoncpp https://github.com/open-source-parsers/jsoncpp
• utf8 https://github.com/nemtrif/utfcpp
