Improve memory usage in track finding postamble

[stephenswat]

The code which turns the tips of our track finding into actual tracks uses an excessive amount of memory, as it massively overallocates. Indeed, it allocates memory as though all tips have the maximum number of track states, which is unrealistic. This commit makes it so that the number of valid track states is counted instead, making the allocation more precise. In my measurements, this more than halves the memory usage of traccc on $\langle\mu\rangle = 200$ ttbar events in the ODD.

Before:

Reconstructed track parameters: 884796
Time totals:
                  File reading  5202 ms
              Event processing  4388 ms
Throughput:
              Event processing  438.829 ms/event, 2.27879 events/s

After:

Reconstructed track parameters: 884784
Time totals:
                  File reading  5128 ms
              Event processing  4352 ms
Throughput:
              Event processing  435.297 ms/event, 2.29728 events/s

Note: The SYCL changes are best-effort but I haven't tested them.

[krasznaa]

So, count+fill it ended up being after all. 🤔 Good! I'm very on board with doing this consistently with what we found to be the most efficient during seed finding.

But I'd really like to reduce the number of individual memory allocations that we need for this. 🤔 With a single (SoA?) container for this new payload we could get away with allocating all needed GPU memory for the counting in one go.

[beomki-yeo]

I am happy with the changes as long as the CI passes

[stephenswat]

I was able to one-up myself, removing the counting kernel entirely, reducing the memory allocations, keeping the memory usage low, and improving performance:

Reconstructed track parameters: 884809
Time totals:
                  File reading  5144 ms
              Event processing  4230 ms
Throughput:
              Event processing  423.022 ms/event, 2.36394 events/s

[krasznaa]

I'm still very much on board with the direction.

Could you post a bit of a description of what you did though? I had to realize that it's a bit too much code for me to interpret from scratch. 😦 Just some main bullet points about how the algorithm finds the correct sizes now.

[stephenswat]

So the responsibility of the kernels in the old version of the algorithm was as follows:

• propagate_to_next_surface propagates the tracks and creates tips, i.e. points where a track might have ended. Each tracks corresponds 1:1 with a surface link, which describes the head of a reversed linked list of candidates.
• build_tracks follows the linked list of candidates starting at each tip, computes some properties about that track, and places all tracks (regardless of whether they make sense or not) in a very large jagged array
• prune_tracks looks at the reified tracks in the big jagged vector and copies the good ones (based on the properties determined by the build_tracks kernel) into the final jagged vector.

Now, the core insight is that the checks that build_tracks performs are extremely rudimentary. It's literally just that the number of non-hole candidates is between a lower and an upper bound. All other cuts are already performed by the propagate_to_next_surface. Thus, the core of this PR is to move the checks that build_tracks does to propagate_to_next_surface, which has all the necessary information already. The core idea is that we create only tips for valid tracks, rather than tips for all possible tracks. This, of course, also makes it trivial to count the number of valid tracks and how long those tracks will be. So in the new model, the tasks are distributed as follows:

• propagate_to_next_surface propagates the tracks and creates tips only for valid tracks, where the validity is defined by some very simple set of metrics. The definition of tips remain the same, but we create far fewer of them, and we record the length of each track.
• build_tracks no longer does any filtering, it just follows the linked list and places track states into a much smaller jagged vector.

Much simpler, and it has far fewer kernels. Note that in this new model build_tracks basically does what prune_tracks did in the previous model.

[beomki-yeo]

The core idea is that we create only tips for valid tracks, rather than tips for all possible tracks.

Yeah I think this is a right way to improve 🤔

[krasznaa]

Thanks for the description!

Let's just make the internal vector use the correct memory resource, and this one can go ahead as far as I'm concerned.

[sonarqubecloud]

Quality Gate passed

Issues
0 New issues
0 Accepted issues

Measures
0 Security Hotspots
0.0% Coverage on New Code
0.0% Duplication on New Code

See analysis details on SonarQube Cloud

[stephenswat]

This PR also fixes a bug in the efficiency measurements by the way! Wink wink nudge nudge 😉

[stephenswat]

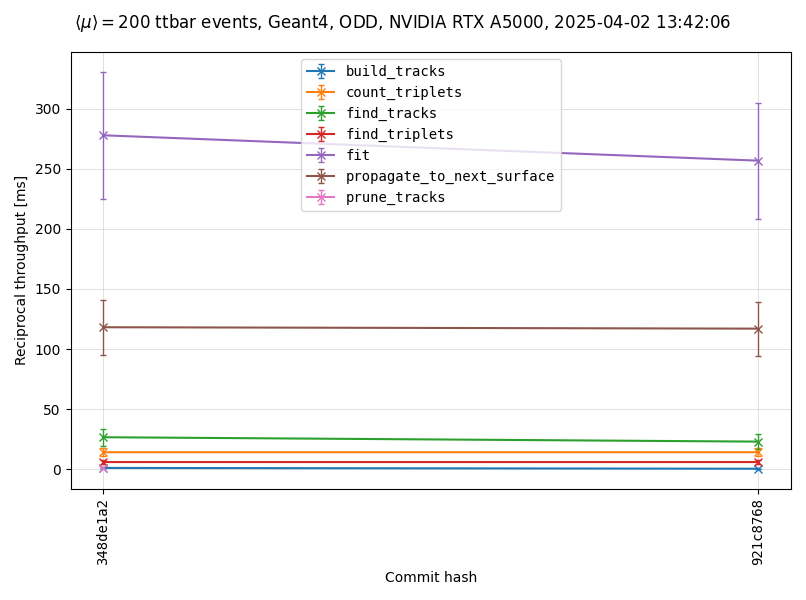

Performance summary

Here is a summary of the performance effects of this PR:

Graphical

Tabular

Kernel	348de1a	921c876	Delta
fit	277.88 ms	256.77 ms	-7.6%
propagate_to_next_surface	118.17 ms	117.00 ms	-1.0%
find_tracks	26.65 ms	23.00 ms	-13.7%
count_triplets	14.16 ms	14.16 ms	-0.0%
find_triplets	5.98 ms	5.98 ms	0.0%
find_doublets	911.31 μs	893.99 μs	-1.9%
Thrust::sort	757.86 μs	758.34 μs	0.1%
ccl_kernel	682.50 μs	682.54 μs	0.0%
count_doublets	627.27 μs	628.01 μs	0.1%
build_tracks	1.10 ms	445.35 μs	-59.6%
prune_tracks	1.23 ms	—	—
select_seeds	362.74 μs	358.26 μs	-1.2%
apply_interaction	132.45 μs	131.94 μs	-0.4%
update_triplet_weights	96.16 μs	96.23 μs	0.1%
fill_sort_keys	68.25 μs	67.72 μs	-0.8%
estimate_track_params	34.31 μs	34.31 μs	0.0%
populate_grid	30.40 μs	30.45 μs	0.2%
count_grid_capacities	29.21 μs	29.18 μs	-0.1%
form_spacepoints	14.24 μs	14.20 μs	-0.3%
reduce_triplet_counts	6.71 μs	6.71 μs	0.0%
static_kernel	1.78 μs	1.78 μs	0.1%
make_barcode_sequence	992.11 ns	1.00 μs	1.3%
fill_prefix_sum	165.57 ns	165.51 ns	-0.0%
Total	448.93 ms	421.08 ms	-6.2%

Note

This is an automated message produced on the explicit request of a human being.

[stephenswat]

Reminder that this important PR has been blocked for almost a month now. 😉

[beomki-yeo]

@krasznaa THere are indeed many PRs pending 🤔

[krasznaa]

After quite some delay (sorry about that 😦), let's indeed finally get this in.

After resolving the (hopefully trivial... 🤞) merge conflicts.
