v1.8.0 — Per-inverter power-limit control

Highlights

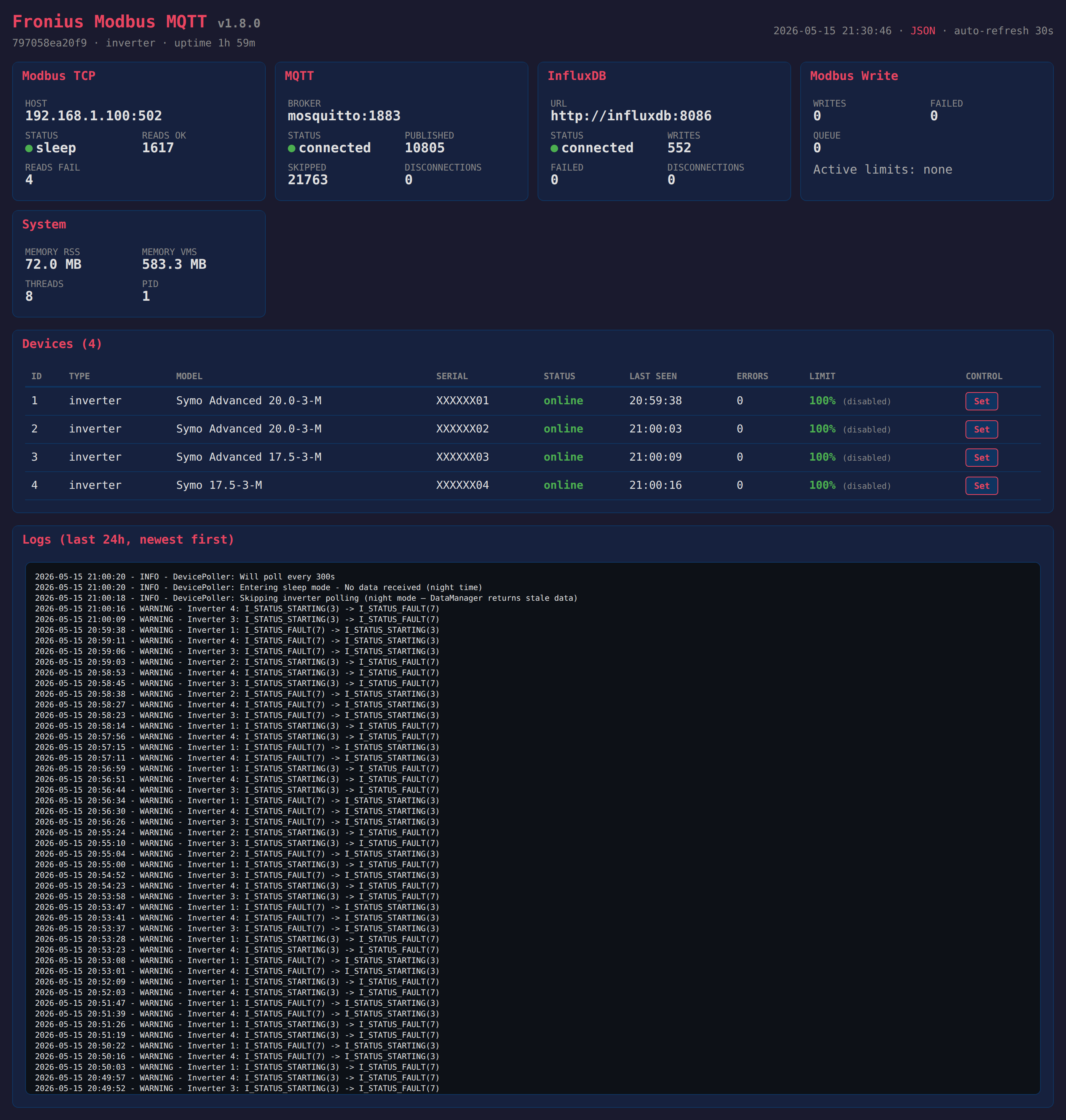

New: per-inverter power-limit control modal in the monitoring dashboard. Click Set in the Control column of any inverter row to open a modal with a slider, an Advanced section for revert_timeout and ramp_time, plus Apply / Restore 100% / Cancel. The same 11-step safety pipeline as the MQTT command path — rate limit, range validation, read-back verification, auto-revert.

License change. This release switches from MIT to PolyForm Noncommercial 1.0.0. Personal, research, educational and noncommercial-organization use remains free; commercial use now requires a separate written license from the author with an attribution requirement. Pre-1.8.0 releases remain MIT for users who obtained them at that time. See LICENSE and NOTICE.

Pre-built multi-arch image on GHCR. Pull directly without building:

docker pull ghcr.io/sm26449/fronius-modbus-mqtt:1.8.0

Tags: 1.8.0, 1.8, 1, latest. Architectures: linux/amd64, linux/arm64 (Raspberry Pi 4/5 supported).

Added

• Per-inverter power-limit control in the dashboard (slider + numeric input, Advanced section, refetch on open, JS-driven auto-refresh that pauses while the modal is open). Full reference in docs/POWER_LIMIT_CONTROL.md.
• New endpoints (only registered when write.enabled=true):
  • POST /api/inverter/{id}/power_limit — body {limit_pct, revert_timeout?, ramp_time?}
  • POST /api/inverter/{id}/restore
  • GET /api/data — alias of ?view=json
• DevicePoller.get_latest_controls() / get_active_override() — cached live readback so the dashboard shows the current WMaxLim_Pct per inverter without an out-of-band Modbus read.
• controls_updated_at exposed in JSON; the modal renders a (read N s ago) staleness note (relevant during night/sleep mode).
• write.command_queue_size config option (default 50; was hardcoded 10). Override via WRITE_COMMAND_QUEUE_SIZE.
• docs/POWER_LIMIT_CONTROL.md and docs/MONITORING.md reference documentation.

Changed

• License: MIT → PolyForm Noncommercial 1.0.0. See LICENSE, NOTICE.
• README Quick Start now leads with the pre-built GHCR image; clone-and-build is "Path B".

Hardening (from internal review)

• _active_limits / _auto_revert_timers mutations and reads serialized by a new _write_state_lock (race between the poller thread and HTTP/MQTT command handlers).
• JSON payload embedded in the dashboard HTML neutralizes </ to <\/ (defence in depth against future string fields breaking out of <script type="application/json">).
• Modal fetches /api/data on open so values aren't stale after a long-open modal.
• Pydantic 422 validation errors are surfaced from detail[] instead of being flattened to HTTP 422.

CI

• New GitHub Actions workflow (.github/workflows/docker-publish.yml) builds multi-arch images on every v* tag and publishes to GHCR. Future releases ship with git tag -a vX.Y.Z && git push --tags.

Pull / Run

docker pull ghcr.io/sm26449/fronius-modbus-mqtt:1.8.0

See the README Quick Start for a minimal docker-compose.yml.

---

Full changelog: see CHANGELOG.md.
Diff: v1.7.0...v1.8.0.

v1.7.0 — Built-in HTTP Monitoring Dashboard

Built-in HTTP Monitoring Dashboard

New FastAPI-based monitoring server running as a daemon thread for runtime observability.

Endpoints

• GET / → HTML dashboard (dark theme, auto-refresh 30s)
• GET /?view=json → JSON API with full runtime state

Dashboard Features

• Status cards: Modbus TCP, MQTT, InfluxDB, Modbus Write, System (memory, threads)
• Devices table: model, serial number, online/offline status, last seen, error count
• Log viewer: scrollable, last 24h, newest first (max 500 lines)
• Status indicators: green/red dots for connection state

Configuration

monitoring:
  enabled: true
  port: 8080

Or via environment: MONITORING_ENABLED=true

Docker

ports:
  - "8082:8080"    # inverters
  - "8083:8080"    # meter

Dependencies

• fastapi, uvicorn, psutil (added to requirements.txt)

v1.6.0 — Inverter Power Limit Control

Highlights

Inverter Power Limit Control via Modbus TCP Write — Control inverter output power (WMaxLimPct) through MQTT commands with an 11-step safety write protocol.

New Features

• Power Limit Control — Set/restore inverter power limits via MQTT (fronius/inverter/{id}/cmd/set_power_limit)
• 11-step safety protocol — Connection reset, pre-write verification, atomic write, post-write read-back, rate limiting, auto-revert
• Software auto-revert — Automatically restore 100% after configurable timeout (default 1h)
• Hardware-level revert — revert_timeout parameter sets inverter-side fallback via WMaxLim_RvrtTms register
• Vendor status code — vendor_status_code and vendor_status_description persisted to InfluxDB

Bug Fixes

• WMaxLim_Ena stuck on restore — Restoring to 100% now sets WMaxLim_Ena=0; previously left Ena=1 which kept inverter in THROTTLED status even at full capacity
• Shutdown race condition — Poller thread stopped before power limit restore (prevents concurrent Modbus access)
• MPPT float noise — _parse_mppt_module_optimized now rounds negative scale factors (e.g. 5.050000000000001 → 5.05)
• IEEE 754 float noise — RegisterParser.apply_scale_factor() rounds results for negative scale factors
• Disconnect robustness — FroniusModbusClient.disconnect() tolerant to already-stopped poller

Safety

• Disabled by default — requires write.enabled: true
• All writes through existing DevicePoller connection (no separate connections)
• Rate limited: min 30s between writes per device
• Range validation: configurable min/max (default 10%-100%)
• Clean restore: WMaxLim_Ena=0 when restoring to 100% (inverter returns to MPPT)
• Bounded command queue (maxsize=10)
• Graceful shutdown restores all active limits to 100%

Configuration

write:
  enabled: false
  min_power_limit_pct: 10
  max_power_limit_pct: 100
  rate_limit_seconds: 30
  auto_revert_seconds: 3600
  stabilization_delay: 2.0

Full changelog: CHANGELOG.md

v1.3.1

[1.3.1] - 2026-02-26

Added

• InfluxDB Event Detail Persistence
  • New events_json field in fronius_inverter measurement
  • Stores decoded fault event codes, descriptions, and event class as compact JSON
  • Enables Grafana alerting and historical analysis of inverter fault events
  • Only written when events are active (no empty JSON stored)

Fixed

• Moved json import to module level in influxdb_publisher.py (was incorrectly inside conditional block)

Changed

• Updated InfluxDB measurement documentation in README with complete field list
• Complete README with all environment variables, project structure, and InfluxDB fields
• Added INFLUXDB_SCHEMA.md with full schema reference, example Flux queries, and write configuration
• Version bump to 1.3.1 in __init__.py and Dockerfile
