Remote Features

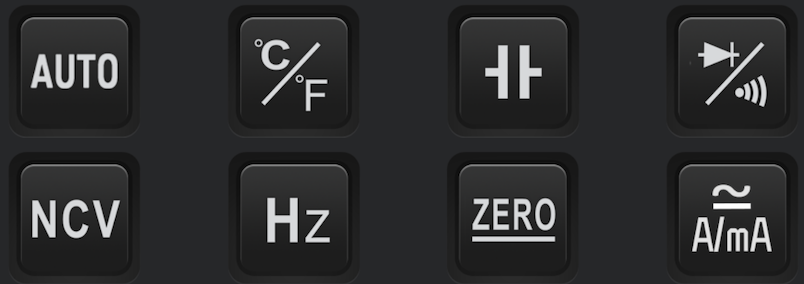

| Nr | A | B | miniDMM | clampDMM | Button | Code | Comment |
|---|---|---|---|---|---|---|---|
| -- |  |
 |
-- | -- | -- | -- | -- |
| 1 | * | * | -- | AUTO | eaec70eda2c132716499 | ACV/DCV -> R>50Ω -> R<50Ω+BEEP | |
| 2 | * | * | * | -- | °C | eaec70e3a2c13271649b | 1 Click |
| 3 | * | * | * | -- | °F | eaec70e5a2c132716481 | 2 Click |
| 4 | * | ? | * | -- | Capa | eaec70e5a221c132716481 | |
| 5 | * | ? | * | -- | ⏄/Buz | eaec70e4a2c132716486 | |
| 6 | * | * | * | -- | NCV | eaec70e7a2c132716487 | |
| 7 | * | ? | * | -- | Hz | eaec70e6a2c132716484 | |
| 8 | * | ?? | * | ZERO | Manual: "In capacitance mode, it can clean the reading on the screen." OR Reset to "0000" on BT-Clampmeter? | ||

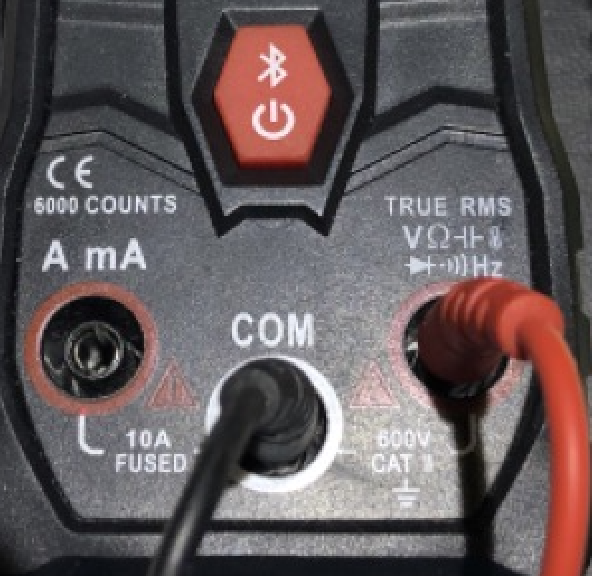

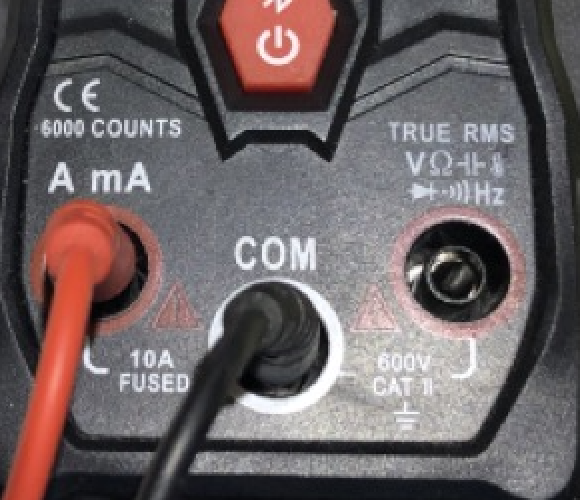

| 9 | -- | * | * | -- | mA / A | automaticly switched when Probe is in COM-A mA Place) | |
| 10 | * | * | * | -- | HOLD | only nrftool ,event press HOLD in APP ea ec 8e e1 a2 c1 32 71 65 83 ?? | |
| 11 | ?? | ?? | no | Min / Max | |||
| 12 | * | -- | no | -- | V | ||
| 13 | * | -- | no | -- | mV Hz | ||
| 14 | * | -- | no | -- | Ω |
- ClampDMM not tested
- DeskDMM not tested
