Node: Model class

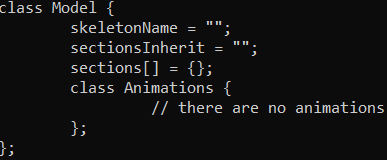

Output data

This node represents a generic model class with all it's properties exposed.

Node

Properties

• Name: name of the model class, all models must have unique names and follow the naming rules

Inputs

• Parent: parent model
• Inherit sections: model to inherit section list from (often the same as parent)
• Skeleton: skeleton the model uses
• Section list: list of sections (in config aka. hiddenSelections)
• Animation list: list of animations

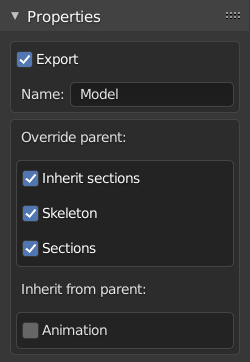

Sidebar

Properties

• Export:
  • True: export class (if the node is connected to the other node, it is automatically true)
  • False: ignore class during export (if set to false, all output connections of the node are removed)
• Name: see the node properties above
• Override parent:
  • True: input socket for the respective property is enabled
  • False: input socket for the respective property is disabled
• Inherit from parent:
  • True: inherit values for the respective socket and append new values
  • False: define entirely new values regardless of the parent
